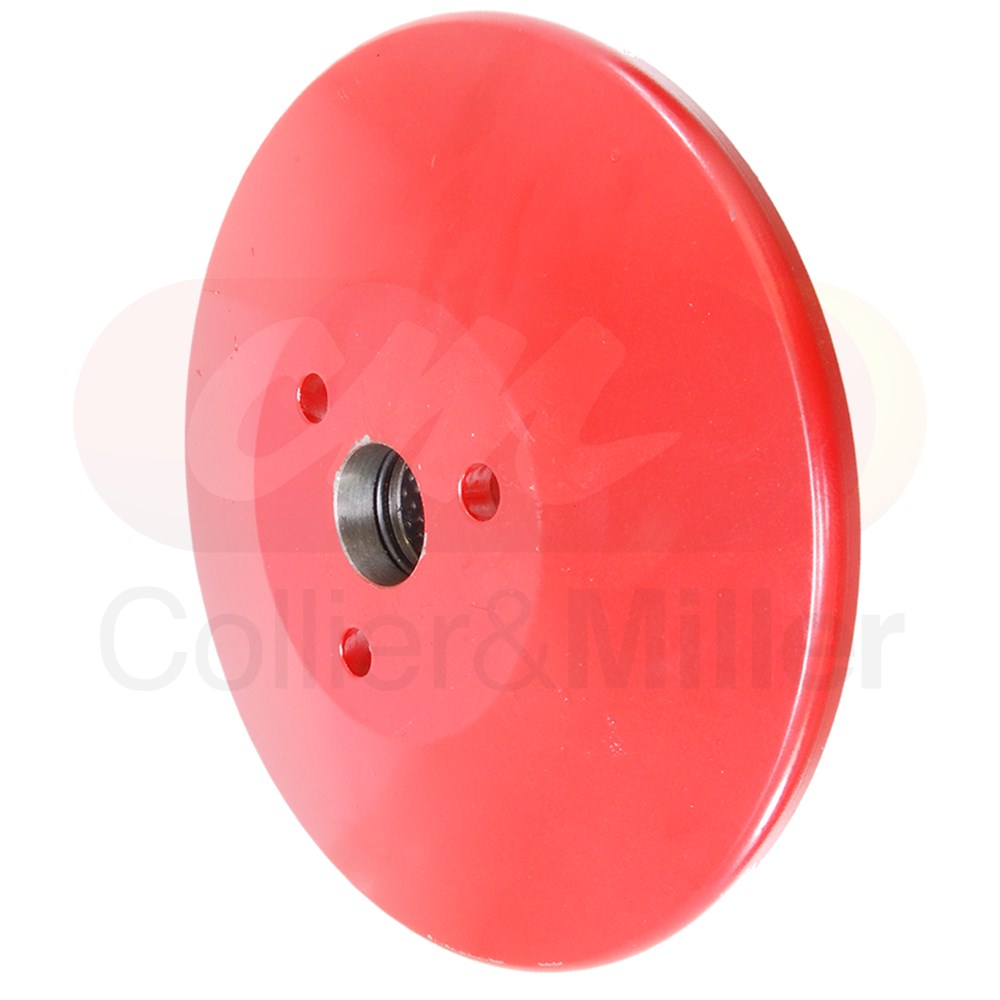

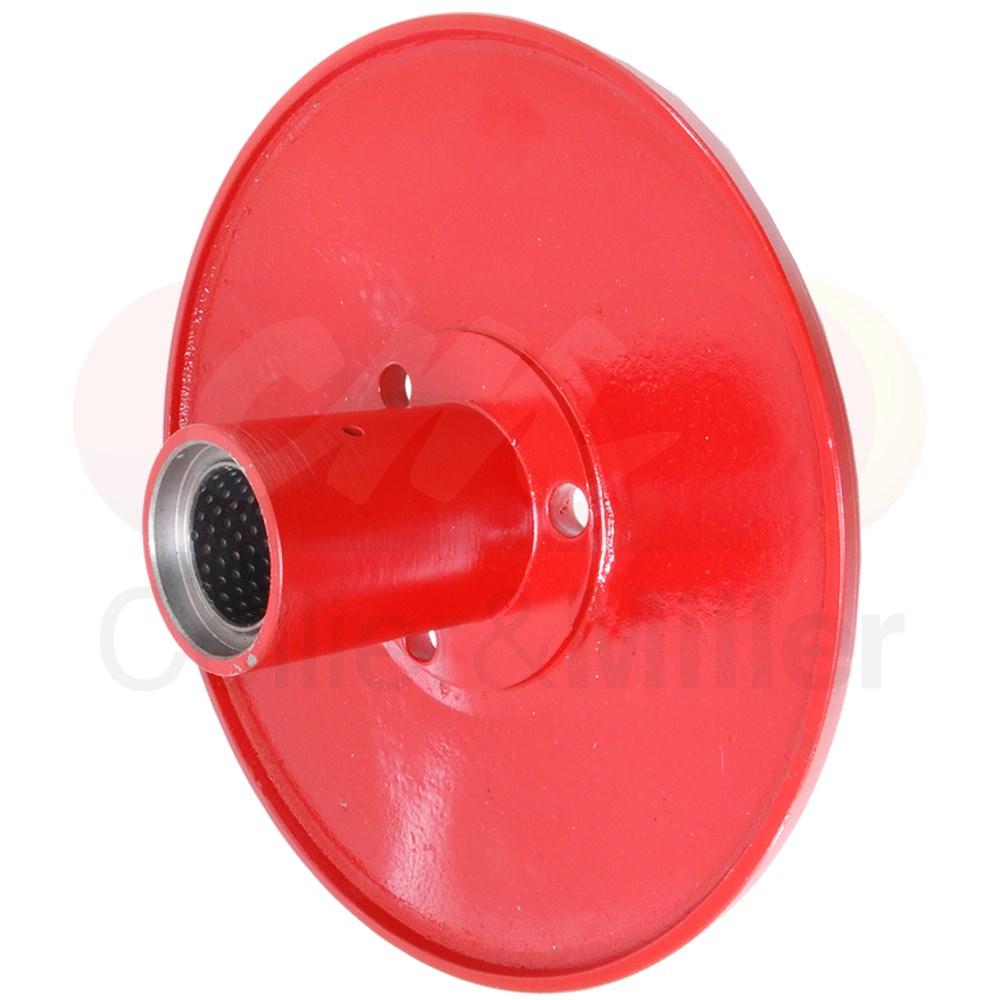

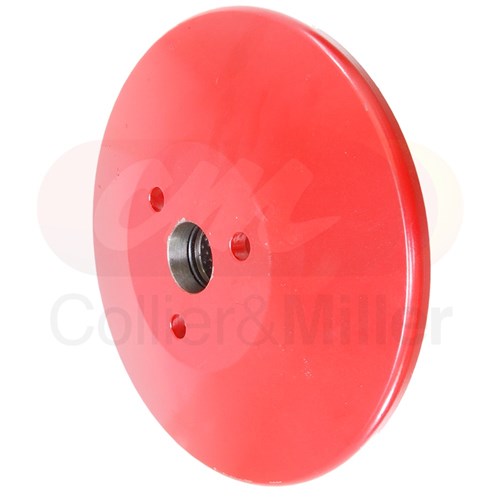

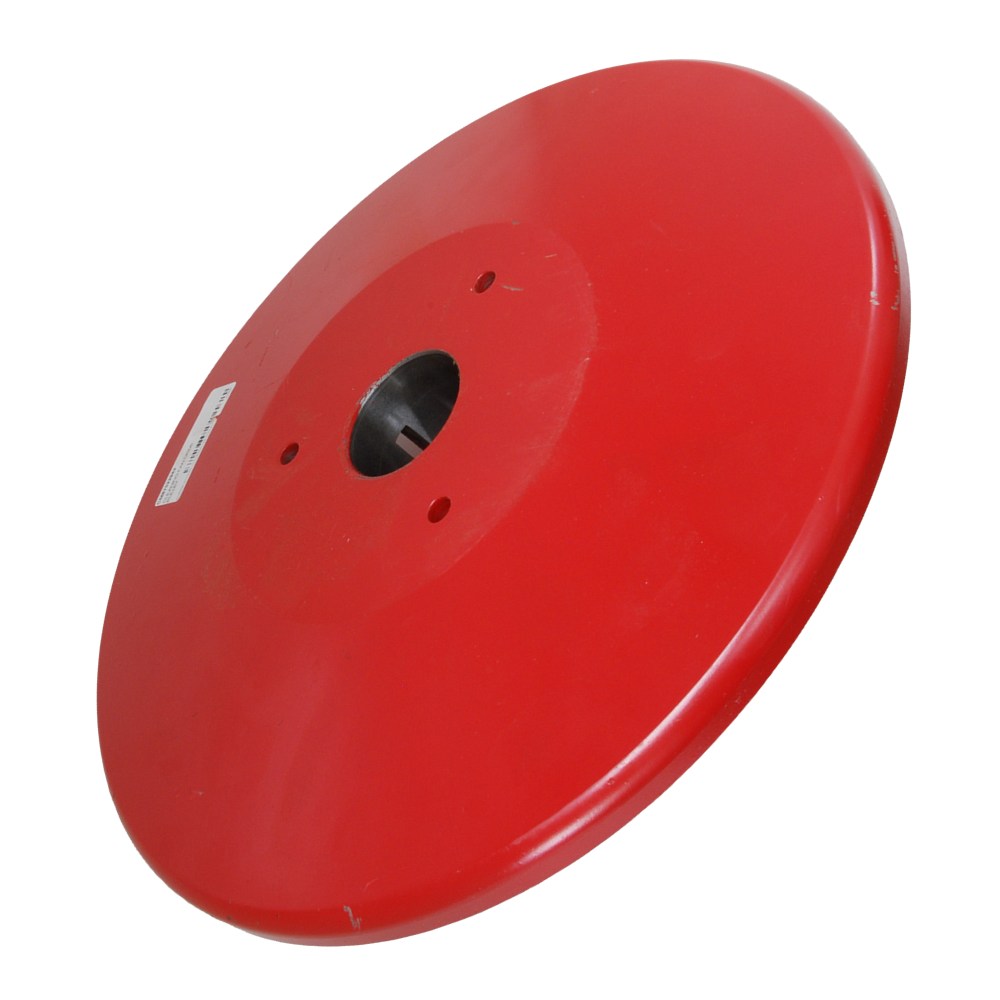

Case-IH® Compatible Cleaning Fan Drive Pulley Fixed Sheave (305mm)
Maintain the efficiency of your cleaning fan drive with this high-quality aftermarket pulley sheave. Specifically engineered for Case-IH® mid-series Axial-Flow combines, this inner sheave includes the fixed hub for a complete replacement solution.
This 305mm sheave is manufactured to meet or exceed OEM specifications, providing a precision fit and reliable variable-speed drive performance. It is a direct-fit replacement for standard CNH part numbers, ensuring a reliable drive for Case-IH® models from the 1600 series through to the modern 160 series.
Case-IH® Model Compatibility
Replaces OEM Part Numbers: 87522943
305mm Cleaning Fan Drive Sheave for Case IH 1680, 2388, 7088, 7150, 7160 Models
| Series |
Models |
Type |
| Case-IH® 1600 Series |
1620, 1644, 1660, 1680, 1688 |
Axial-Flow |
| Case-IH® 2100 Series |
2144, 2166, 2188 |
Axial-Flow |
| Case-IH® 2300 Series |
2344, 2366, 2377, 2388 |
Axial-Flow |
| Case-IH® 2500 Series |
2577, 2588 |
Axial-Flow |
| Case-IH® 88 Series |
5088, 6088, 7088 |
Axial-Flow |
| Case-IH® 130 - 160 Series |
5130, 7130, 5140, 7140, 5150, 7150, 5160, 7160 |
Axial-Flow |
Technical Specifications
- Description: 305mm Inner sheave assembly with integrated hub and bush.

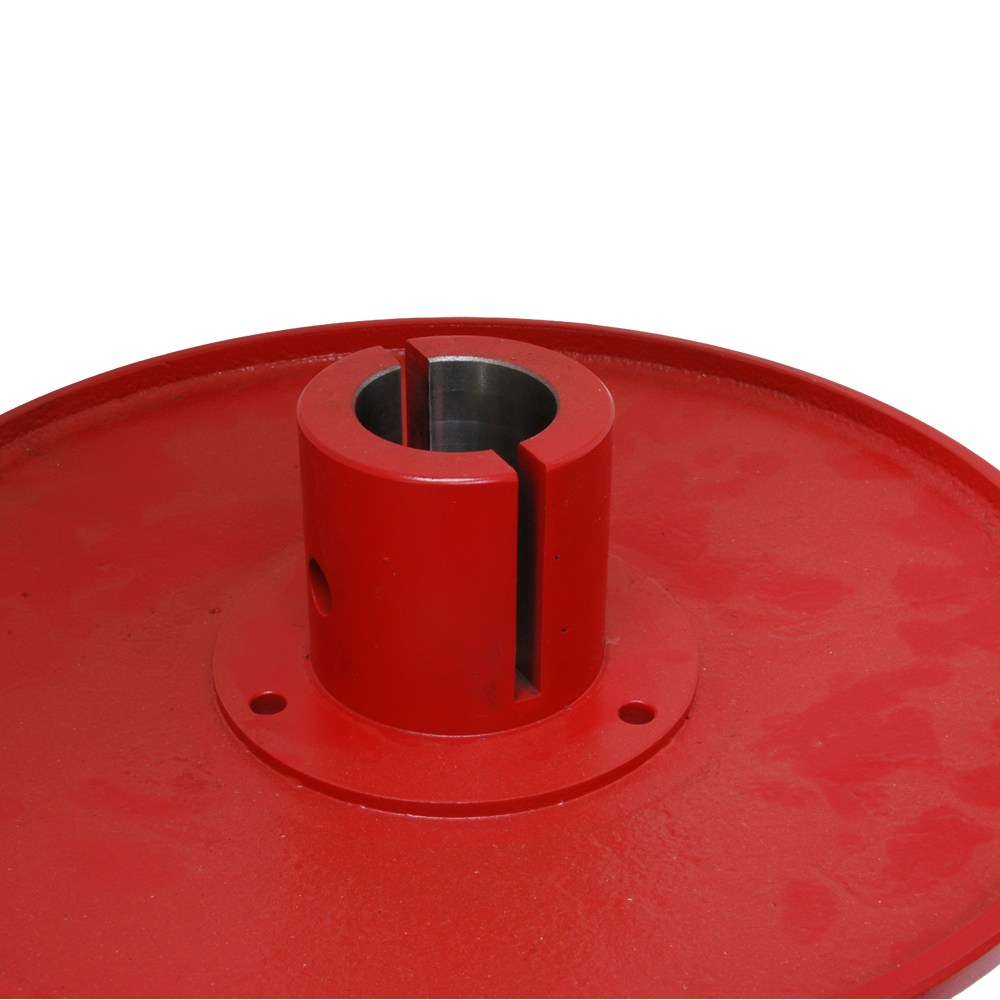

- Boss Dimensions: ID 1.75" (44.5mm) precision split boss.
- Drive Type: Variable speed cleaning fan drive system.
- Construction: High-durability cast iron manufactured to OEM tolerances.
- Available for fast Australia-wide dispatch from Collier & Miller.
