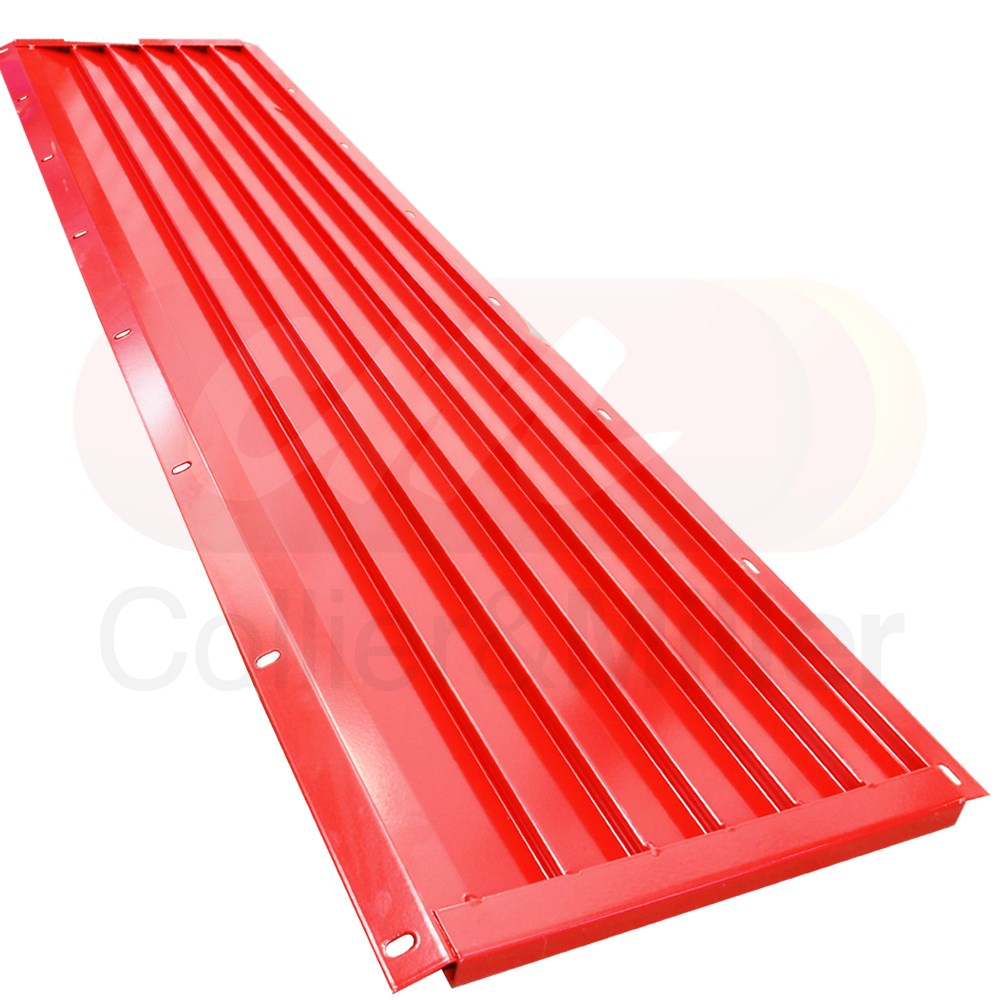

CASE-IH® Compatible Upper Chaffer Grain Pan Sieve
Optimise your combine's cleaning performance with this premium aftermarket upper grain pan chaffer sieve. Engineered specifically for Case IH® mid-series Axial-Flow combines, this high-quality sieve ensures efficient grain separation and reduces loss during harvest.
This chaffer sieve is a direct-fit solution for a wide range of Case IH® models, providing a reliable alternative to original equipment. It is designed to withstand harsh Australian harvest conditions, maintaining precise louvre adjustment and structural integrity across multiple series.
Case-IH® Mid-Series Model Compatibility
Replaces OEM Part Numbers: 87745690, 192057C1, 1312938C1
Upper Chaffer Sieve for Case IH 1688, 2388, 7088, 7150 Models
| Series |
Models |
Serial / Year |
| Case-IH® 14 Series |
1480, 1482 |
All Models |
| Case-IH® 16 Series |
1640E, 1660E, 1680, 1680E, 1688 |
All Models |
| Case-IH® 21 Series |
2188 |
All Models |
| Case-IH® 23 Series |
2377, 2388 |
All Models |
| Case-IH® 25 Series |
2577, 2588 |
All Models |
| Case-IH® 88 Series |
5088, 6088, 7088 |
All Models |
| Case-IH® 130 Series |
5130, 6130, 7130 |
All Models |
| Case-IH® 140 Series |
5140, 6140, 7140 |
All Models |
| Case-IH® 150 Series |
5150, 6150, 7150 |
All Models |
Technical Specifications & Dimensions
| Specification |
Measurement |
| Overall Length |
Approx. 1462 mm |
| Overall Width |
Approx. 386 mm |
| Package Weight |
5.67 kg |
Features
- Heavy-duty aftermarket construction for extended service life.
- Precision louvre design for superior grain sample cleanliness.
- Direct-fit replacement for OEM part numbers 87745690, 192057C1, and 1312938C1.
- Available for fast Australia-wide dispatch from Collier & Miller.
