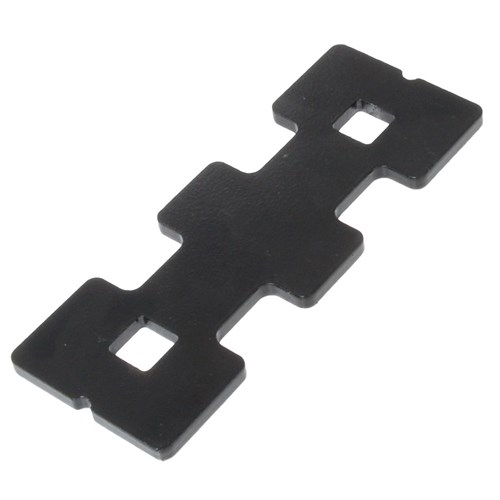

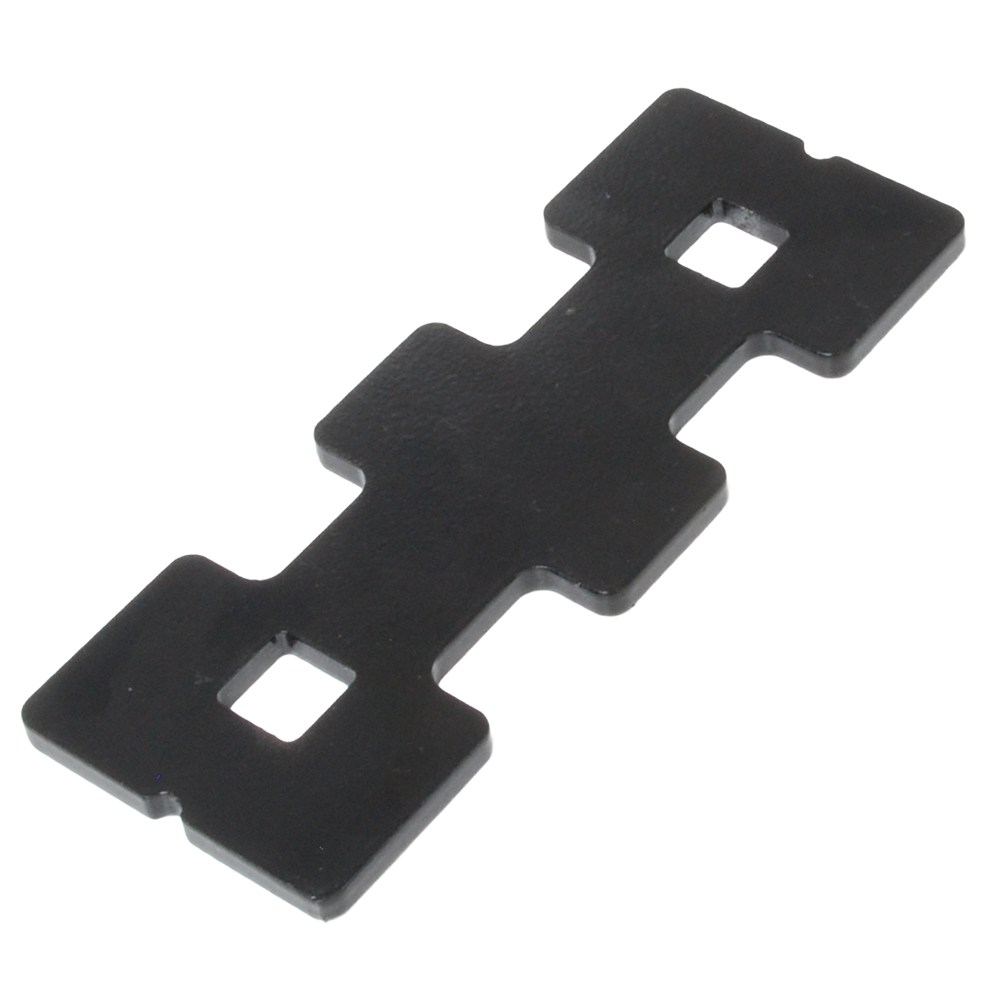

New Holland® Compatible Dynamic Feed Roll Wear Plate
Enhance the intake performance of your machine with this premium C&M Australian-made dynamic feed roll wear plate. Specifically engineered for New Holland® CR series combine harvesters, this extended wear component provides a high-strength solution for protecting your feed roll from abrasive crop flow and stone impact.
Manufactured in our Griffith factory from abrasion-resistant Hardox or Bis400 steel, this wear plate is built to significantly outperform standard factory liners. Its high-performance material density ensures a longer service life, keeping your threshing system in top condition during high-capacity harvesting in challenging conditions.
New Holland® OEM Cross-Reference
Replaces OEM Part Numbers: 90410005, 90410005R
DFR Wear Plate Compatibility: New Holland CR & Next-Gen Models
| Series |
Models |
Specification |
| New Holland® CR 9000 Series |
9070, 9080, 9090 |
Standard Fitment |
| New Holland® CR Dot Series |
CR7.80, CR8.80, CR7.90, CR8.90, CR9.90, CR10.90 |
Standard Fitment |
| New Holland® Next-Gen |
CR10, CR11 |
High Capacity Models |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: Genuine Hardox or Bis400 steel for superior abrasion resistance.
- Fastener Compatibility: Precision-punched to accept Cuphead Class 8.38 M10x25mm bolts.
- Design: Specifically profiled for machines equipped with the Dynamic Feed Roll (DFR).
- Installation: Direct-fit replacement (please note: fasteners are not supplied).
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The dynamic feed roll is a primary impact point for crop material and potential foreign objects entering the rotor. Standard wear plates are prone to rapid thinning or deformation, which can lead to uneven crop feeding and potential damage to the rotor intake. We recommend inspecting the leading edges of your DFR plates for "scalloping" or excessive wear during every preventative maintenance check.
Upgrading to a Hardox or Bis400 plate is a high-performance choice that maintains its structural integrity much longer than mild steel alternatives. This extended wear solution provides a reinforced intake surface, preventing costly mid-harvest maintenance and ensuring your New Holland® harvester maintains its high-capacity processing throughout the season.
Installation Tip: Bolt Integrity
When replacing these wear plates, we highly recommend using new Class 8.38 M10x25mm Cuphead bolts. Reusing old bolts can lead to failure under the extreme centrifugal forces of the dynamic feed roll. Ensuring a high-strength mechanical connection is vital to preventing plate detachment and rotor damage.
