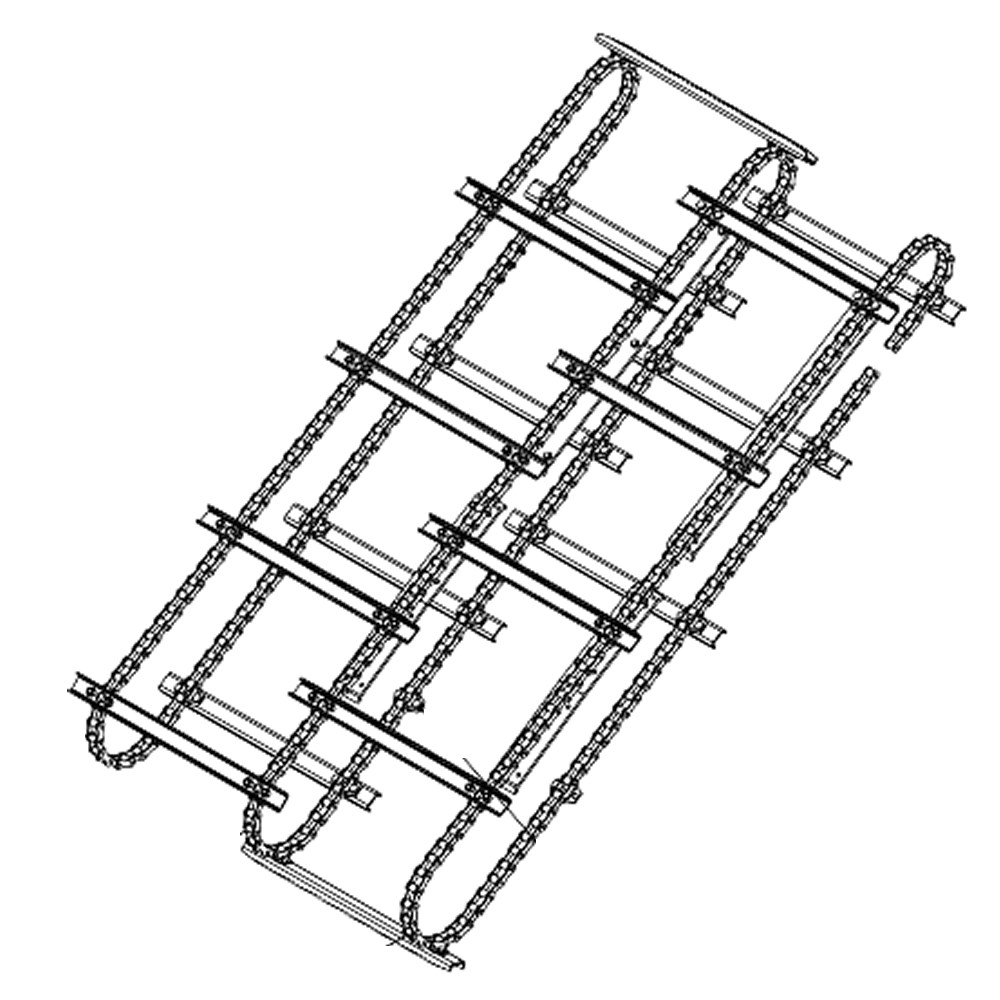

FENDT IDEAL 7 & 8 Feeder House Chain Assembly
C&M replacement complete feeder house chain assembly to fit FENDT IDEAL 7 & 8 combine harvesters fitted with the 3 chain assembly. This is a set of three (3) replacement chains fitted with roll formed electroplated 6mm serrated u-bars. Slat spacing of this assembly is 8-4-8 (26 Bars) which differs from the original 12-6-12 (18 Bars).
This complete chain assembly is supplied with 1 connector and 2 half links for each strand. We supply these chains in Australia from premium grade chrome pin chain and high quality roll-formed, electroplated and serrated 6mm U-Bars. We guarantee the quality of these unit, however we recommend you fit new sprocketS at the time of installation
Part Number
- ACX3177550 ACX317755A ACW4822070
Fitment
| SERIES |
MODELS |
SERIAL/YEAR |
| FENDT |
IDEAL 7 |
[18-0012] 2019 |
| FENDT |
IDEAL 7 |
[20-0034] [20-0035] [20-0036] 2020>2022 |
| FENDT |
IDEAL 7 |
[20-0029] GEN 3 2023> |
| FENDT |
IDEAL 8 |
[18-0029] GEN3 2023> |
Features
- Bar spacing 8-4-8 (OEM 12-6-12)
- Premium grade A557 chrome pin chain
- Roll-Formed electroplated grade 350 6mm seratted U-Bar slats
- Bolted assembly ready to install
Includes
- 26 x Chain slats
- 2 x Outer chains
- 1 x Inner chain
- 3 x Connectors
- 6 x Half links
- 104 x Bolts GR8 UNC Znc 1/2" x 1.00"
- 104 x Hex lock nuts UNC Znc 1/2"
