Case-IH® & New Holland Compatible Stainless Steel Vertical Unload Auger Liner Kit
Restore the operation of your unloading system with this premium C&M Australian-made vertical incline auger repair kit. Specifically engineered for Case-IH® and New Holland combine harvesters, this high-performance stainless steel liner kit is the professional solution for repairing worn components in the primary unloading auger.
Manufactured in our Griffith factory, this kit provides a extended-wear reinforcement for the auger tube and sump area. By utilizing high-grade stainless steel, this extended wear solution offers vastly superior abrasion resistance compared to standard carbon steel. This strategic refurbishment allows you to avoid the high cost of a complete tube assembly replacement, keeping your machine in top condition for a significantly longer service life.
Fitment Note: Elbow Specification
This liner kit is designed for models with standard steel elbow configurations. Please note it will not fit machines equipped with the heavy cast-iron unload auger elbow.
OEM Cross-Reference
Compatible with Part Numbers: AE135, AE215, AL621111, 84182581, 73399568R
Vertical Unload Liner Compatibility: Case IH & New Holland Models
| Brand / Series |
Models |
Specification |
| Case-IH® Flagship / Mid-Range |
7010, 8010, 7120, 8120, 9120, 5088, 6088, 7088 |
Standard Elbow Only |
| Case-IH® 130, 140, 150 Series |
5130–7130, 5140–7140, 5150–7150 |
Standard Elbow Only |
| New Holland CR Series |
CR920–CR980, CR9040–CR9090 |
Standard Elbow Only |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: High-grade Stainless Steel for maximum abrasion resistance.

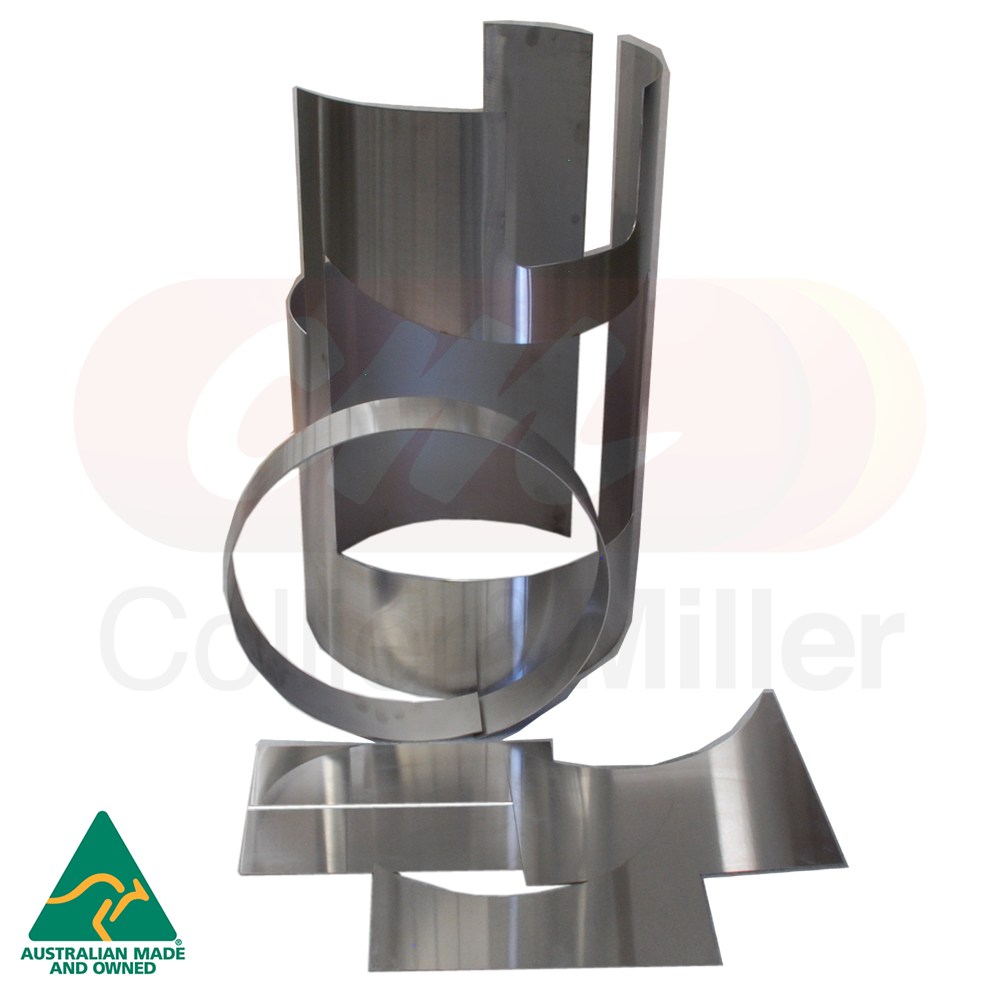

- Kit Contents: Includes 1 x Sump Liner and 1 x Repair Ring for a complete housing refresh.
- Refurbishment: Engineered specifically to repair worn components and prevent tube failure.
- Wear Rating: Extended wear configuration for high-velocity grain flow.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The vertical unload auger tube is a primary friction point that experiences extreme abrasion during high-speed unloading. Over time, the transition area in the sump and the tube elbow thin out, eventually leading to structural failure and grain leakage. We recommend inspecting these zones for "paper-thin" sections during every preventative maintenance check to identify worn components before a blow-out occurs.
Upgrading to this high-performance stainless steel liner kit is a strategic choice to save money on major structural repairs. The high-density stainless surface maintains its profile far longer than standard steel, ensuring smooth grain handling and keeping your unloading system in top condition for multiple high-volume seasons.
Installation Tip: Precision Fitment
Before installing the repair ring and sump liner, ensure the original tube surface is clean of all rust and debris. A flush, high-strength fit prevents grain from trapping between the old wall and the new stainless liner. This is the ideal time to check your vertical unload auger flighting for wear to ensure maximum unloading capacity.
