Case-IH® Compatible Stainless Steel Clean Grain Auger Trough Liner Kit
Restore the operation of your grain handling system with this high-quality stainless steel clean grain auger trough liner kit. Specifically engineered for Case-IH® Flagship Axial-Flow combines, this high-performance kit is the professional solution for repairing worn components in the primary clean grain circuit.

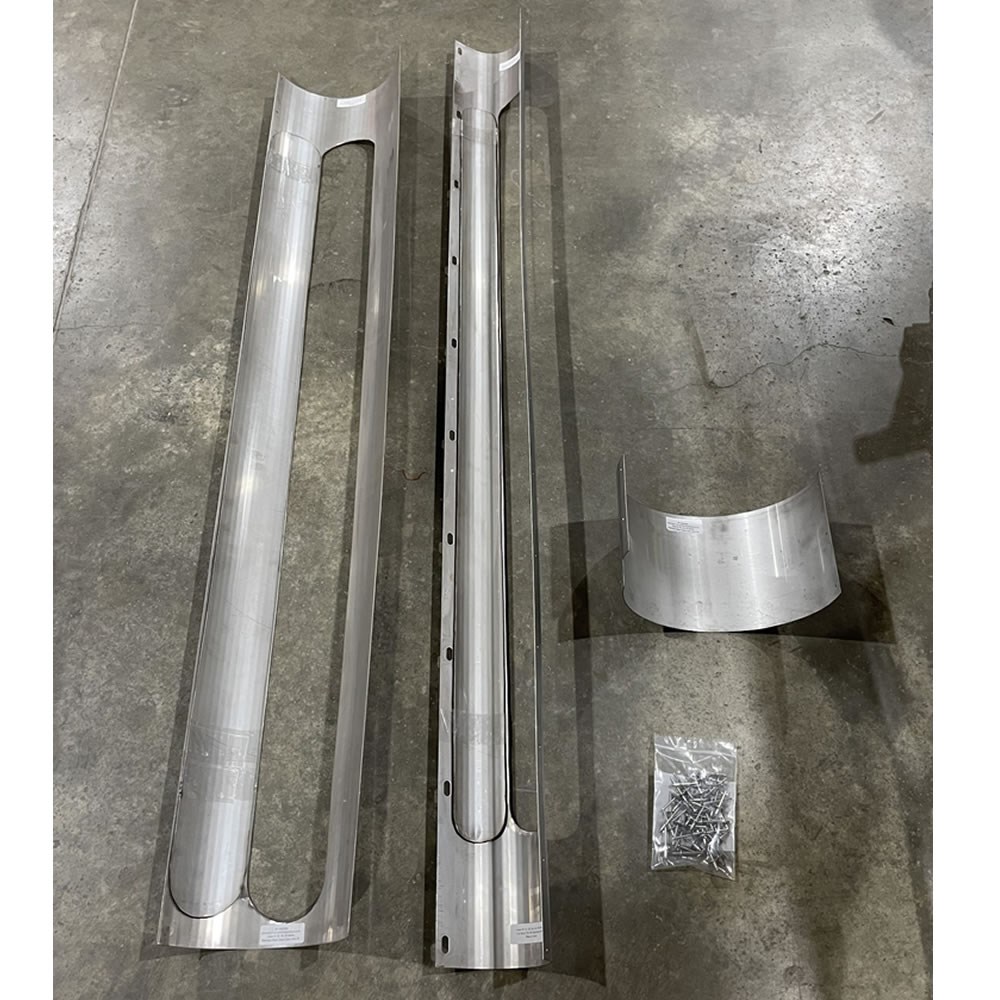

Manufactured by IHLE Fabrications in the USA, this kit includes two full-length (78.25") weld-in troughs and comes complete with matching door covers. By utilizing high-grade stainless steel, this extended wear solution provides superior abrasion resistance compared to standard carbon steel. This strategic refurbishment allows you to avoid the high cost of replacing the complete unit, keeping your machine in top condition for a significantly longer service life.
Critical Serial Number Check
This kit is specifically designed for Flagship models manufactured Before Serial Number YDG222000. Please verify your machine's identification plate to ensure correct fitment before ordering.
Case-IH® OEM Cross-Reference
Compatible with Part Numbers: AE137, IF1202177K
Auger Trough Liner Compatibility: Case-IH Flagship Series
| Series |
Models |
Serial Range |
| Case 10 Series |
7010, 8010, 8010-AFX |
Before SN - YDG222000 |
| Case 120 Series |
7120, 8120, 9120 |
| Case 230 Series |
8230, 9230 |
Technical Specifications & Features
- Manufacturer: Made in the USA by IHLE Fabrications.
- Material: High-grade Stainless Steel for maximum abrasion resistance.
- Dimensions: 78.25" Total Length (Weld-in full troughs).
- Kit Contents: 2 x Stainless Trough Liners and complete Door Covers.

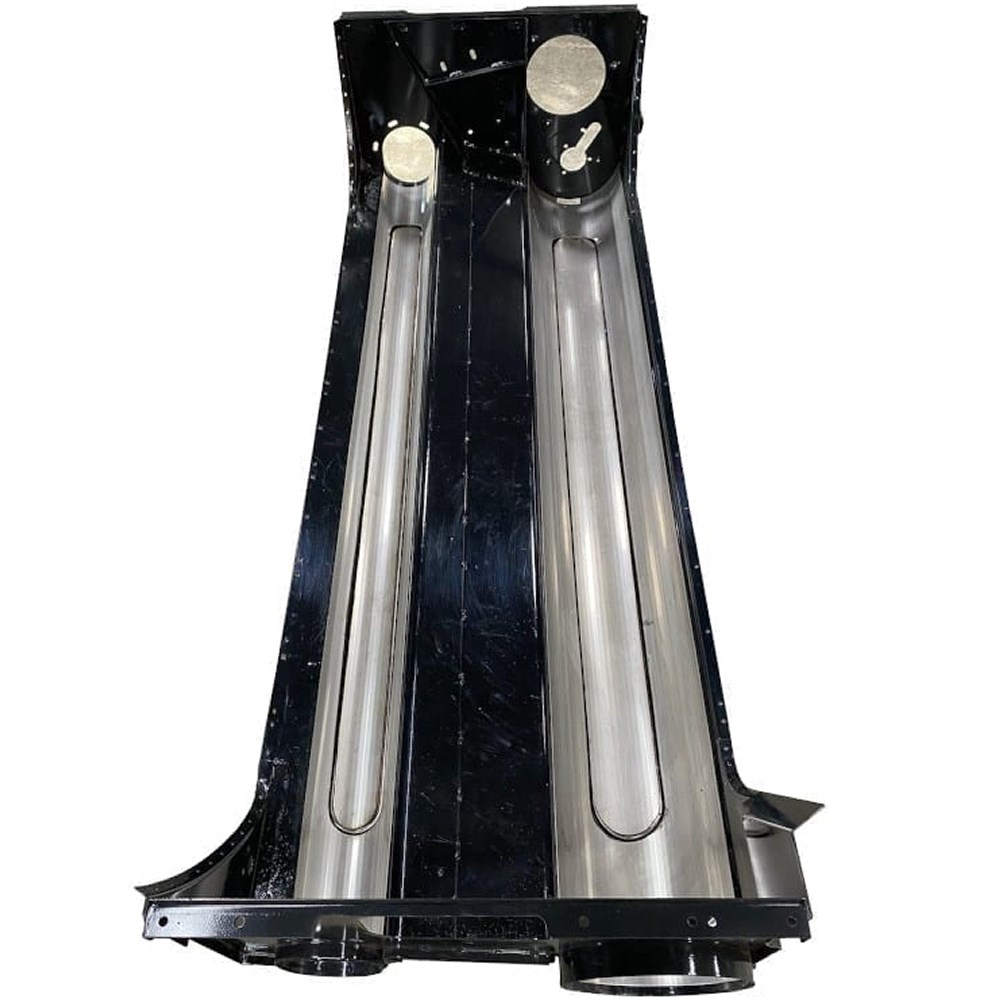

- Refurbishment: Engineered to repair worn components or protect new housing units.
- Value: High-performance alternative to replacing the entire clean grain housing.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The clean grain auger trough is a primary friction zone where high volumes of threshed grain transition to the elevator. Standard steel troughs suffer from extreme abrasion thinning, eventually developing holes that cause grain loss. We recommend inspecting the trough floor for "paper-thin" sections during every preventative maintenance check to identify worn components before they fail.
Upgrading to this high-performance stainless steel liner kit is a strategic choice to save money. The high-density stainless surface maintains a smooth, low-friction profile far longer than painted steel, ensuring efficient grain handling and keeping your system in top condition for a longer service life.
Installation Tip: Weld Preparation
This is a weld-in high-strength kit. Ensure the original trough is thoroughly cleaned of all grain residue and dust before installation to achieve a clean weld bond. This is the ideal time to check your clean grain augers for flighting wear to ensure your entire handling system is restored to maximum capacity.
