Case-IH® Compatible Bubble-Up Auger Tube Liner Kit

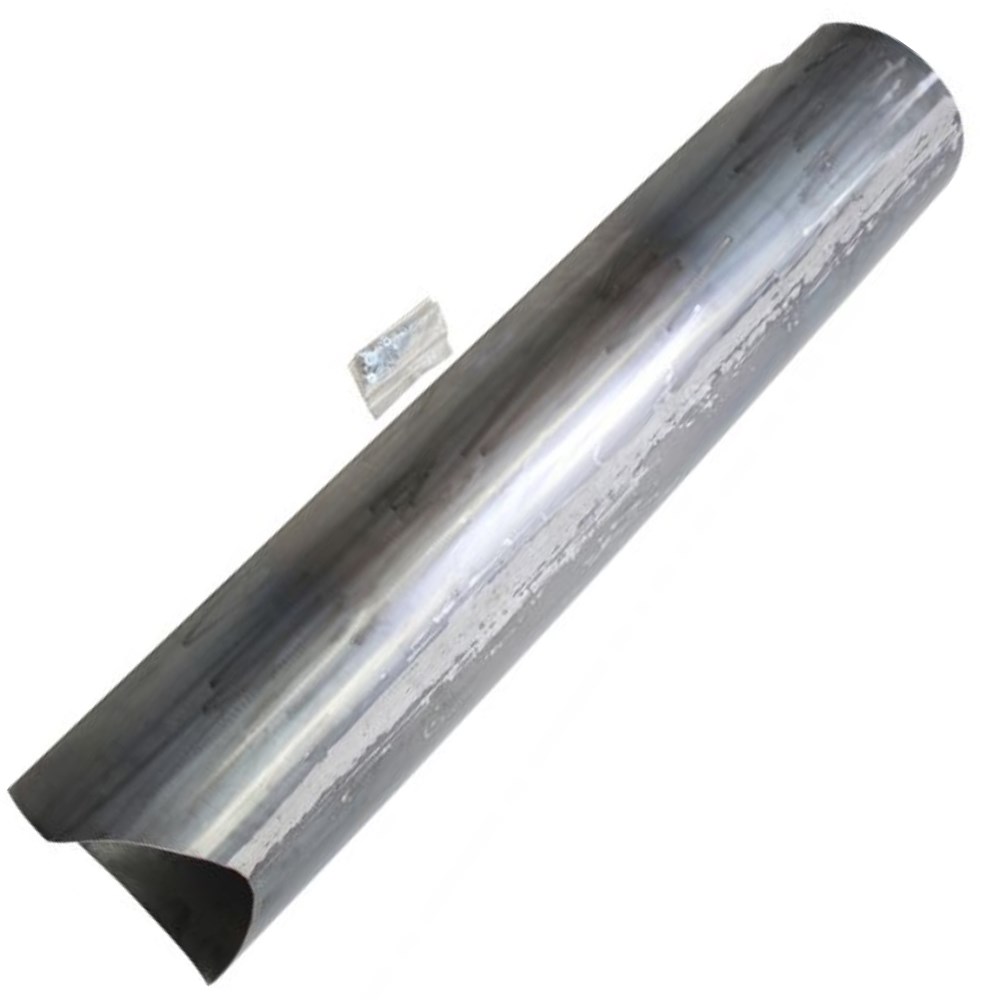

Restore the operation of your grain handling system with this heavy-duty bubble-up auger tube liner kit. Specifically engineered for Case-IH® Flagship Axial-Flow combines, this high-performance kit is the professional solution for repairing worn components in the grain tank loading circuit.

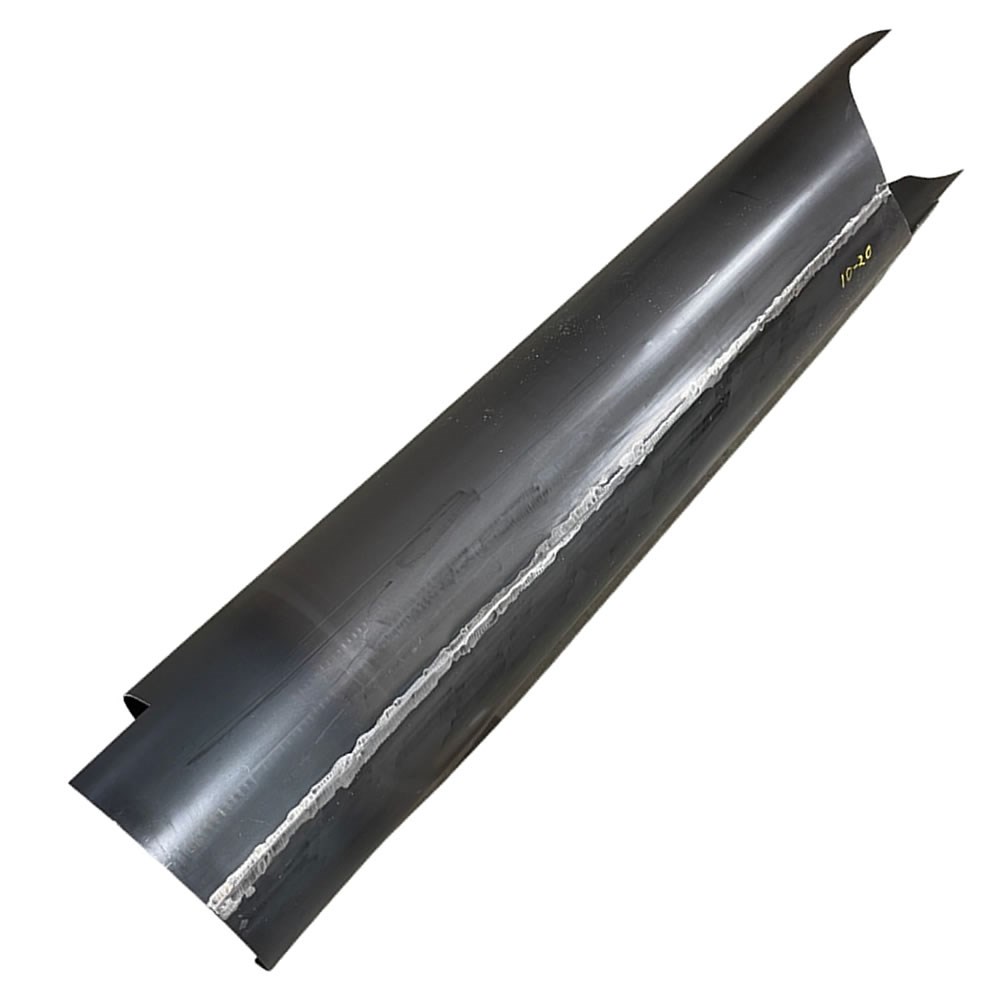

Manufactured by IHLE Fabrications in the USA, this liner is constructed from 4mm (12 gauge) high-strength steel to provide superior abrasion resistance compared to standard factory tube walls. This strategic refurbishment allows you to reinforce your existing housing or repair thinned sections, avoiding the high cost of a complete auger tube replacement and keeping your machine in top condition for a significantly longer service life.
Fitment Specification
This kit is compatible with 10, 120, and early 230 Series Flagship models. Please note that it will not fit 230 Series machines equipped with the "Common Cab" (CC) configuration.
Case-IH® OEM Cross-Reference
Compatible with Part Numbers: AE142, IF1121650K
Bubble-Up Auger Liner Compatibility: Case-IH Flagship Series
| Series |
Models |
Specification |
| Case 10 Series |
7010, 8010 |
Standard Fitment |
| Case 120 Series |
7120, 8120, 9120 |
Standard Fitment |
| Case 230 Series |
7230, 8230, 9230 |
Excludes Common Cab (CC) |
Technical Specifications & Features
- Manufacturer: Precision made in the USA by IHLE Fabrications.
- Material: 4mm (12 gauge) heavy-duty steel for maximum abrasion resistance.
- Kit Contents: Includes full liner and dedicated bolt kit for easy installation.
- Refurbishment: Engineered specifically to repair worn components and prevent tube blow-outs.
- Wear Rating: Extended wear configuration designed for high-volume grain transition.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The bubble-up auger tube is a high-impact zone where grain is forced vertically into the tank. Constant friction from abrasive crops causes the internal walls to thin rapidly, often leading to holes near the top of the tube. We recommend inspecting the upper sections of the bubble-up housing for abrasion thinning during every preventative maintenance check to identify worn components before they fail mid-harvest.
Upgrading to this high-performance steel liner kit is a strategic choice to save money on major structural repairs. The reinforced 4mm skin maintains the integrity of the grain delivery path, ensuring efficient grain handling and keeping your unloading system in top condition for a longer service life.
Installation Tip: Bolt Alignment
This kit is supplied with a high-strength bolt kit for secure fitment. When installing, ensure the liner is pulled tight against the original tube wall to prevent grain from trapping in between, which can lead to premature internal corrosion. This is the ideal time to check your bubble-up auger flighting for wear to ensure maximum grain tank loading capacity.
