John Deere® Compatible Cleaning Fan Shaft Repair Kit
Keep your
cleaning system in top condition with this premium Australian-made fan shaft repair kit. Specifically engineered for early-model John Deere® 9600 series combines, this kit provides an economical solution for restoring worn cleaning fan shafts.
A common issue with original John Deere® cleaning fan shafts is worn keyways and excessive wear at each end. Implementing proactive
preventative maintenance with this precision-machined kit allows you to refurbish the existing shaft (OEM AH131092) at a fraction of the cost of a full replacement.
John Deere® OEM Cross-Reference
Replaces OEM Part Numbers: AH131092, H171316

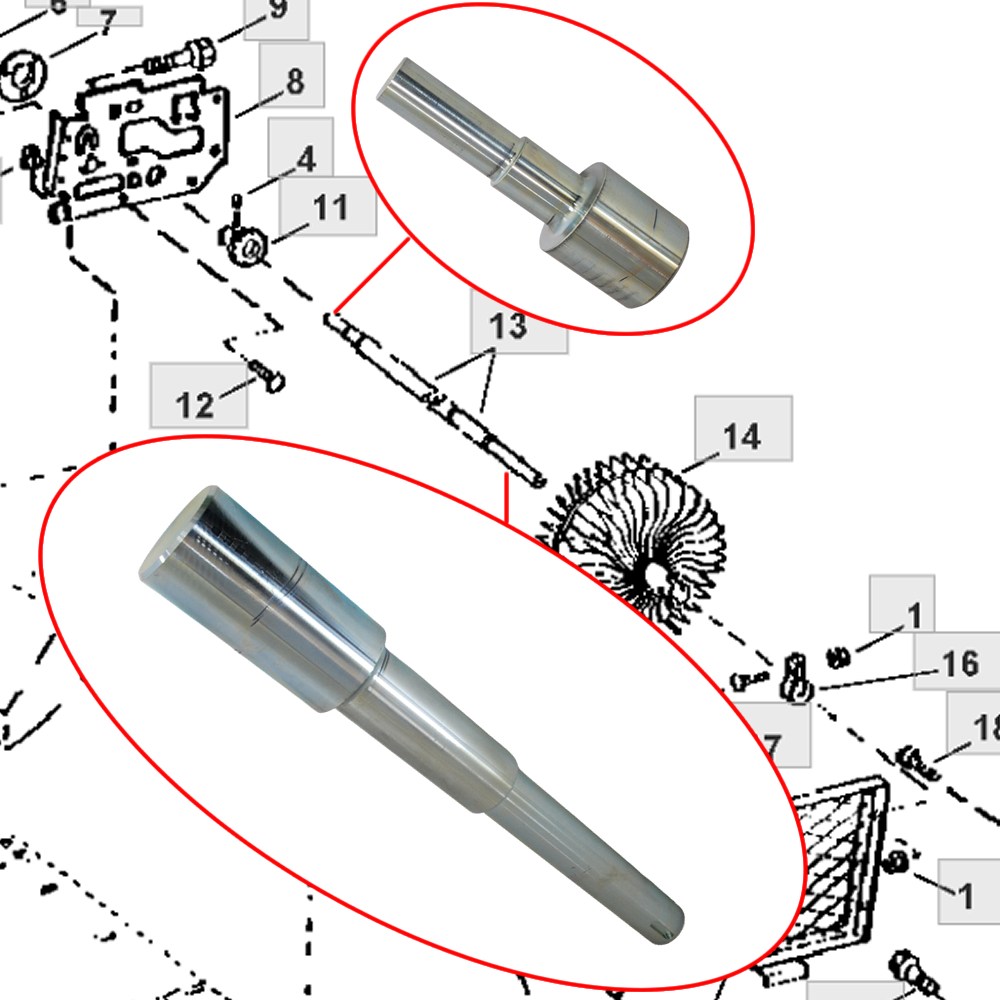

Cleaning Fan Shaft Repair Kit for John Deere 9600, 9610, 9650 Combine Models
| Series |
Models |
Details |
| John Deere® 9600 Series |
9600, 9610 |
Early Model Maximizer |
| John Deere® 9650 Series |
9650 |
Walker Units |
Technical Specifications & Features
- Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.

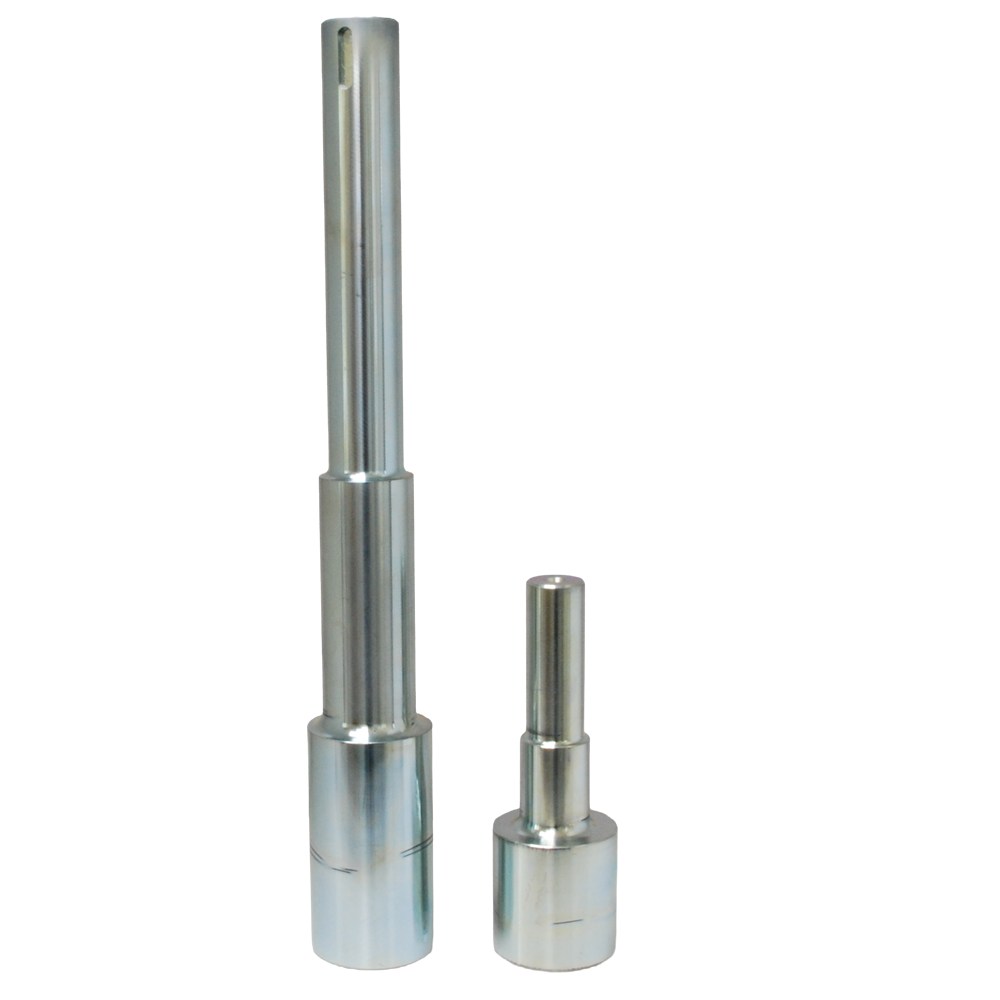

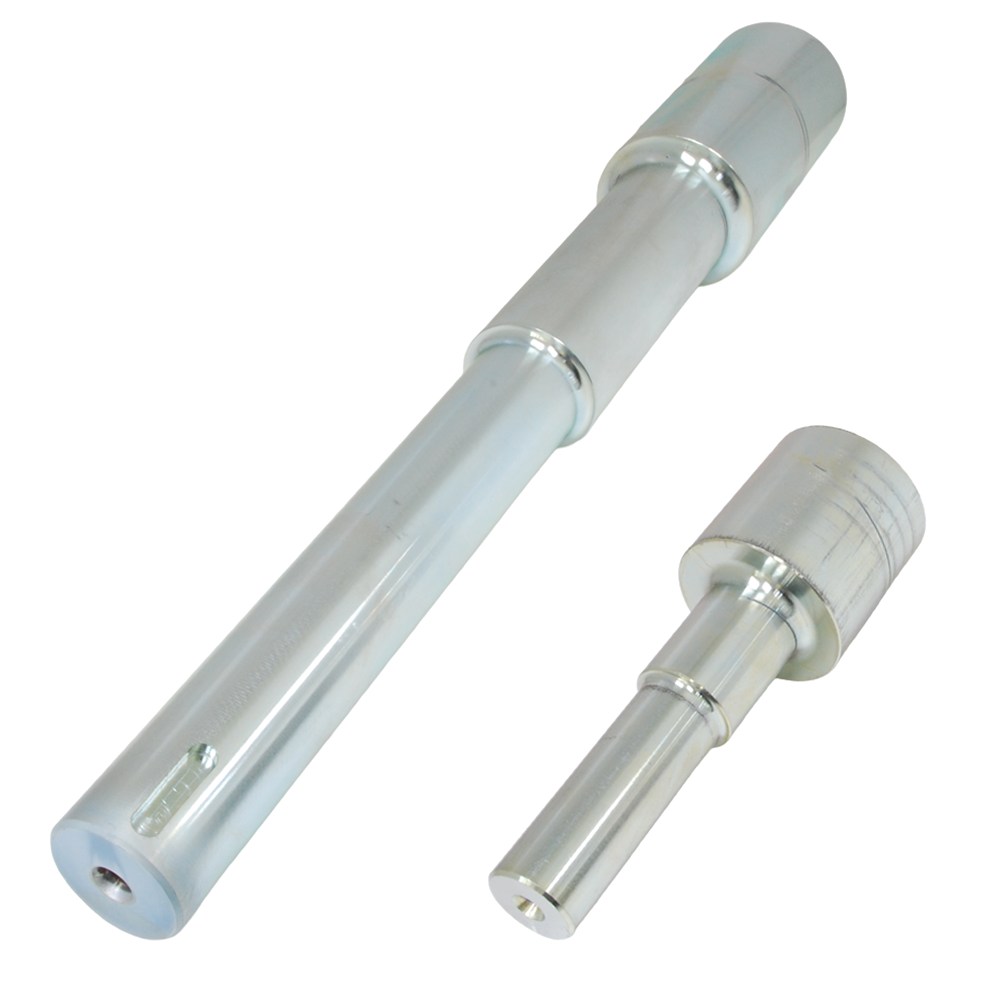

- Design: Precision-machined, zinc-plated replacement ends for "weld-on" repair.

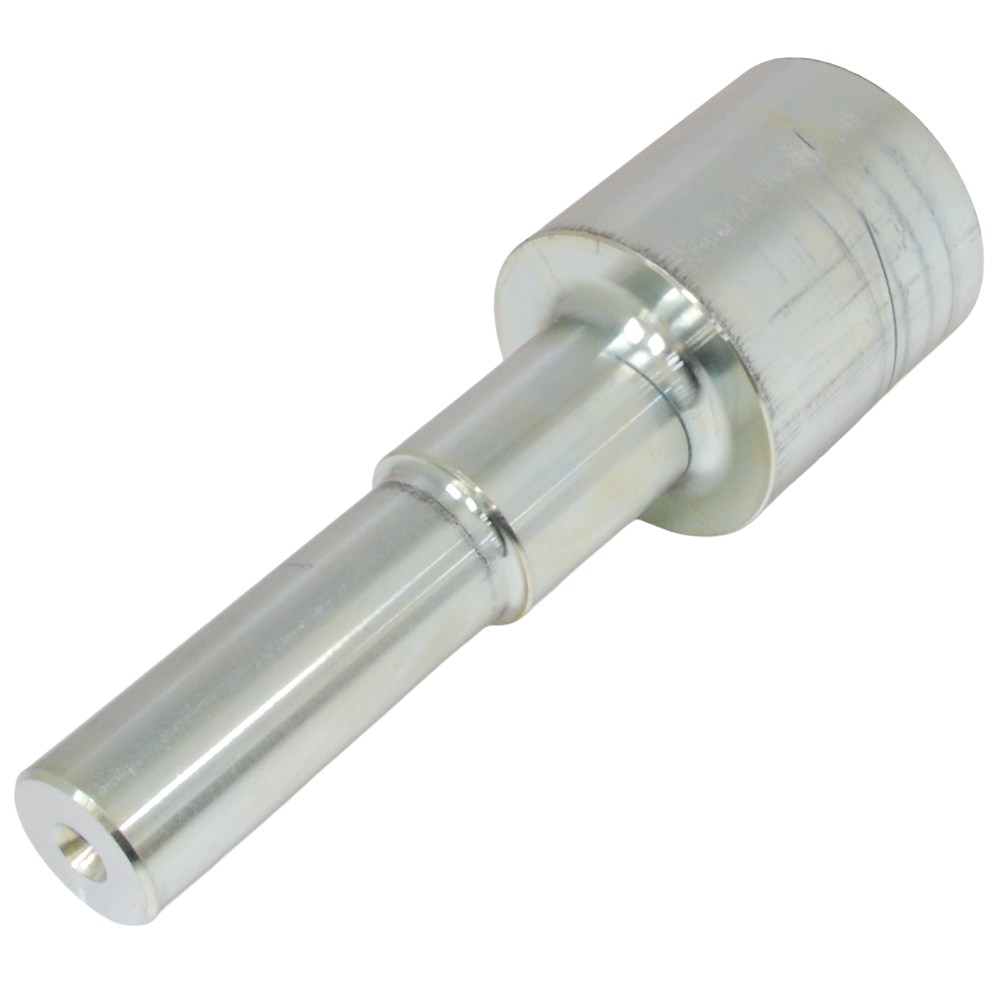

- End #1 Dimensions: 54mm OD | 165mm Length | 25mm Bearing Landing | 30mm Tone Wheel Landing.

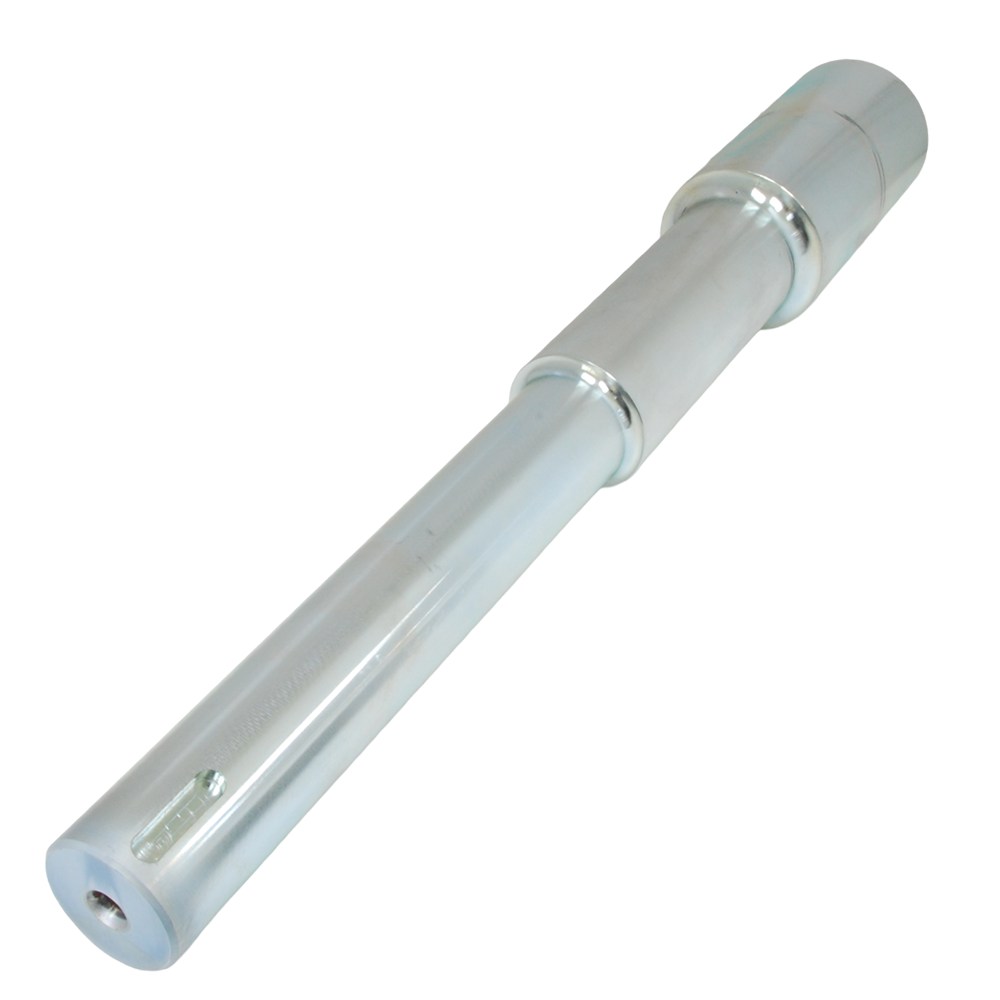

- End #2 Dimensions: 54mm OD | 395mm Length | 40mm Bearing Landing.
- Keyway = 6mm x 3mm x 24mm (not included)
- Economic Solution: Restores worn OEM shafts for a significant saving over new replacements.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your cleaning system in top condition, we recommend verifying the total shaft length and alignment after welding.
Standard preventative maintenance for cleaning fans includes checking the fan blades for cracks and inspecting the shaft bearings for excessive play. Utilizing this precision repair kit ensures an extended service life for your cleaning fan assembly and helps maintain the high-quality grain samples your John Deere® combine is known for.
Recommended Maintenance Upgrade
We specifically recommend replacing your Cleaning Fan Bearings when refurbishing the shaft to ensure total system integrity.
