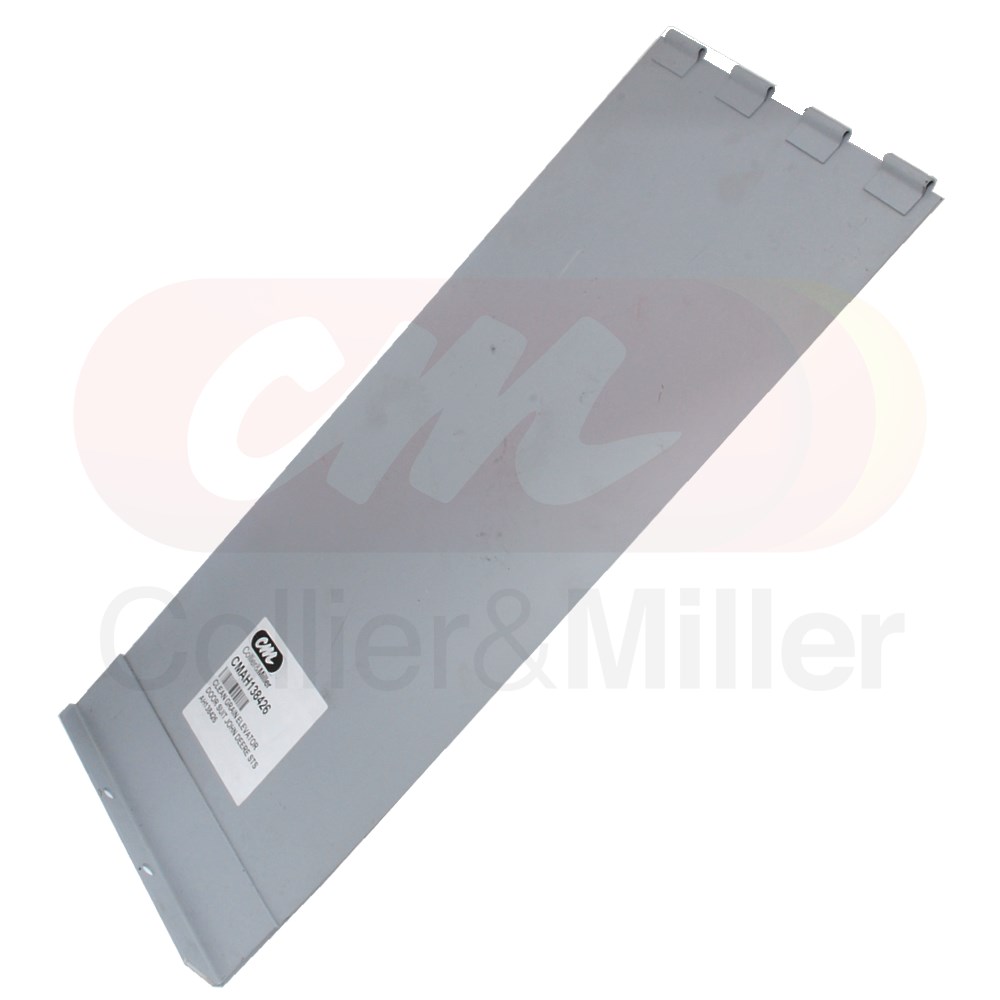

John Deere® Compatible Complete Elevator Door
Restore the operation of your grain handling system with this premium aftermarket clean grain elevator door. Specifically engineered for a wide selection of John Deere® combine harvesters, this high-performance door assembly is the professional solution for repairing worn components at the base of the elevator boot housing.
Manufactured to strict agricultural specifications from heavy-duty carbon steel, this door panel serves as a direct-fit replacement for the factory unit. It provides a high-strength, reliable foundation that seals the bottom elevator boot against grain leaks. This strategic refurbishment component is designed to handle high-capacity seasonal workloads, keeping your loading system in top condition for a dependable longer service life.
John Deere® OEM Cross-Reference
Replaces OEM Part Number: AH138426
Clean Grain Elevator Door Compatibility: John Deere Models
| Series |
Models |
Specification |
| John Deere® 50 & 60 Walker/CTS |
9450, 9550, 9560, 9660, 9650CTS, 9660CTS |
Non-Perforated Clean Grain Boot |
| John Deere® STS 50 & 60 Series |
9650STS, 9750STS, 9560STS, 9660STS, 9760STS, 9860STS |
Non-Perforated Clean Grain Boot |
| John Deere® STS 70 & 80 Series |
9470STS, 9570STS, 9670STS, 9770STS, 9870STS, 9780STS, 9880STS |
Non-Perforated Clean Grain Boot |
| John Deere® S600 Series |
S650, S660, S670, S680, S690 |
Non-Perforated Clean Grain Boot |
| John Deere® S700 & S7 XXX Series |
S760, S770, S780, S790, S7 600, S7 700, S7 800, S7 900 |
Non-Perforated Clean Grain Boot |
Technical Specifications & Features
- Quality Grade: Premium quality aftermarket direct replacement part.
- Material: Heavy-gauge high-tensile carbon steel sheet.
- Design: Non-perforated solid face configuration for maximum grain retention.
- Fitment: Precision-formed as a direct-fit like-for-like replacement part.
- Application: Critical component for refurbishing the lower grain handling system.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

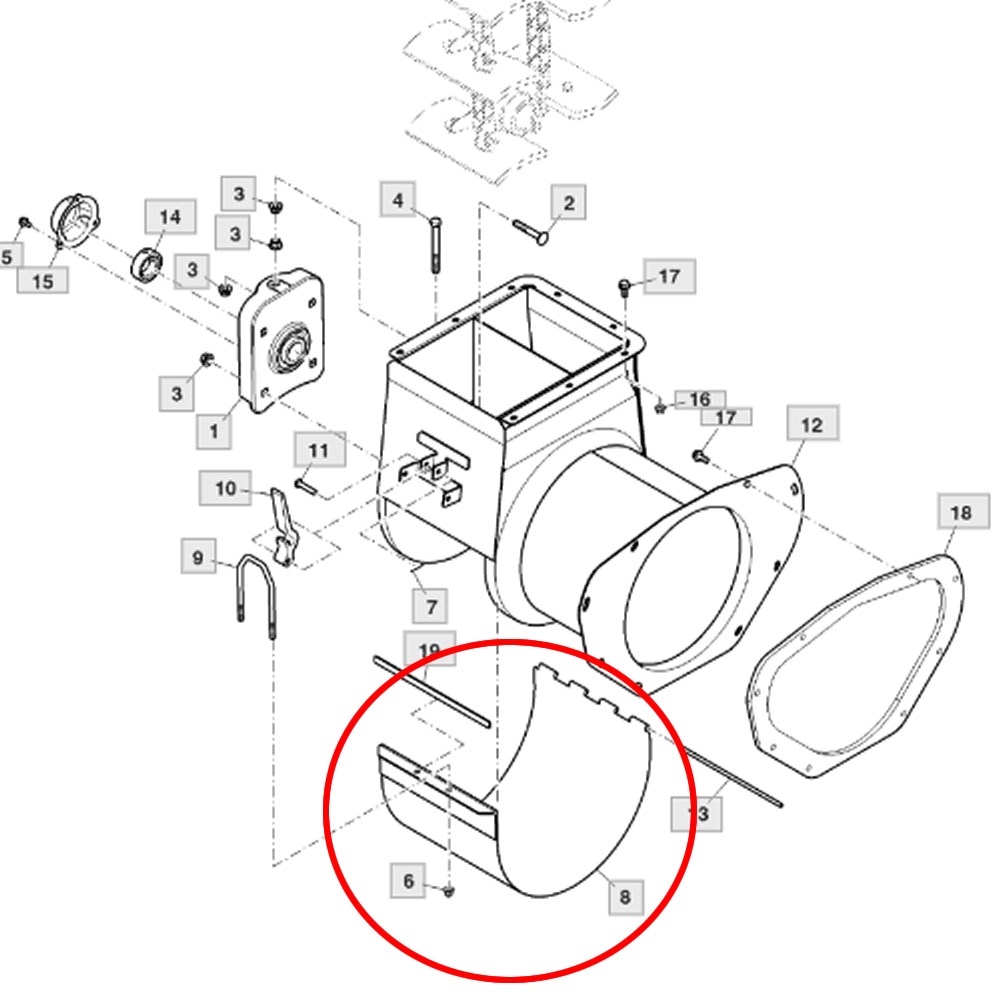

The clean grain elevator door is positioned in a severe high-friction zone where high-speed paddle slats lift heavy volumes of threshed crop. Constant grain contact triggers localized abrasion, slowly scouring away standard internal metal profiles until pin-holes or major cracks form. Once the structural thickness is compromised, grain leaks directly out of the bottom leg. We recommend inspecting the inner face of the boot door during every pre-harvest preventative maintenance check to identify worn components before they cost you grain in the paddock.
Upgrading to this high-performance carbon steel door assembly is an effective choice to save money on long-term replacement bills. By maintaining an exact, flush seat against the lower boot flange, this heavy-duty door stops grain loss instantly and protects your elevator chain path, keeping your grain handling system operating in top condition.
Installation Tip: Clear Latch Mounts
Before pinning the new AH138426 door into place, meticulously clear all impacted chaff, mud, and hard scale from the elevator boot hinge pins and over-centre latches. An uneven mounting surface will twist the door frame under latch tension, causing micro-gaps that allow fine grain to leak out under high operation speeds. This is also the perfect time to check your clean grain elevator paddles for squareness and tracking.
