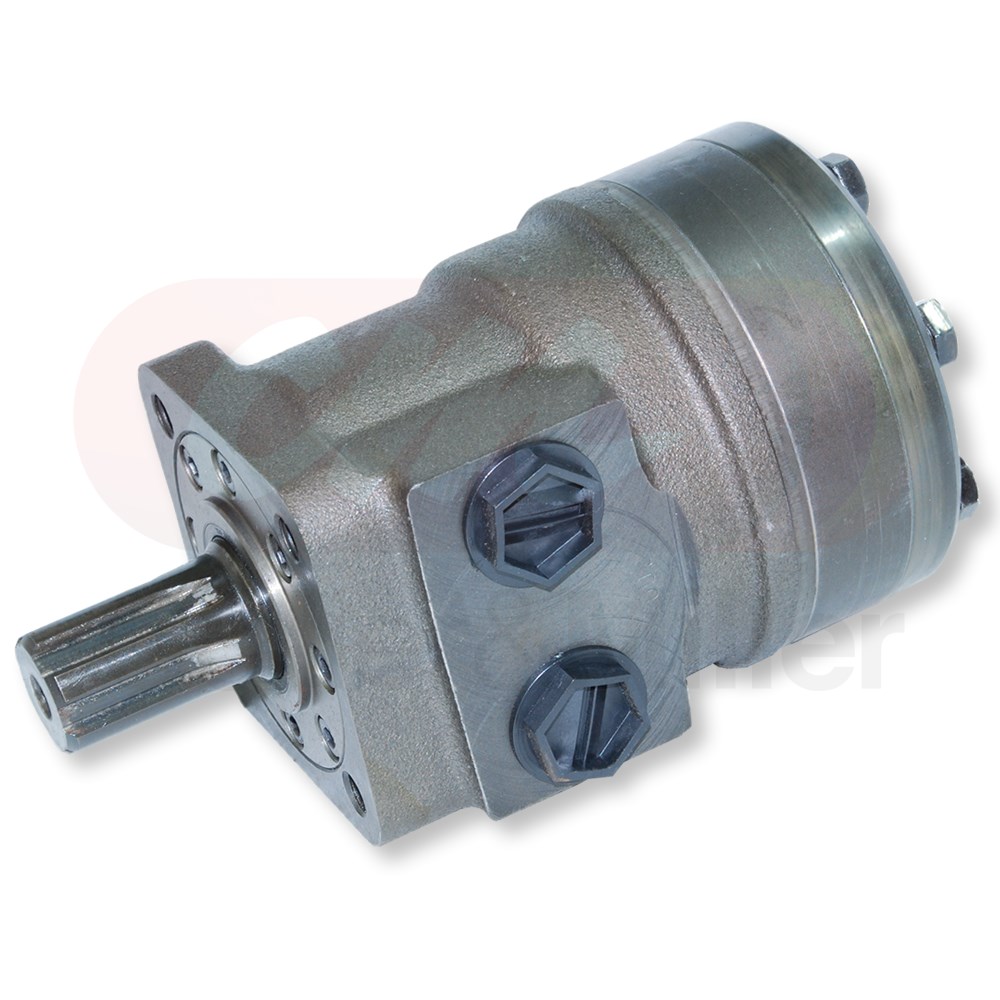

M+S HYD MOTOR 160CC 4 BOLT 1" X 6 SPLINE SHAFT SUIT JOHN DEERE AH141859

4 BOLT 1" X 6 SPLINE SHAFT SUIT JOHN DEERE AH141859

Product Code: CMAH141859

Product Detail

M+S aftermarket hydraulic motor to suit the reel drive on John-Deere header fronts. This SAE 4 bolt mount motor is supplied with 6 spline shaft same as the original motor and is suitable for rigid and flexible platforms.

Part numbers

AH141859

Fitment

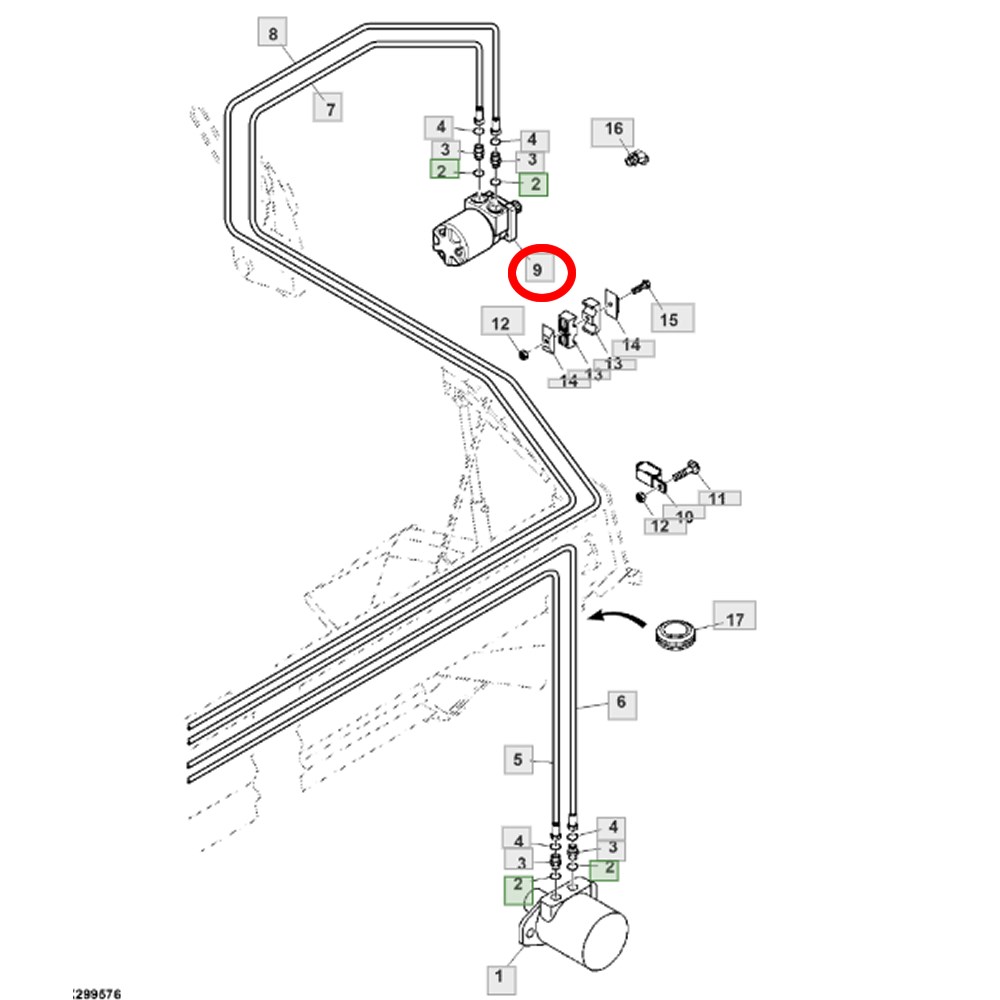

Reel drive motor

Models

Brand	Models
John Deere 600 F Series	615F, 618F, 620F, 622F, 625F, 630F, 635F
John Deere 600 R Series	615R, 618R, 620R, 622R, 625R, 630R, 635R
John Deere 900 F Series	920F, 922F, 924F, 925F, 930F, 922F,
John Deere 900 R Series	920R, 922R, 924R, 925R, 930R
John Deere 900 D Series	925D, 930D, 936D

Features

M+S MLHRQ
160cc
Square 4 bolt
1" 6B Splined shaft
Side ports 2x7/8-14 UNF
Case drain 7/16-20 UNF
High pressure shaft seal
