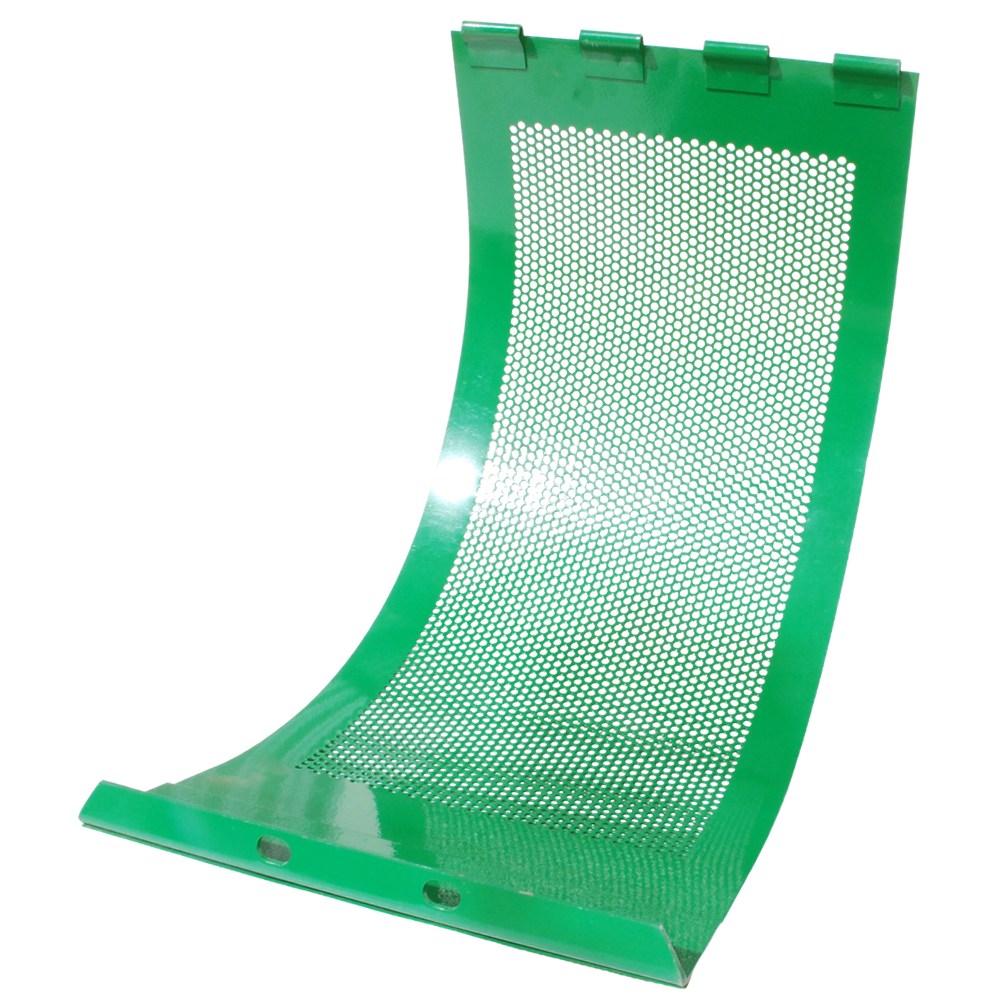

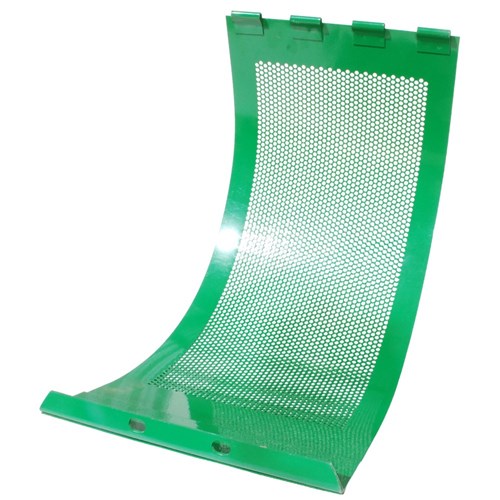

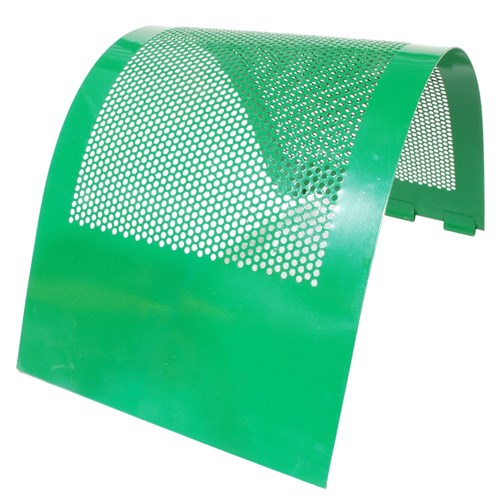

John Deere® Compatible Perforated Elevator Door (Carbon Steel - A&I)
Restore the operation of your grain handling system with this premium A&I aftermarket perforated carbon steel elevator door. Specifically engineered for popular series John Deere® combine harvesters, this high-performance perforated door assembly is the professional solution for repairing worn components at the base of the elevator boot housing while providing effective screening action.
Imported as part of A&I's high-quality agricultural range, this door assembly serves as a direct-fit replacement for the original factory unit. The precision-punched perforations allow fine dirt, dust, sand, and micro-debris to screen out of the clean grain leg before it moves up to the tank. This strategic refurbishment component provides a high-strength foundation that keeps your loading system in top condition for a dependable longer service life.
John Deere® OEM Cross-Reference
Replaces OEM Part Number: AH154068
Clean Grain Elevator Door Compatibility: John Deere Models
| Series |
Models |
Specification |
| John Deere® CTS Series |
CTS |
Perforated Debris-Screening Boot |
| John Deere® Walker Series |
9550, 9560 |
Perforated Debris-Screening Boot |
| John Deere® STS 50 Series |
9650STS, 9750STS |
Perforated Debris-Screening Boot |
| John Deere® STS 60 Series |
9560STS, 9660STS, 9760STS, 9860STS |
Perforated Debris-Screening Boot |
| John Deere® STS 70 Series |
9570STS, 9670STS, 9770STS, 9870STS |
Perforated Debris-Screening Boot |
| John Deere® STS 80 Series |
9780STS, 9880STS |
Perforated Debris-Screening Boot |
| John Deere® S6-Series |
S660, S670, S680, S690 |
Perforated Debris-Screening Boot |
| John Deere® S7-Series |
S760, S770, S780, S790 |
Perforated Debris-Screening Boot |
Technical Specifications & Features
- Brand: Premium quality A&I Aftermarket imported replacement part.
- Design: Perforated face variant for self-cleaning and small-debris screening.
- Material: Heavy-duty high-tensile carbon steel sheet.
- Finish: Durable painted coating for extra surface protection against field wear.
- Fitment: Precision-formed as a direct-fit like-for-like replacement part.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

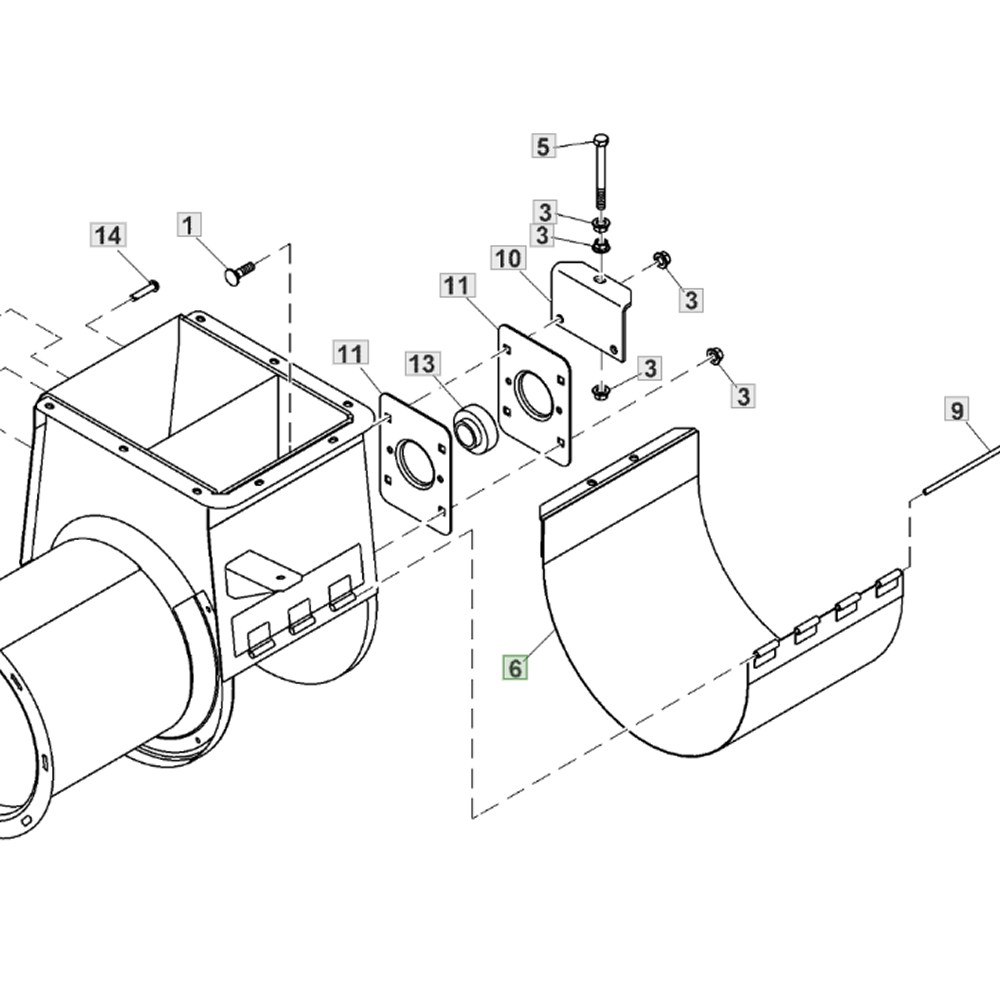

The perforated door on the clean grain elevator boot is positioned in a severe high-friction zone where high-speed paddle slats lift heavy volumes of threshed crop. Constant grain contact triggers localized abrasion, slowly scouring away standard internal metal profiles until the perforated holes become wallowed out or major cracks form. Once the structural thickness is compromised, grain leaks directly out of the bottom leg. We recommend inspecting the inner face of the boot door during every pre-harvest preventative maintenance check to identify worn components before they cost you grain in the paddock.
Upgrading to this high-performance perforated carbon steel door assembly is an effective choice to save money on long-term replacement bills. The self-screening design keeps your grain handling system running cleaner, while maintaining an exact, flush seat against the lower boot flange to stop grain loss instantly, keeping your harvester operating in top condition.
Installation Tip: Clear Latch Mounts
Before pinning the new A&I painted perforated door into place, meticulously clear all impacted chaff, mud, and hard scale from the elevator boot hinge pins and over-centre latches. An uneven mounting surface will twist the door frame under latch tension, causing micro-gaps that allow fine grain to leak out under high operation speeds. This is also the perfect time to check your clean grain elevator paddles for squareness and tracking.
