John Deere® Compatible
Mass Flow Plastic Sensor Plate.

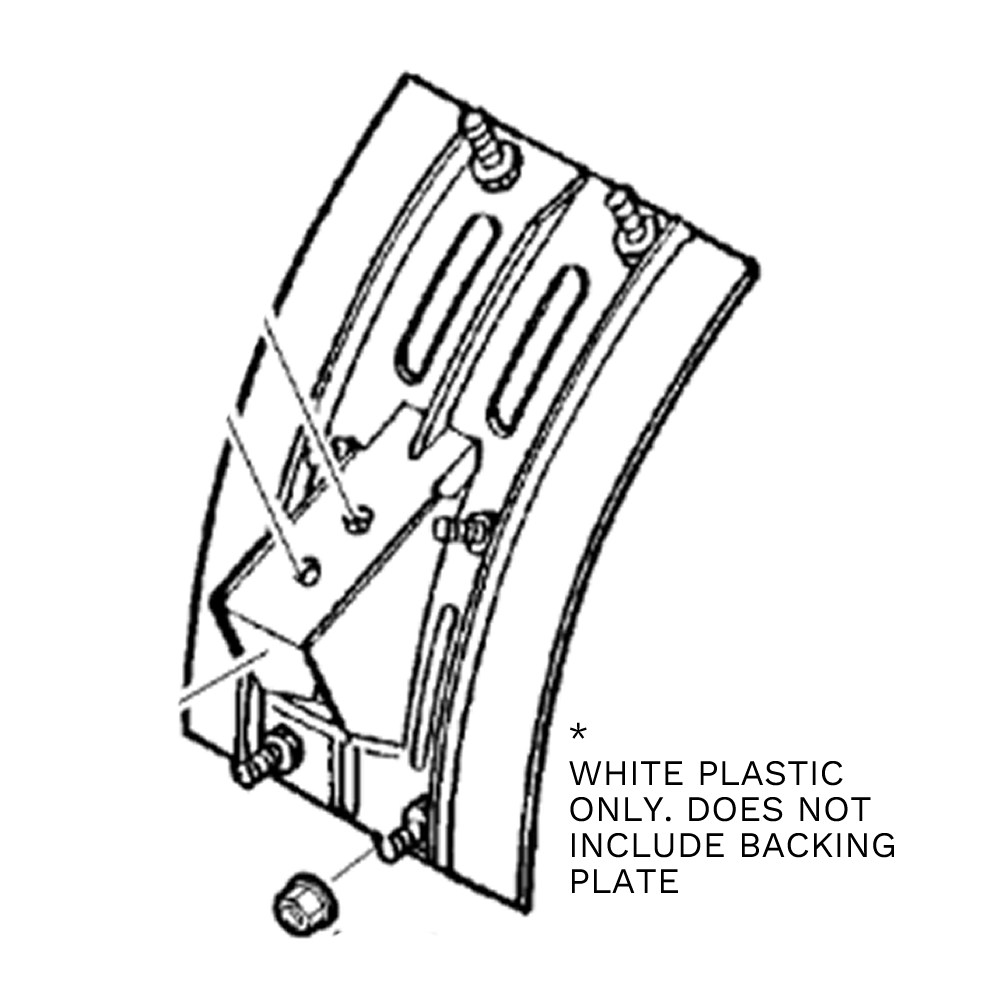

C&M aftermarket Mass Flow sensor plate (plastic sheet only) to fit John Deere® STS and CTS combines. Refurbish the sensor without having to replace the complete assembly. This is a waterjet cut plastic plate thye same dimensions as the original John Deere® plate. You can replace the sheet only as this part is onlt available from John Deere® as part of a complete assembly.
We do not stock the bolts as they are a very small head designed not to interfere with the air flow. We can supply 6mm stainless countersunck bolts but they may require modification to work correctly.
Part number
| Series |
Model |
Serial/Year |
| John Deere® CTS |
CTS 9650CTS 9780CTS |
|
| John Deere® 50 Series |
9450 9550 9650 |
Walker |
| John Deere® 60 Series |
9560 9660 |
Walker |
| John Deere® 50 Series STS |
9650STS 9750STS |
|
| John Deere® 60 Series STS |
9560STS 9660STS 9760STS |
|
| John Deere® 70 Series STS |
9470STS 9570STS 9670STS 9770STS 9870STS 9880STS |
|
Features

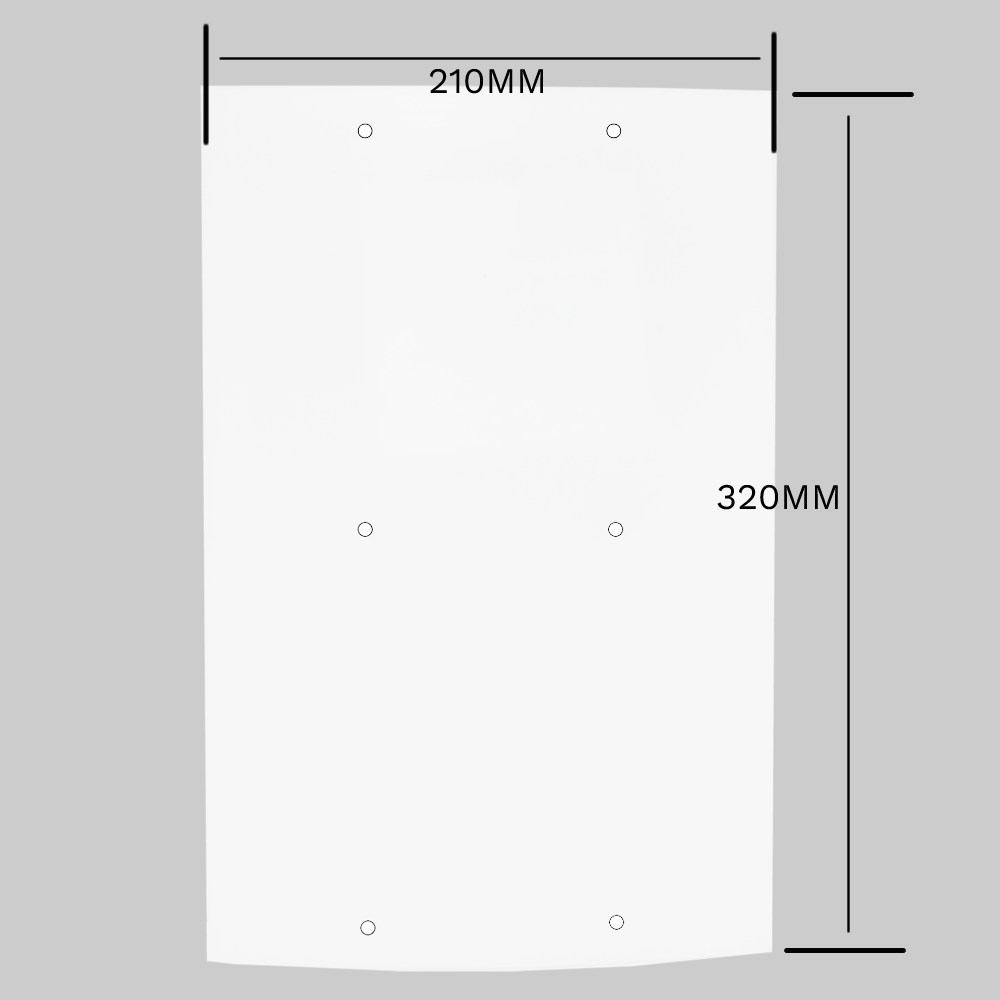

- 320mm x 210mm
- 6 x 6mm holes
- 4mm sheets
