RETRACTABLE FINGER HOLDER JOHN DEERE 600 700 & HD SERIES AH171602

JOHN DEERE 600 700 & HD SERIES AH171602

Product Code: CMAH171602

Qty
1.0000 - 24.9999	$7.43 (inc GST)
25.0000+	$7.06 (inc GST)

Detail
Interchange

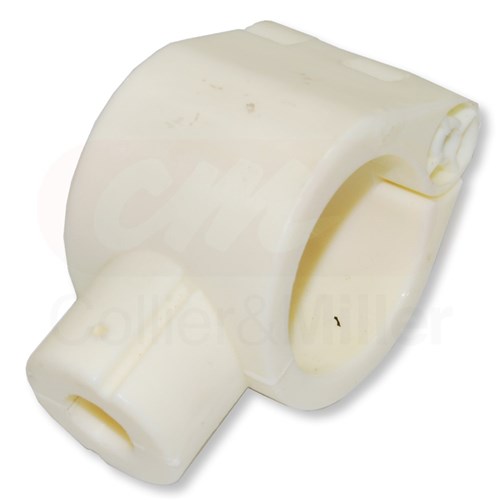

Aftermarket retractable finger bearing (holder) to suit center feed drum on John Deere Draper cutting platforms. This retractable finger bearing clamps the finger in place inside the feed drum onto the tube mounted to the crank. As the drum rotates, the bearing pivots on the tube allowing the finger to move in and out with ease.

Part numbers

AH171602

Models

Series	Models	Serial/Year
John Deere 600 Series Ridgid Draper	614R, 615R, 616R, 618R, 620R, 622R, 625R, 630R, 635R
John Deere 600 Series Flex Draper	615F, 616F, 618F, 620F, 622F, 625F, 630F, 635F
John Deere 600 D Series	625D, 630D, 635D, 640D
John Deere 600 FD Series	630FD, 635FD, 640FD, 645FD
John Deere 600 Pickup Front	615P
John Deere 700 D Series	725D, 730D, 735D, 740D
John Deere 700 FD Series	730FD, 735FD, 740FD
John Deere 900 Series	913, 915, 918, 920, 922, 925,	S.N 625301-685400
John Deere 900 Pickup FRont	914P
John Deere HD Series	HD35R, HD40R, HD45R, HD50R	`
John Deere HD F Series	HD35F, HD40F, HD45F, HD50F
John Deere RD Series	RD30F, RD35F, RD40F, RD45F
