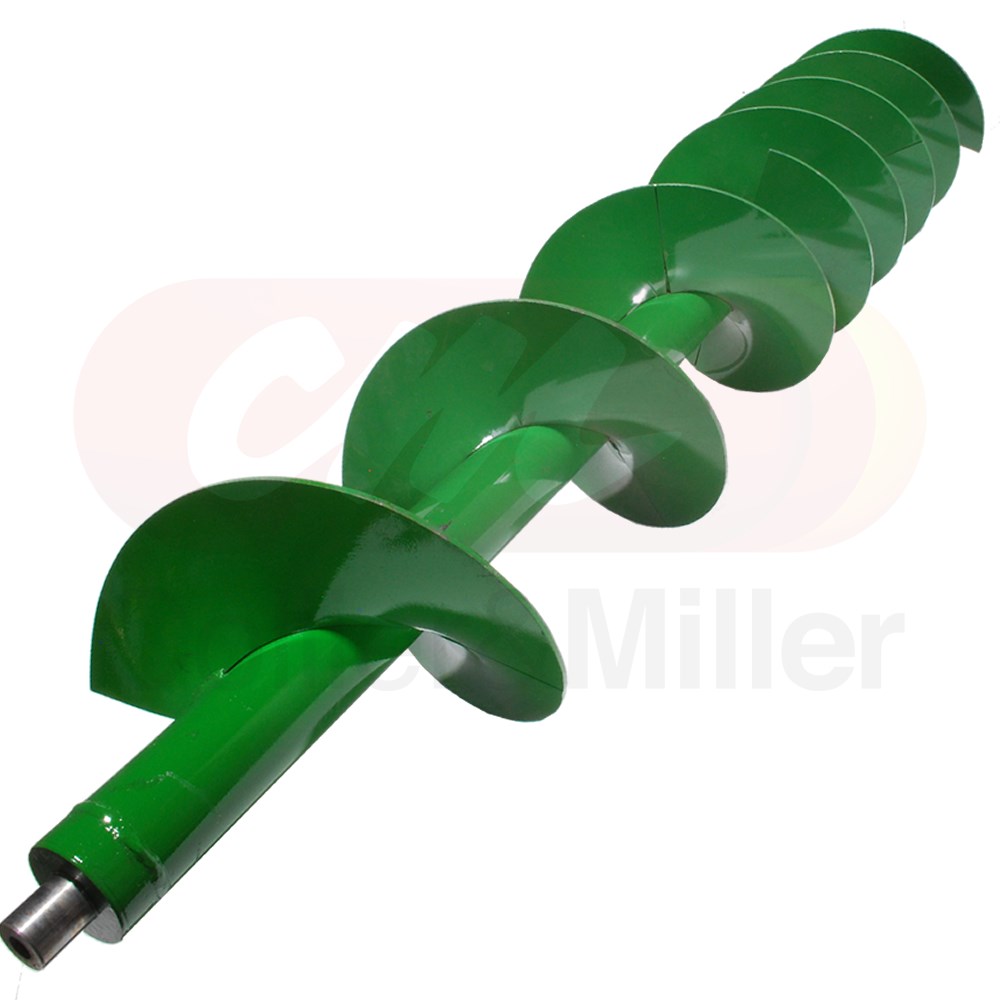

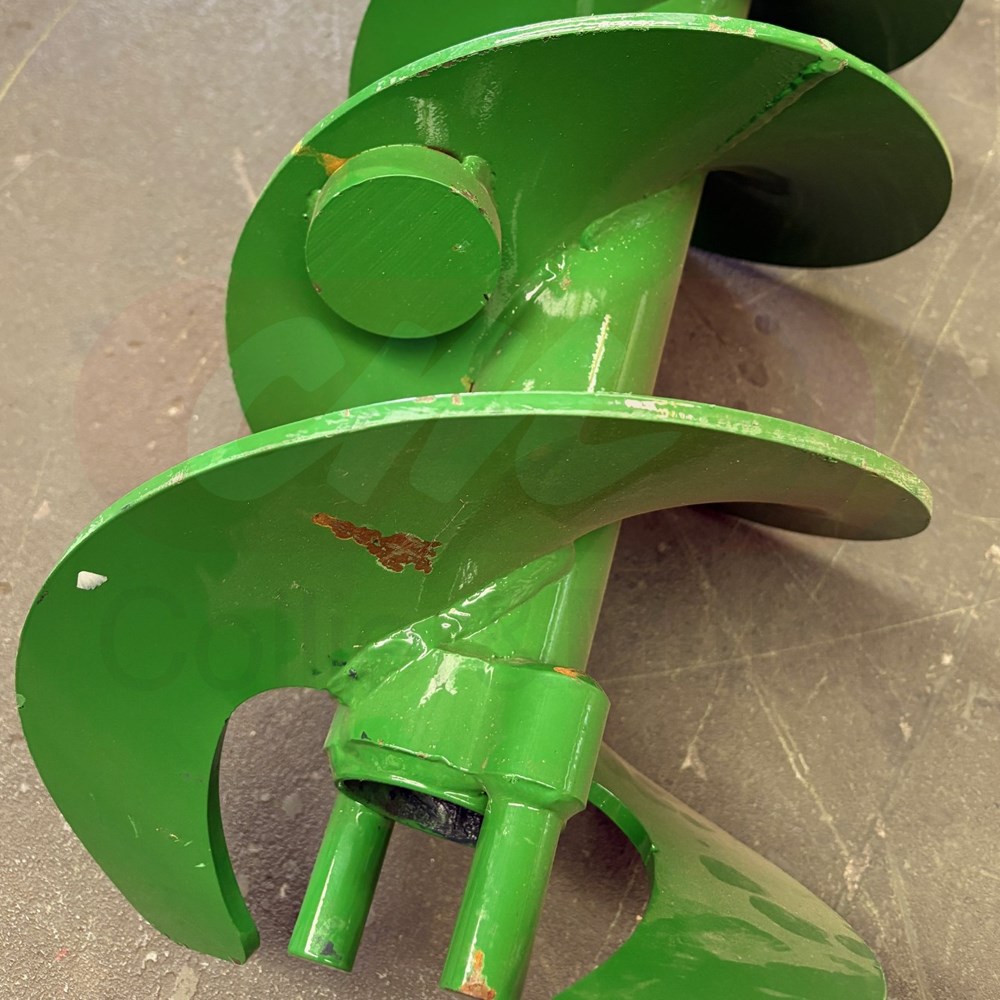

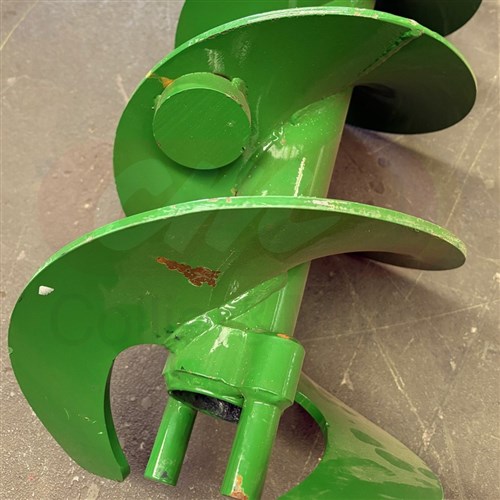

John Deere® Compatible Clean Grain Tank Loading Auger (Regular Capacity)
Keep your grain handling system in top condition with this premium aftermarket regular capacity clean grain tank loading auger. Specifically engineered for John Deere® STS, S600, and S700 series combines, this loading auger is a critical component of the elevator system, ensuring efficient crop transition into the grain tank.
This high-quality aftermarket auger features extended wear flighting to provide an
extended service life compared to standard alternatives. Precision-manufactured for a direct-fit solution, replacing worn loading augers is essential
preventative maintenance to maintain optimal tank-filling speeds and protect your loading auger gearbox from unnecessary stress caused by imbalanced or thin flighting.
John Deere® OEM Cross-Reference
Replaces OEM Part Numbers: AH218485, AH205897, AXE88698
Regular Capacity Loading Auger for John Deere S670, S770, 9760STS Models
| Series |
Models |
Type |
| John Deere® S-Series |
S650, S660, S670, S680 (EU), S690, S760, S770 |
Regular Capacity |
| John Deere® STS Series |
9650STS, 9750STS, 9660STS, 9760STS, 9860STS, 9670STS |
Regular Capacity |
| John Deere® Legacy / CTS |
9450, 9550, 9560, 9650CTS, 9660CTS |
Regular Capacity |
Technical Specifications & Features
- Quality Assurance: High-grade aftermarket construction to keep your equipment in top condition.

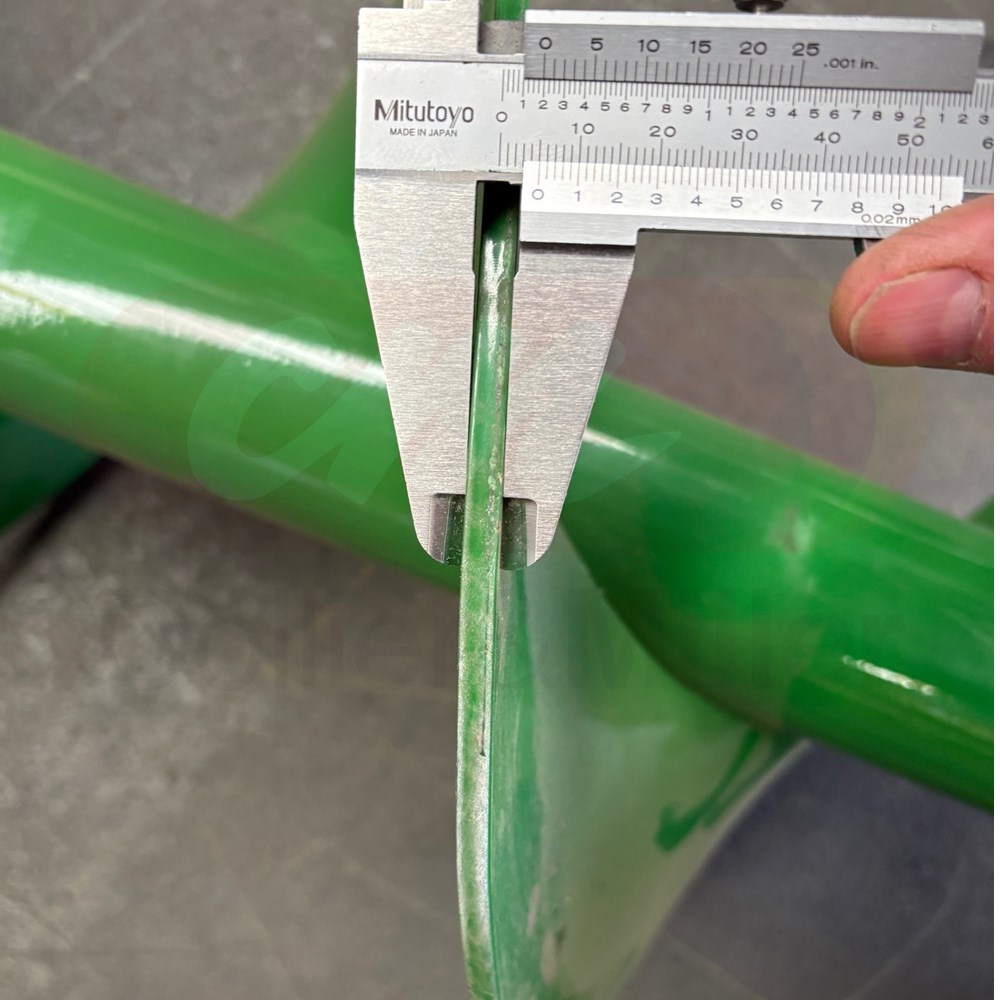

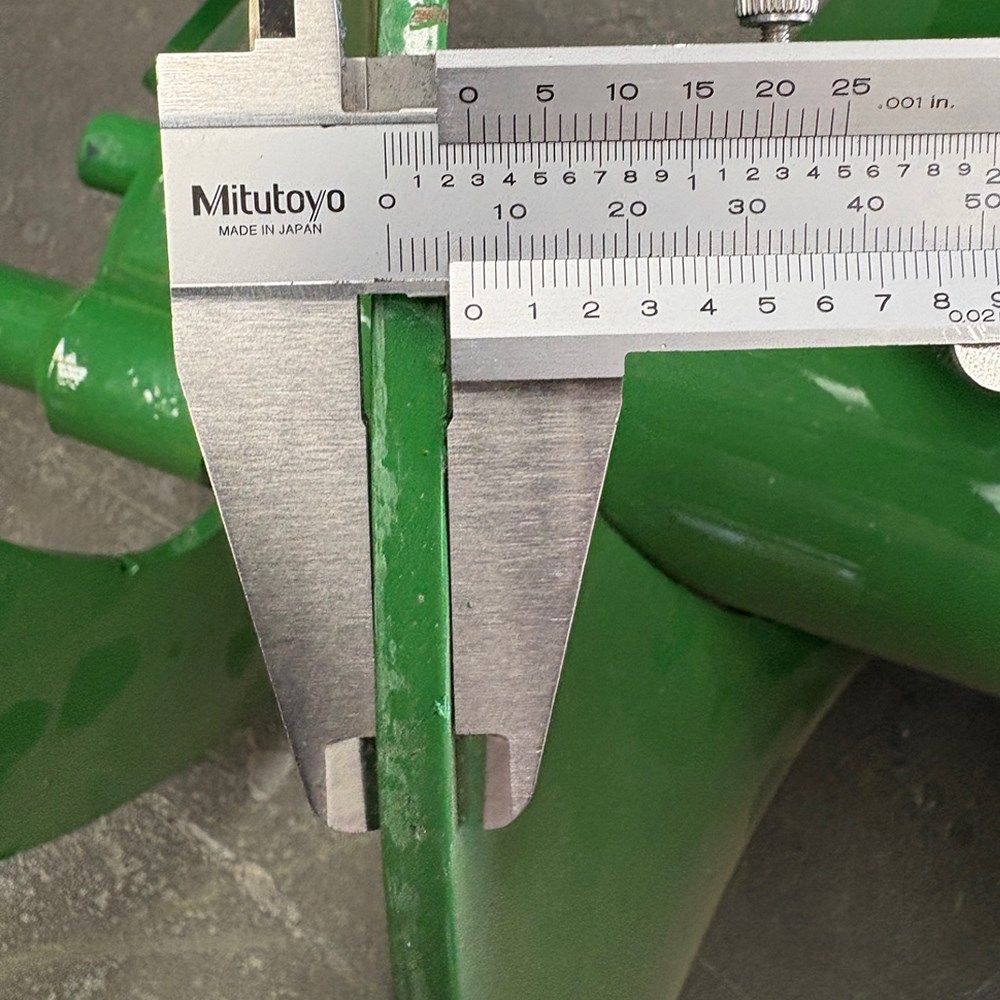

- Wear Protection: Extended wear flighting (7mm lead flight / 5mm post-lead flight).
- Dimensions: 10" (254mm) Diameter | 57.125" (1451mm) Overall Length.
- Power Transmission: Designed for direct drive via the loading auger gearbox.
- Durability: Engineered for high-volume grain handling and an extended service life.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your grain handling system in top condition, we recommend a thorough inspection of the loading auger gearbox and drive couplings whenever the auger is replaced.
Standard preventative maintenance for this assembly includes checking for flighting wear at the intake point where it meets the clean grain elevator. Replacing worn augers ensures an extended service life for your grain tank components and prevents costly blockages or mechanical failures during harvest.
Recommended Maintenance Upgrade
We specifically recommend inspecting your Loading Auger Gearbox and Clean Grain Elevator Chains when installing a new loading auger to ensure total system integrity.
