John Deere® Compatible Stone Trap Assembly Hinge & Seal

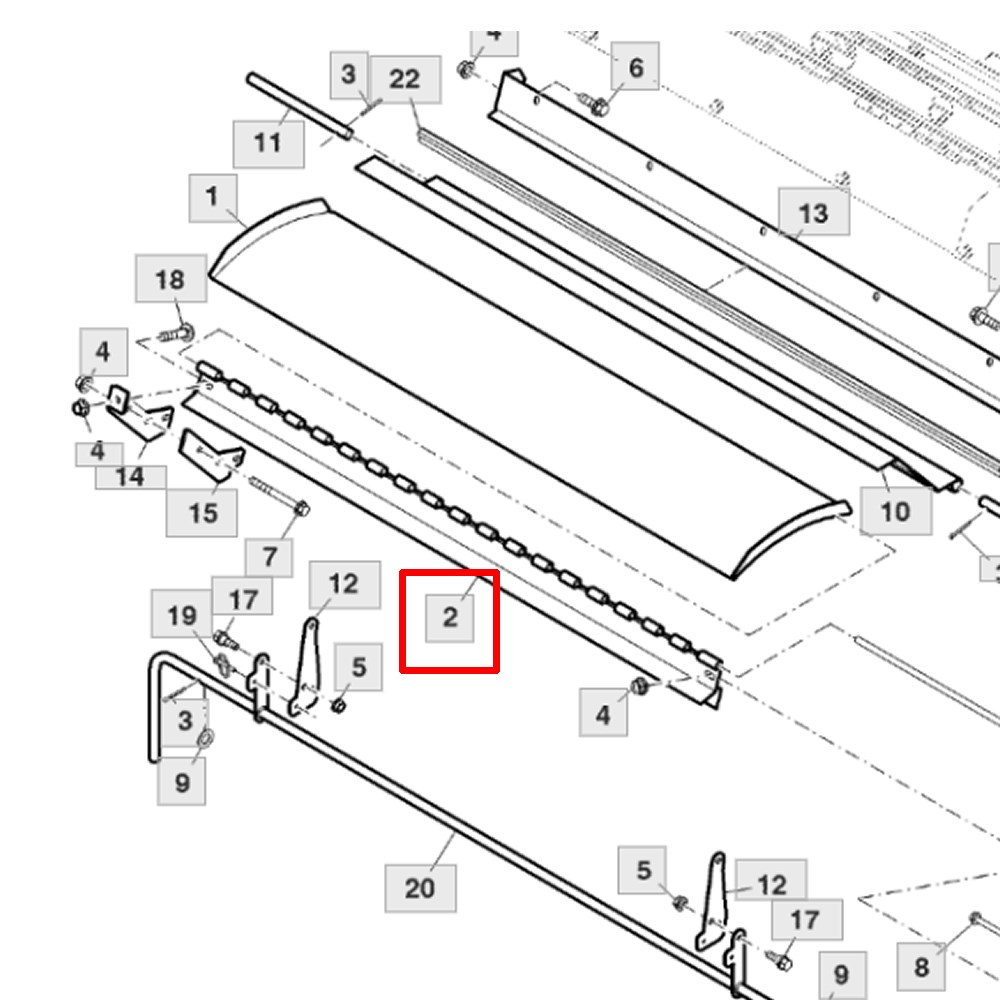

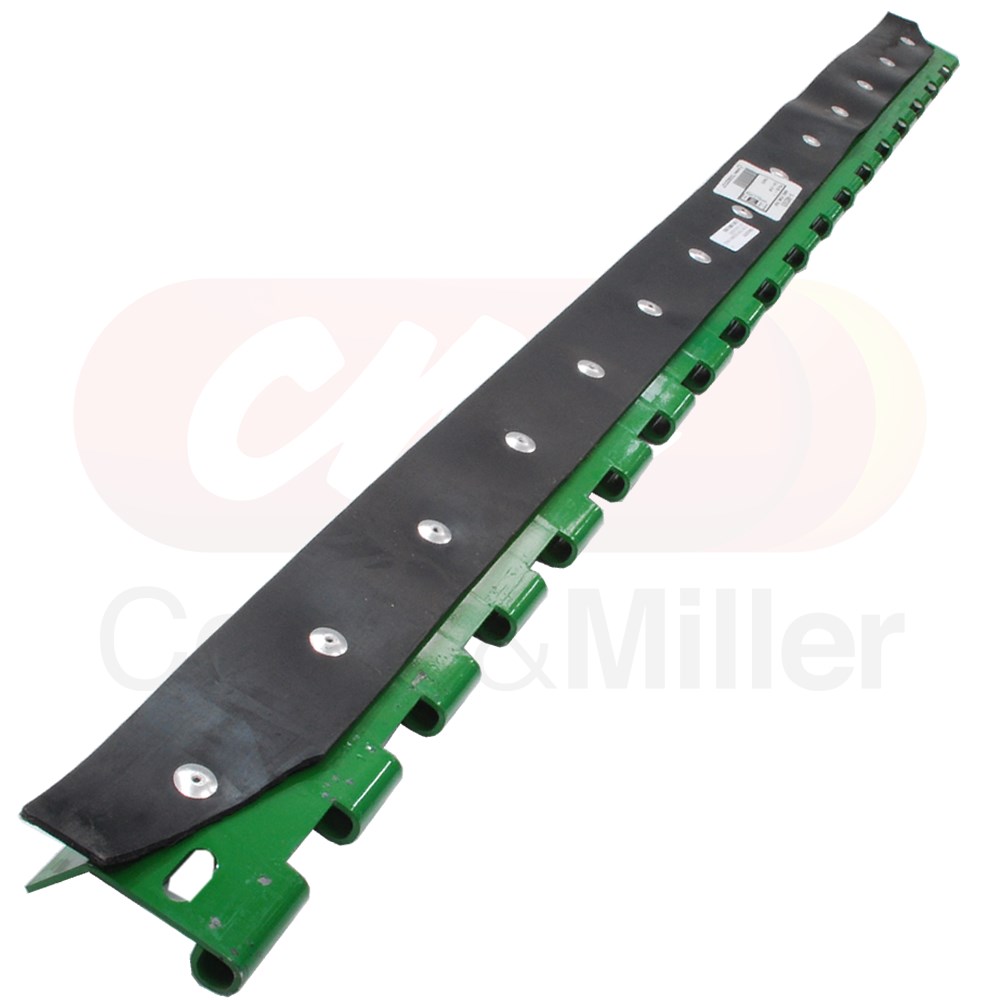

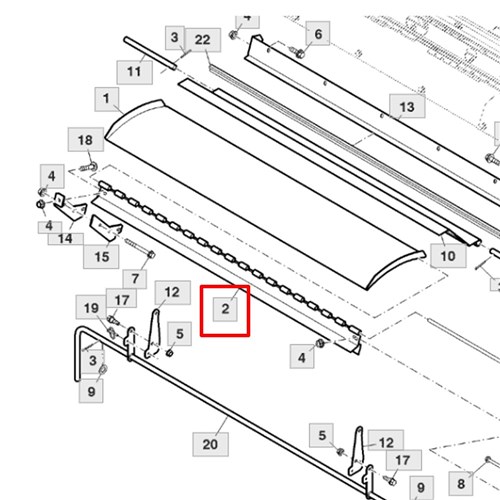

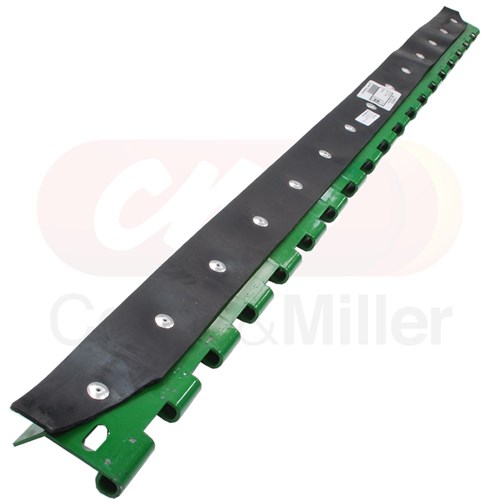

Restore the integrity of your debris protection system with this premium aftermarket stone trap assembly hinge and seal. Specifically engineered for late-model John Deere® STS and S-Series combine harvesters, this assembly is the professional solution for repairing worn components within the product feeding system.
Manufactured to high-performance standards, this assembly features a heavy-duty hinge pivot and is supplied with the critical rubber sealing flap pre-attached. By replacing a seized hinge or perished seal, you ensure the stone trap remains functional, preventing grain loss. This high-strength component keeps your machine in top condition, offering a reliable longer service life through tough harvest conditions.
Critical Serial Number Check
This hinge assembly is serial number dependent due to design changes in the product feeding system. Please verify your machine's serial range against the compatibility table below to ensure a correct fitment.
John Deere® OEM Cross-Reference
Replaces OEM Part Numbers: AH227675, AH219193
Stone Trap Hinge Compatibility: John Deere STS & S-Series
| Series |
Models |
Serial Range |
| John Deere® 60 Series |
9660STS, 9760STS, 9860STS |
Serial 720301 and onwards |
| John Deere® 70 Series |
9670STS, 9770STS, 9870STS |
Standard Fitment |
| John Deere® S600 Series |
S650, S660, S670, S680, S690 |
Standard Fitment |
| John Deere® S700 Series |
S760, S770, S780, S790 |
Standard Fitment |
Technical Specifications & Features
- Quality: Premium quality aftermarket refurbishment assembly.
- Components: Includes high-strength hinge pivot and integrated rubber sealing flap.
- Function: Restores the opening and sealing operation of the feeder house stone trap.
- Design: Engineered for extended wear in high-debris environments.
- Fitment: Direct replacement for worn components to prevent grain leakage.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The stone trap hinge and seal is a vital maintenance point that is often neglected until it seizes from dust or the rubber flap perishes. A faulty seal in the product feeding zone allows fine grain to escape and dust to bypass the stone trap, potentially leading to concierge or rotor abrasion. We recommend checking the hinge for free movement and the seal for cracks during every preventative maintenance check.
Upgrading to this high-performance assembly is a strategic way to save money by avoiding grain loss and ensuring the stone trap is always ready to drop in the event of an impact. Maintaining a perfectly sealed stone trap keeps your intake assembly in top condition and provides a significantly longer service life for the entire feeder house transition.
