HYDRAULIC MOTOR 100CC M+S

JOHN DEERE 635FD 640FD DRAPER SIDE BELT AXE61597

Product Code: CMAH228405
$925.00
EACH inc GST
Afterpay Logo
4 payments of $231.25
In Stock Low Stock Out Of Stock Please See Attributes 1
Increase value Decrease value



  • Product Detail

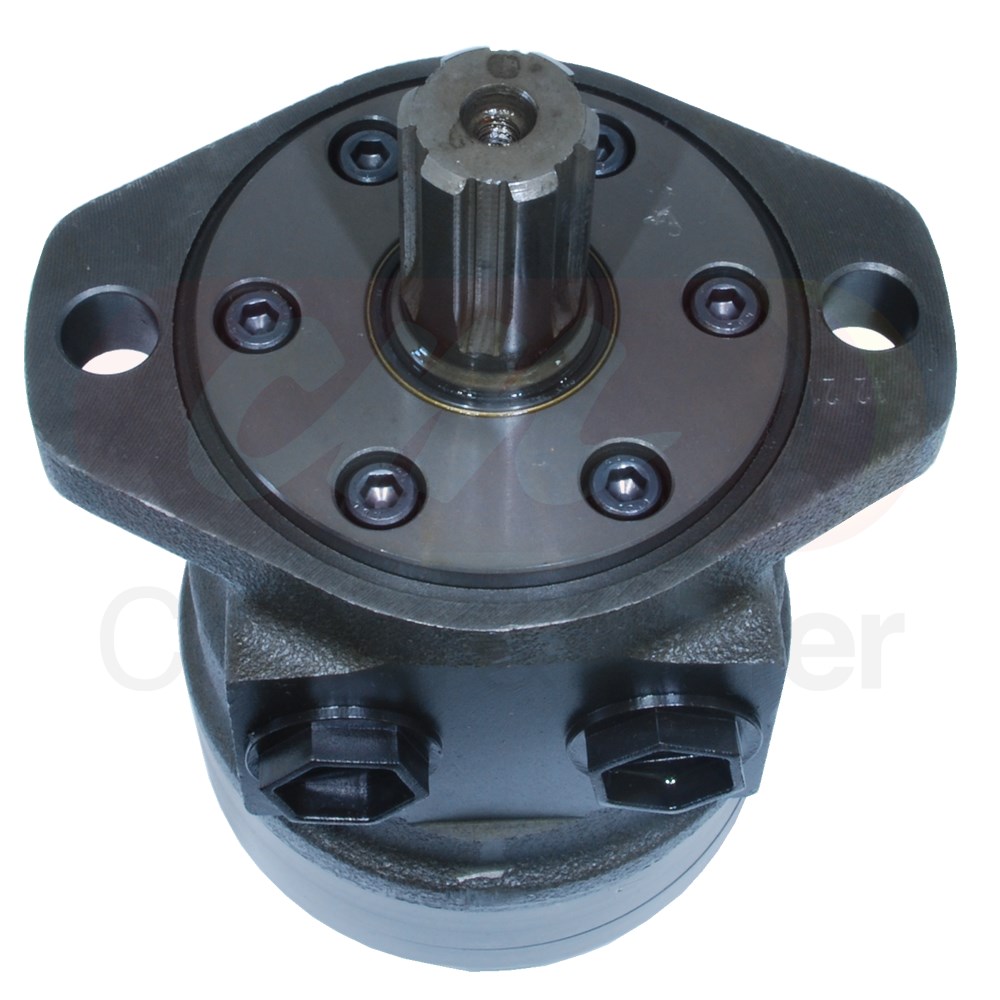

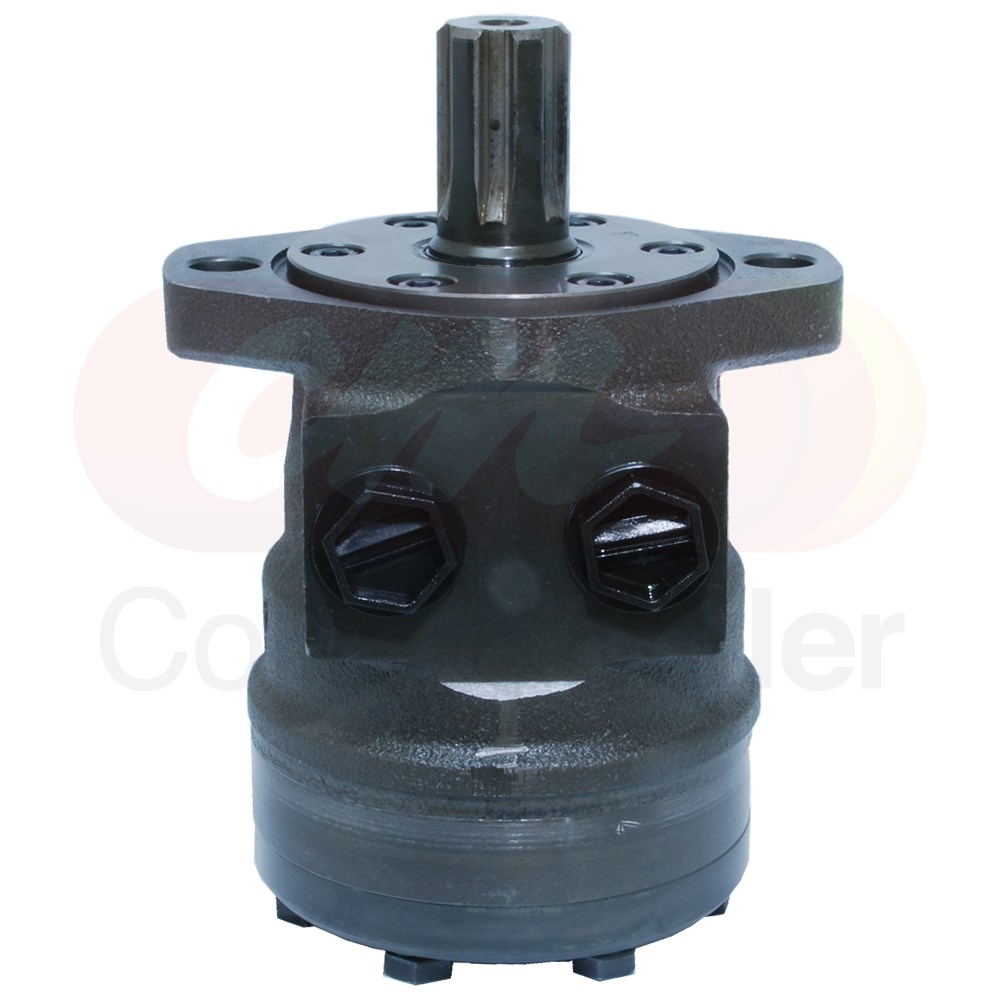

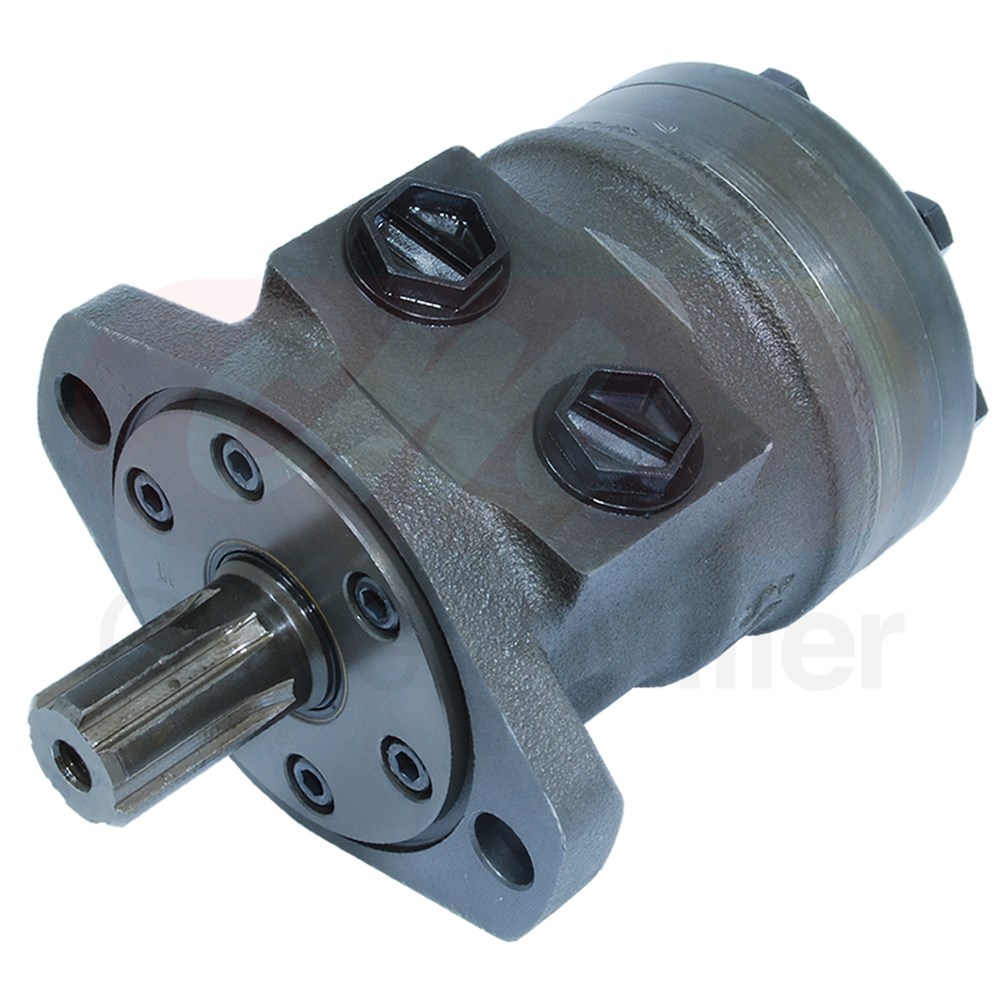

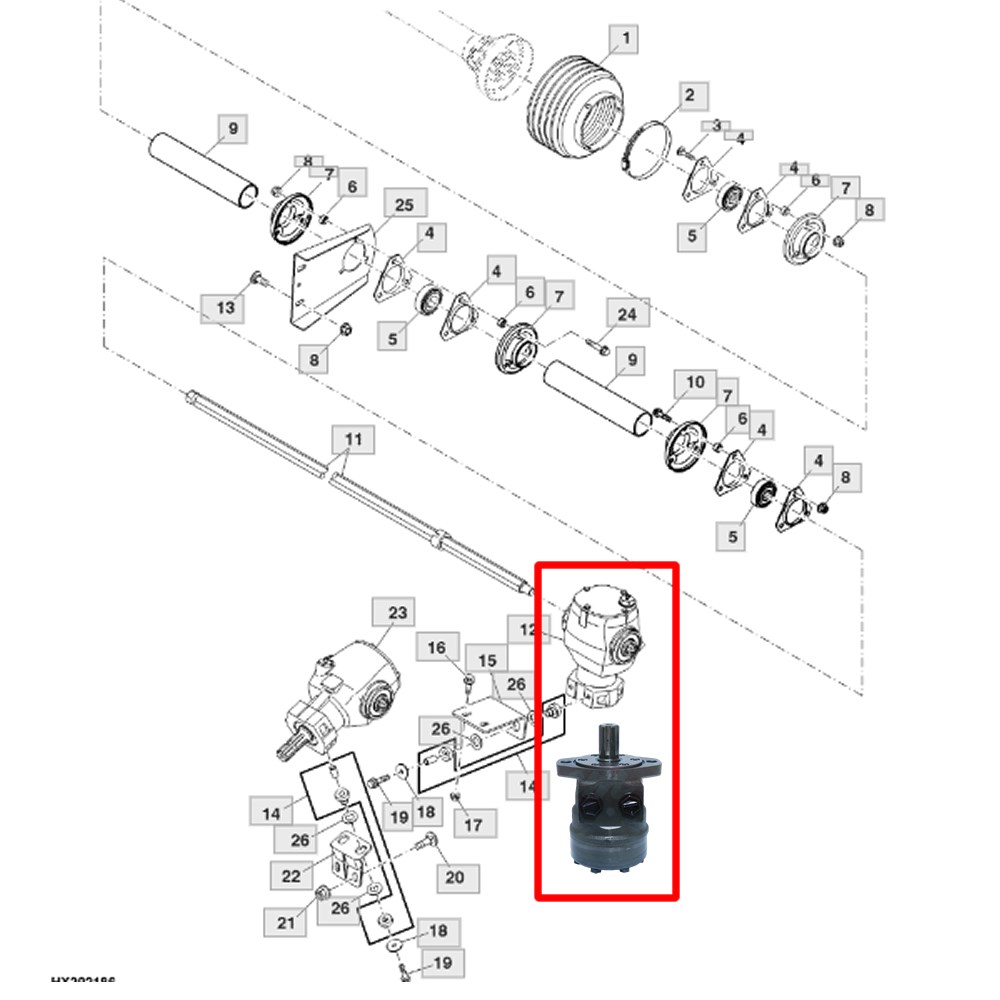

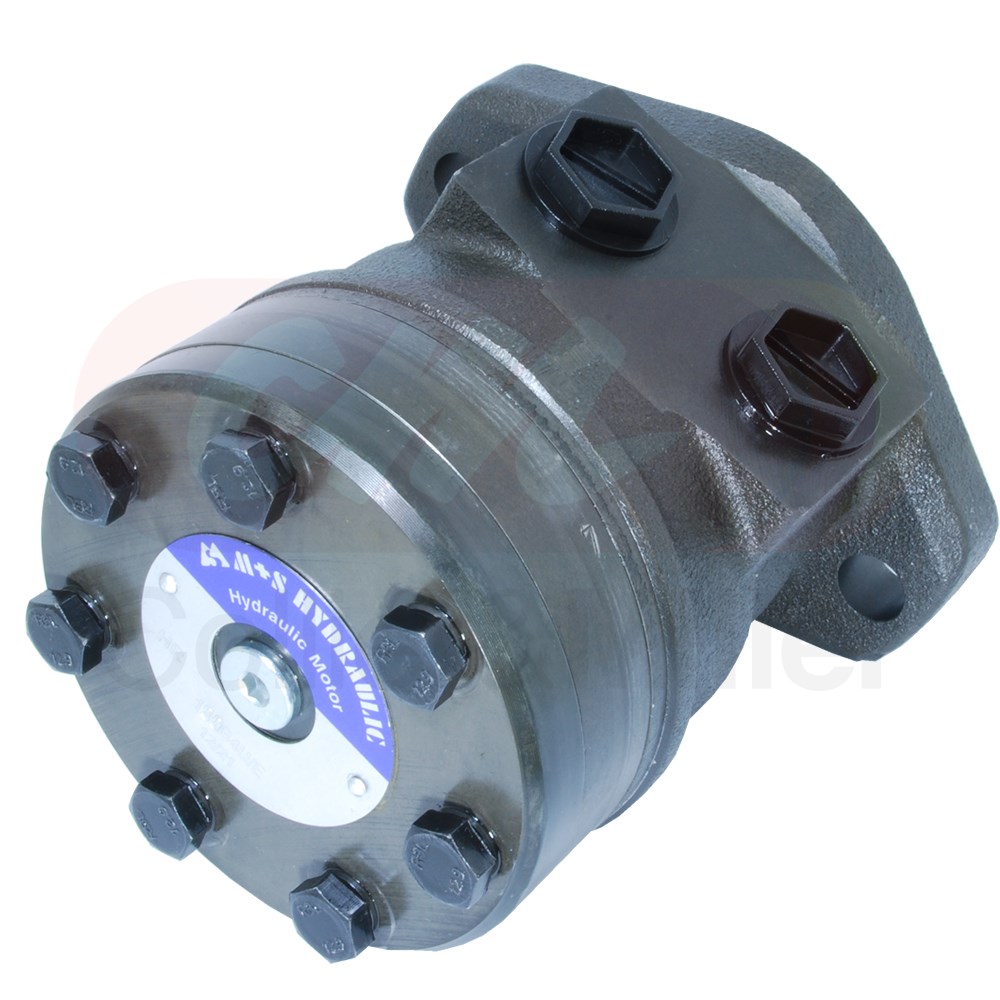

M+S aftermarker hydraulic charge pump to fit John Deere Draper cutting platforms. Mounted to the DE30190 gear case, this 99.8cc motor is used as a charge pump for the draper drive system.

Part numbers
  • AH228405, AXE61597
Fitment
  • 40- Hydraulic Drive System, Side Draper charge pump
Models
Brand Models Serial/Year
John Deere 600 D Series 625D, 630D, 635D, 640D
John Deere 600 FD Series 635FD, 640FD, 645FD
John Deere 700 D Series 725D, 730D, 735D, 740D
John Deere 700 FD Series 735FD, 740FD, 745FD

Features
  • M+S MLHP
  • 99.8cc
  • SAE 2 bolt
  • 1" (25.4mm) SAE 6B Splined
  • Side ports 2 x 7/8-14 UNF
  • Case drain 7/16-20 UNF
  • High pressure shaft seal
