HYDRAULIC MOTOR 100CC M+S
JOHN DEERE 635FD 640FD DRAPER SIDE BELT AXE61597
Product Code: CMAH228405
$925.00
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
2
Increase value
Decrease value

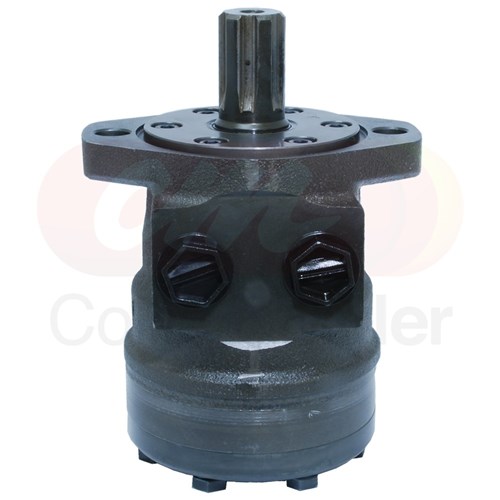

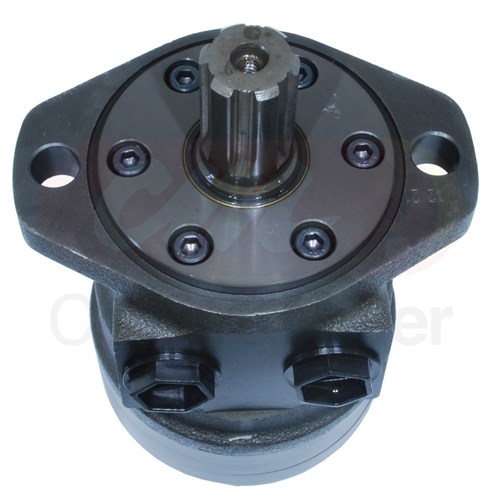

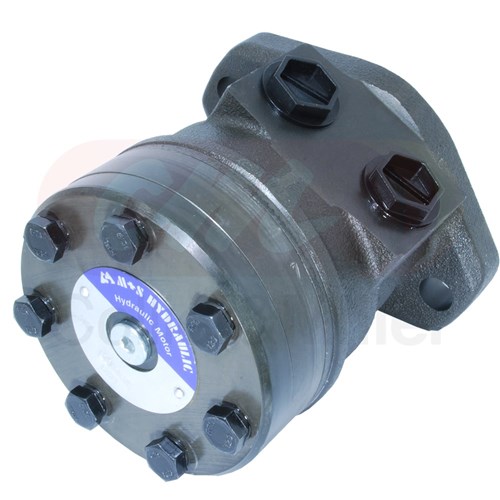

M+S aftermarker hydraulic charge pump to fit John Deere Draper cutting platforms. Mounted to the DE30190 gear case, this 99.8cc motor is used as a charge pump for the draper drive system.
Part numbers
Fitment

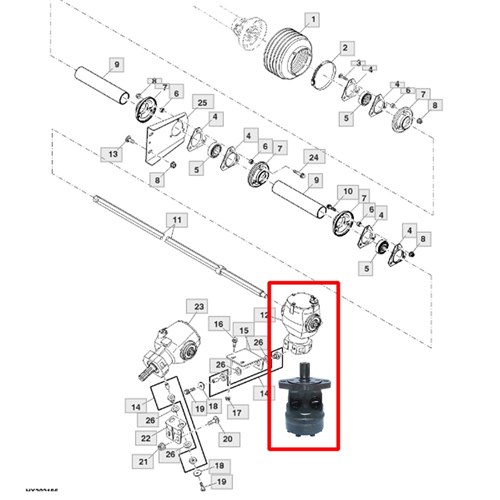

- 40- Hydraulic Drive System, Side Draper charge pump
Models
| Brand |
Models |
Serial/Year |
| John Deere 600 D Series |
625D, 630D, 635D, 640D |
|
| John Deere 600 FD Series |
635FD, 640FD, 645FD |
|
| John Deere 700 D Series |
725D, 730D, 735D, 740D |
|
| John Deere 700 FD Series |
735FD, 740FD, 745FD |
|
Features
- M+S MLHP
- 99.8cc
- SAE 2 bolt
- 1" (25.4mm) SAE 6B Splined
- Side ports 2 x 7/8-14 UNF
- Case drain 7/16-20 UNF
- High pressure shaft seal
AH228405 158-3711-001 1583711001 AXE61597
