DOFFER STACK ASSEMBLY AKK17562 JOHN DEERE 7760 CP690 HIGH SPEED COTTON PICKER

JOHN DEERE 7760 CP690 HIGH SPEED COTTON PICKER

Product Code: CMAKK17562

Product Detail

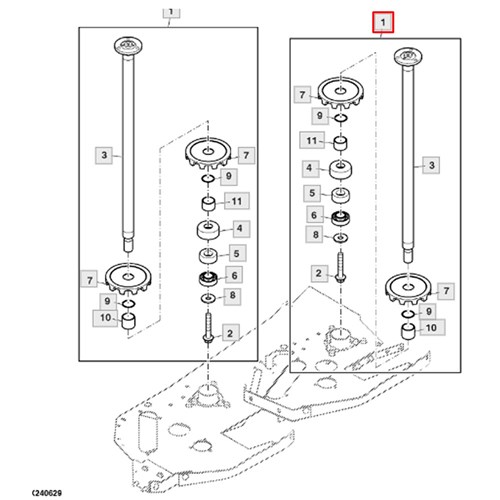

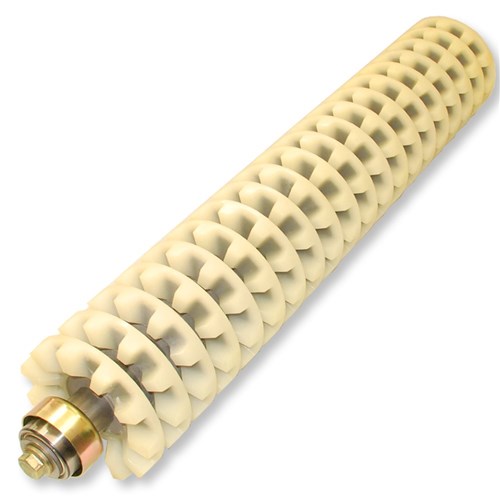

Aftermarket high speed doffer assembly to suit popular models of John Deere Cotton Harvesters and Pickers. Located in the picking unit this is a complete doffer unit assembly ready to install. The unit contains the following parts already assembled;

Contains

1 x 19M7828 Screw
1 x AKK16193 Doffer Shaft
1 x N275471 Round Retainer
1 x N410874 Doffer
1 x AN275022 Bearing
20 x AN406038 Doffer
1 x N134803 Washer
1 x N400789 Shim
18 x KK15280 Spacer
1 x KK15281 Spacer

Part Number

AKK17562 AKK16385

Fitment

Series	Models	Serial/Year
John Deere 7	7660, 7760
John Deere 9	9976, 9986, 9996
John Deere CP	CP690, CP770
John Deere Picking Units	Pro 16

Features

Complete Doffer Assembly
