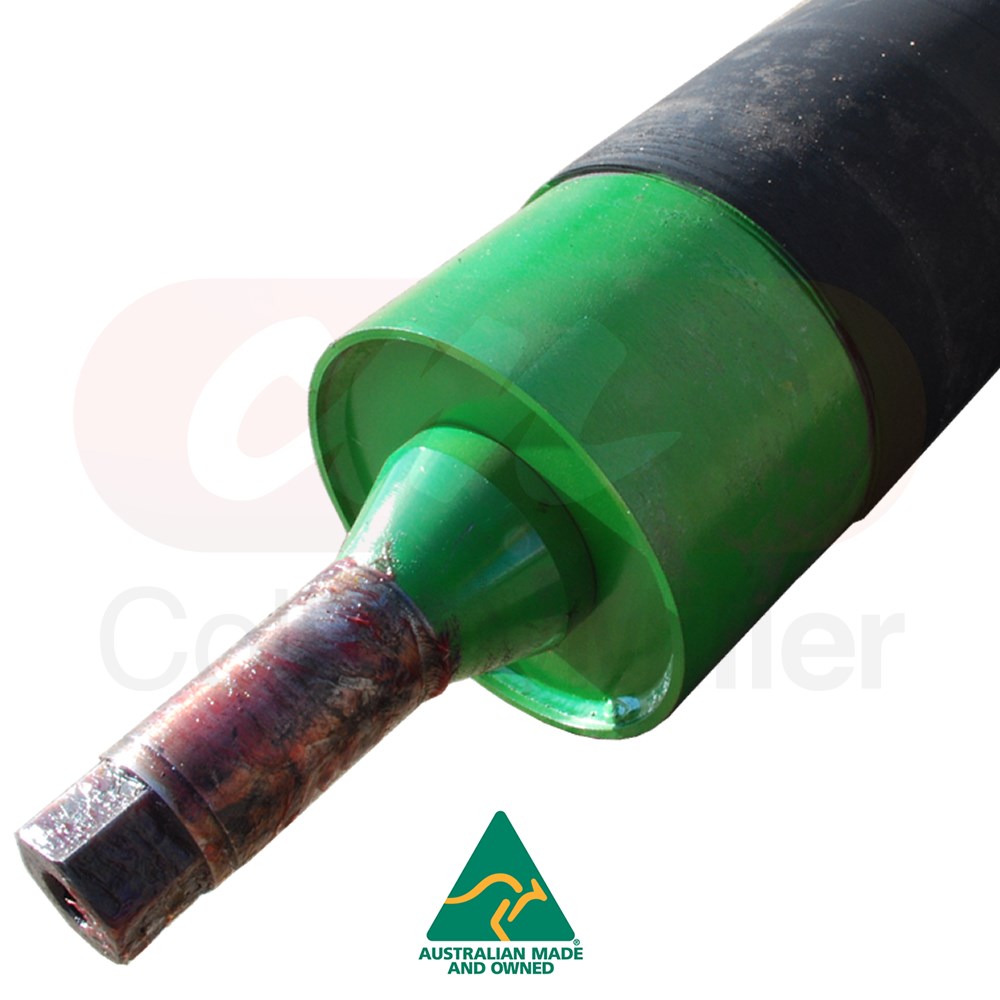

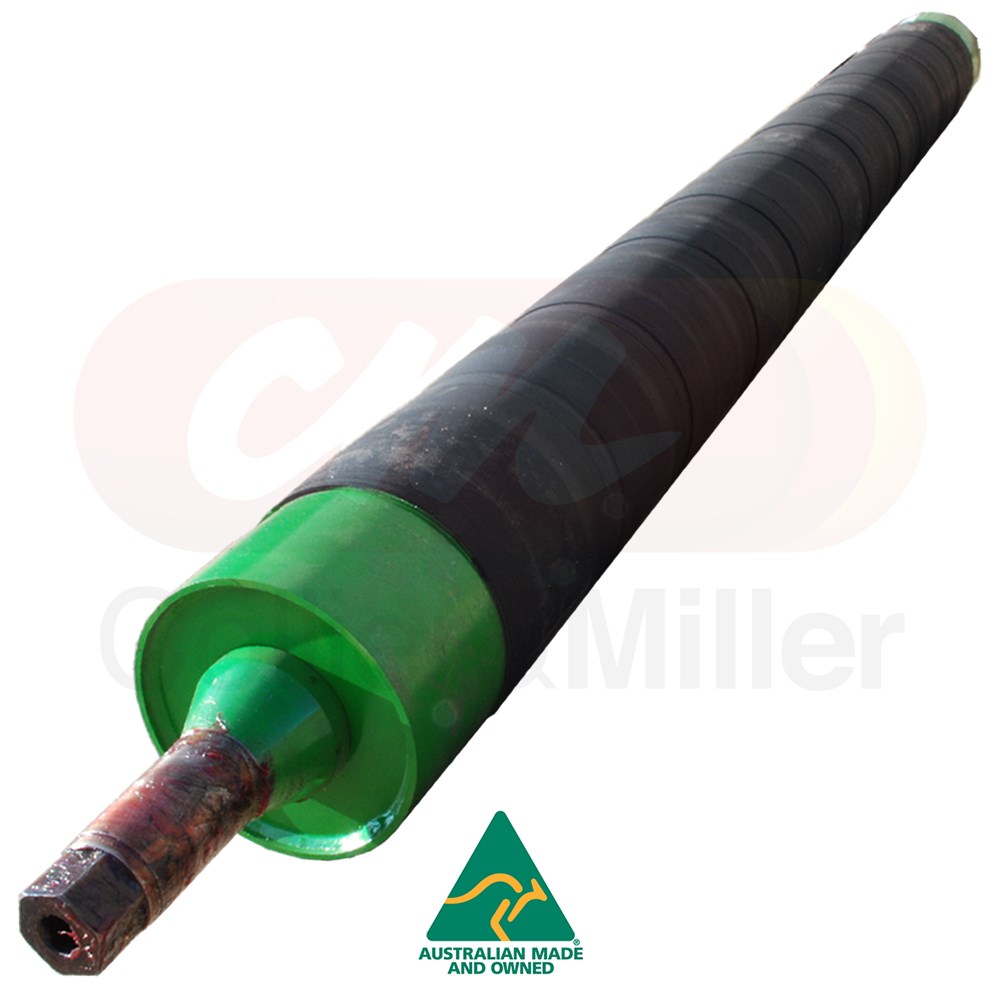

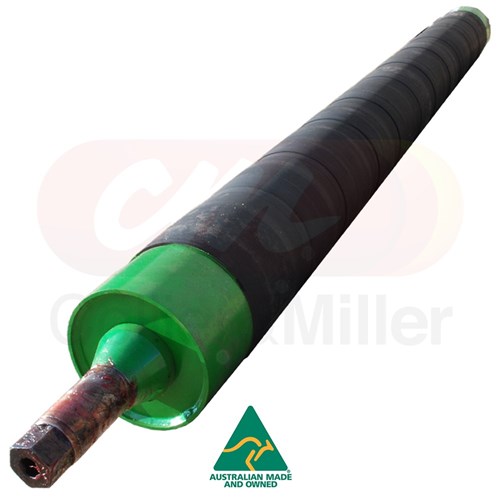

John Deere® Compatible Round Module Builder Drive Roller (Lagged)
Ensure maximum traction and precise belt operation with this premium C&M Australian-made round module builder drive roller. Specifically engineered for John Deere® cotton pickers and strippers, this heavy-duty drive roller is a critical component for maintaining consistent module density and belt alignment during high-capacity harvest operations.
Manufactured in our Griffith factory, each roller is supplied pre-lagged and precision-machined with the exact profile required for accurate belt tracking, matching original equipment specifications. This high-performance drive solution provides superior grip, assisting in the prevention of belt slippage and ensuring a longer service life for your module builder belts while keeping your equipment in top condition.
John Deere® OEM Cross-Reference
Replaces OEM Part Number: AN374013
Drive Roller Compatibility: John Deere 7760, CP690 & CS690 Models
| Series |
Models |
Reference |
| John Deere® 7700 Series |
7760 Cotton Picker |
Standard Fitment |
| John Deere® CP Series |
CP690 Cotton Picker |
Standard Fitment |
| John Deere® CS Series |
CS690 Cotton Stripper |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Build Quality: Supplied with high-traction lagging for positive belt drive.
- Precision: Lagging profile machined to match OE standards for accurate tracking.
- Dimensions: Length = 3100mm | Diameter = 230mm.
- Weight: 140kg (Heavy-duty high-strength construction).
- Quantity: 2 rollers required for a complete round module builder installation.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The round module builder drive rollers are the primary power transmission point for the formation belts. Constant exposure to abrasive cotton seed, dust, and sap can cause the lagging to smooth out or delaminate over time. Loss of lagging profile leads to belt "walking" or slippage, which can result in uneven module formation and premature belt failure. We recommend inspecting the lagging depth and drive couplings during every preventative maintenance check.
Upgrading to this lagged C&M roller is a strategic choice to **save money** on potential belt replacements. A fresh, high-grip surface allows the builder to operate at peak efficiency with less belt tension, reducing the load on your hydraulic drive motors and providing an extended wear life for the entire module building system.
Installation Tip: Verify Drive Coupling
When installing a new AN374013 drive roller, it is vital to inspect the drive motor splines and mounting hardware. A worn coupling can cause shaft vibration, which will rapidly degrade the new lagging and the internal bearings. Ensuring a high-strength mechanical connection is essential for a reliable, high-speed cotton harvest.
