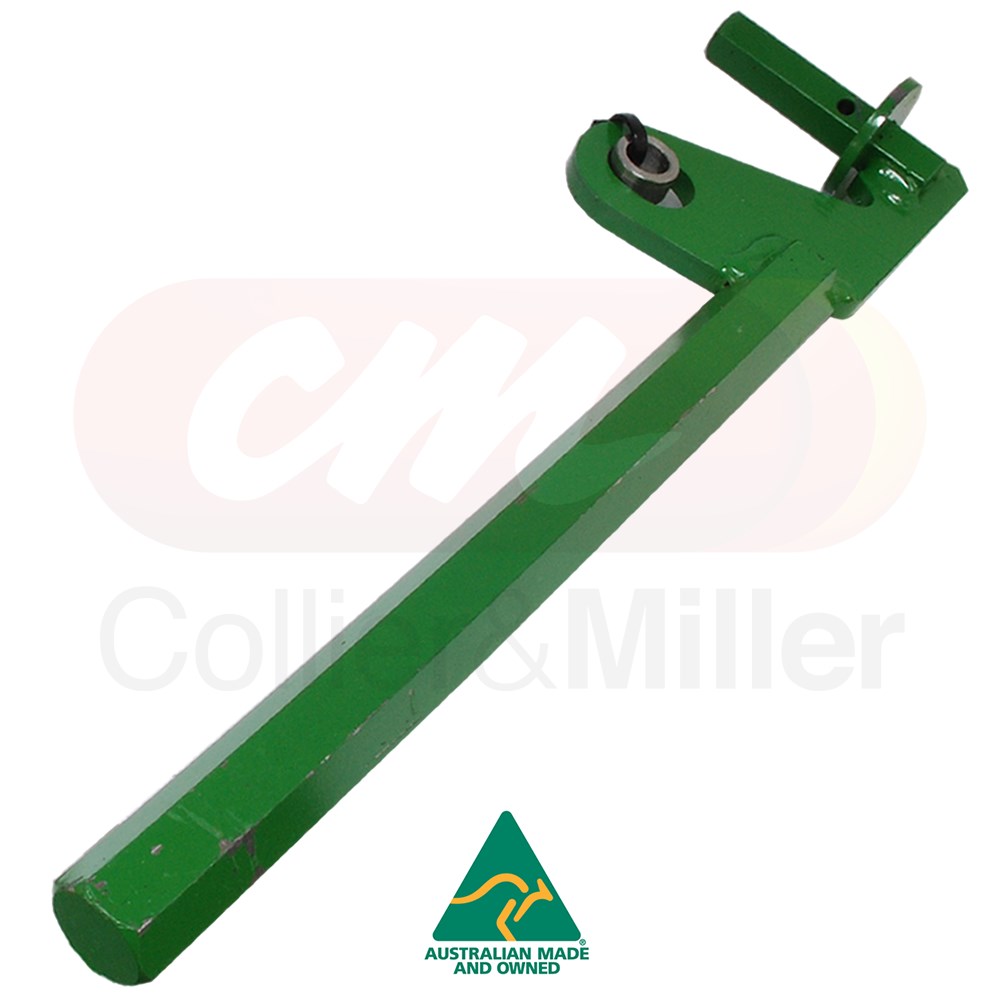

John Deere® Compatible Front Draper Belt Tensioner Shaft (Left Side)
Ensure precise belt tracking and tension with this premium C&M Australian-made left-hand belt tensioner arm. Specifically engineered for John Deere® 600D and 700D series draper platforms, this high-performance shaft is a critical component for repairing worn components within the product feeding system.

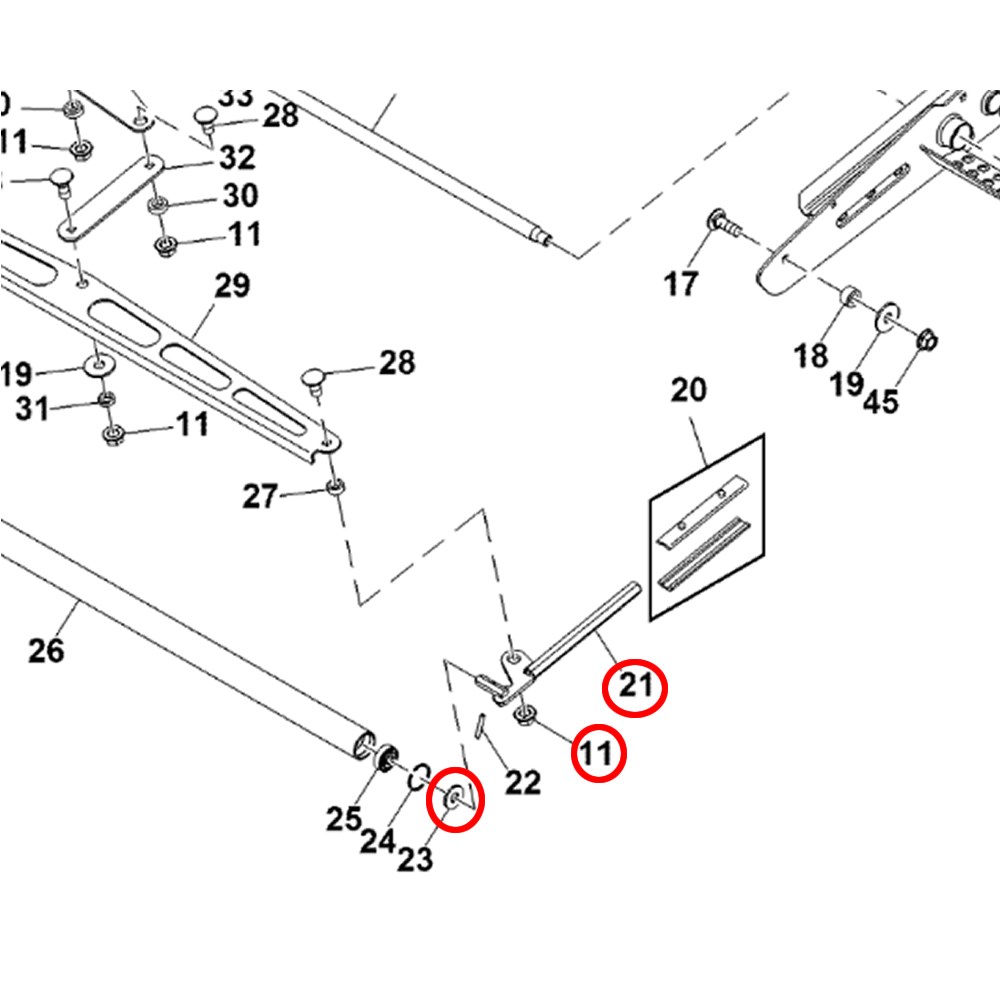

Manufactured in our Griffith factory, this tensioner shaft is built to exact specifications to ensure a seamless fit and reliable operation. This high-strength assembly is supplied complete with the HXE11745 push bar spacer and H165874 hex washer. The electroplated finish provides consistent surface protection and professional presentation, keeping your tensioning assembly in top condition for a longer service life.
John Deere® OEM Cross-Reference
- Part Numbers: AXE11056, AH223794
- Included Components: HXE11745 (Spacer), H165874 (Hex Washer)
Belt Tensioner Compatibility: John Deere 600D & 700D Series
| Series |
Models |
Specification |
| John Deere® 600 Series |
625D, 630D, 640D |
Left Hand Side |
| John Deere® 700 Series |
725D, 730D, 735D, 740D |
Left Hand Side |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Orientation: Left Hand (LH) Version.
- Finish: Electroplated for enhanced surface protection.
- Hardware: Supplied with required spacer and hex washer.
- Note: Does not include the 5mm x 30mm roll pin (Use Part # S1203).
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The draper belt tensioner shaft is a vital link in the product feeding circuit. If the shaft becomes bent or the mounting points develop play due to worn components, the draper belt will fail to track correctly, leading to edge fraying and premature belt failure. We recommend inspecting the tensioner arms for straightness and the spacers for excessive movement during every preventative maintenance check.
Replacing a damaged shaft with this high-performance C&M version is a strategic choice to save money on expensive draper belts. By maintaining correct belt geometry, you ensure a smooth material transition into the feeder house, keeping your intake system in top condition for a longer service life throughout the harvest window.
Installation Tip: Roll Pin Security
When repairing worn components, ensure the new 5mm x 30mm roll pin is driven in flush to properly secure the assembly. This is the ideal time to check your draper belt tension springs and drive rollers to ensure the entire product feeding system is balanced and ready for high-capacity harvesting.
