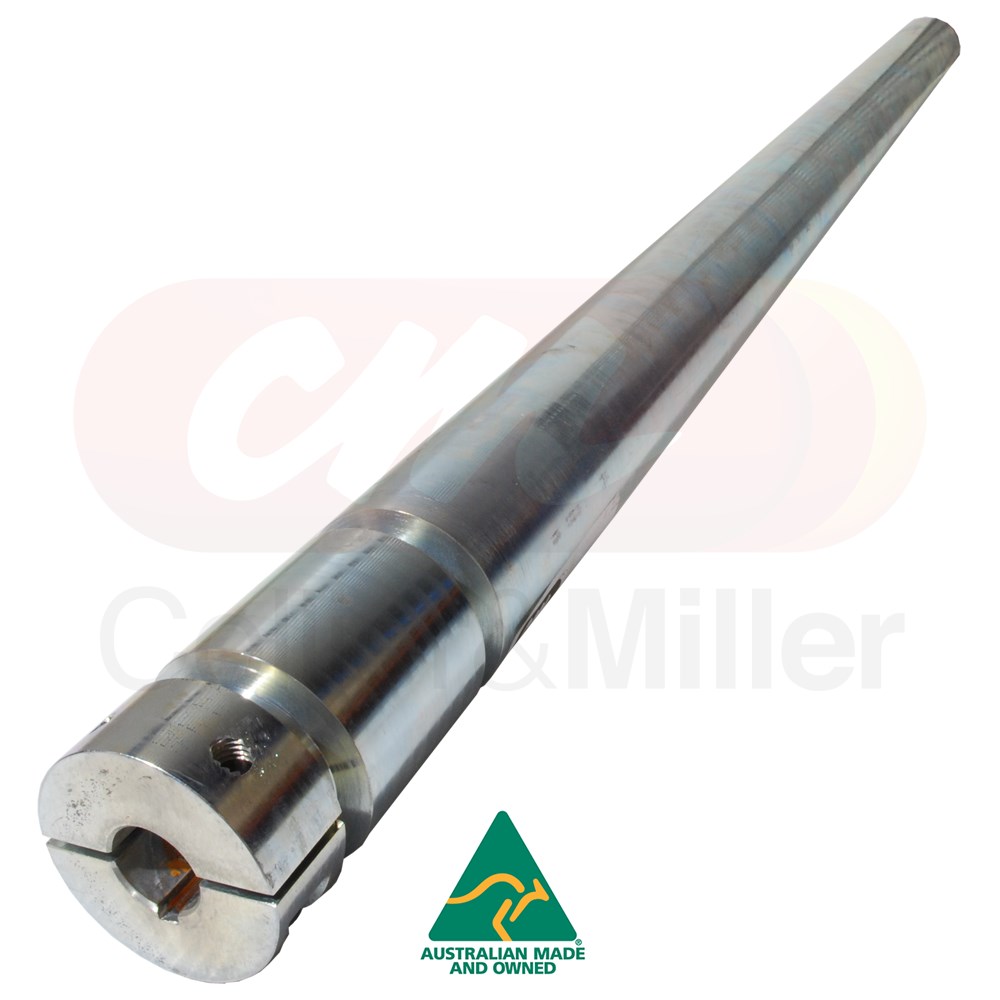

C&M aftermarket Centre feed belt drive roller to suit John deere 600 and 700 series draper platforms. This centre feed belt drive roller is made from heavy wall cds tube and comes fitted with bearing ready to mount to cutting platform. The heavy wall tube provides increased service life at the high wear area at the end of the roller. The roller has 2 V guides and also is fitted with a split hub, clamp bolt style with 2 x cap screws on the drive end.
Part numbers
Application
- Combine Adaptor center feed drive roller
Models
| Series |
Models |
Serial/Year |
| John Deere 600 Series |
625D, 630D, 635D, 640D |
|
| John Deere 700 Series |
725D, 730D, 735D, 740D |
|
Features
- C&M Made in Australia
- Electroplated Finish
- Not Lagged

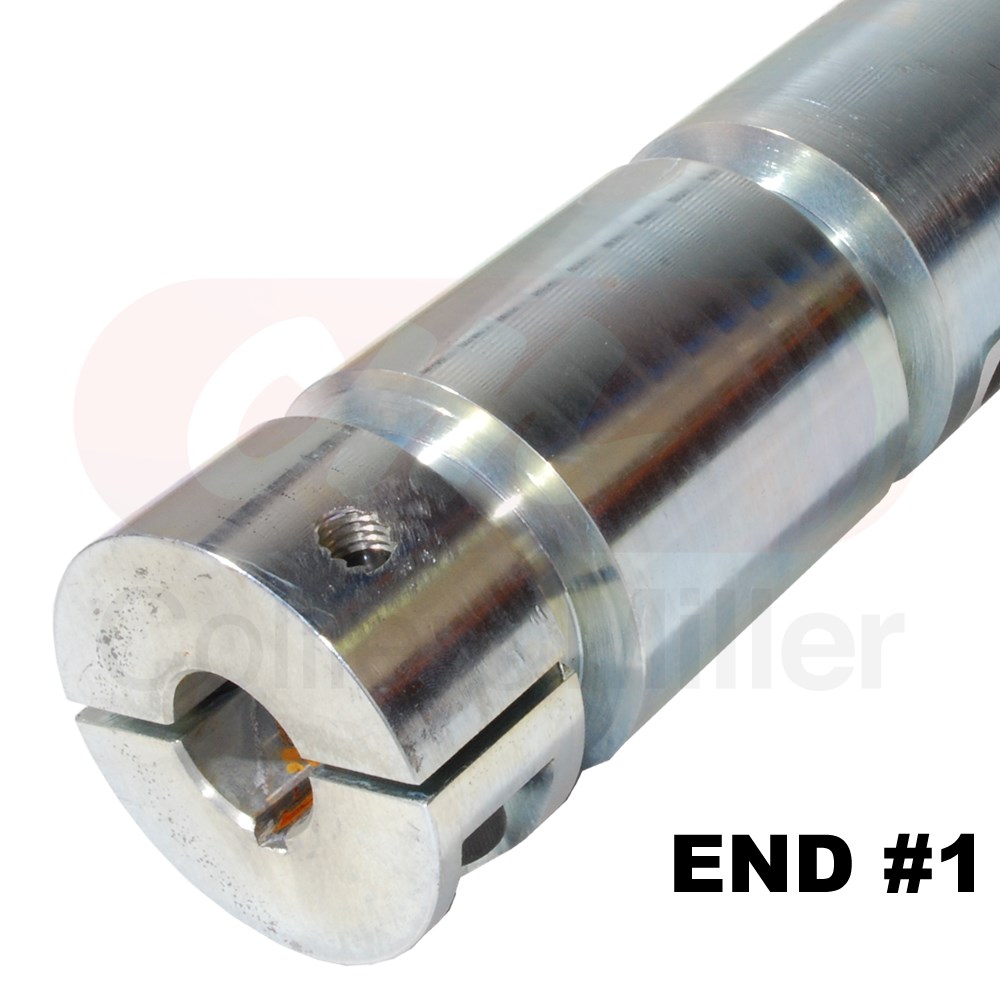

- End #1 split bush fitted with 2 cap screws

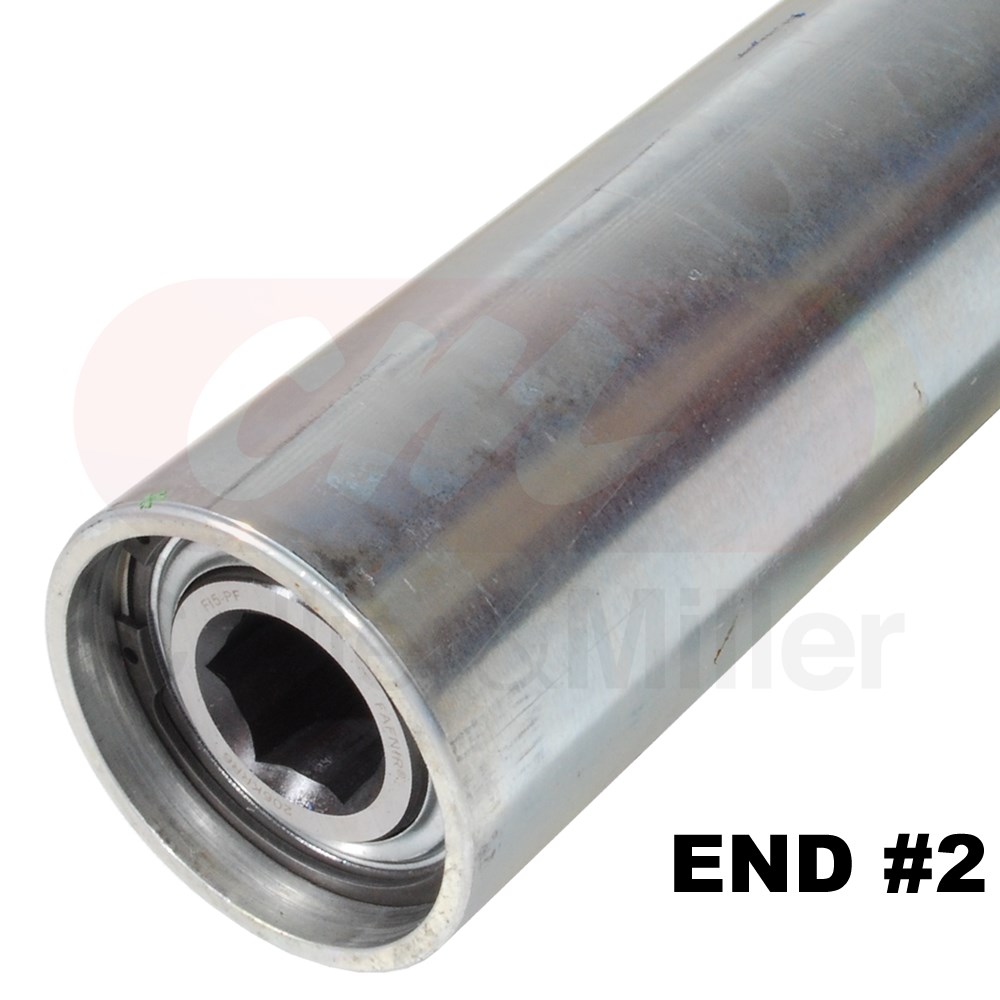

- End #2 fitted with Timken 206KRR6 hex bearing
