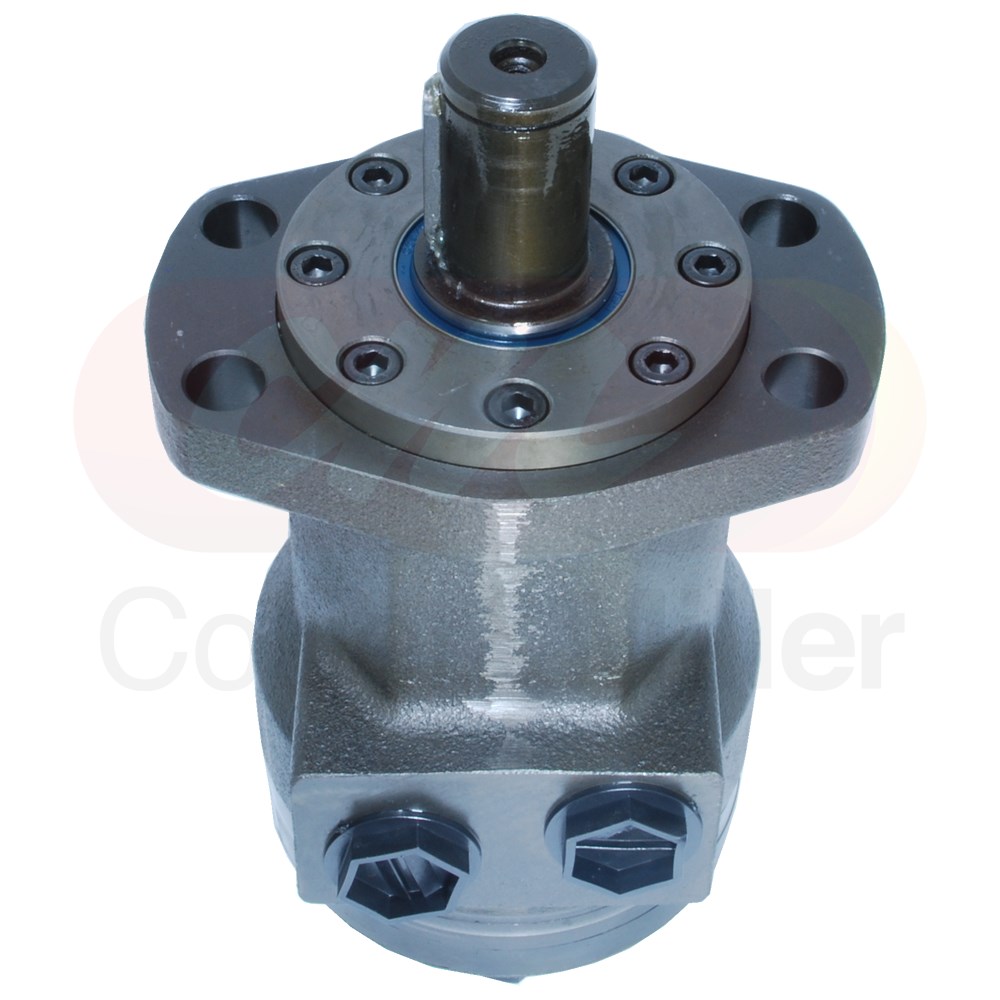

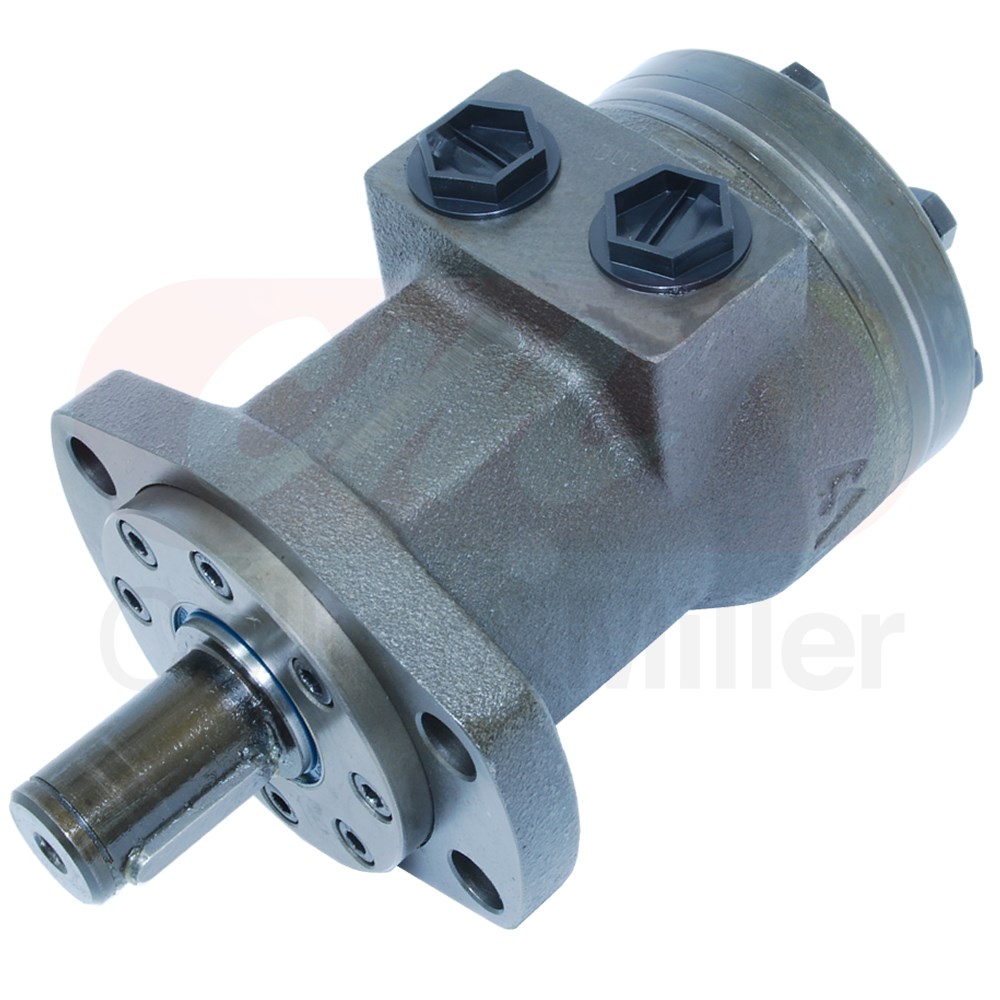

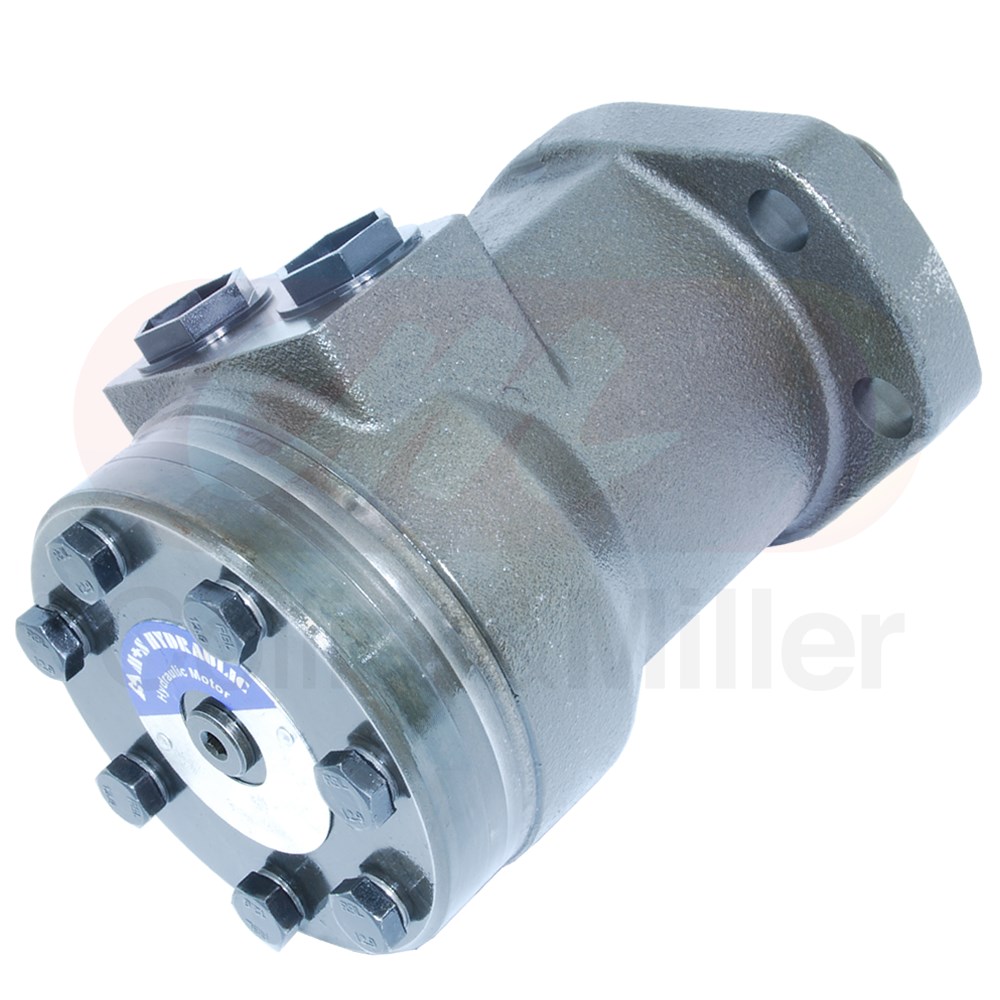

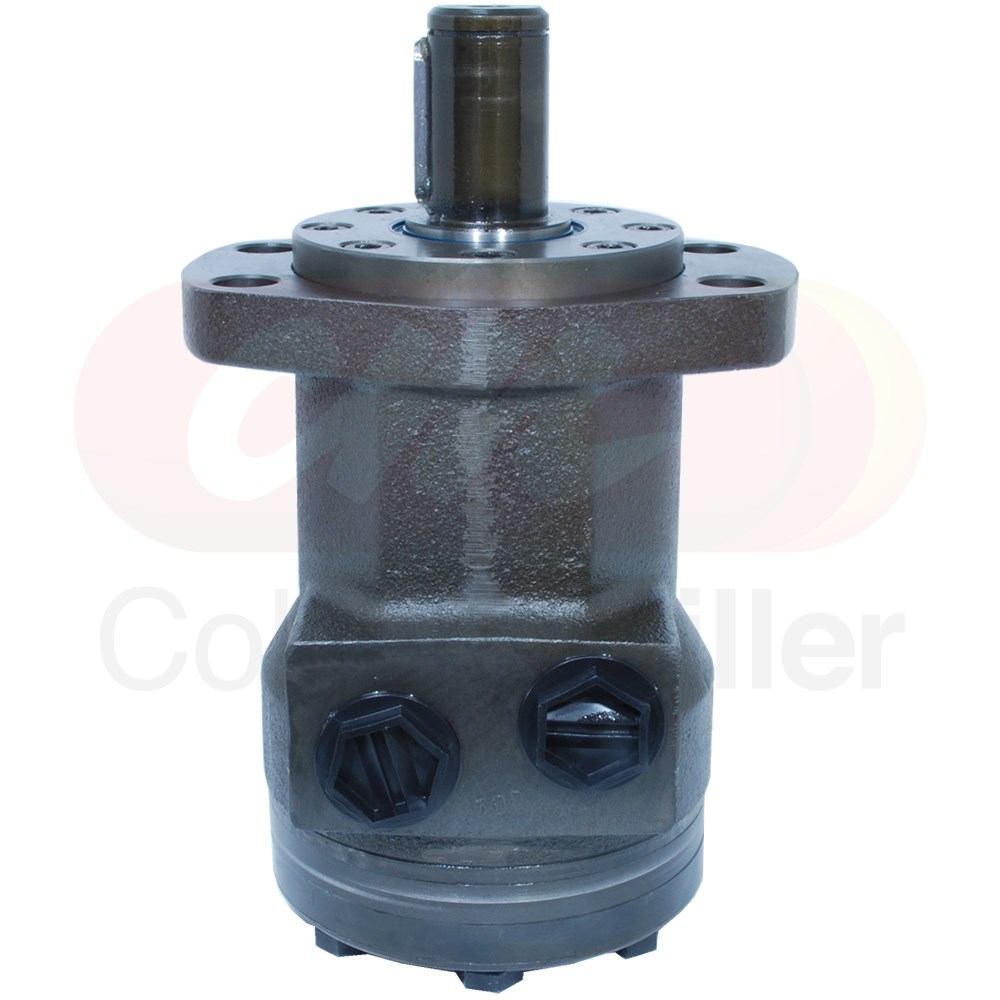

M+S aftermarket hydraulic motor to suit John Deere 600 and 700 series draper fronts. This motor is supplied with a 4 bolt magneto mount and suits the right hand side draper drive roller (without sensor), deck shift and top crop conveyer auger on John-Deere 600 series
FROM Serial Number - 775193 >, and 700 series combine headers.
Part numbers
Fitment
- Draper Roller Drive Motor (RIGHT HAND SIDE ONLY WITHOUT SENSOR)
- Deckshift Motor
- 600 Series Top Crop Conveying Auger
Brand |
Models |
Serial/Year |
John Deere 600 D Series |
625D, 630D, 635D, 640d |
SN 775193 > |
John Deere 600 FD Series |
635FD, 640FD |
SN 775193 > |
John Deere 700 D Series |
725D, 730D, 740D |
All |
Features
- M+S HR Series
- 4 bolt magneto mount
- 50cc
- 1" x 1/4" keyed shaft
- Side ports 7/8-14 UNF
- Case drain 7/16-20 UNF
- High pressure shaft seal (200 Bar)
