KNIFE HEAD BEARING ADAPTOR

ACTUATOR JOHN DEERE AXE24816 AXE79102

Product Code: CMAXE24816
  $533.50
EACH inc GST
Afterpay Logo
4 payments of $133.38
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail

Knife Head Trunnion 27mm

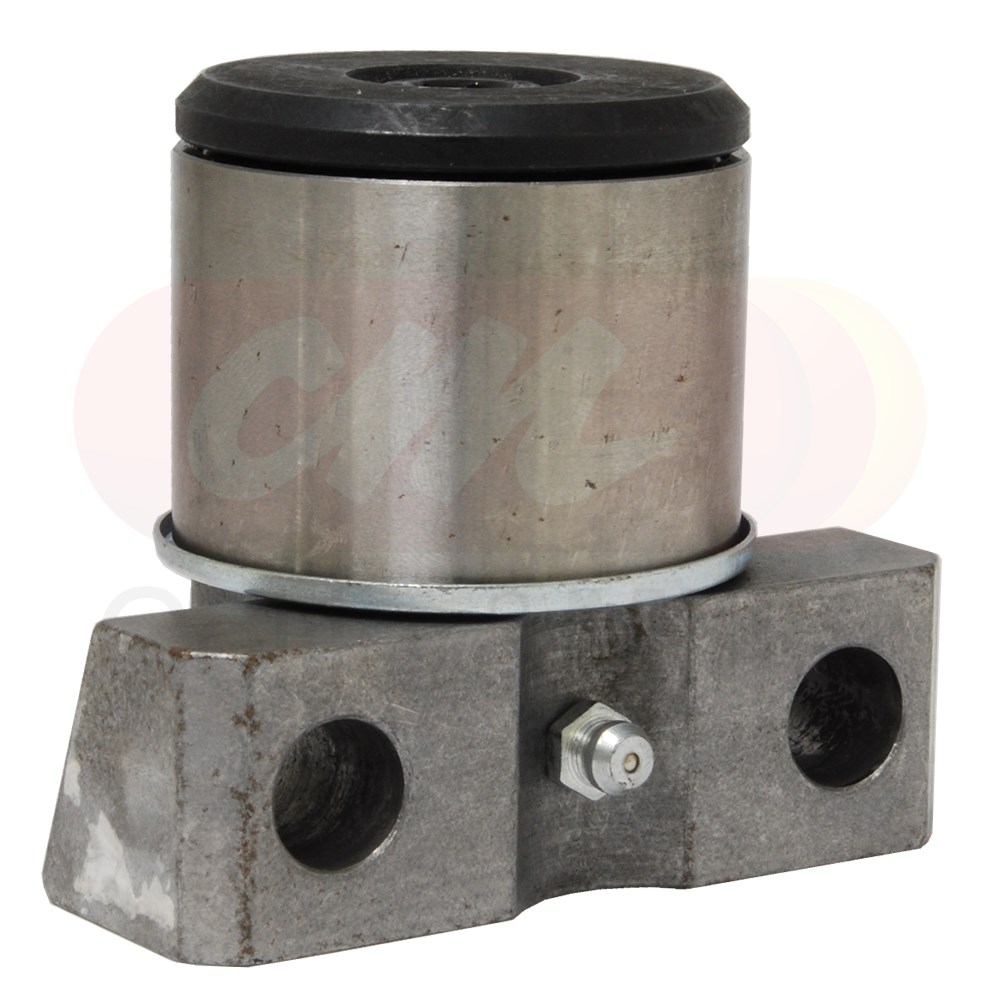

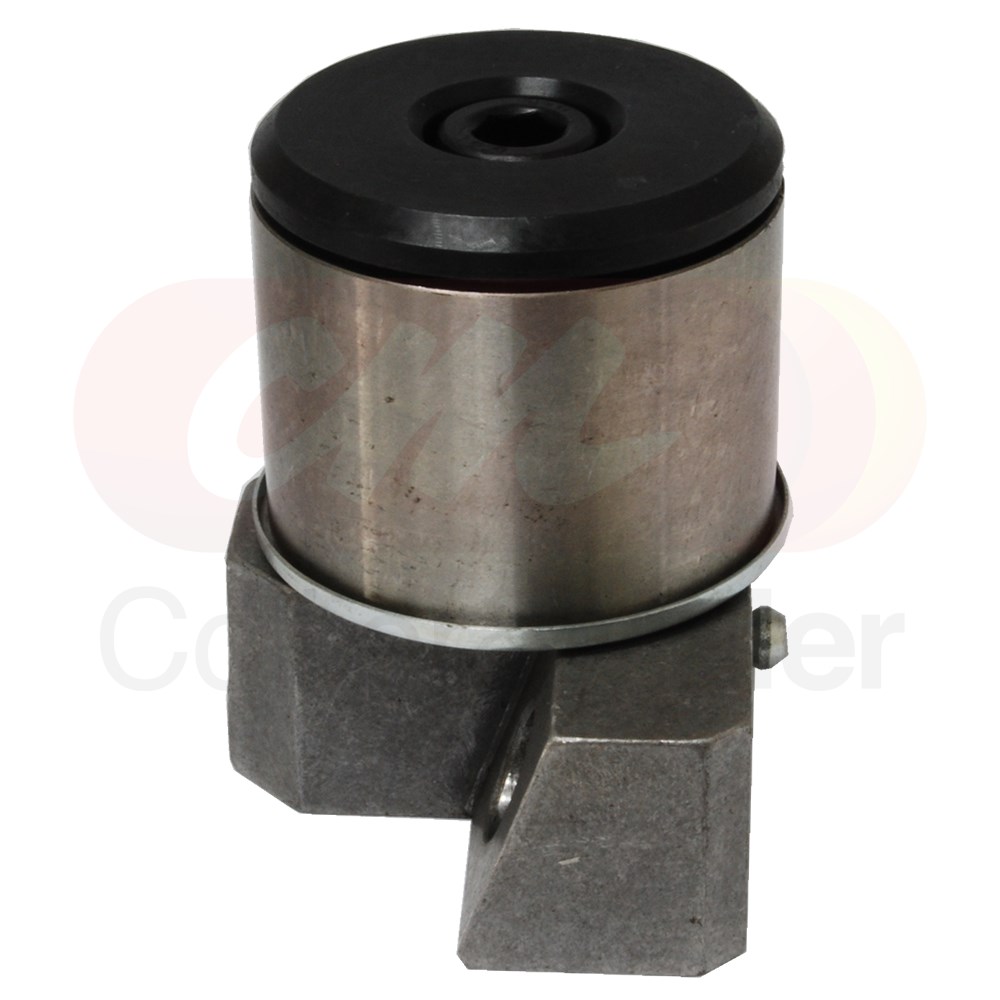

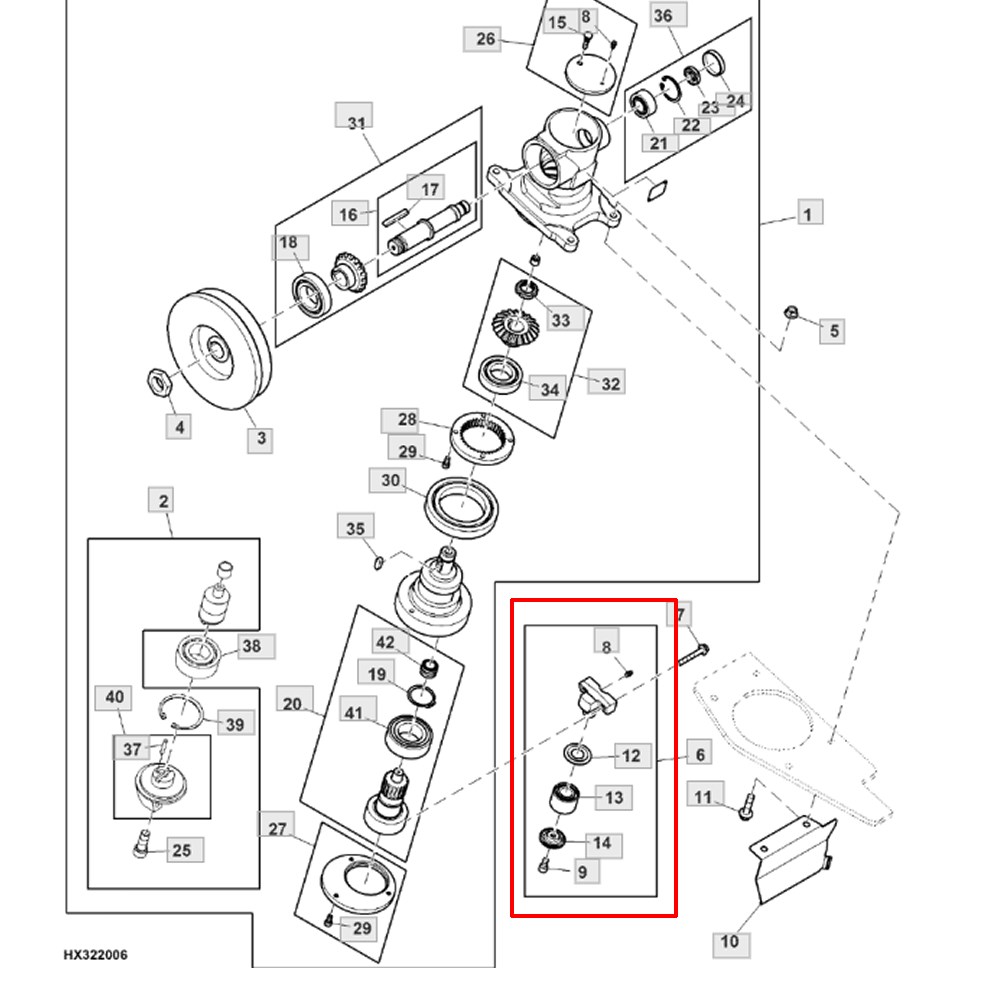

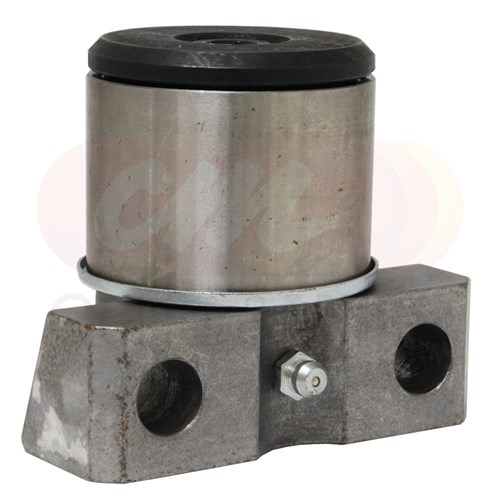

Aftermarket knife head bearing actuator to fit John Deere draper cutting platforms. This actuator form's part of the knife drive assembly.
The actuator is fitted with a grease nipple for ease of greasing the unit, inturn extending the life. The bearing is also replacable so you do not have to change the complete unit everytime.
27mm block.

Part Numbers
  • AXE24816, AXE79102, DE19294
Fitment

Series Models Serial/Year
John Deere 600 R Series 615R, 616R, 618R, 620R, 622R, 625R, 630R, 635R
John Deere 600 F Series 615F, 616F, 618F, 620F, 622F, 625F, 630F, 635F
John Deere 600 FD Series 630FD, 635FD, 640FD, 645FD
John Deere 600 D Series 625D, 630D, 635D, 640D,
John Deere 700 D Series 725D, 730D, 735D, 740D
John Deere 700 FD Series 730FD, 735FD, 740FD, 745FD
John Deere 900 D Series 925D, 930D, 936D ASN - 710101
John Deere HD F HD35F, HD40F, HD45F, HD50F
John Deere HD R HD35R, HD40R, HD45R, HD50R

Features
  • Supplied as complete unit
  • Greasable
  • Replacable bearing
  • 27mm block
