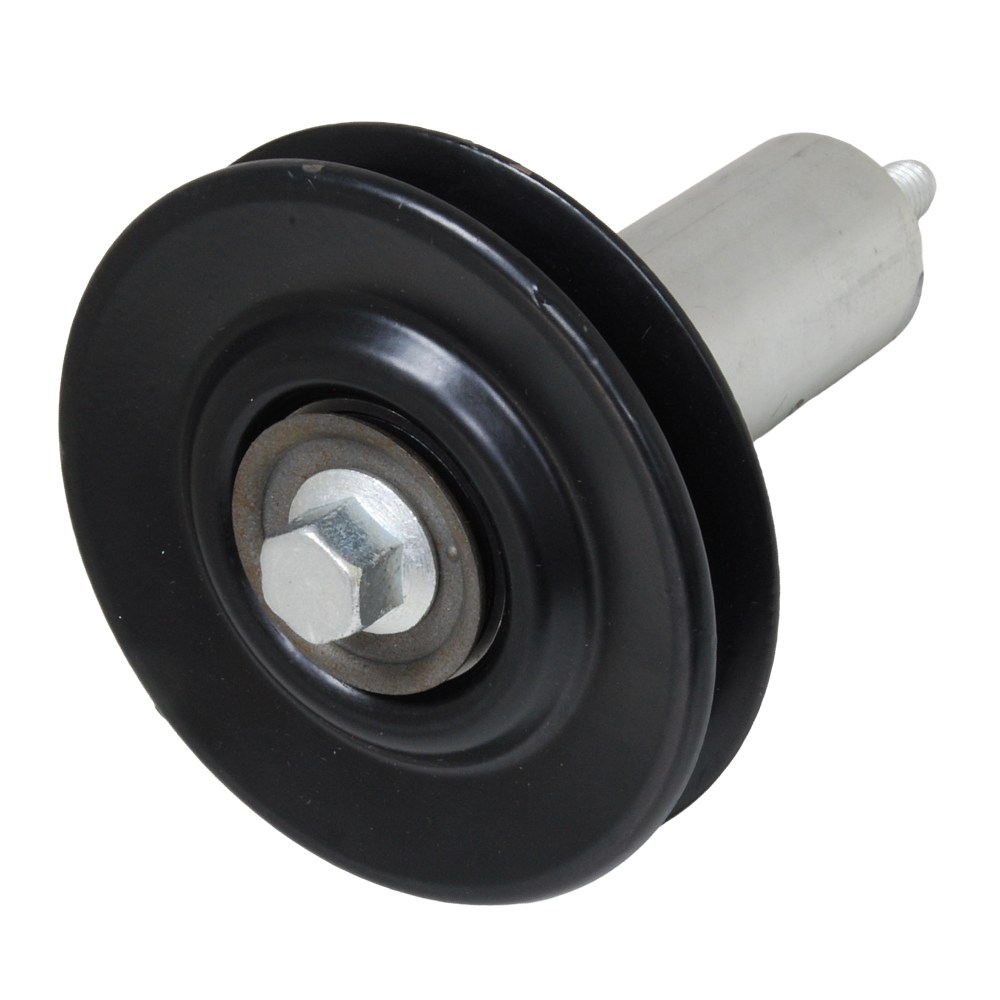

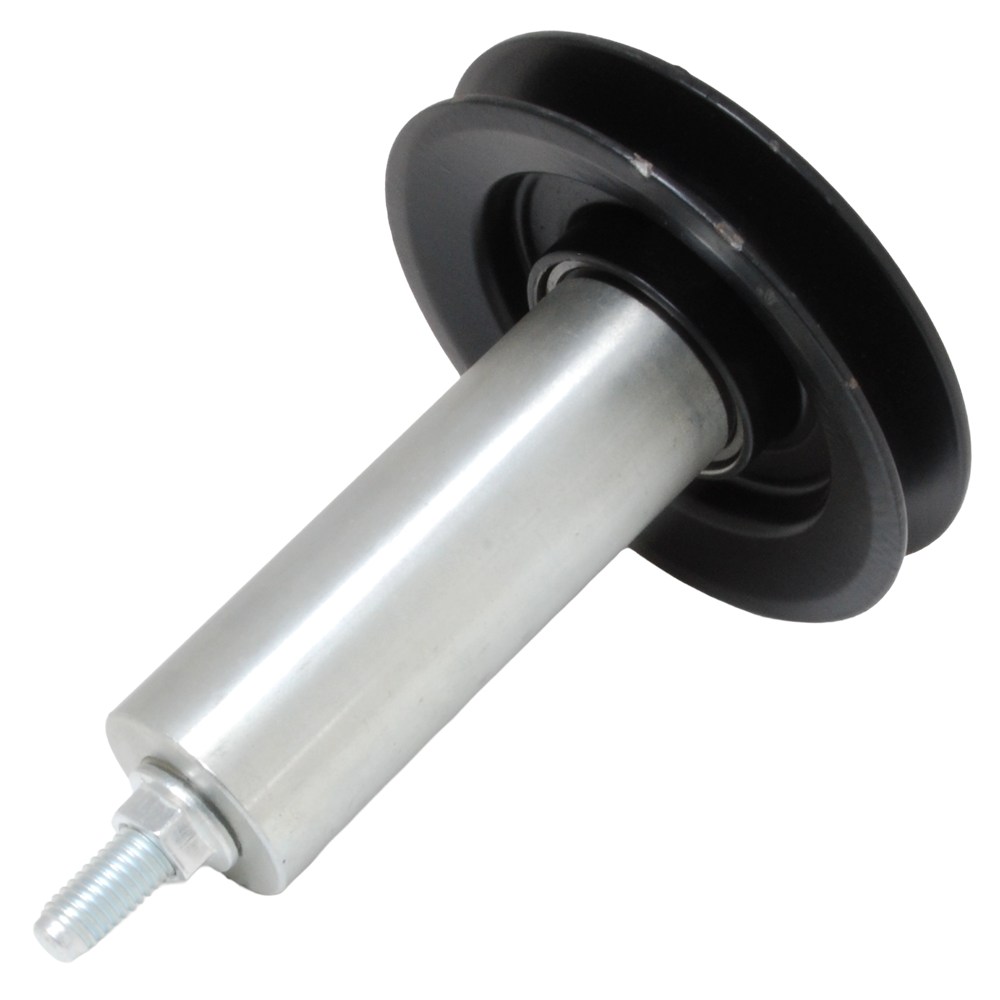

John Deere® Compatible Vacuum Fan Idler Assembly
Keep the rotary screen drive on late model S600 and S700 series, S7 & X9 series John Deere® combine harvesters operating at optimal capacity with the aftermarket vacuum fan drive idler assembly. This part is manufactured from quality components and is supplied as a complete unit ready to install.
John Deere Part Number
| Series |
Models |
Serial/Year |
| John Deere® S600 Series |
S680, S690 |
European Edition |
| John Deere® S700 Series |
S780, S790 |
|
| John Deere® S7 XXX Series |
S7 800, S7 900 |
|
| John Deere® X9 Series |
X9 1000, X9 1100 |
Worldwide Edition |
Usage

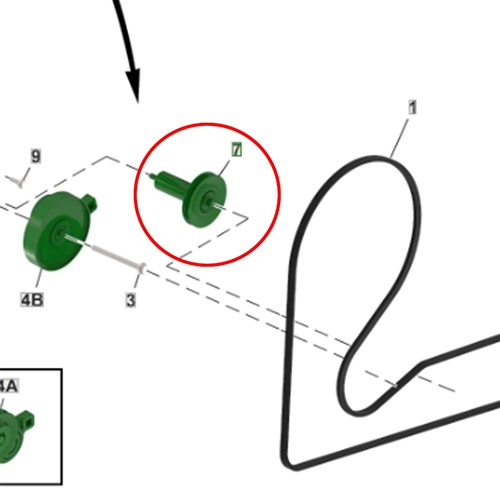

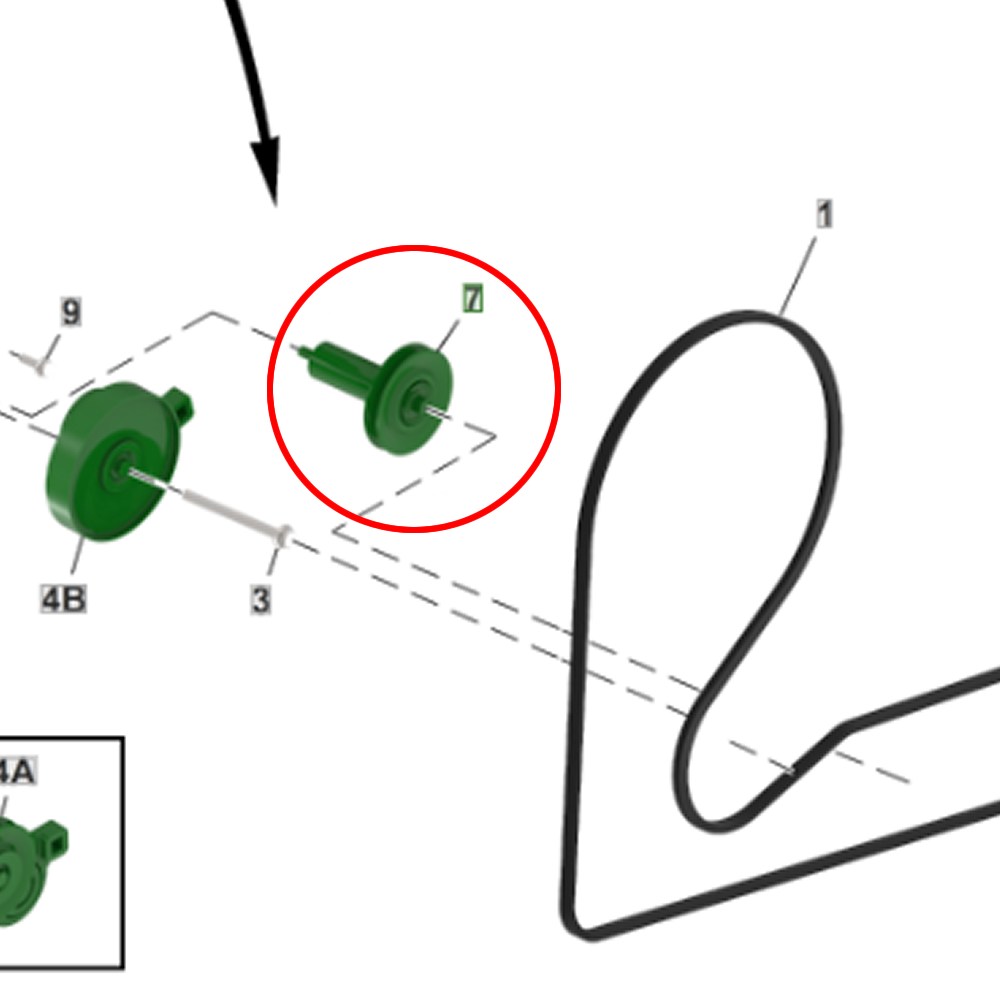

This idler pulley is fitted to the vacuum fan drive assembly and designed to keep the belt tensioned for optimal belt life. The vacuum fan assembly is designed to pull air through a filtration system and provide clean air free from dust and debris for the engine.
Features
- Quality aftermarket ready to install - direct replacement
- Pulley Dia = 4" (100mm)
- Length Overall = 6"(152mm)
- Supplied with nut (Nut must be removed prior to installation)
