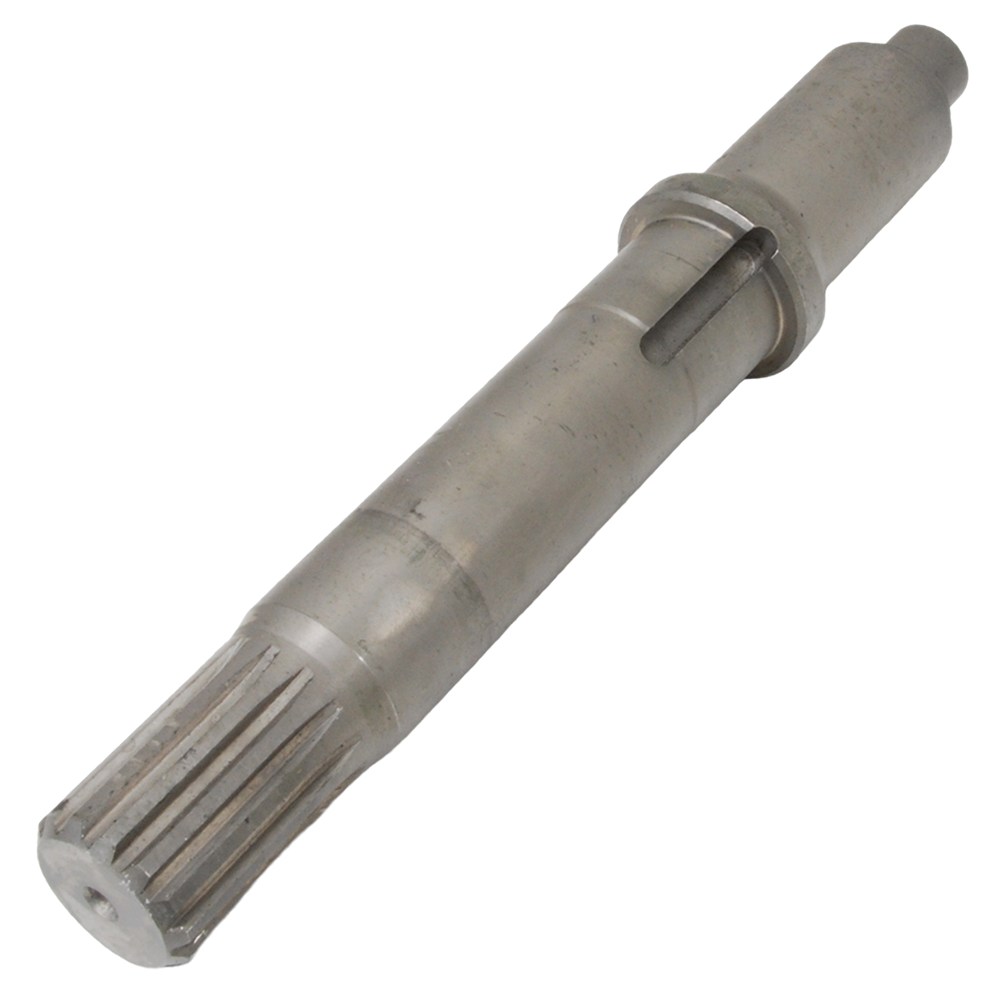

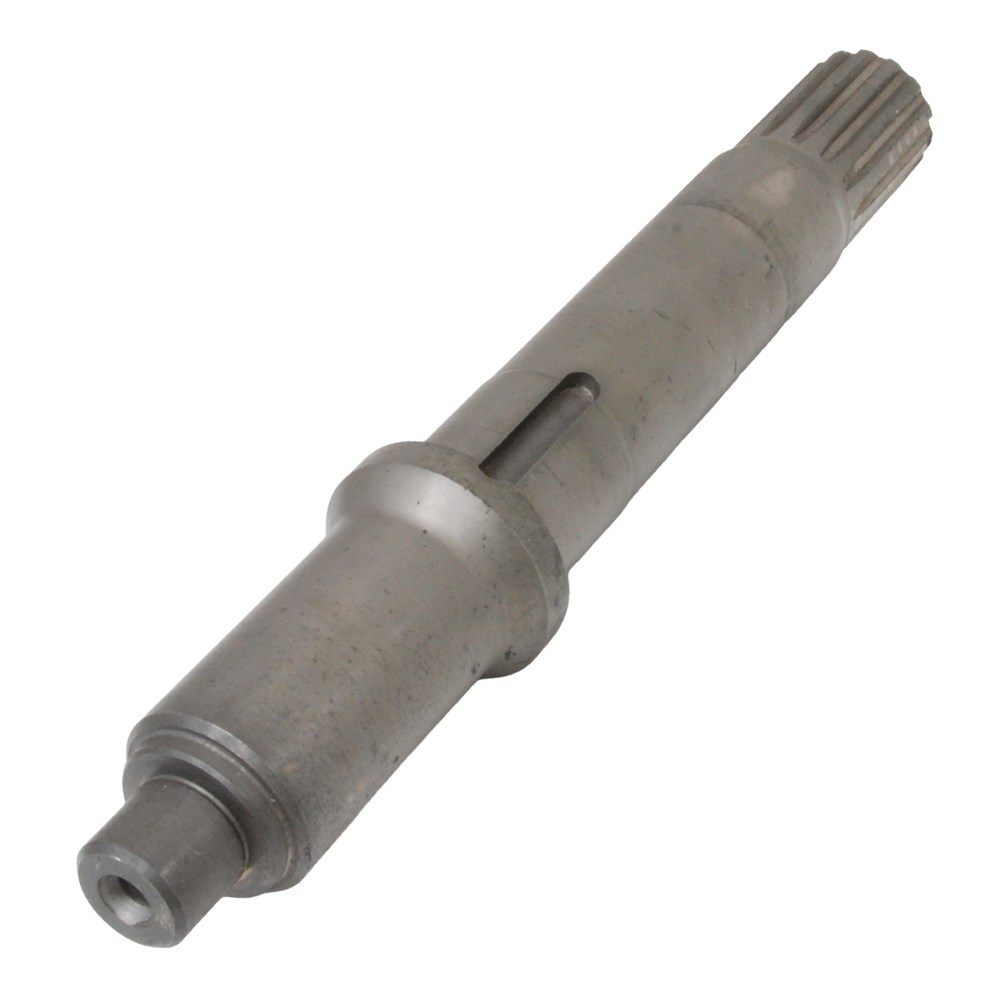

John Deere® Compatible Induction Hardened Centre Feed Splined Output Shaft
Restore the drive performance of your header with this premium C&M Australian-made splined output shaft. Specifically engineered as a high-performance solution for John Deere® Flex Draper platforms, this shaft is a critical internal component of the centre feed drive gearbox.
A common failure point in these gearboxes is significant spline wear, which often leads to the costly requirement of replacing the entire gearbox assembly. This unique C&M component features induction hardened splines to provide superior surface density and wear resistance. This allows you to refurbish your existing drive by replacing only the worn shaft, providing a substantial cost-saving alternative to a complete unit replacement while ensuring a longer service life.
John Deere® OEM Cross-Reference
Refurbishment Solution for OEM Part Numbers: AXE43319, HXE74426
Output Shaft Compatibility: John Deere Flex Draper Gearboxes
| Series |
Models |
Reference |
| John Deere® 600FD Series |
625FD, 630FD, 635FD, 640FD, 645FD |
Standard Fitment |
| John Deere® 700FD Series |
730FD, 735FD, 740FD, 745FD |
Standard Fitment |
| John Deere® RD/RDF Series |
RD30F, RD35F, RD40F, RD45F, RDF Series |
High Capacity Models |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made.
- Hardening Process: Induction hardened splines for maximum surface toughness and extended wear.
- Exclusivity: A unique C&M aftermarket component not typically available separate from the OEM gearbox.
- Design: Precision-machined splined output shaft for high-torque drive transmission.
- Value: Cost-effective repair solution that eliminates the need for full gearbox replacement.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

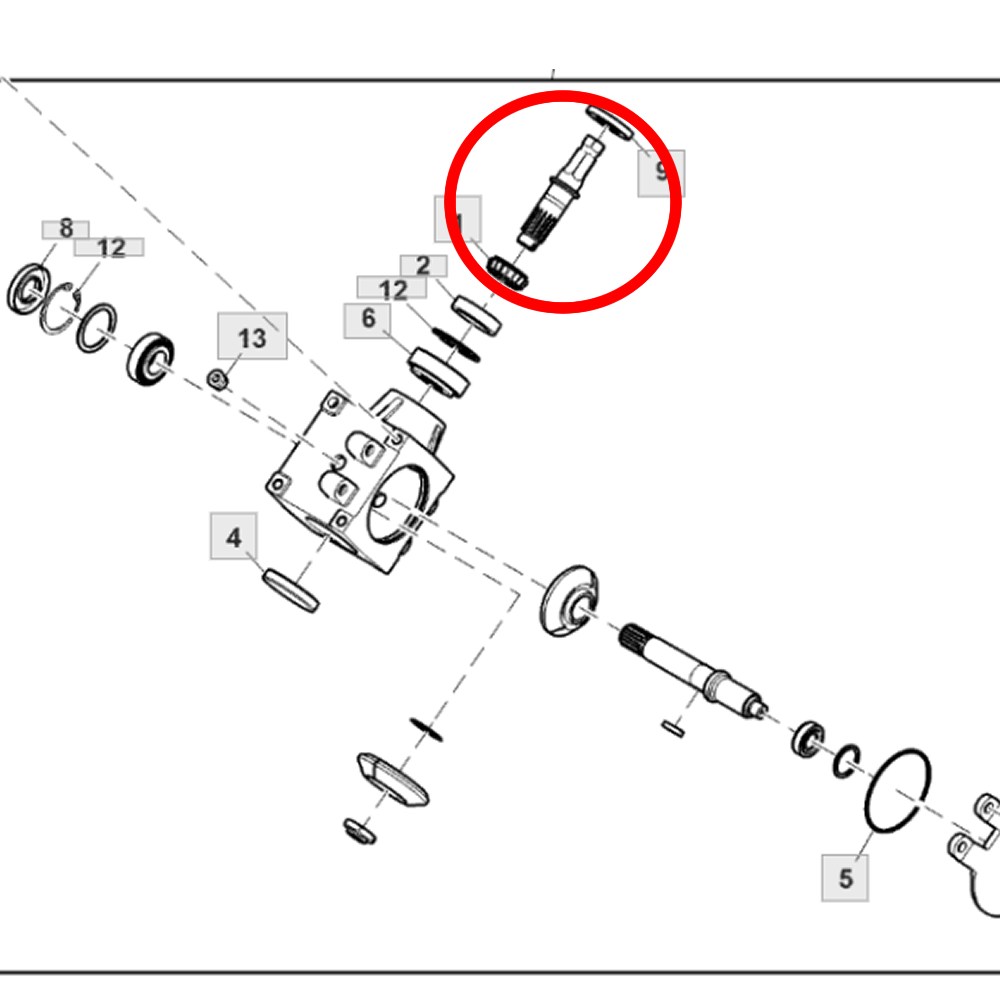

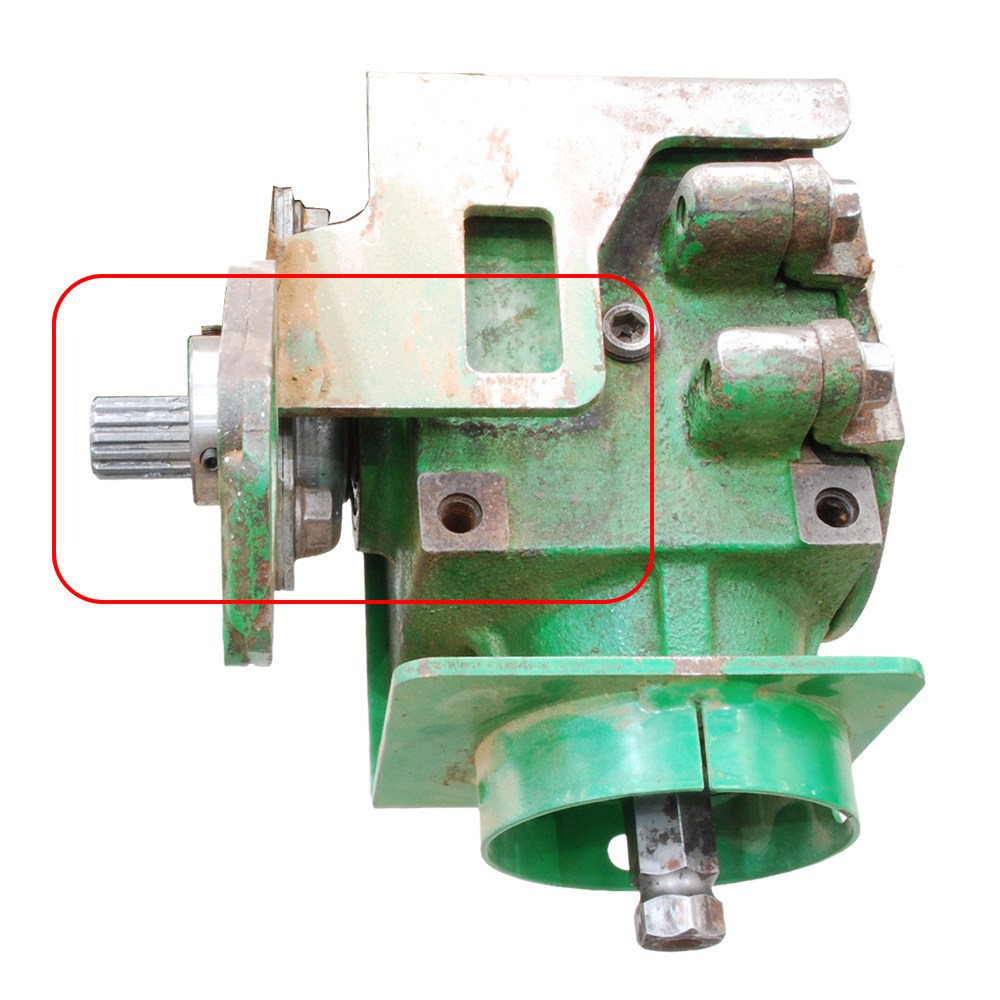

The centre feed splined output shaft is the primary link between the gearbox internals and the center feed drive roller. Due to the high-frequency vibration and varying torque loads inherent in flex draper operation, the splines often suffer from fretting abrasion. Using induction hardening on the spline surfaces specifically targets this failure point, providing a much denser contact zone that resists deformation and keeps your system in top condition.
Utilising this high-performance replacement shaft is a strategic choice for machine longevity. By identifying spline wear early, you can perform a targeted repair that restores the gearbox. This solution ensures your draper platform maintains its high-capacity throughput while avoiding the extreme expense of original equipment complete assemblies.
Maintenance Tip: Inspect Gearbox Seals
When replacing the output shaft, it is the ideal time to install new gearbox oil seals, bearings and fresh lubricant. Leaking seals are often a secondary cause of accelerated gearbox wear as they allow dust to infiltrate. Ensuring a clean, well-lubricated environment alongside your new induction hardened shaft will provide the ultimate longer service life for your header front.
