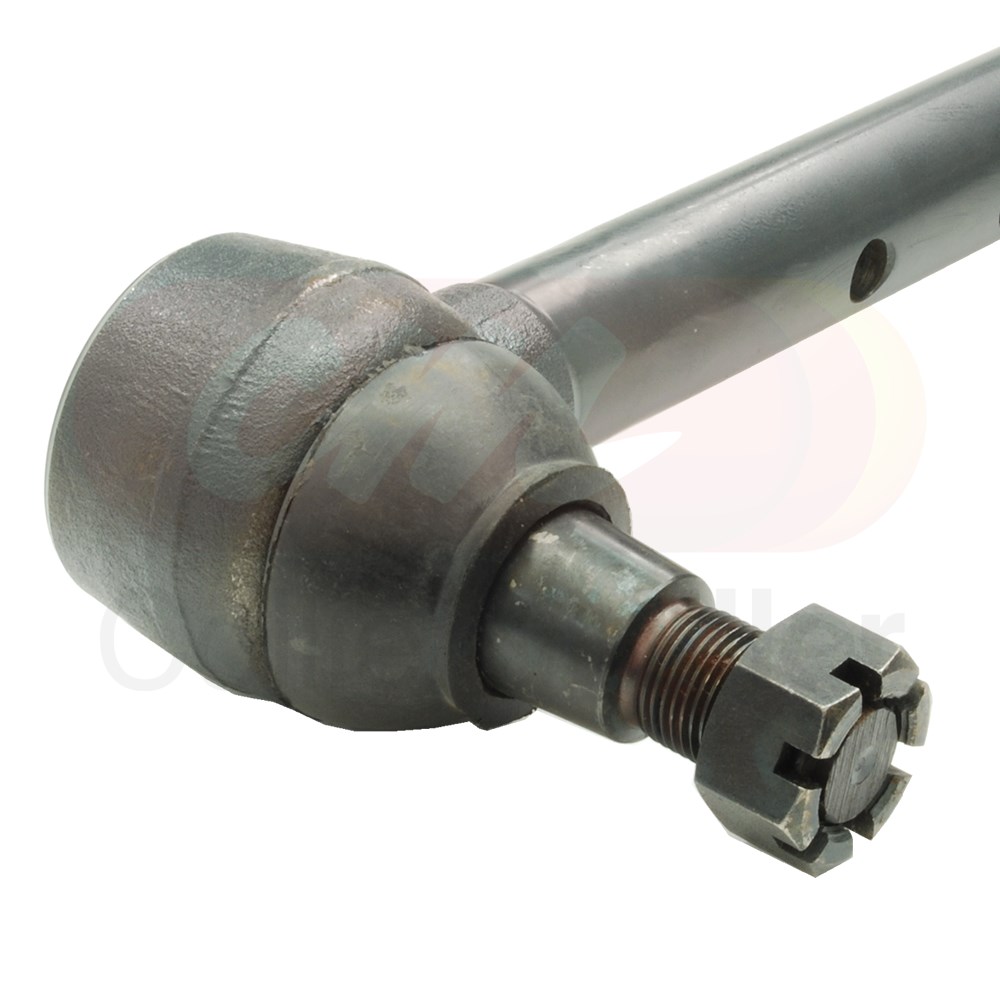

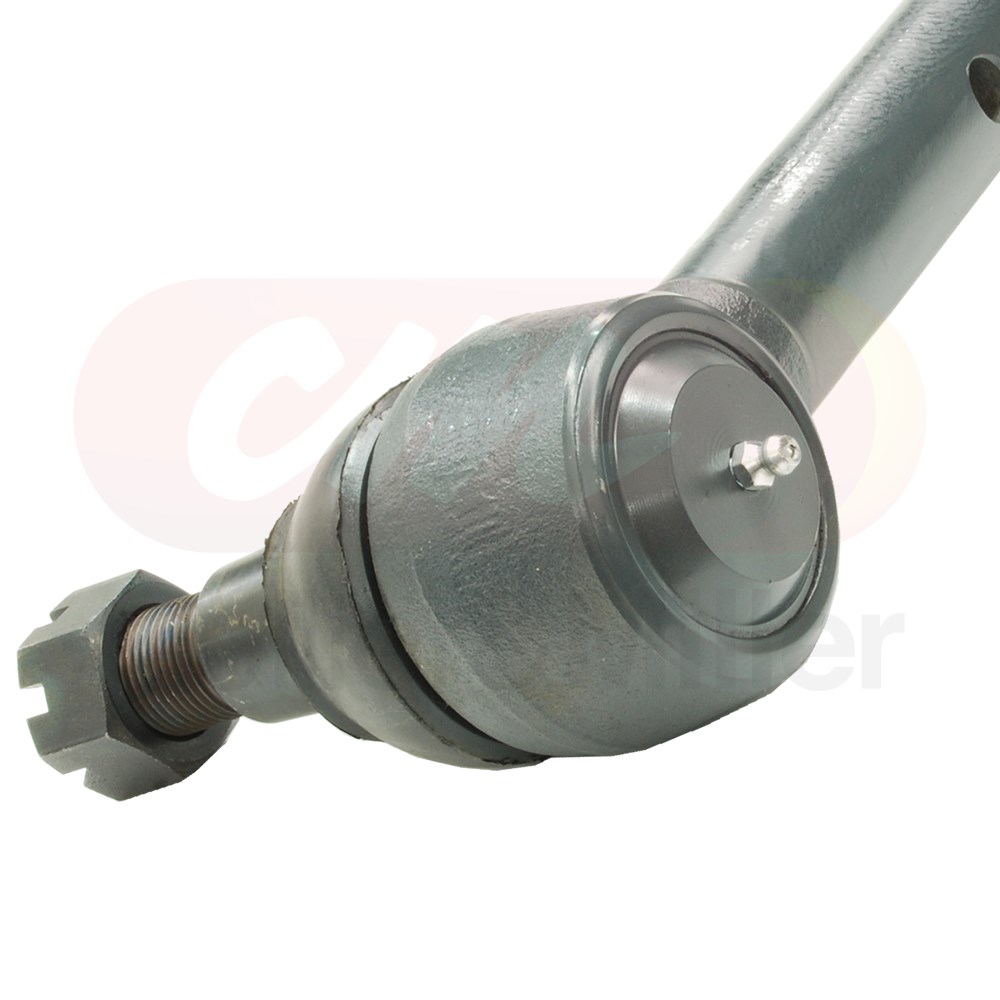

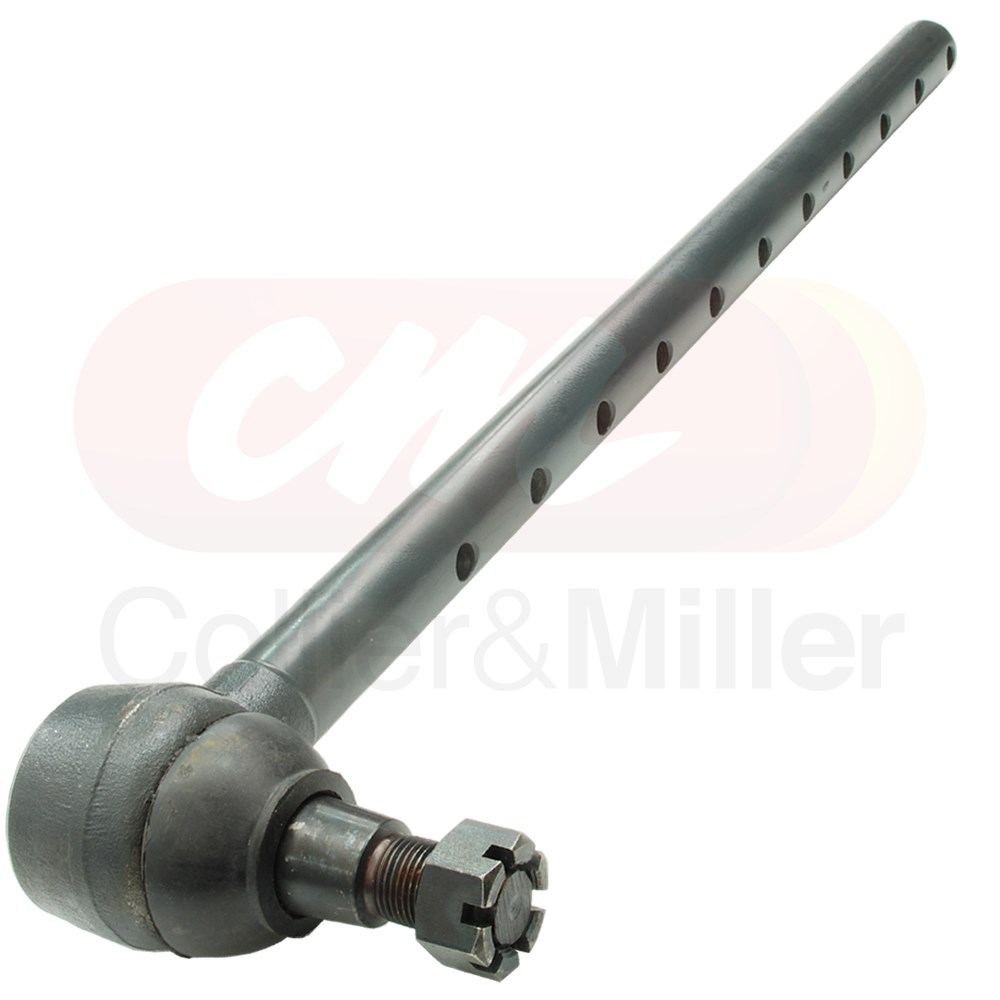

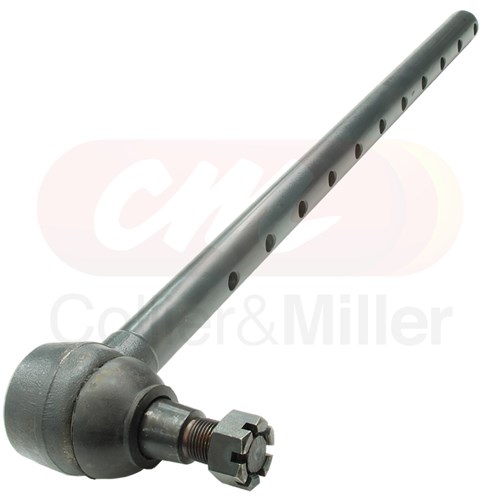

John Deere® Compatible Extra Heavy Duty Tie Rod
Restore accurate, dependable steering performance on your John Deere® S Series combine harvester with this quality aftermarket extra heavy duty tie rod. Built around a substantial 34mm diameter round bar, this replacement tie rod is designed for demanding harvesting applications where steering components are exposed to continual load, vibration and field conditions.
John Deere® S Series combines were fitted with several different tie rod configurations, with fitment often determined by machine model and serial number. Always confirm the original part number and machine serial number before ordering to ensure the correct steering component is selected.
John Deere® OEM Cross-Reference
Machine Compatibility
John Deere compatible extra heavy duty tie rod machine fitment
| Series |
Models |
Serial/Year |
| John Deere® S6 Series |
S660 |
Worldwide Edition, S.N. 745100-765171 and 765172-785000 |
| John Deere® S6 Series |
S670 |
Worldwide Edition, S.N. 745100-765252 and 765253-785000 |
| John Deere® S6 Series |
S680 |
Worldwide Edition, S.N. 745100-766006 and 766007-785000 |
| John Deere® S6 Series |
S690 |
Worldwide Edition, S.N. 745100-765249 and 765250-785000 |
| John Deere® S7 Series |
S760, S770, S780, S790 |
Confirm part number and machine configuration before ordering |
Technical Specifications & Features
- Extra heavy duty tie rod construction
- 34mm diameter round bar
- 11 x 12mm holes
- 22mm threaded end
- Length = 700mm overall
- Slotted retaining nut
- Cotter pin not included
- Designed for compatible John Deere® S Series combine harvester steering systems
- Quality aftermarket replacement for John Deere® part number AXE55179
Expert Maintenance Review
Steering tie rods should be inspected regularly for excessive movement, bent components, worn mounting holes, damaged threads and looseness within the steering linkage. Wear in these components can contribute to poor steering response, excessive wheel movement and inconsistent front wheel alignment.
When replacing a tie rod, inspect the associated steering joints, pins and mounting points at the same time. Replacing worn components together can help restore accurate steering geometry and reduce unnecessary movement through the steering linkage.
Important Fitment Information
Do not select a replacement tie rod by model alone. John Deere® S Series combines can use different steering tie rods depending on model, serial number and machine configuration. Confirm AXE55179 against the existing component or machine parts information before ordering.
Installation Tip
Check all mounting points for wear before installing the replacement tie rod. Ensure the slotted nut is correctly secured using the appropriate cotter pin after tightening. The cotter pin is not supplied with this tie rod. Steering alignment should also be checked following installation.
The C&M Difference
Collier & Miller supplies quality aftermarket agricultural parts selected for correct fitment, dependable performance and practical value. Our agricultural parts team supports Australian growers with replacement steering, harvesting and combine components for a wide range of John Deere® machines.
Australia-wide shipping available.
John Deere® is a registered trademark of Deere & Company. OEM names and part numbers are quoted for identification and cross-reference purposes only. This product is an aftermarket replacement and is not manufactured or endorsed by the original equipment manufacturer. Always verify machine model, serial number and part number before ordering.
