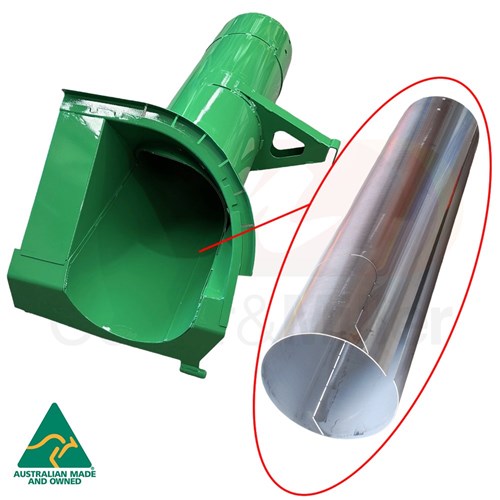

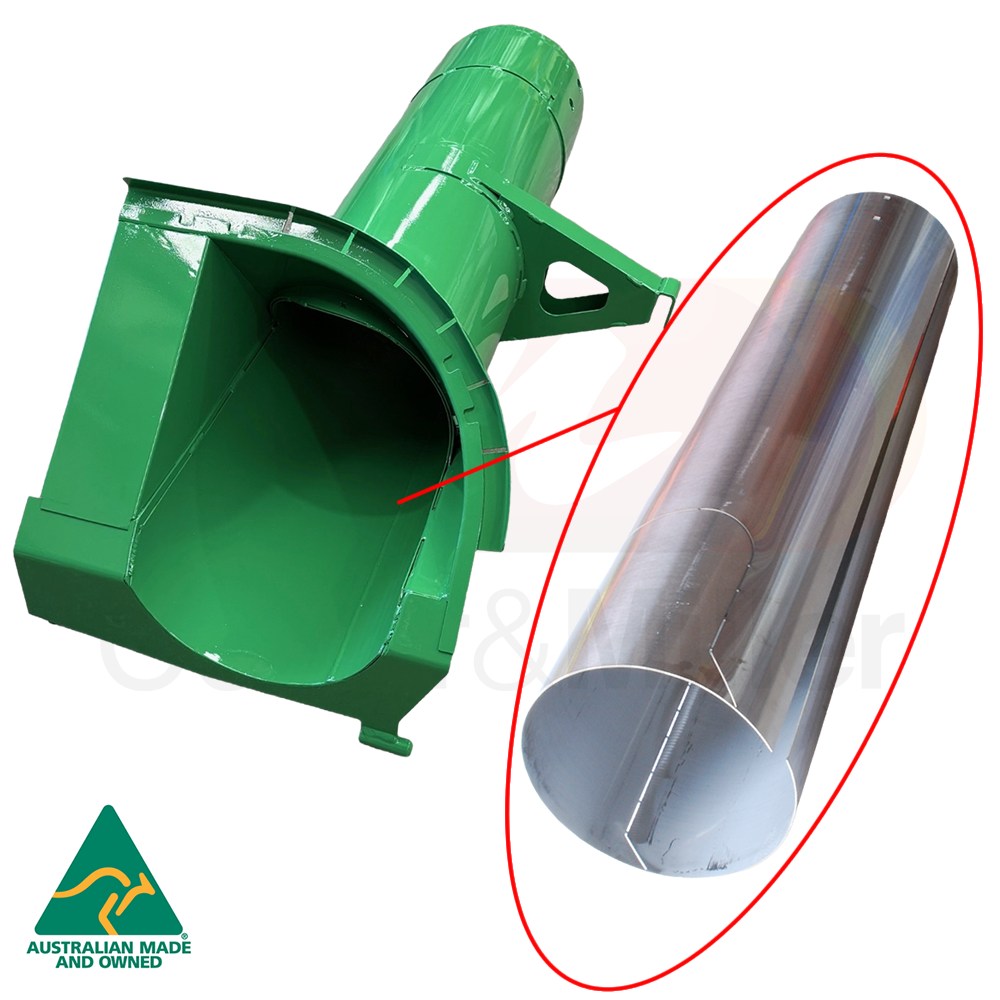

John Deere® Compatible Powerfold 400 Bushel Auger Liner Kit
Extend the service life of your grain handling system with this premium Australian-made loading auger tube liner kit. Specifically engineered by C&M for John Deere® S700 and S7 series combine harvesters fitted with the 400-bushel Powerfold auger, this kit is a high-performance solution for repairing grain auger tube thinning and high-wear erosion without needing to replace the entire housing.
Manufactured from high-grade 2mm stainless steel, this liner provides a significantly increased service life compared to standard carbon steel alternatives. This ensures your loading system remains in top condition for more harvests, providing a consistently smooth, extended wear surface that resists the pitting and corrosion often seen in original equipment during the off-season.
John Deere® Model Compatibility & Cross-Reference

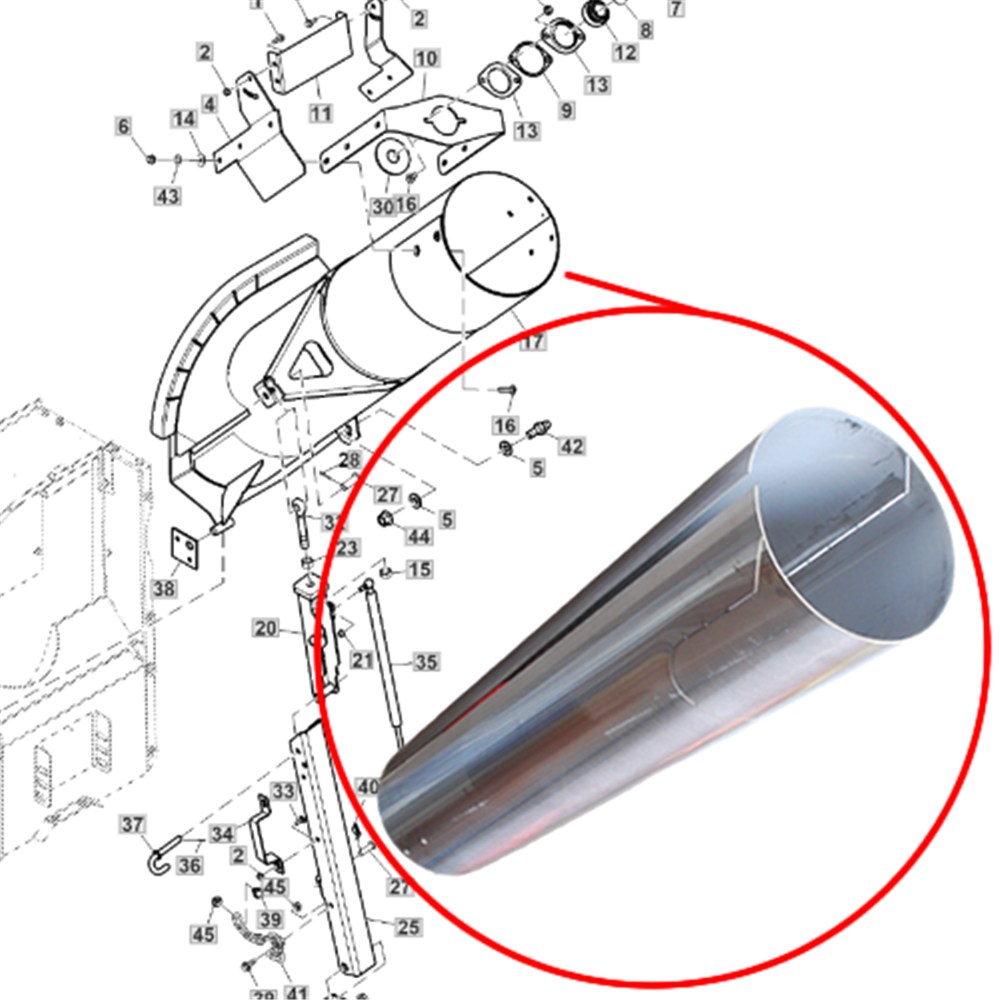

Refurbishment Solution for OEM Part Number: AXE69598
C&M Part Number: CMAXE69598LINER
Powerfold 400 Bushel Auger Liner Compatibility: John Deere S700 & S7 Models
| Series |
Models |
Capacity |
| John Deere® S700 Series |
S780, S785, S790 |
400 Bushel |
| John Deere® S7 Series |
S7 800, S7 850, S7 900 |
400 Bushel |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.

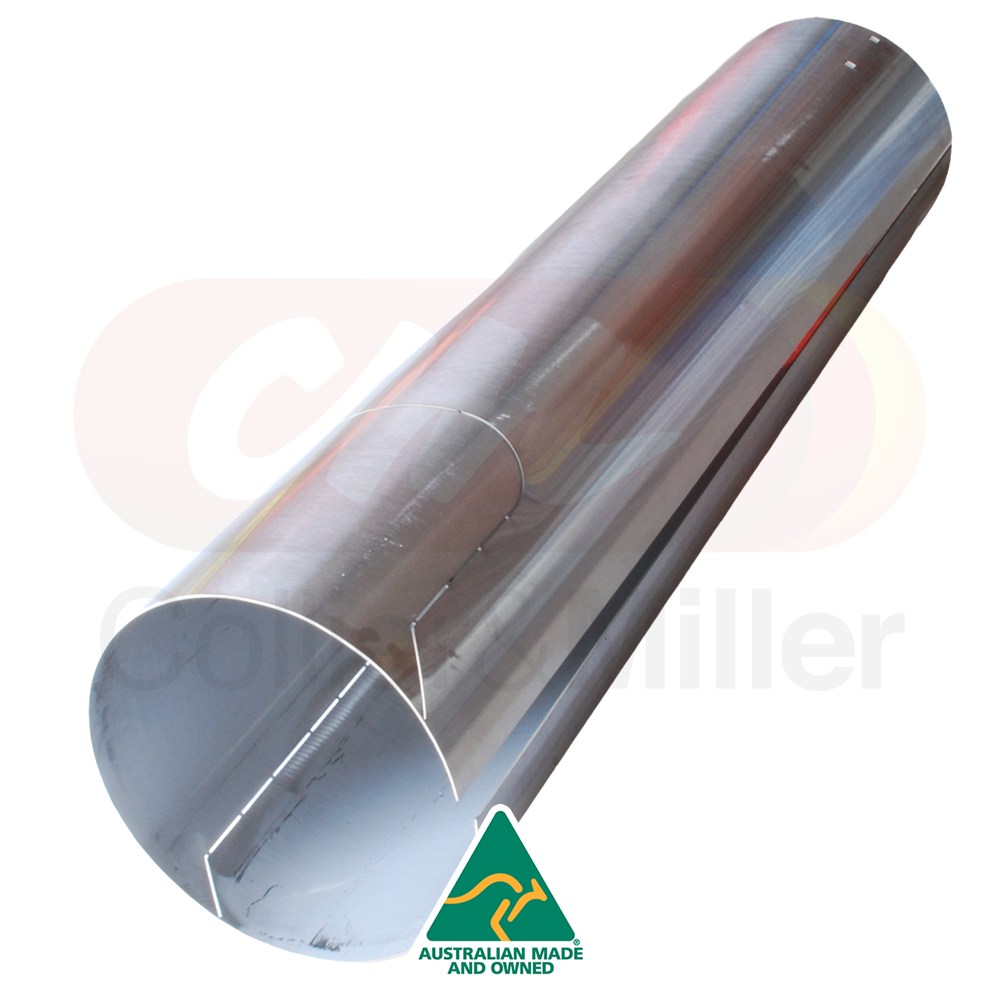

- Material: 2mm high-grade Stainless Steel for superior abrasion resistance.
- Precision Fit: Laser-cut and pre-rolled specifically for the 400-bushel Powerfold loading tube.

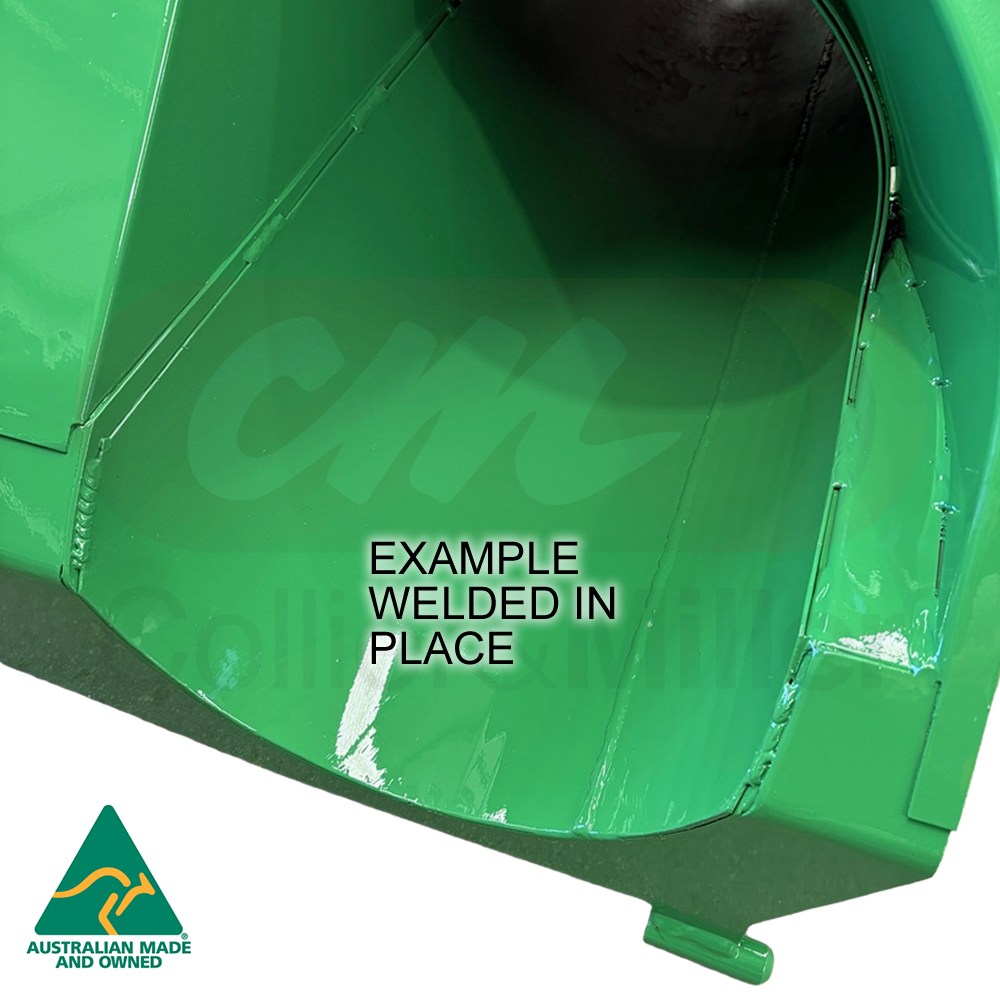

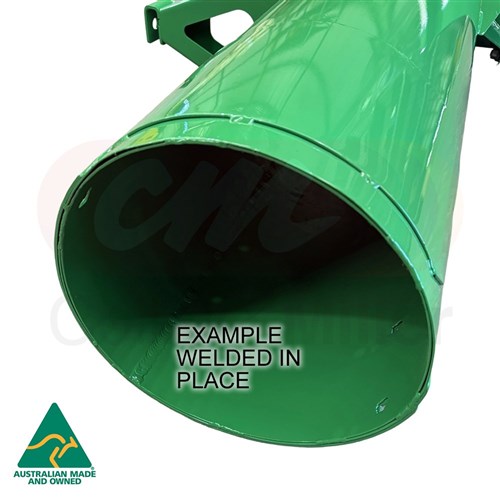

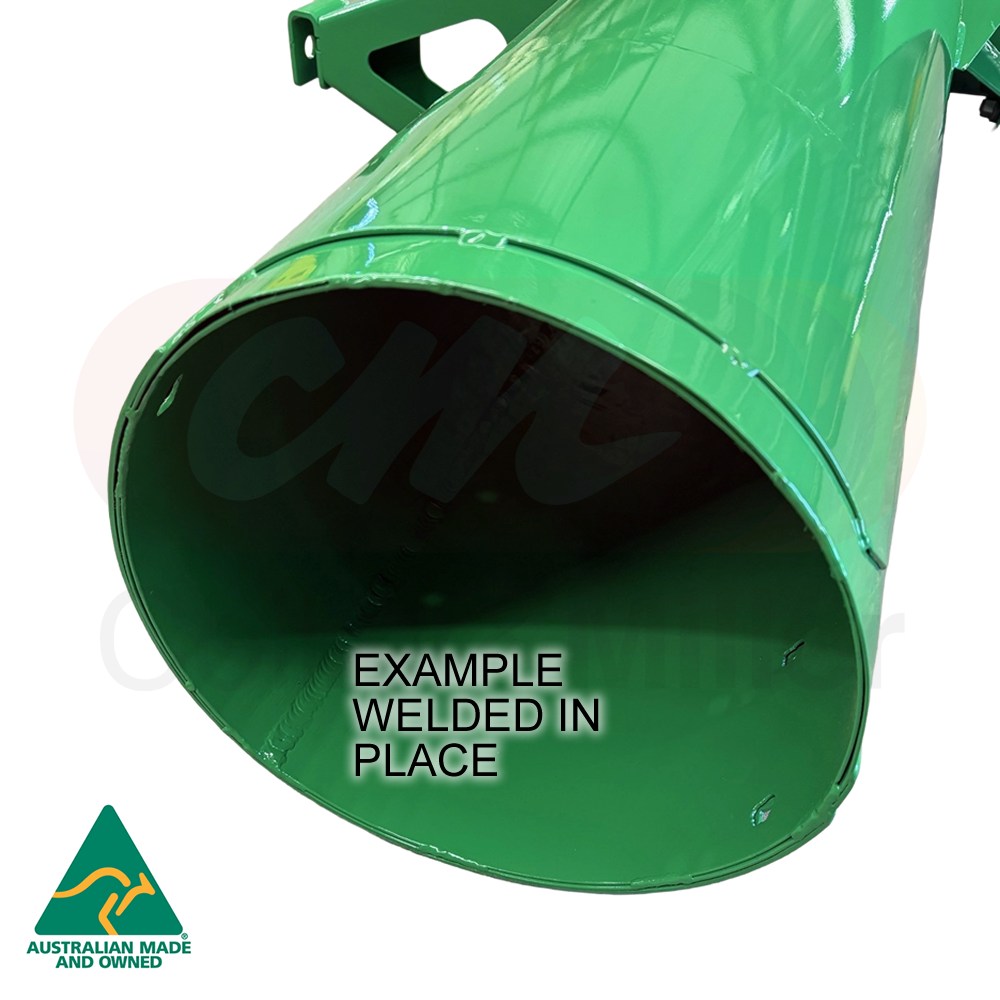

- Installation: Pre-formed for weld-in and bolt-in installation (Welding required).
- Wear Rating: Extended wear configuration for high-volume harvesting.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
To keep your grain loading system in top condition, we recommend a thorough inspection of the auger flighting thickness when installing this liner. Standard preventative maintenance using a stainless steel liner prevents the structural thinning of the original auger tube.
By providing a new, smooth wear surface, you maintain optimal grain flow and protect the outer housing from catastrophic failure during high-volume harvest periods. This high-strength repair is a cost-effective alternative to full housing replacement and ensures your machine maintains peak unloading capacity.
Complete Your Refurbishment
While the loading tube is disassembled, we recommend inspecting your Auger Bearings and Drive Flighting to ensure total system reliability and an extended service life.
