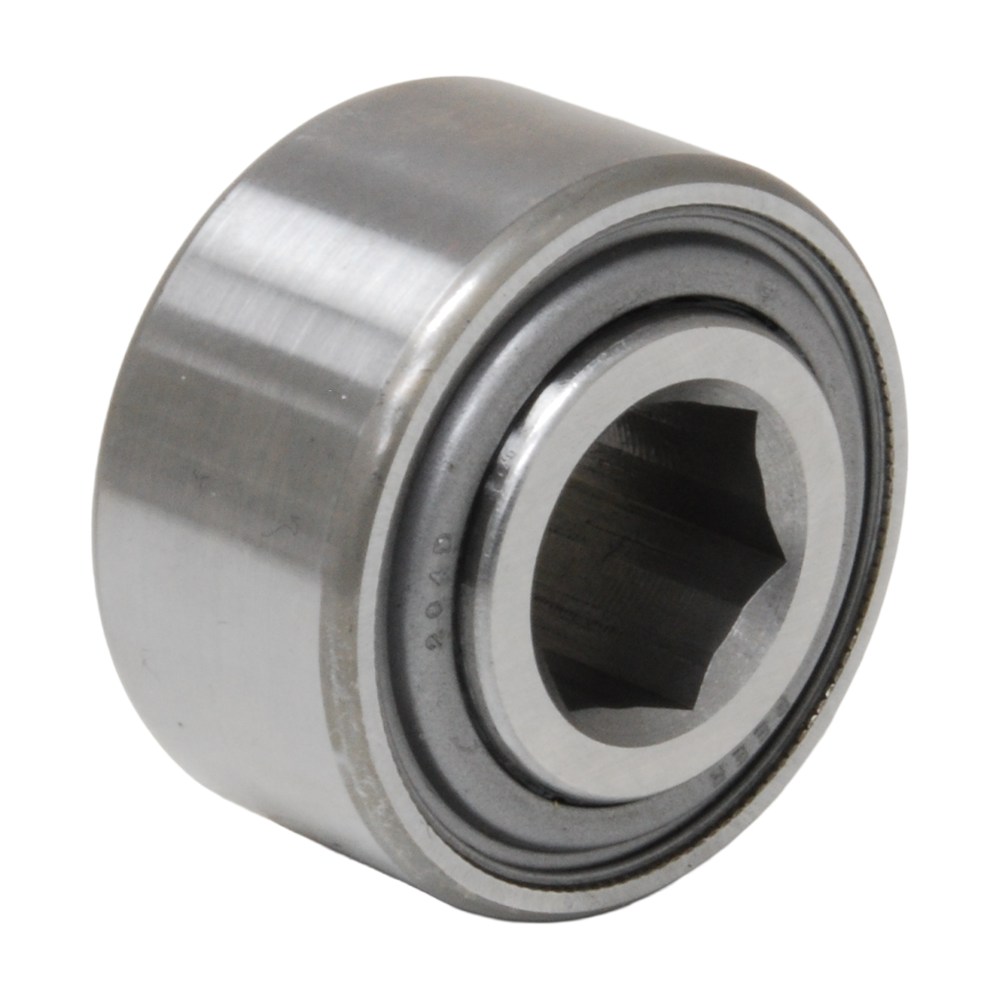

John Deere® Compatible Draper Roller Bearing
Keep the draper rollers running smoothly on selected John Deere® HDF and HDR series fronts with this quality aftermarket draper roller bearing. Designed as a direct-fit replacement for OEM part number AXE77874, this agricultural bearing uses an 18mm (11/16") hex bore to suit the roller shaft arrangement used across compatible John Deere® draper fronts.
Manufactured by PEER for agricultural applications, this replacement bearing provides the correct dimensions for straightforward installation when servicing worn or rough-running draper roller bearings. Replacing worn bearings can help reduce unwanted roller movement, noise and resistance while supporting consistent draper belt and roller operation.
John Deere® OEM Cross-Reference
Replaces OEM Part Numbers:

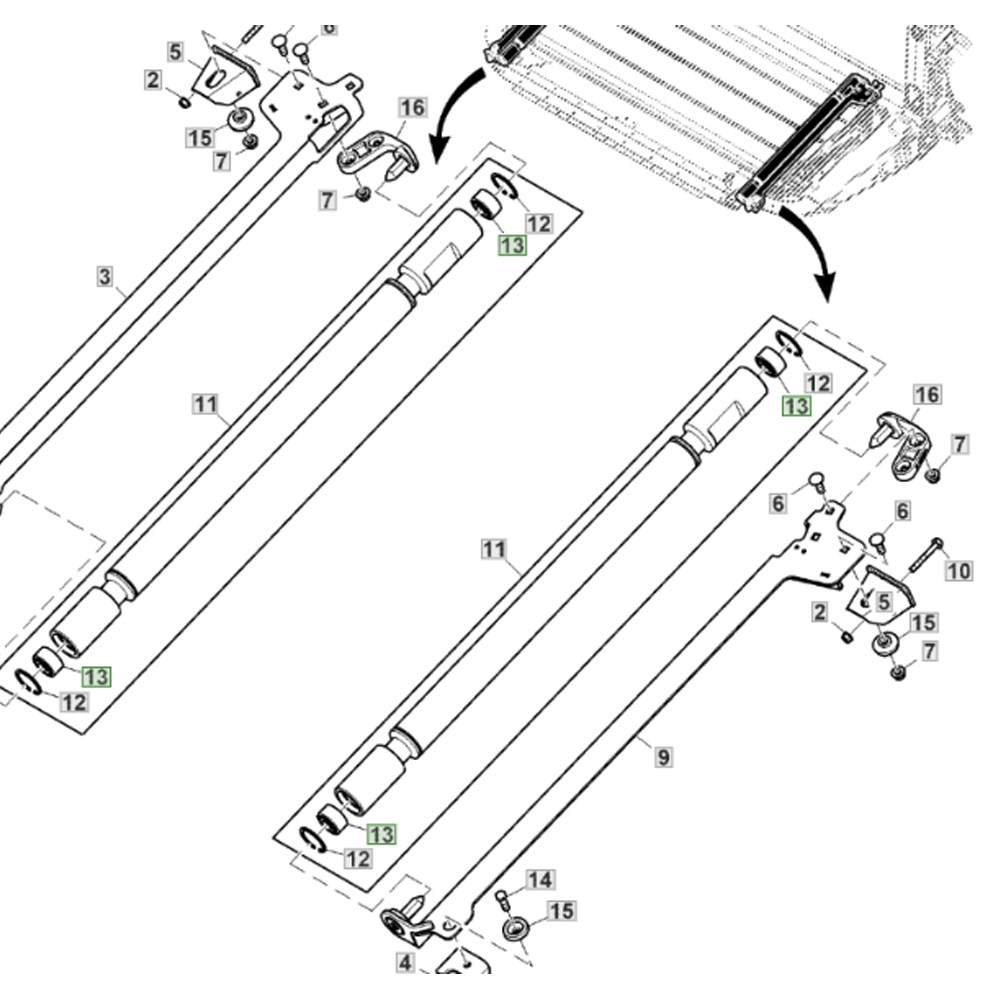

Compatible John Deere® Draper Fronts
John Deere® draper front compatibility for AXE77874 replacement bearing
| Series |
Compatible Models |
Serial / Configuration |
| John Deere® HDF |
HD35F, HD40F, HD45F, HD50F, HDF35, HDF40, HDF45, HDF50, HDF55, HDF60 |
Confirm machine and roller position before ordering |
| John Deere® HDR |
HD35R, HD40R, HD45R, HD50R, HDR35, HDR40, HDR45, HDR50, HDR55, HDR60 |
Confirm machine and roller position before ordering |
Technical Specifications & Features
- Quality aftermarket agricultural bearing
- PEER bearing
- Direct-fit replacement for John Deere® AXE77874
- Hex bore: 18mm | 11/16"
- Outside diameter: 47.2mm | 1.779"
- Bearing width: 27.6mm | 1.0866"
- Designed for draper roller applications
- Suitable for selected John Deere® HDF and HDR series fronts
The C&M Difference
Collier & Miller sources quality aftermarket parts that are selected for correct interchangeability with the original component. Cross-reference and fitment information is checked to help provide a practical replacement option with a good balance of quality, fit and value.
Expert Maintenance Review
Draper roller bearings operate continuously while the front is running and can develop wear through contamination, moisture and extended operating hours. A worn bearing may become noisy, rough to rotate or develop excessive movement at the roller. During inspection, check that the roller turns freely and that there is no noticeable play around the bearing or hex shaft.
Installation Tip
Before fitting the new bearing, inspect the 18mm hex shaft and bearing mounting area for rounding, corrosion or excessive wear. A worn shaft can allow movement even with a new bearing installed. Check the adjoining roller, mounts and belt alignment before returning the front to service.
John Deere® is a registered trademark of Deere & Company. OEM names and part numbers are used for identification and cross-reference purposes only. This is an aftermarket replacement part and is not manufactured by John Deere.
