John Deere® Compatible Complete Chopper Bearing & Housing
Get your X9 Series residue system operating to full capacity with this premium complete chopper bearing and housing assembly. Specifically engineered for high-output John Deere® X9 1000 and X9 1100 combine harvesters, this heavy-duty unit is the professional choice for repairing worn components in the primary straw chopper drive system.

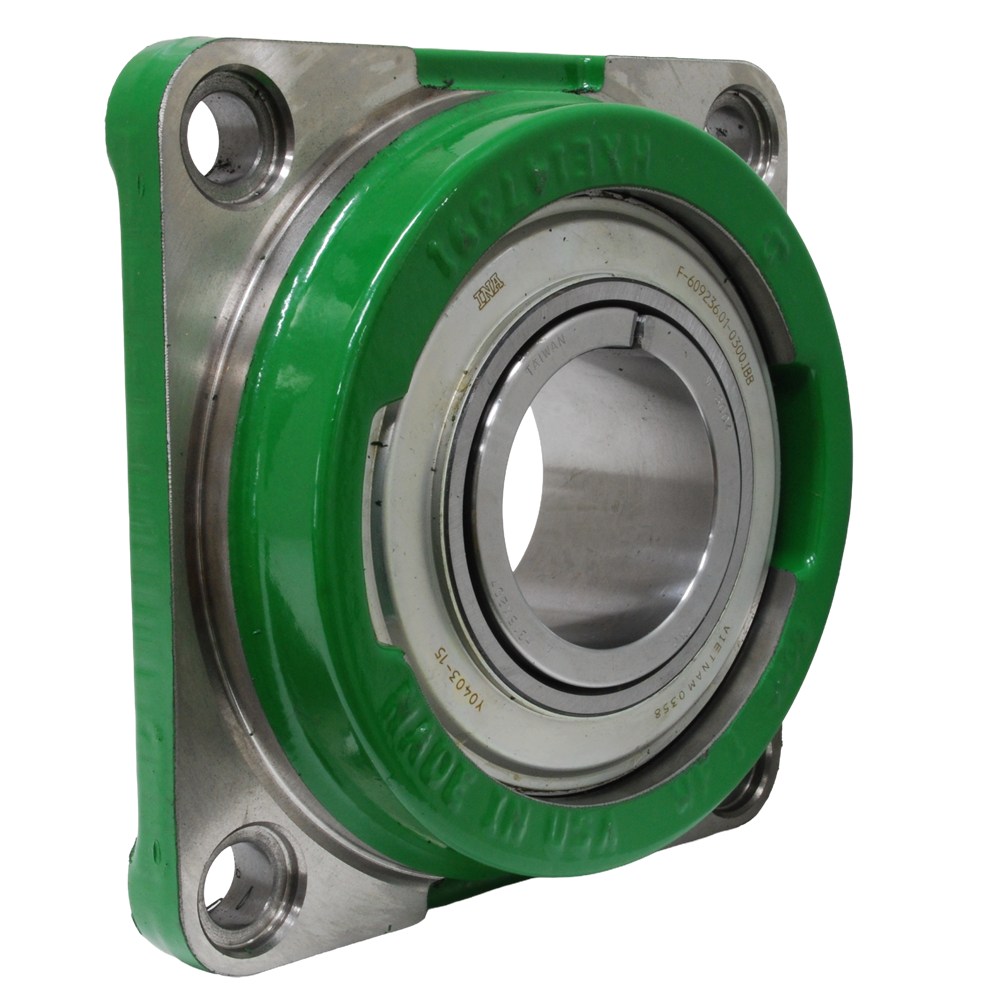

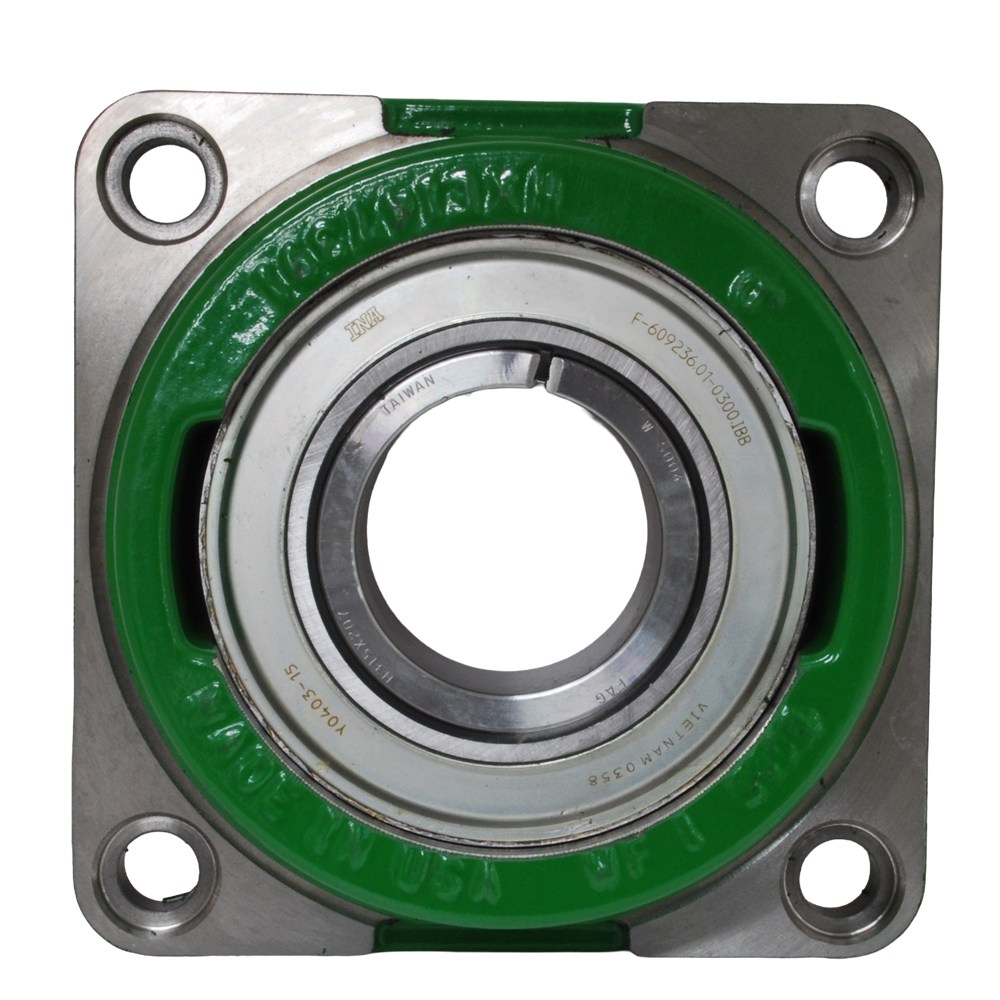

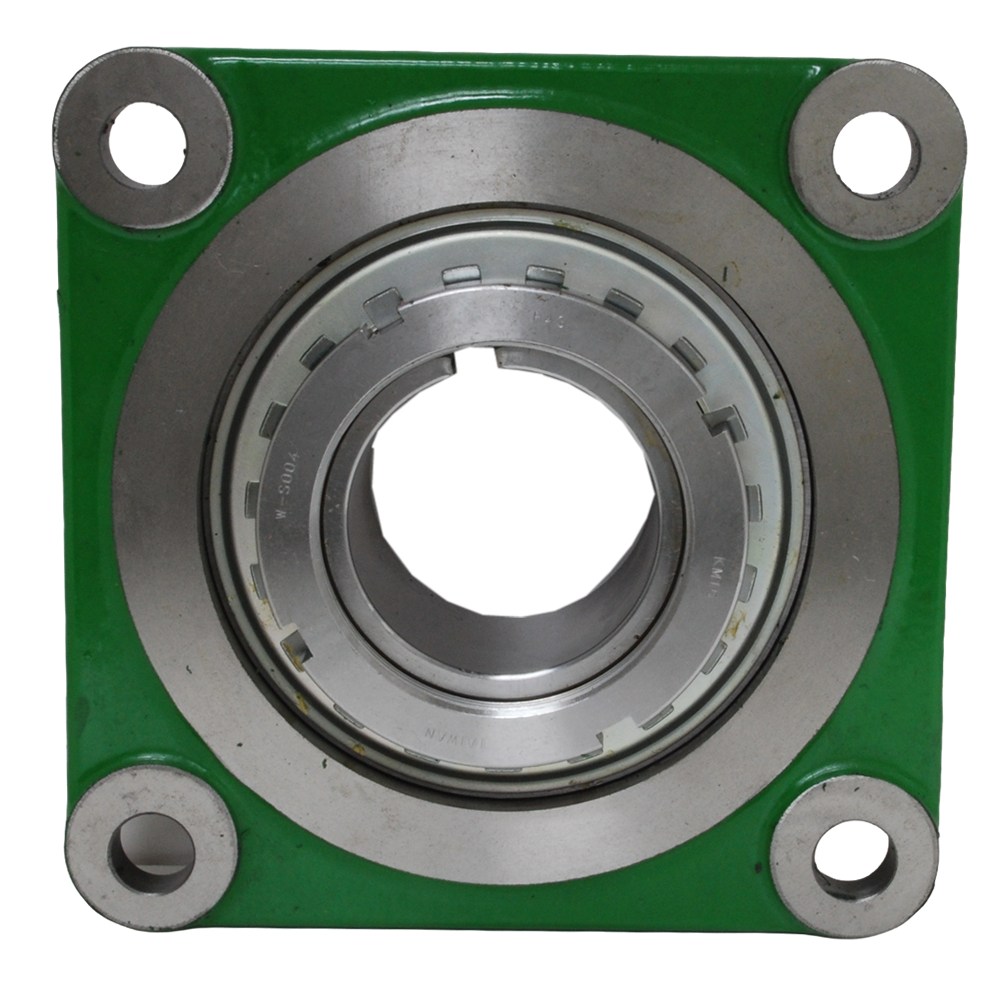

This high-performance assembly is supplied as a pre-assembled, fully integrated bearing and housing unit for a streamlined installation profile. The housing is precision-machined to exact OEM tolerances, providing a high-strength foundation that eliminates shaft vibration and withstands the high-speed rotational loads of modern high-capacity harvesting. This refurbishment part ensures your residue circuit remains in top condition for a reliable longer service life.
John Deere® OEM Cross-Reference
Replaces OEM Part Number: AXE78091
Chopper Bearing & Housing Compatibility: John Deere X9 Series
| Series |
Models |
Specification |
| John Deere® X9 Series |
X9 1000, X9 1100 |
2 Required Per Chopper Rotor |
Technical Specifications & Features
- Quality Standard: Premium OEM-quality complete unit.
- Bearing Spec: Features a genuine high-performance INA bearing internal core.
- Housing Tech: Special John Deere specific cast housing, precision-machined to exact tolerances.
- Kit Contents: Supplied ready to install as a single combined bearing and housing unit.
- Requirement: Two (2) complete assemblies are required for a full straw chopper overhaul.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The straw chopper rotor operates at incredibly high RPMs, exposing the primary support bearings to continuous radial loads and extreme fine dust abrasion. Over time, heat-fatigue and fine dust contamination can breach internal seals, leading to rapid bearing failure, excessive vibration, and damage to the chopper shaft. We recommend checking the housing for grease leakage or heat discolouration during every preventative maintenance check to identify worn components before they cause major mid-harvest failure.
Upgrading to this genuine INA-powered high-performance assembly is a strategic choice to save money on long-term repair bills. The precision-machined fit guarantees zero slop between the bearing outer ring and housing, maintaining a perfectly balanced chopper rotor. This structural rigidity protects your drive belts from snapping and guarantees a trouble-free, significantly longer service life for the entire residue system.
Installation Tip: Balanced Torque Alignment

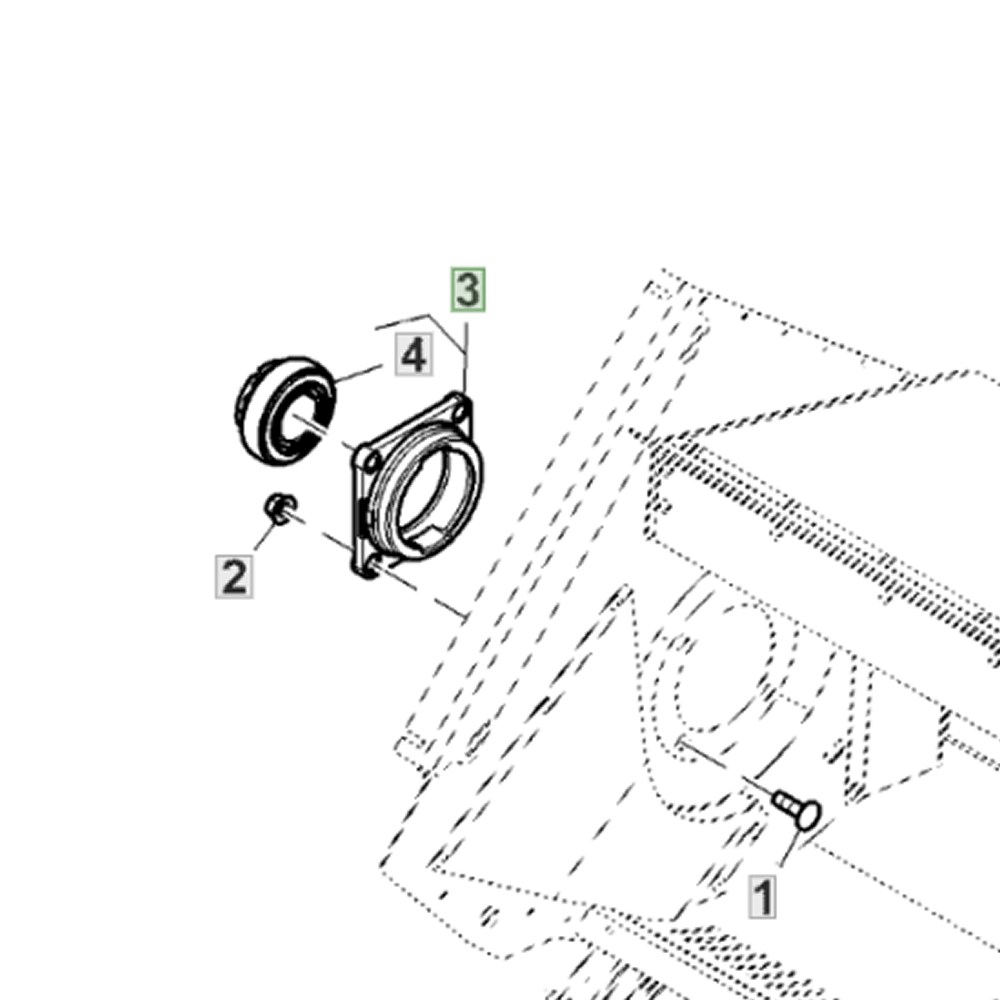

When installing the new AXE78091 housing unit, ensure the mounting face on the harvester frame is completely clean of rust scale and debris. Any misalignment during bolt-up will induce a severe twisting force on the internal INA bearing, leading to rapid heat generation and premature failure. This is the ideal time to inspect your chopper blades for damage or missing weights to keep the rotor perfectly balanced.
