MacDon® Compatible Cross Auger Hydraulic Motor Isolation Kit
Take full control of your front's feeding configuration with this premium C&M Australian-assembled cross auger hydraulic motor isolation kit. Specifically engineered for MacDon® D and FD series draper fronts, this high-performance kit allows operators to isolate the cross feed auger without affecting the rest of the hydraulic drive circuit.
Manufactured in our Griffith factory using high-specification components, this kit is the professional solution for harvesting conditions where the cross auger is not required. By utilising a high-pressure hydraulic ball valve, you can effectively stop auger rotation while still allowing circuit bypass. This easy to fit assembly is designed for high-pressure environments, keeping your cross auger system versatile and in top condition.
MacDon® Model Compatibility & Fitment
Isolation Kit Compatibility: MacDon Draper Series
| Series |
Models |
Reference |
| MacDon® D Series |
D50, D60, D65 |
All Widths |
| MacDon® FD Series |
FD70, FD75 |
All Widths |

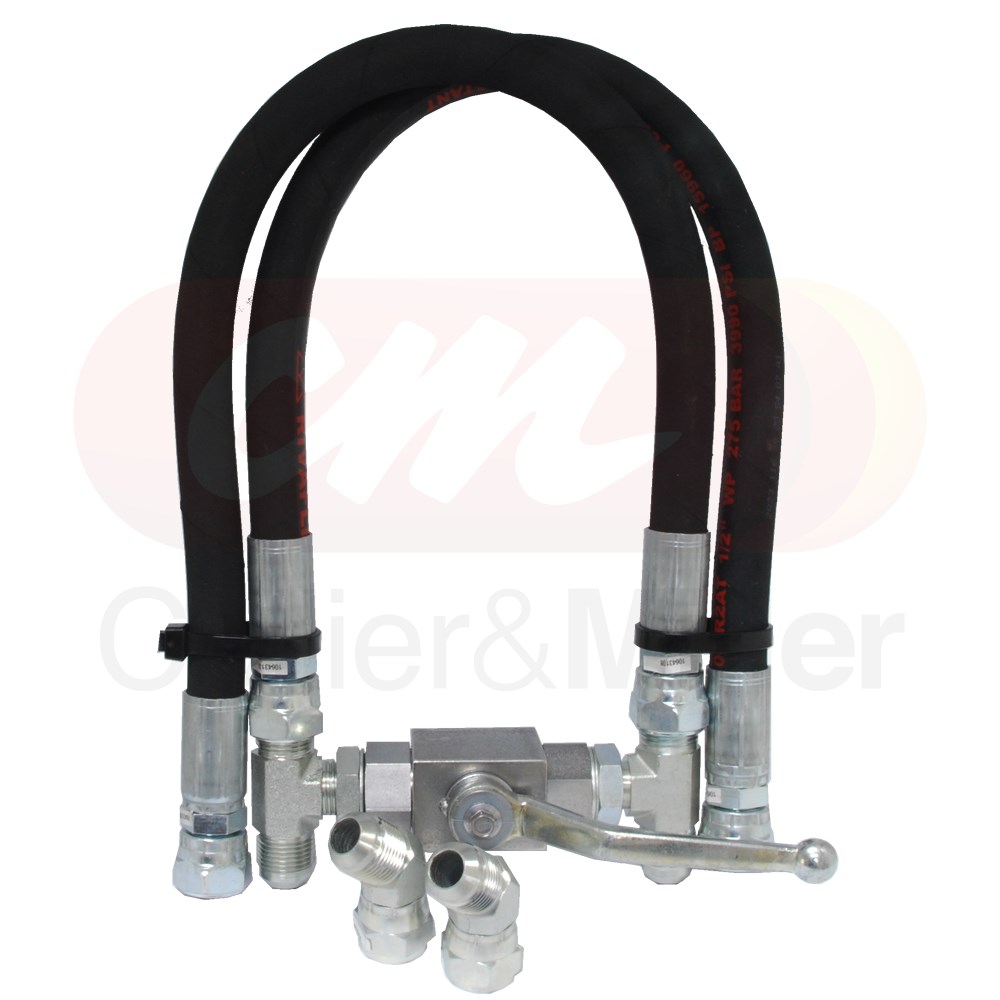

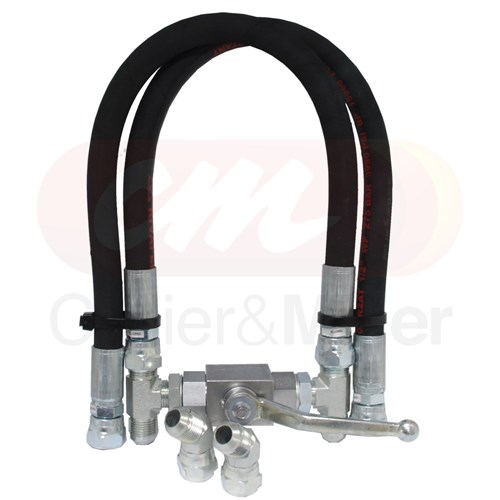

Technical Specifications & Features
- Manufacturer: Proudly C&M Australian assembled by Collier & Miller.
- Valve Type: High-performance high-pressure hydraulic ball valve.
- Hose Specification: 2 x reinforced hydraulic hoses designed for extended wear.
- Fittings: Includes 2 x 45-degree hydraulic adapters for a clean installation profile.
- Application: Direct integration into the cross auger feed drive circuit.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The cross auger hydraulic circuit is under constant pressure during operation. Standard practice for "disabling" an auger often involves removing chains or mechanical links, which is time-consuming and can lead to abrasion on idling parts. This isolation kit is a strategic choice to **save money** and time by providing an instant hydraulic shut-off. We recommend inspecting the ball valve handle and hose connections for leaks during every preventative maintenance check.
Implementing this high-strength bypass system ensures your machine remains in top condition regardless of crop type. By eliminating unnecessary auger rotation in light crops, you reduce the extended wear on auger flighting and bearings, providing a significantly longer service life for your expensive feeding components.
Installation Tip: Routing and Clearance

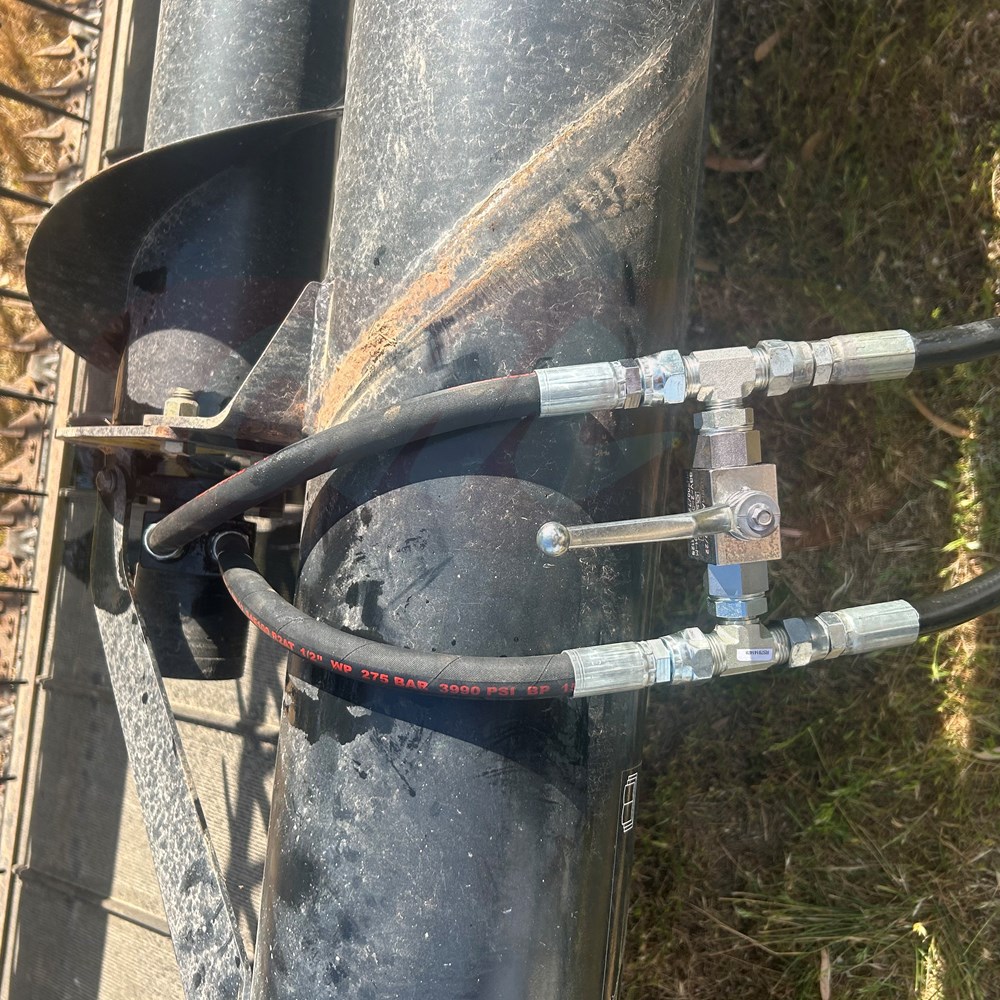

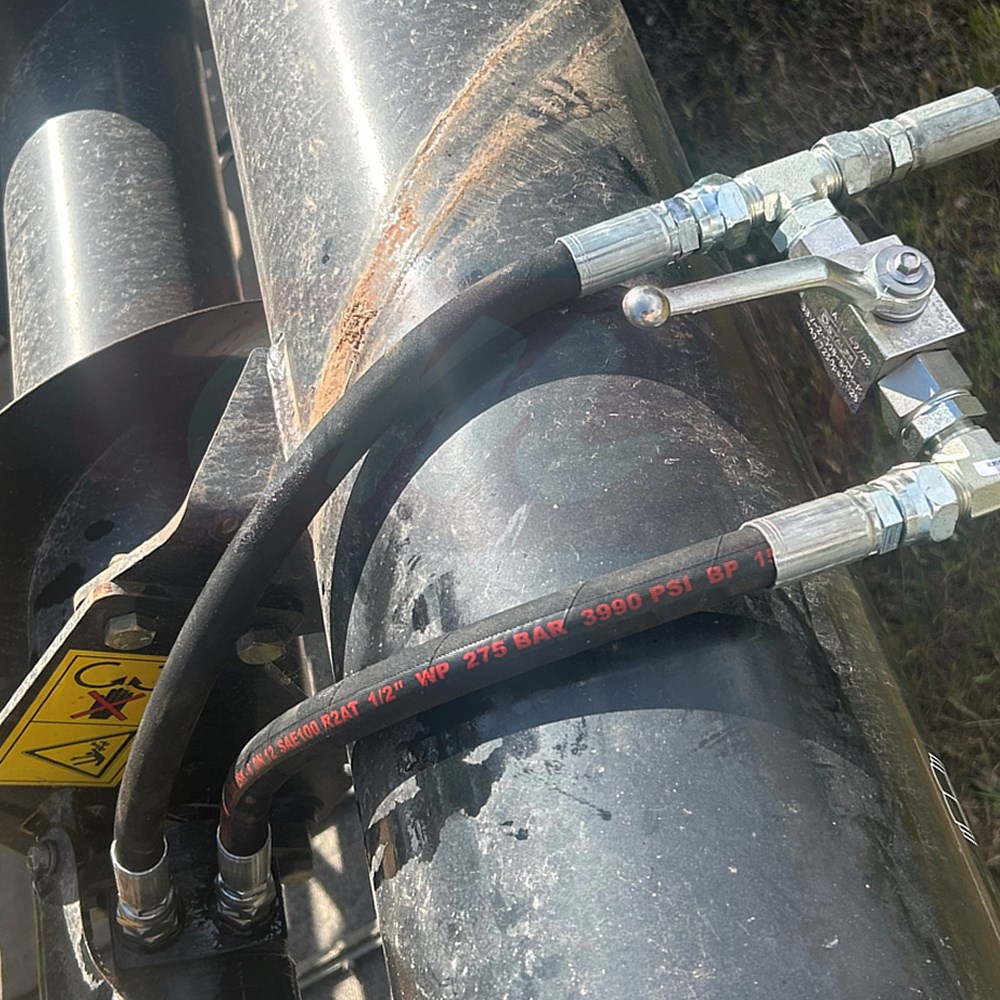

When installing the 45-degree fittings and hoses, ensure the valve is mounted in an accessible location that does not interfere with the header's float or tilt range. Use high-quality zip ties to secure the hoses away from moving parts. A high-performance installation prevents hose chafing and ensures reliable operation across the entire harvest season.
