John Deere® Compatible Cleaning Shoe Drive Shaft
Ensure the reliable operation of your cleaning system with this premium C&M Australian-made cleaning shoe drive shaft. Specifically engineered for John Deere® STS and S-Series combine harvesters, this high-performance shaft is the professional solution for repairing worn components in the primary cleaning shoe drive circuit.
Manufactured in our Griffith factory from Grade 1045 high-carbon steel, this shaft is precision machined and keyed to exact OEM specifications. The use of high-grade 1045 material provides superior torsional strength and resistance to fatigue compared to standard utility-grade steel. This high-strength construction ensures your cleaning system remains in top condition, maintaining consistent oscillation and providing a significantly longer service life.

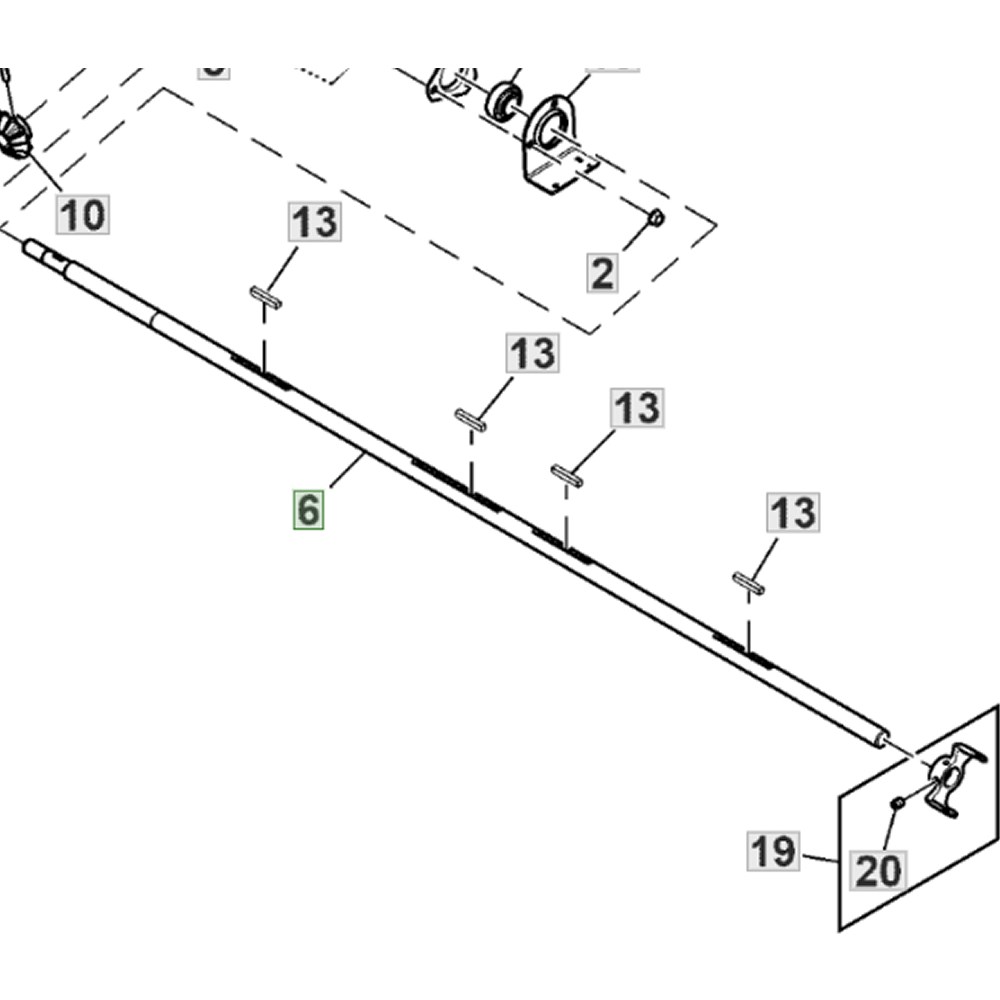

John Deere® OEM Cross-Reference
Replaces OEM Part Numbers: H171186, HXE116497, H150804, HP332
Drive Shaft Compatibility: John Deere STS & S-Series
| Series |
Models |
Specification |
| John Deere® STS Series |
9650, 9750, 9660, 9760, 9860, 9670, 9770, 9870, 9880 |
Standard Fitment |
| John Deere® S6 Series |
S650, S660, S670, S680, S685, S690 |
Standard Fitment |
| John Deere® S7 Series |
S760, S770, S780, S790 |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: Precision machined from Grade 1045 high-carbon steel.

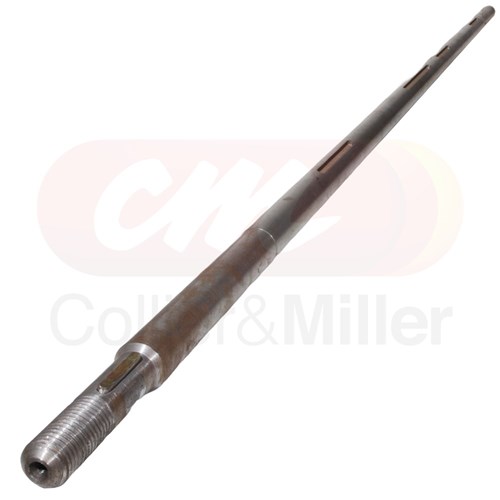

- Dimensions: 1640mm Total Length | 1.00" Outer Diameter.

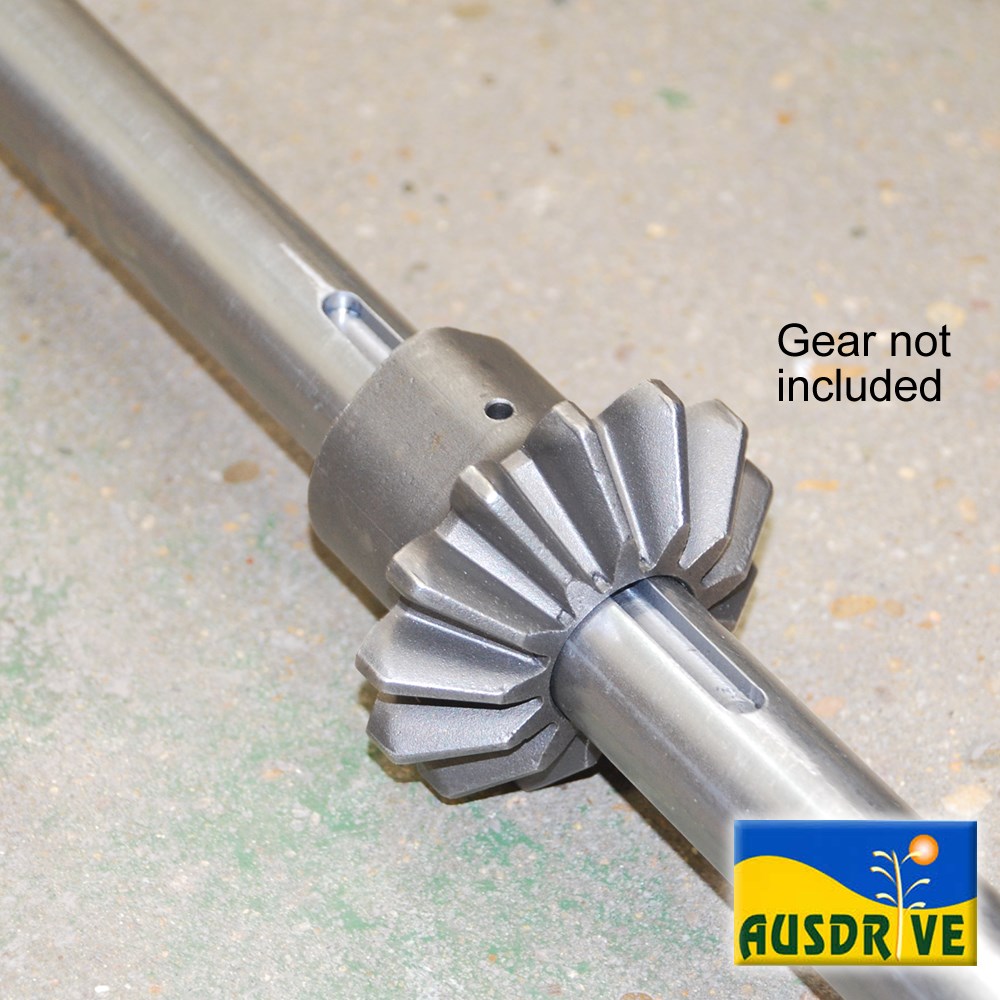

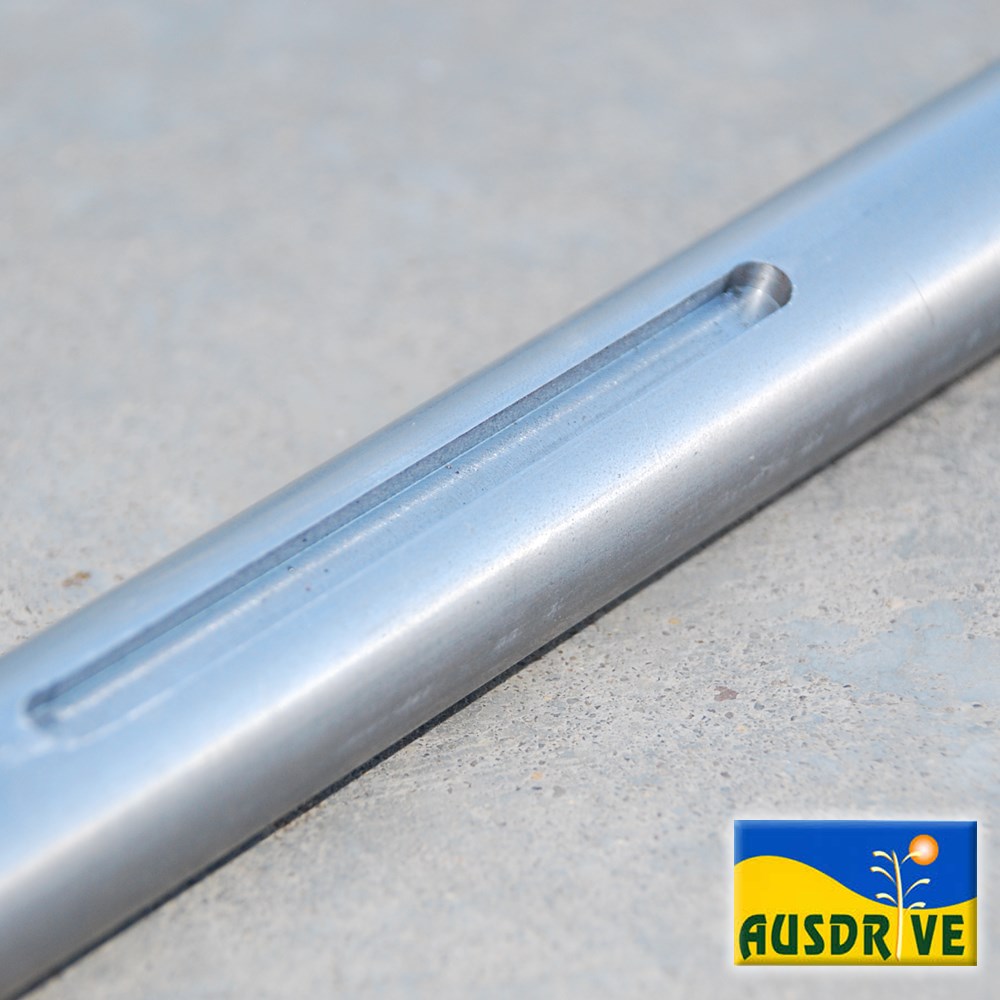

- Keyways: Features precision-cut 1/4" keyway slots for positive drive engagement.

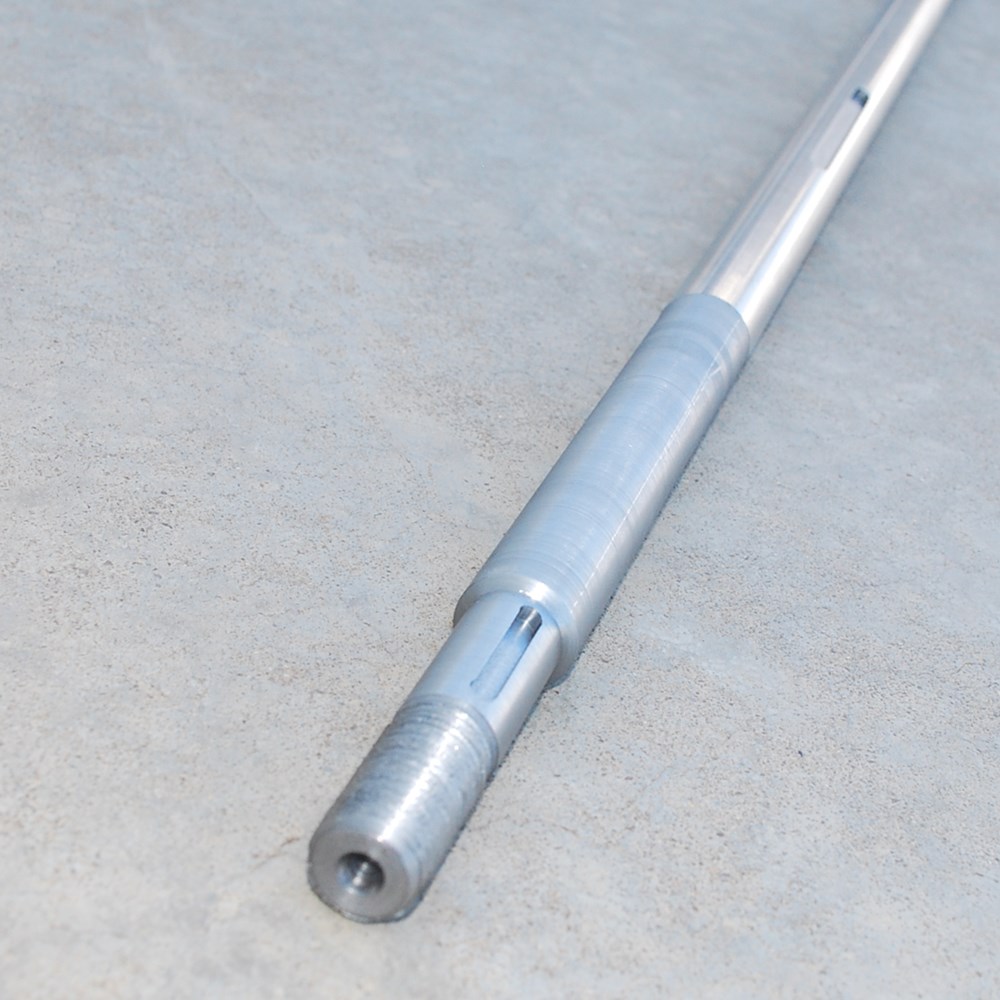

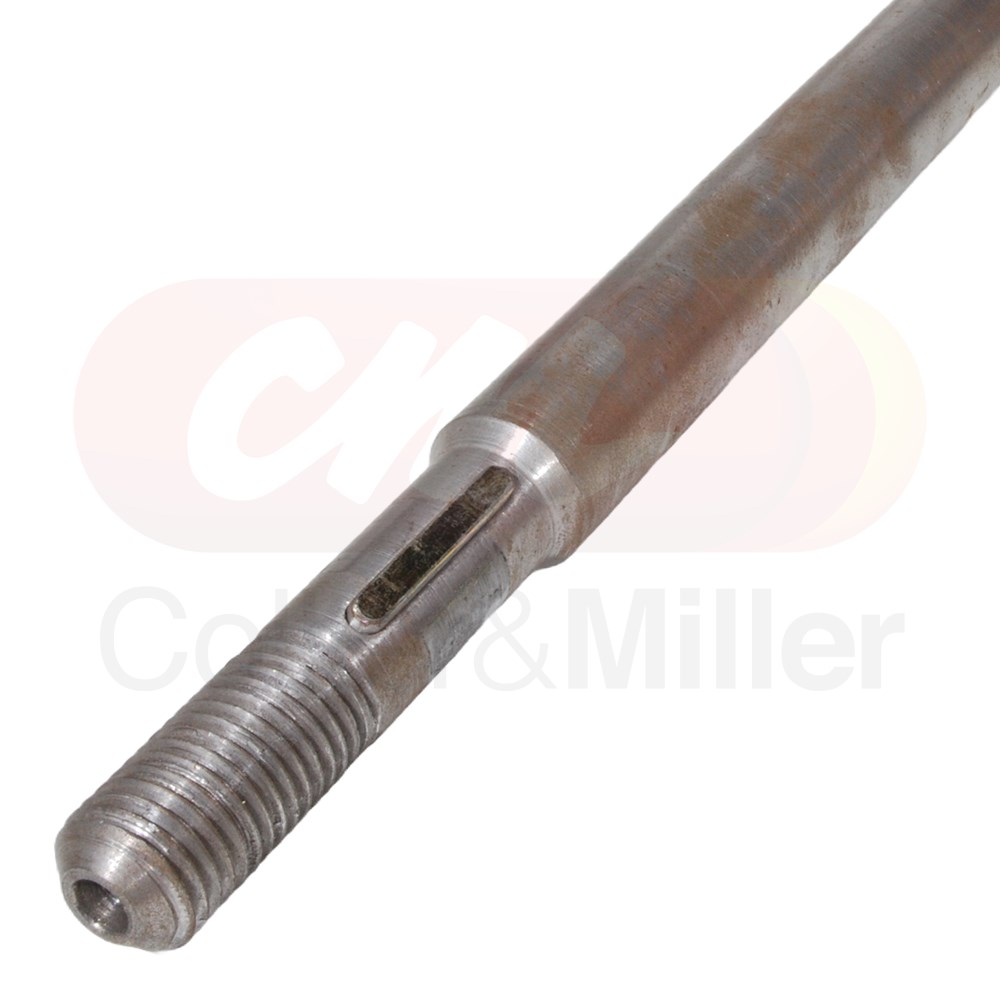

- Threading: M20 x 2.5mm threaded ends for high-strength fastening.
- Quality: Straightened and balanced to eliminate vibration and prevent bearing fatigue.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The cleaning shoe drive shaft is a critical link that must withstand constant reciprocating loads. Over time, the keyways can "flog out" and the shaft ends can suffer from stress fractures, which leads to drive failure and potential damage to the cleaning shoe hangers. We recommend inspecting the keyway seats and checking for shaft run-out during every preventative maintenance check to identify worn components before they fail mid-harvest.
Upgrading to this high-performance C&M shaft is a strategic choice to save money on major mechanical repairs. The precision finish and 1045 steel grade ensure your drive components remain in top condition, providing the high-strength reliability required for high-capacity harvesting. This balanced shaft reduces the risk of premature bearing failure, ensuring a trouble-free longer service life for your machine.
Installation Tip: Keyway Fitment
When installing the new H171186 shaft, ensure the 1/4" keys are a snug fit in the slots with no lateral movement. Any play in the keyways will lead to rapid abrasion and shaft damage under the pulsating load of the cleaning shoe. This is the ideal time to check your drive bearings and eccentric arms to ensure the entire drive circuit is perfectly aligned.
