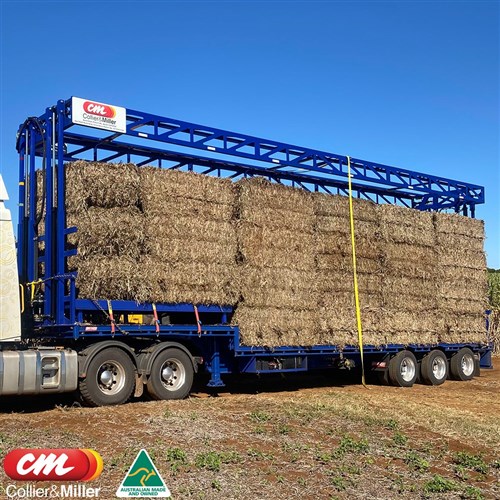

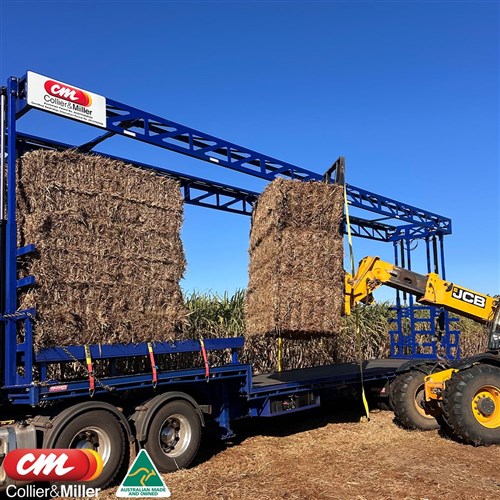

Collier & Miller Hay Cartage Trailer Frame
Built for efficiency and safety, the Collier & Miller Hay Cartage Trailer Frame transforms your existing drop deck semi-trailer into a high-capacity hay transport solution. Designed to carry up to 42 large rectangular bales, this heavy-duty frame delivers reliable performance while meeting NHVR height and loading regulations.
The fully hydraulic system, powered by the towing vehicle, allows the frame to adjust in width and height for easy loading and secure compression of the bale stack. Dual centrally mounted air ratchet tie-down systems lock the top frame in place during transport, maintaining load stability under tough road conditions.
Engineered for ease of use, the unit mounts directly onto standard trailers without modification, making it a practical and cost-effective upgrade for hay transport operations. Proudly designed and manufactured by Collier & Miller, this frame is built to handle the demands of the Australian agricultural landscape.
Features
- Carries up to 42 large rectangular hay bales
- Fits drop deck trailers up to 13.7 m
- Hydraulic width and height adjustment
- Powered by towing vehicle’s hydraulic supply
- Dual air ratchet tie-down systems for secure transport
- Complies with NHVR mass, dimension, and loading regulations
- No trailer modification required for installation
- Available in multi-combination configurations, including Road Train and B-double arrangements
- Designed and manufactured in Australia
- Australian Patent Application No. 2024903145
