Hart Carter® Compatible
Reel Finger Tine Screw
Compatible with the reel finger tine as used on 35mm tubes fitted to John Deere cutting platforms.

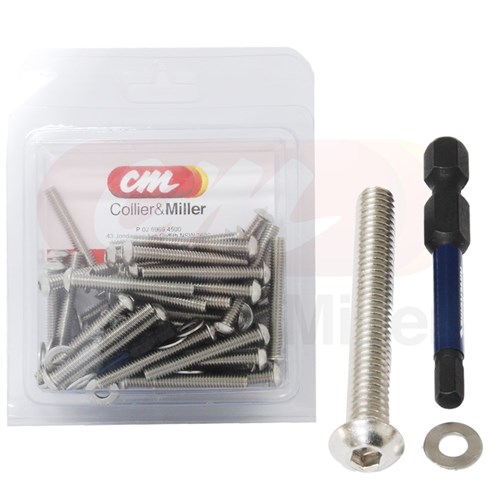

This button head screw is used to fasten the heavy duty plastic finger tine (CMHXE81790) to the reel tube. Using a 4mm hex bit (includedin every pack) they are screwed down from the top of the finger, the screw passes through the tube and screws into the finger holding it tight onto the reel. Measures 6mm D x 50mm L.
Part numbers
| Series |
Models |
Serial/Year |
| John Deere 600 D Series |
625D, 630D, 635D, 640D |
|
| John Deere 600 FD Series |
625FD, 635FD, 640FD, 645FD |
|
| John Deere 600 R Series |
622R, 625R, 630R, 635R |
|
| John Deere 700 D Series |
725D, 730D, 735D, 740D |
|
| John Deere 700 FD Series |
730FD, 735FD, 745FD |
|
| John Deere HD F Series |
HD35F, HD40F, HD45F, HD50F |
|
| John Deere HD R Series |
HD35R, HD40R, HD45R, HD50R |
|
| John Deere RD F Series |
RD30F, RD35F, RD40R, RD45F |
|
Features
- Button Head Stainless M60x50mm
- For heavy duty tine
- M4 Hex Drive Torx head
