Tine Screw
Screw to fasten Heavy duty tine on John Deere cutting platforms.

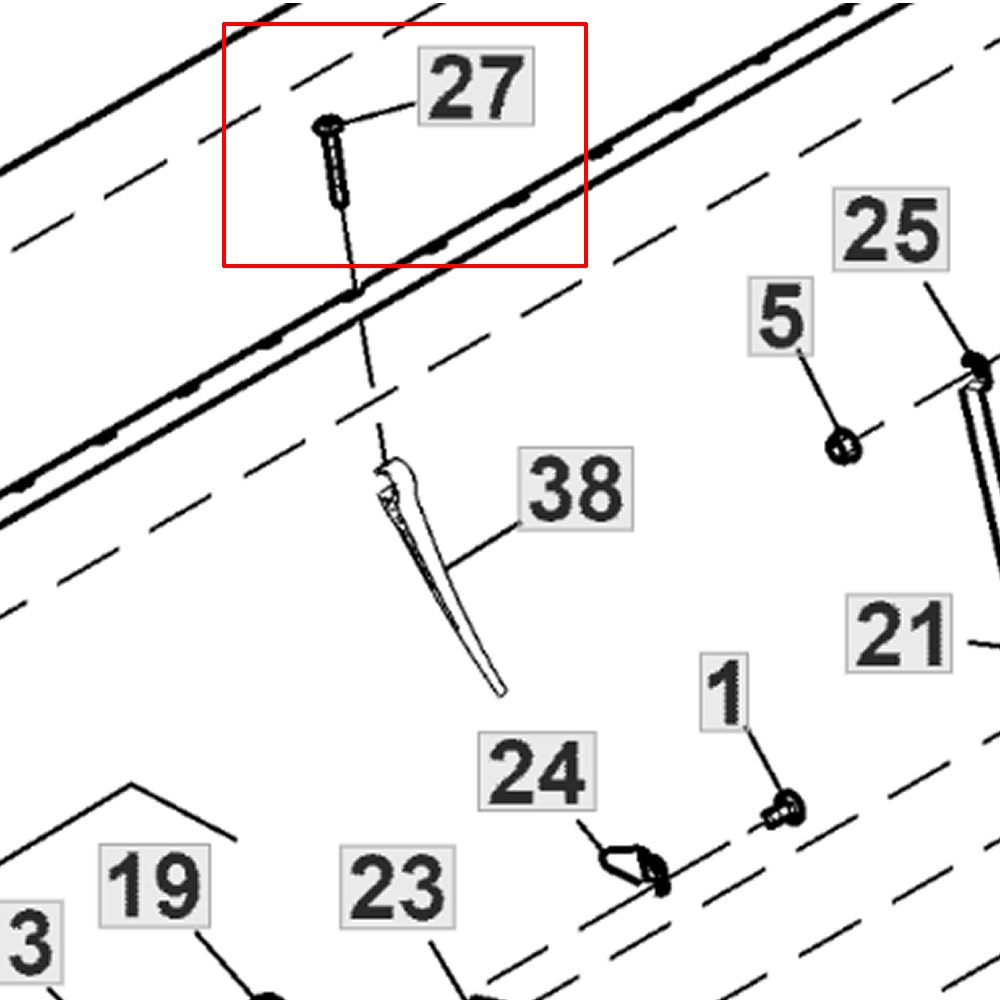

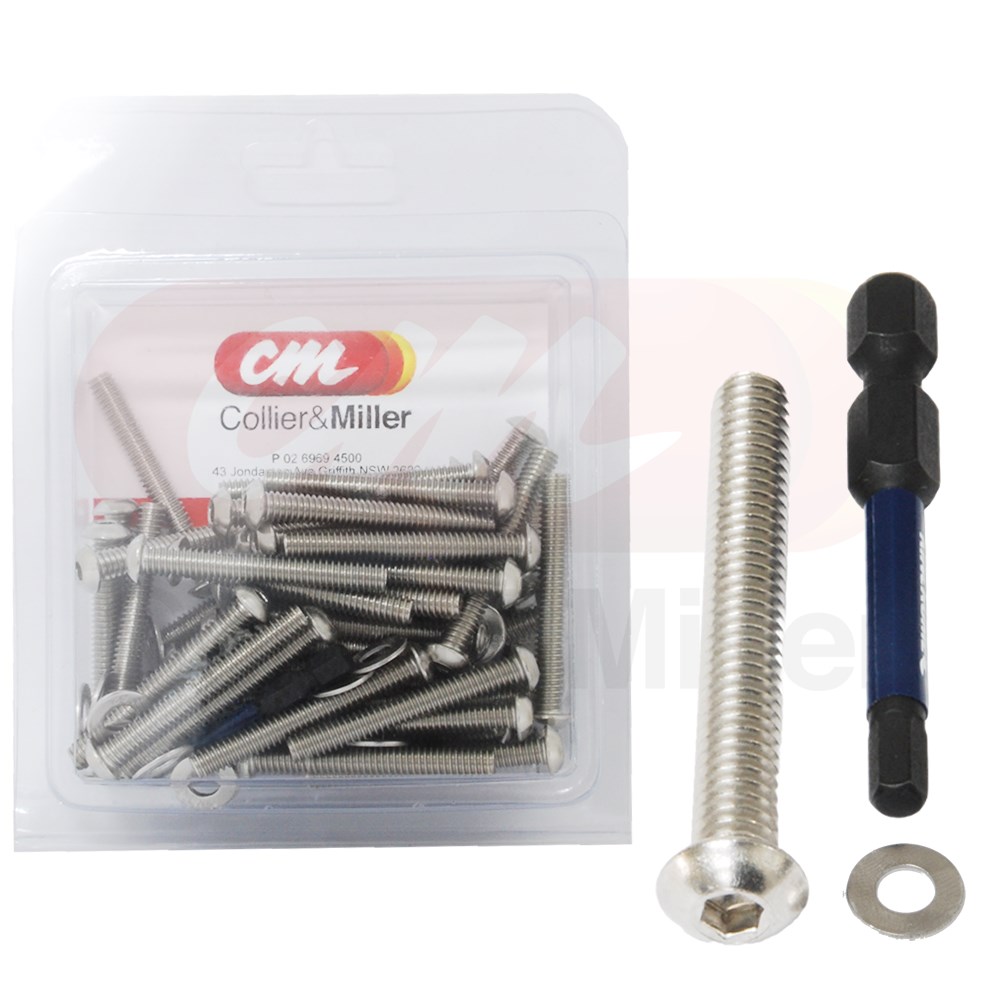

This course screw is used to fasten the heavy duty plastic finger tine (CMHXE81790) to the reel tube. Using a T27 Torx bit they are screwed down from the top of the finger, the screw passes through the tube and screws into the finger holding it tight onto the reel. Measures 6mm D x 47mm L.
Part numbers
Models
| Series |
Models |
Serial/Year |
| John Deere 600 D Series |
625D, 630D, 635D, 640D |
|
| John Deere 600 FD Series |
625FD, 635FD, 640FD, 645FD |
|
| John Deere 600 R Series |
622R, 625R, 630R, 635R |
|
| John Deere 700 D Series |
725D, 730D, 735D, 740D |
|
| John Deere 700 FD Series |
730FD, 735FD, 745FD |
|
| John Deere HD F Series |
HD35F, HD40F, HD45F, HD50F |
|
| John Deere HD R Series |
HD35R, HD40R, HD45R, HD50R |
|
| John Deere RD F Series |
RD30F, RD35F, RD40R, RD45F |
|
Features
- Self Tapping Screw 1/4" x 1.941"
- For heavy duty tine
- T27 Torx head
