Case-IH®, MacDon® & New Holland® Compatible Complete Knife Guard Kit - 40ft Double Drive
Refurbish the full cutter bar on selected 40ft double-drive MacDon®, Case-IH® and New Holland® draper fronts with this quality aftermarket complete knife guard kit. The kit combines left and right end guards, double heat-treated ledger guards, no-ledger guards and the centre overlap components required for a complete guard-line replacement.
Worn knife guards can develop rounded ledger edges, enlarged knife slots, damaged points and inconsistent working heights across the cutter bar. Replacing the complete guard set helps restore a more consistent cutting profile, supporting clean sickle shearing action while reducing the likelihood of knife drag, chatter and uneven cutting.
MacDon®, Case-IH® & New Holland® OEM Cross-Reference
Replaces OEM Part Numbers:
- CM118301 - Left Hand End Guard: 87422039
- CM118302 - Right Hand End Guard: 87422040
- CM118344 - Double Heat-Treated Ledger Guard: 118344, 87421451, 87560324, 47687886
- CM118345 - No-Ledger Guard: Direct-fit aftermarket guard for the knife drive area
- CM124338 - Centre Overlap Bottom Guard: 124338, 828025C1
- CM124344 - Centre Overlap Top Guard: 124344
Compatible 40ft Double-Drive Draper Fronts
Compatible 40ft Double-Drive Header Platforms
| Brand |
Compatible Models |
Configuration |
| MacDon® |
D50, D60, D65, FD70, FD75, D140, FD140 |
40ft Double Drive Only |
| Case-IH® |
2142, 2152, 2162 |
40ft Double Drive Only |
| New Holland® |
82C, 83C, 86C |
40ft Double Drive Only |
Kit Contents & Component Quantities
| C&M Part Number |
Description |
Quantity |
| CM118301 |

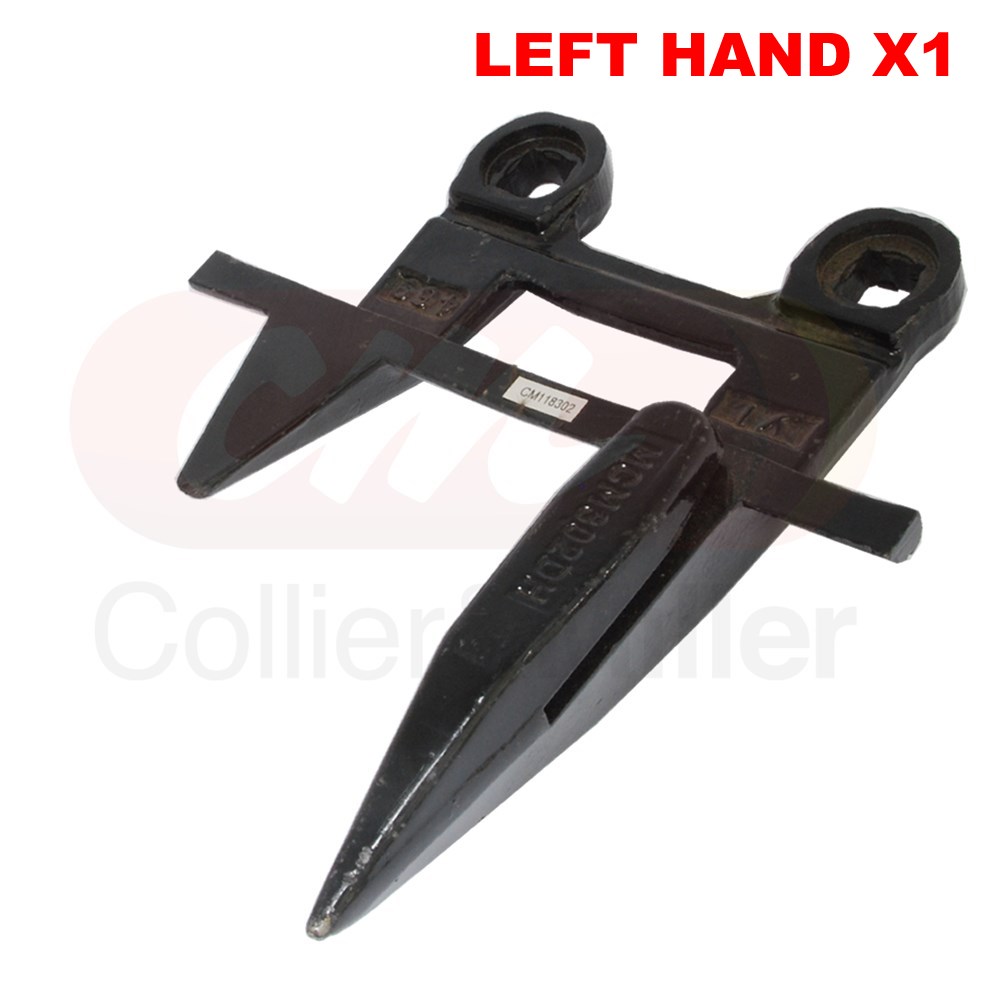

Left Hand End Guard |
1 |
| CM118302 |

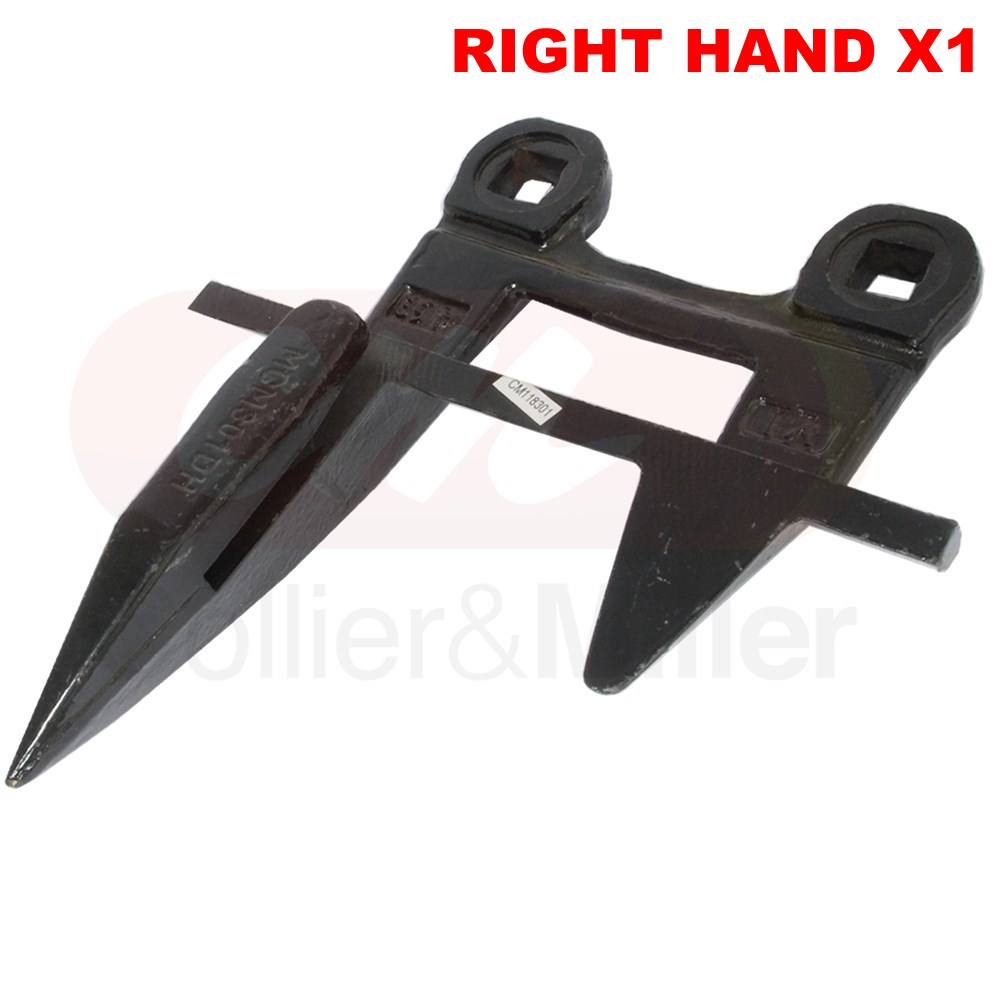

Right Hand End Guard |
1 |
| CM118345 |

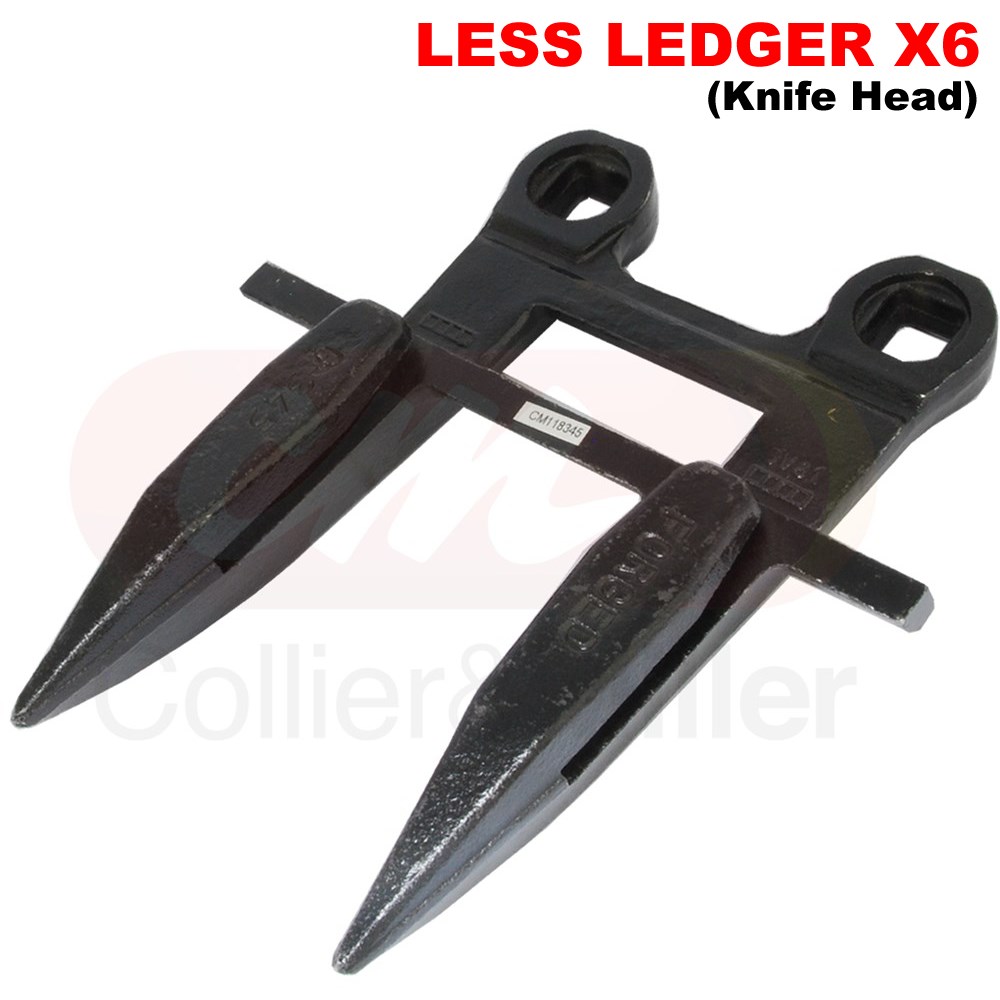

Double-Prong No-Ledger Guard - Knife Drive Area |
6 |
| CM118344 |

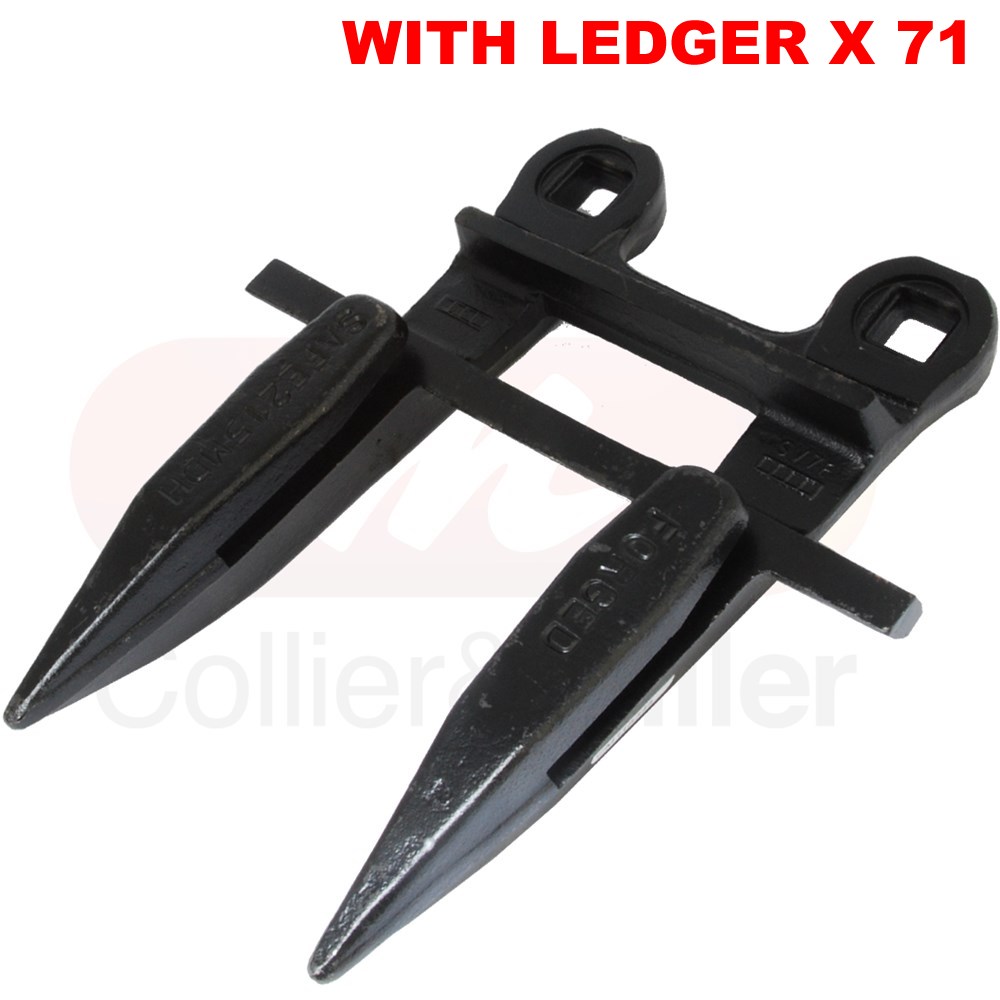

Double Heat-Treated Ledger Guard |
71 |
| CM124338 |

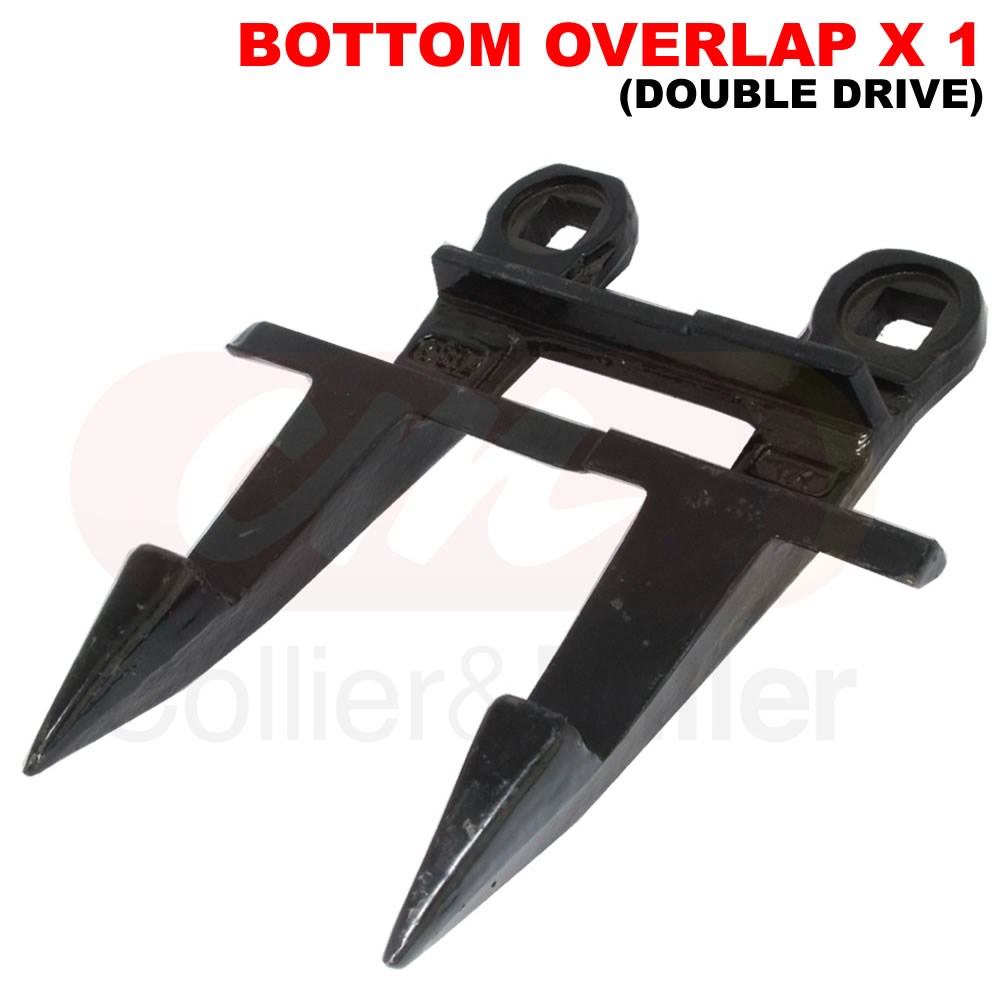

Centre Overlap Bottom Guard |
1 |
| CM124344 |

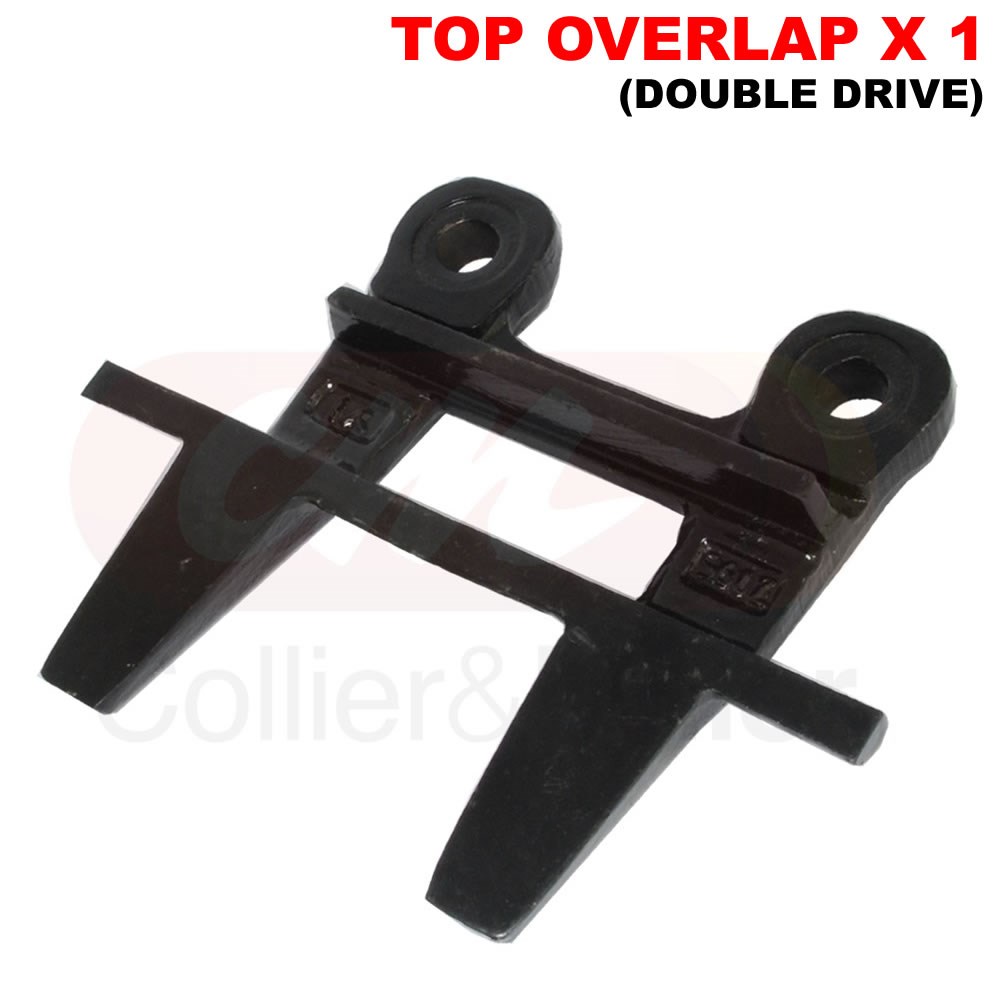

Centre Overlap Top Guard |
1 |
Technical Specifications & Features
- Product Type: Quality aftermarket complete knife guard kit.
- Header Width: 40ft.
- Drive Configuration: Double drive.
- Application: Selected MacDon®, Case-IH® and New Holland® draper header fronts.
- MacDon® Fitment: D50, D60, D65, FD70, FD75, D140 and FD140 in compatible 40ft double-drive configurations.
- Case-IH® Fitment: 2142, 2152 and 2162 in compatible 40ft double-drive configurations.
- New Holland® Fitment: 82C, 83C and 86C in compatible 40ft double-drive configurations.

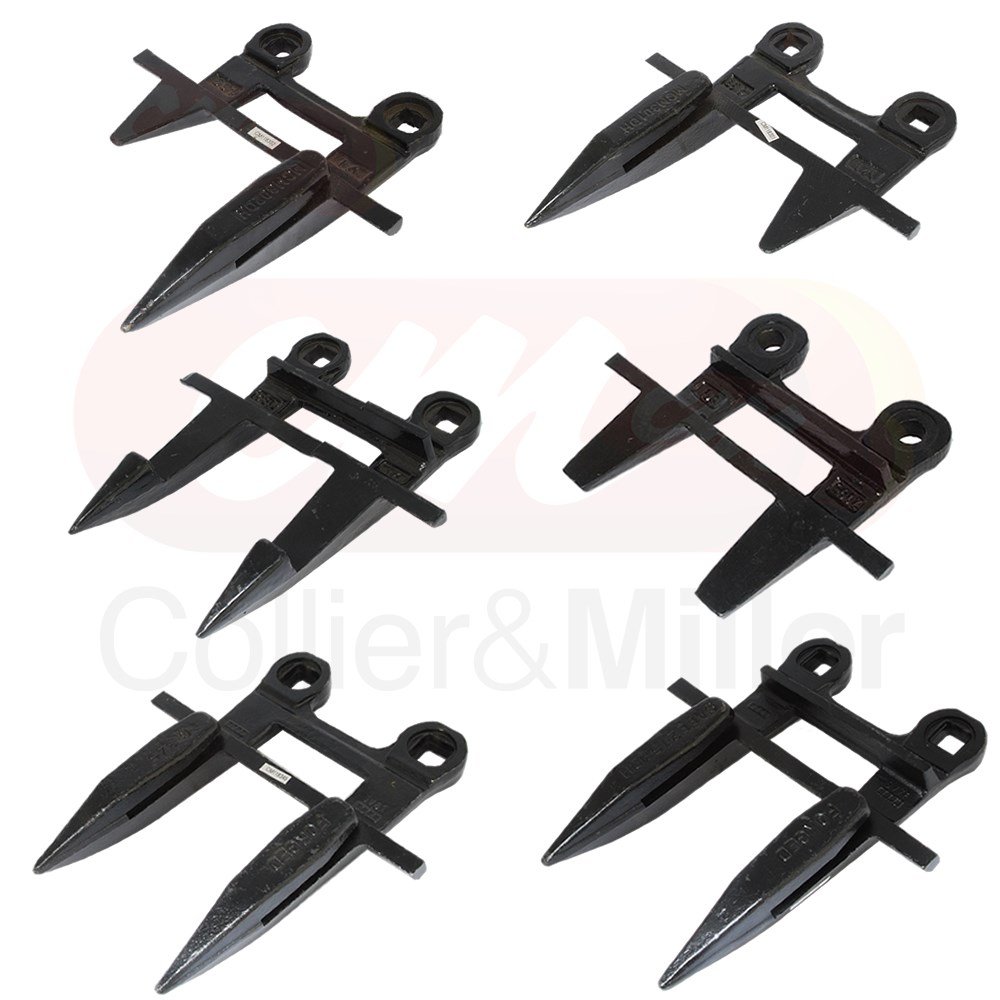

- Guard Layout: Complete cutter-bar set including left and right end guards, standard ledger guards, no-ledger drive-area guards and centre overlap guards.
- Wear Construction: CM118344 standard-run guards feature double heat-treated construction.
- Cutting Function: Ledger surfaces provide the opposing cutting edge required for effective sickle shearing.
- Maintenance Benefit: Replacing the complete guard line helps remove inconsistent wear heights and clearances caused by mixing heavily worn and newer guards.
- Fasteners: Mounting bolts and associated fasteners are not included unless specified separately.
- Supply: Available from Collier & Miller in Griffith NSW with Australia-wide shipping.
The C&M Difference
This is a quality aftermarket replacement kit selected for correct fitment, practical value and dependable cutter-bar performance. Collier & Miller checks aftermarket cross-references and application information so replacement components can be matched to the intended machine, cutter-bar position and operating configuration.
Supplying the guards as a complete 40ft kit also makes pre-season cutter-bar maintenance more straightforward. Rather than replacing individual worn guards throughout the season, operators can renew the complete working guard line and begin with more consistent guard heights, ledger condition and knife clearance across the platform.
Expert Maintenance Review
Knife guards operate in one of the highest-wear areas of a draper front. Guard points and ledger surfaces are exposed to soil, sand, crop residue and continuous contact with the reciprocating knife. As the ledger edges round off, guard slots wear or individual guards become damaged, crop can begin to tear rather than shear cleanly.
Common signs of cutter-bar guard wear include ragged cutting, increased crop pulling, uneven stubble, knife chatter and additional resistance through the knife drive. Mixed guard wear can also create inconsistent knife-to-ledger clearance across the full 40ft cutter bar.
During pre-season maintenance, inspect the complete guard line for broken or bent points, rounded ledger edges, excessive slot wear and inconsistent guard height. Knife sections, hold-down components, knife heads and drive components should also be checked because excessive clearance or wear elsewhere in the cutting system can affect the performance of a new guard set.
Installation Tip: Set the Complete Guard Line Before Final Tightening
Clean rust, crop residue, dirt and built-up material from the cutter-bar mounting surface before installing the new guards. Fit the guards loosely first and check alignment across the complete cutter bar before final tightening.
Pay particular attention to the knife-drive ends and centre overlap area, where incorrect guard positioning can create tight spots or inconsistent knife clearance. Once the guards are aligned, tighten all mounting hardware to the machine manufacturer's specified torque.
Before operating the header under power, move the knife through a complete stroke by hand and check that the sickle moves freely through every guard without binding.
MacDon®, Case-IH® and New Holland® names and OEM part numbers are used for identification and compatibility reference only. This product is a quality aftermarket replacement and is not manufactured by the original equipment manufacturers.
