Case-IH®, MacDon® & New Holland® Compatible Complete Knife Guard Kit - 45ft Double Drive

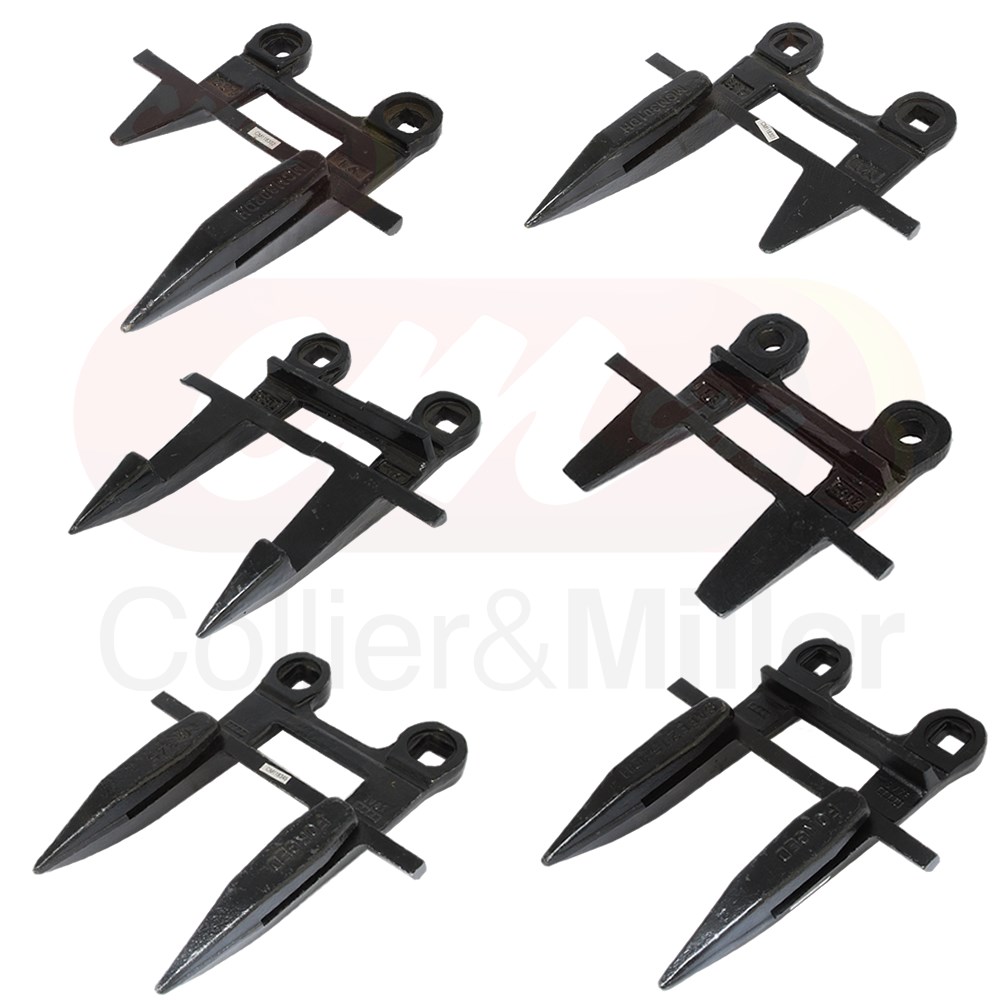

Refurbish the full cutter bar on selected 45ft double-drive MacDon®, Case-IH® and New Holland® draper fronts with this quality aftermarket complete knife guard kit. Supplied as a complete cutter-bar set, the kit includes left and right end guards, double heat-treated ledger guards, no-ledger guards and the centre overlap components required across the 45-foot cutting platform.

Knife guards are a major wear point in the cutter bar. Rounded ledger edges, damaged guard points and worn knife slots can reduce the quality of the shearing action and create inconsistent knife clearance across the front. Replacing the complete guard set helps return the cutter bar to a consistent working profile, supporting cleaner cutting and smoother sickle operation.

MacDon®, Case-IH® & New Holland® OEM Cross-Reference

Replaces OEM Part Numbers:

• CM118301 - Left Hand End Guard: 87422039

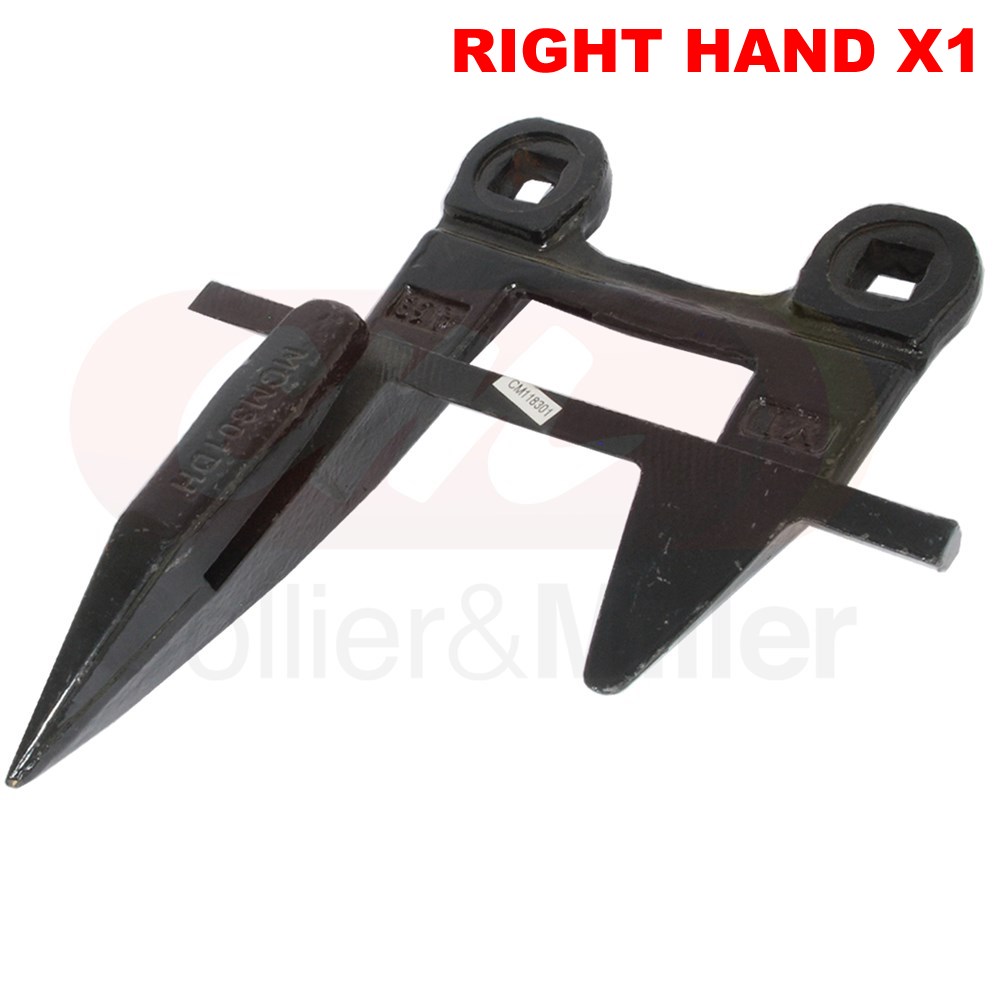

• CM118302 - Right Hand End Guard: 87422040
• CM118344 - Double Heat-Treated Ledger Guard: 118344, 87421451, 87560324, 47687886
• CM118345 - No-Ledger Guard: Double-prong guard for the knife drive area
• CM124338 - Centre Overlap Bottom Guard: 124338, 828025C1
• CM124344 - Centre Overlap Top Guard: 124344

Compatible 45ft Double-Drive Draper Fronts

Kit Contents & Component Quantities

Technical Specifications & Features

• C&M Kit Reference: CMKGK45.
• Product Type: Quality aftermarket complete knife guard kit.
• Header Width: 45ft.
• Drive Configuration: Double drive.
• Application: Selected MacDon® and MacDon-built Case-IH® and New Holland® draper header fronts.
• Guard Layout: Complete cutter-bar set including left and right end guards, standard ledger guards, no-ledger drive-area guards and centre overlap guards.

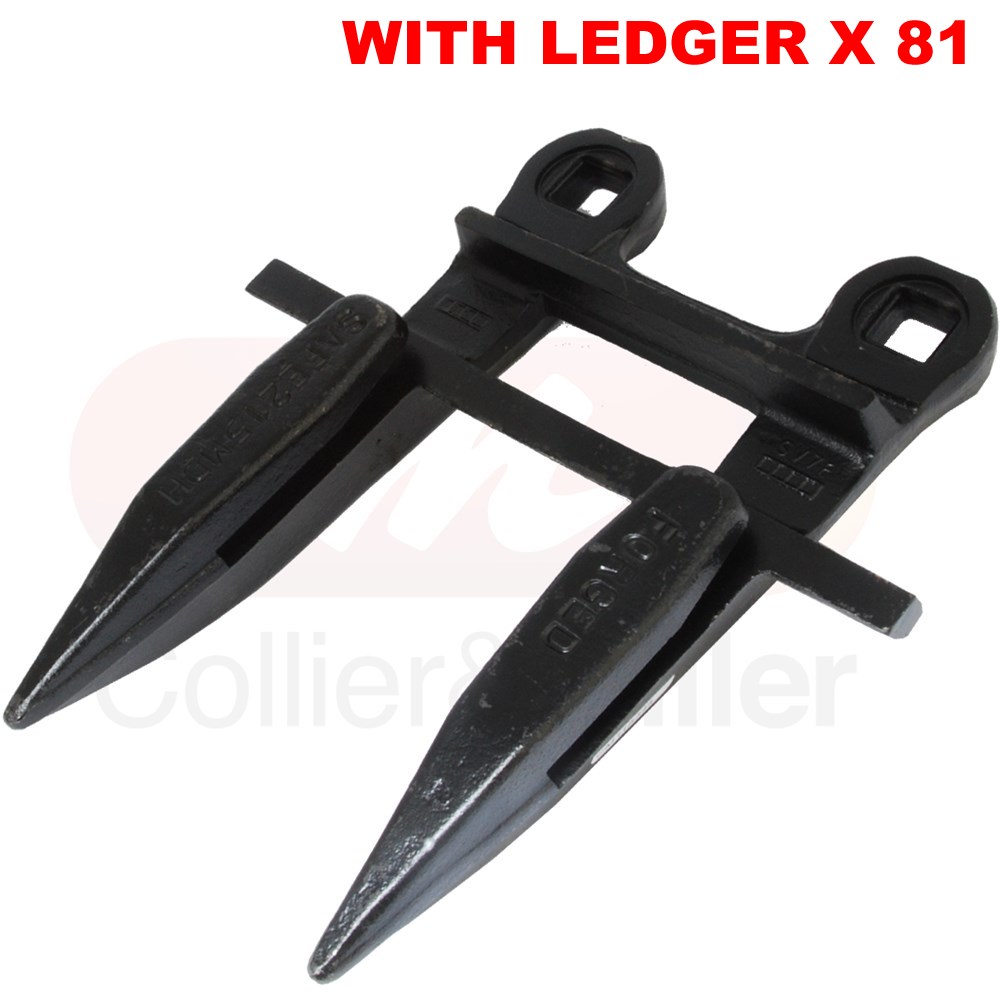

• Ledger Guards: 81 x CM118344 double heat-treated guards.

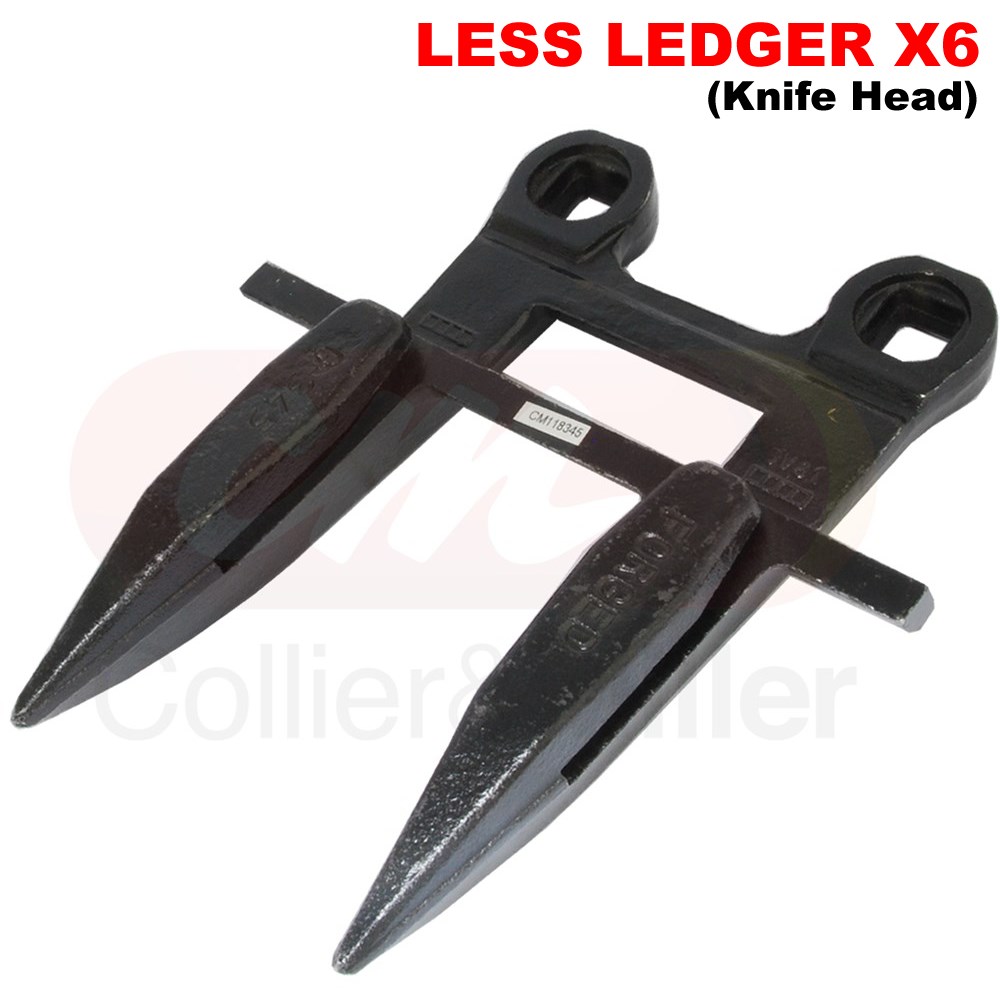

• Knife Drive Guards: 6 x CM118345 no-ledger guards for the knife head and drive areas.

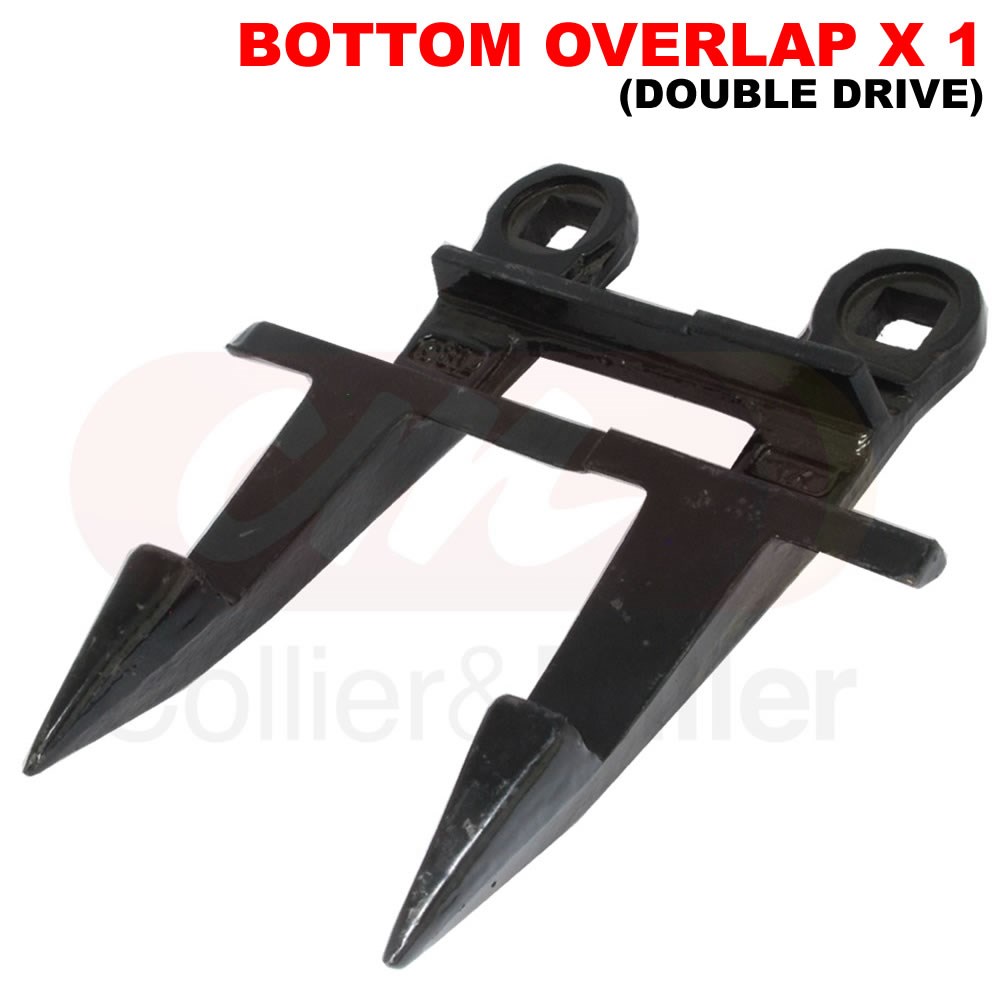

• Centre Overlap: Includes top and bottom centre overlap guards.
• Cutting Function: Ledger surfaces provide the opposing cutting edge required for effective crop shearing as the knife sections move through the guards.
• Maintenance Benefit: Replacing the complete guard line helps remove inconsistent guard heights, ledger wear and knife clearance caused by mixing worn and replacement guards.
• Fasteners: Mounting bolts and associated fasteners are not included unless specified separately.
• Supply: Available from Collier & Miller in Griffith NSW with Australia-wide shipping.

The C&M Difference

This is a quality aftermarket replacement kit selected for correct fitment, practical value and dependable cutter-bar performance. Collier & Miller checks component cross-references and machine applications to help ensure replacement guards match the intended cutter-bar layout and operating configuration.

On a 45ft cutting platform, small differences in guard height and ledger wear can add up across the full width of the cutter bar. Replacing the complete set gives operators the opportunity to reset the guard line from end to end rather than continuing to mix heavily worn guards with newer replacements.

Expert Maintenance Review

A 45ft cutter bar places a large number of guards and knife sections into continuous work. Guard points and ledger surfaces are exposed to soil, sand, grit, crop residue and repeated contact with the reciprocating knife. As wear develops, ledger edges can become rounded and knife slots can open up, reducing the effectiveness of the crop shearing action.

Common signs of guard wear include ragged crop cutting, uneven stubble, crop pulling, knife chatter and additional resistance through the knife drive. On a double-drive front, it is particularly important to inspect both knife-drive areas as well as the centre overlap because wear or incorrect clearance in these areas can affect smooth knife movement.

During pre-season maintenance, inspect the complete 45ft guard line for damaged points, rounded ledger surfaces, worn knife slots and inconsistent guard height. Check knife sections, hold-down clips, knife heads, head bearings and knife-drive components at the same time. Worn components elsewhere in the cutter-bar system can reduce the benefit of fitting a complete new guard set.

MacDon®, Case-IH® and New Holland® names and OEM part numbers are used for identification and compatibility reference only. This product is a quality aftermarket replacement and is not manufactured by the original equipment manufacturers.
