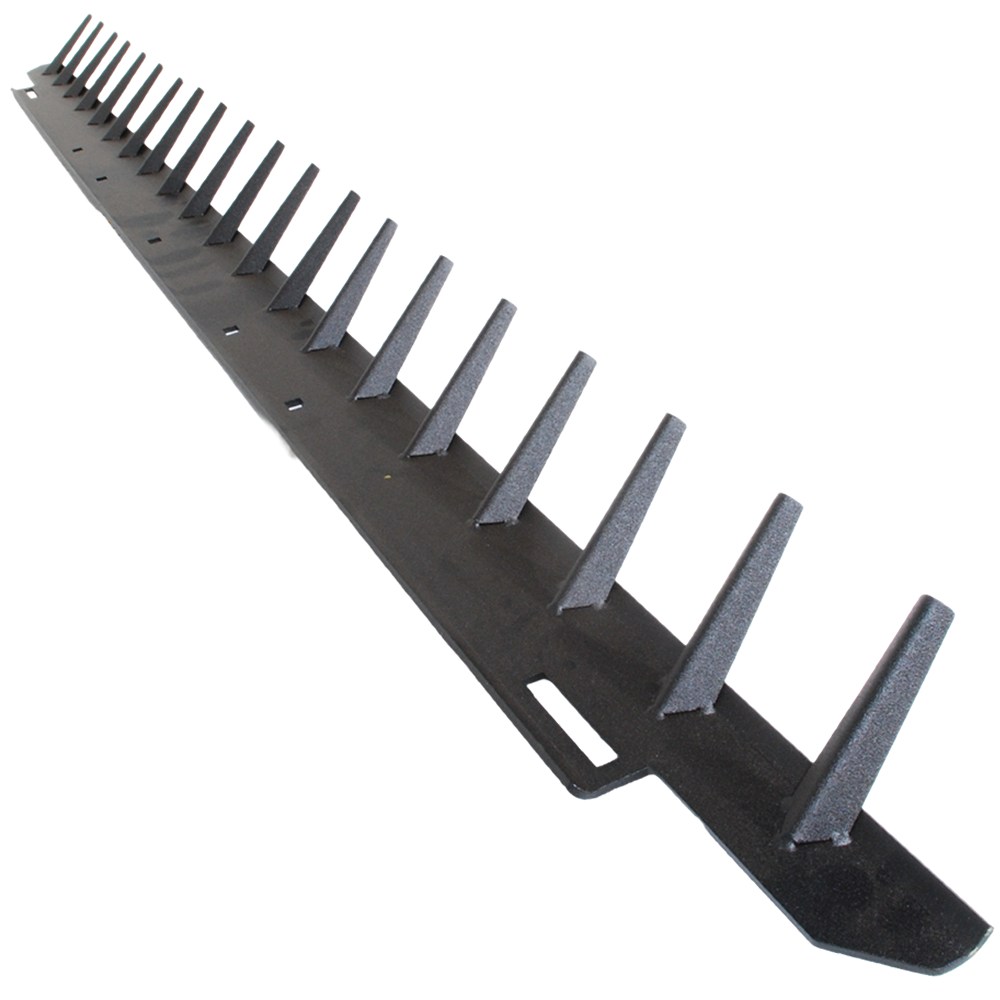

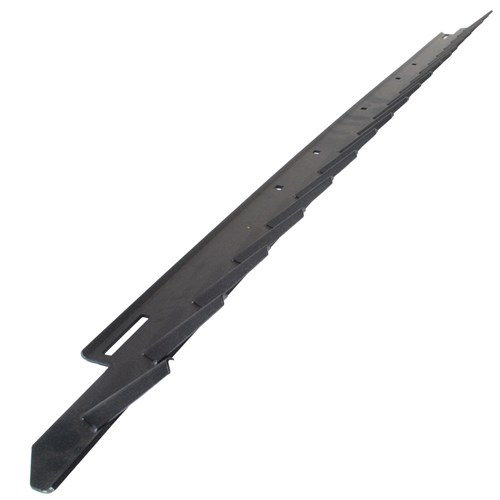

Case-IH® & MacDon® Compatible Stainless Steel Header Front Rock Trap Trap Dam
Protect your harvesting investment with this premium C&M Australian-made centre feed header front rock trap dam. Specifically engineered for MacDon® and Case-IH® centre feed adaptors, this high-performance protection system is designed to collect rocks before they enter the centre feed drum, preventing catastrophic internal damage and costly downtime.
Manufactured in our Griffith factory from stainless steel and finished with a durable powdercoat, this rock trap features extra-high fingers. This design enhancement provides a superior physical barrier compared to standard units, effectively stopping rocks from tumbling over the top and into the threshing system. Its high-strength construction ensures an extended service life while keeping your feeder house in top condition.
Case-IH® & MacDon® Model Compatibility
Rock Trap Compatibility: Case IH 2100 & MacDon D/FD/S Series
| Series |
Models |
Reference |
| Case-IH® 21 Series |
2142, 2152, 2162 |
Standard Adaptor Fitment |
| MacDon® D & FD Series |
D50, D60, D65, FD70, FD75, FD1 |
Standard Adaptor Fitment |
| MacDon® D1 Series |
D130 D135 D140 D145 |
Standard Adaptor Fitment |
| MacDon® FD1 Series |
FD130 FD135 FD140 FD145 |
Standard Adaptor Fitment |
| MacDon® D2 Series |
D225 D230 D235 D240 D241 D245 D250 |
Standard Adaptor Fitment |
| MacDom® FD2 |
FD230 FD235 FD240 FD241 FD245 FD250 FD260 |
Standard Adaptor Fitment |
| New Holland® |
83C, 84C, 86C |
|
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: High-grade Stainless Steel with a professional powdercoated finish.

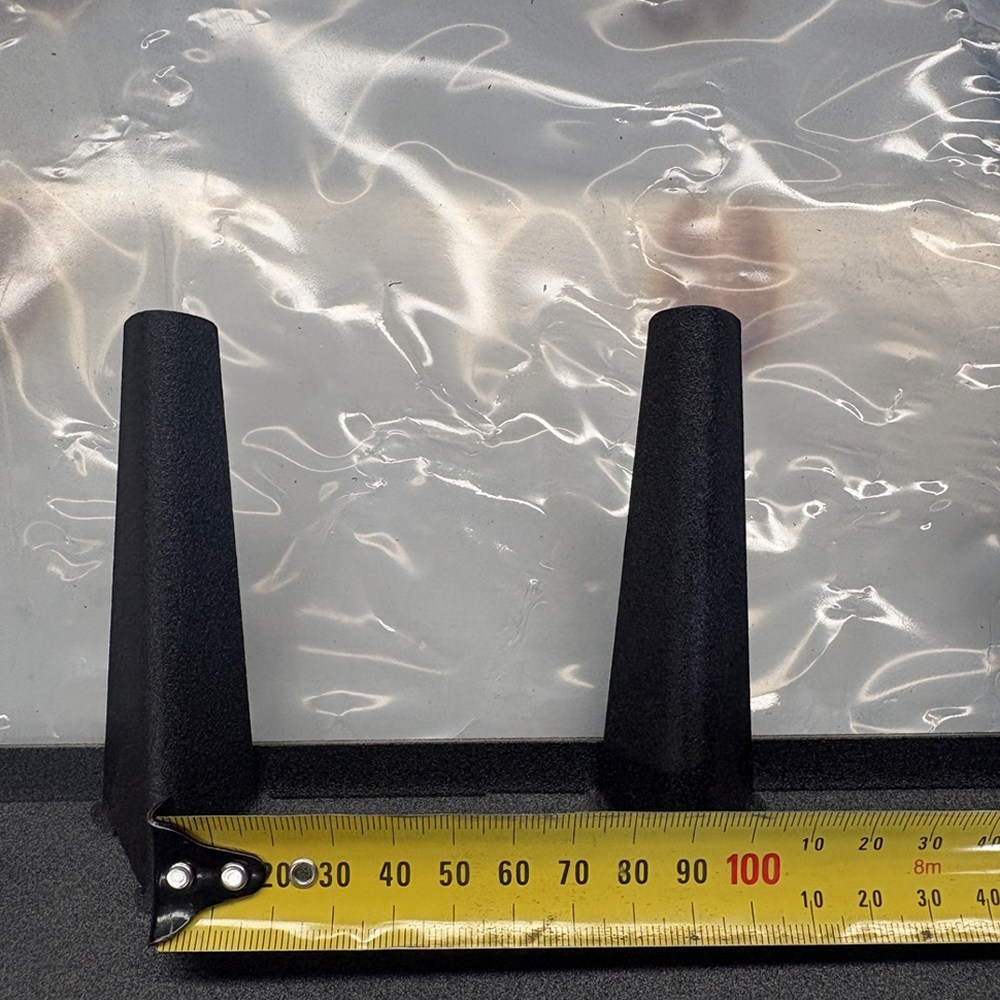

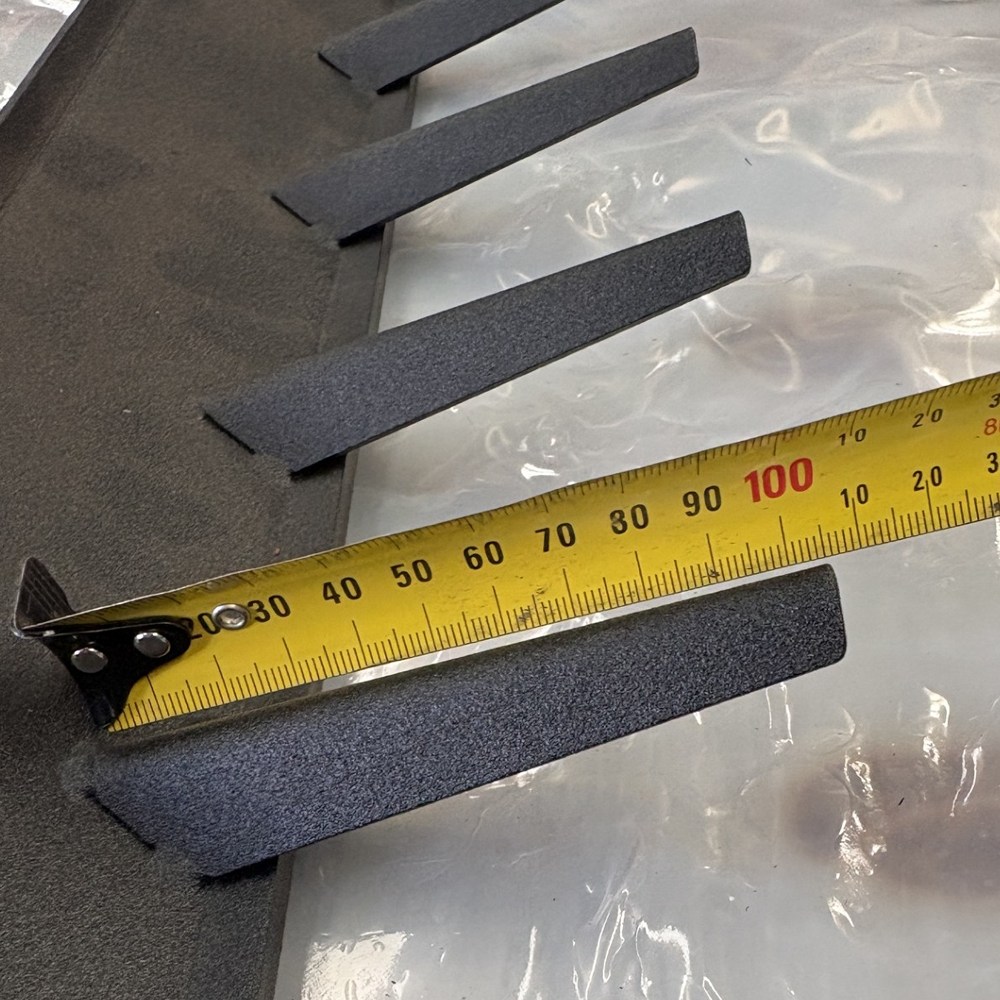

- Design: Extra-high fingers for improved rock retention and safety.
- Fitment: Slotted holes matched to existing OEM mount spacing for a direct-bolt installation.
- Maintenance: Extended wear design that resists the abrasive impact of incoming crop and debris.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The header front rock trap is your machine's first line of defence in rocky soil conditions. A single large stone entering the centre feed drum can cause severe deformation of the drum skin and damage the feeder house slats. We recommend inspecting the finger alignment and the security of the mounting bolts during every preventative maintenance check to ensure the trap remains positioned correctly.
Upgrading to this stainless steel version is a smart choice for long-term machine health. Standard steel traps can become pitted and rough, leading to material "slugging" at the intake. The smooth, high-strength stainless surface of the C&M trap maintains its profile even after repeated impacts, ensuring your feeding system remains in top condition for a longer service life.
Installation Tip: Bolt-In Simplicity
This rock trap is designed to use your existing bolt holes on the front of the centre feed adaptor. When installing, ensure the slotted holes are aligned so the trap sits flush against the adaptor floor. Using new high-tensile fasteners is recommended to provide a high-performance, secure mount that will not vibrate loose during heavy operation.
