JOHN DEERE COTTON PICKER

AIR DUCT HOSE 3" (75MM) N382349

Product Code: CMN382349
$49.50
MTR inc GST
Afterpay Logo
4 payments of $12.38
In Stock Low Stock Out of Stock Please See Attributes 30
Increase value Decrease value

  • Detail
  • Downloads

John Deere® Compatible
Cotton Picker Air Duct

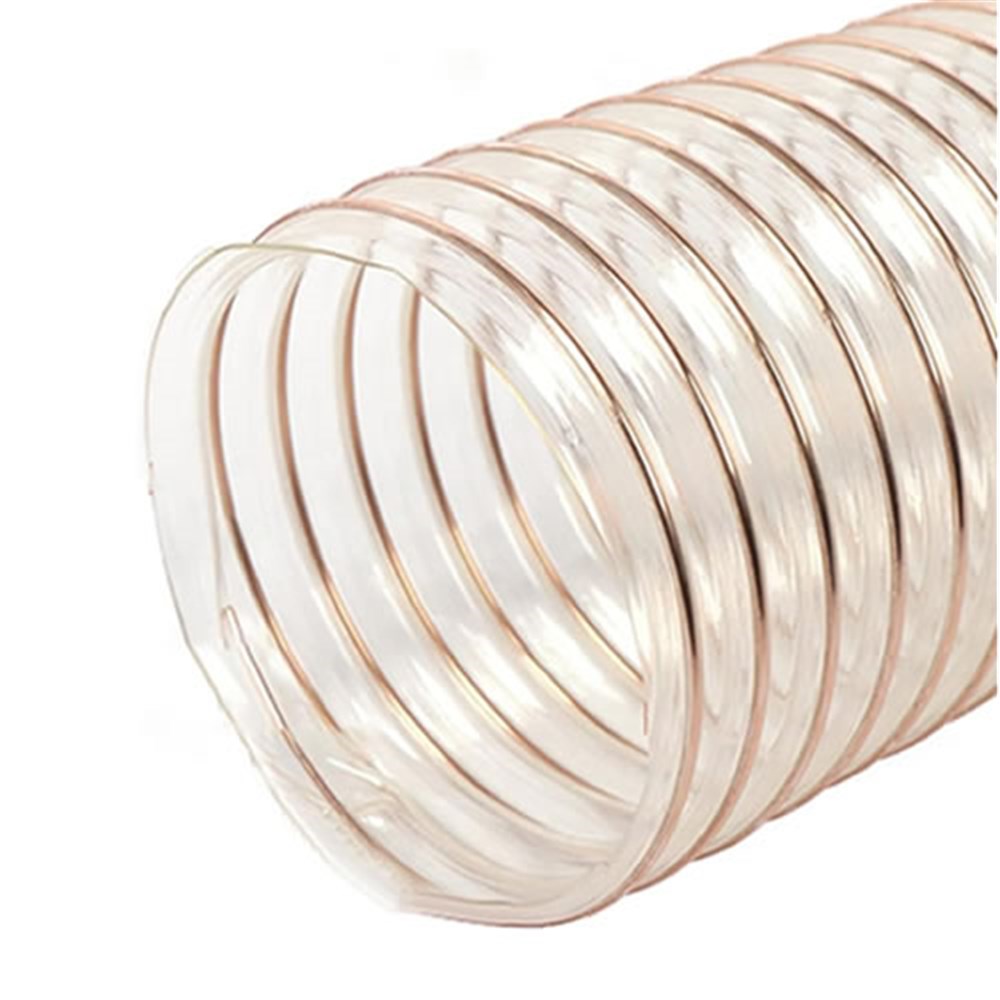

PUR spiral tube transluscent ducting hose with a copper coated steel reinforcement wire. Manufactured from polyeurethane this ducting is highly resistant to abrasion while remaining flexible. This ducting is constructed to ensure uniform wall deformation through bends to improve flow rates. Bend uniformity and quality construction are hallmarks of the Spiratube range.

Part Numbers

  • Air Duct N382349
Series Models Lengths
John Deere® 7760 7760
  • 3 @ CTL = ???
John Deere® CP Series CP690
  • 1 @ CTL=1380mm, 2 @ CTL=1060mm
CP770
  • 5 @ CTL = 648mm, 1 @ CTL 1270mm, 2 @ CTL 1143mm

Features
  • ID = 76mm (3")
  • Wall thickness = .45mm
  • Bend radius = 65mm
  • Temp range -40 > +90 degree C.
  • Smooth inside tube
  • Very light and flexible
  • High resistance to abrasion
  • Weather resistant

    Documents
