GORDEN ROTOR BAR FRONT SUIT CASE 1688 TO 9240

SUIT CASE 1688 TO 9240

Product Code: CMRB049

Detail
Technical
Interchange
Downloads

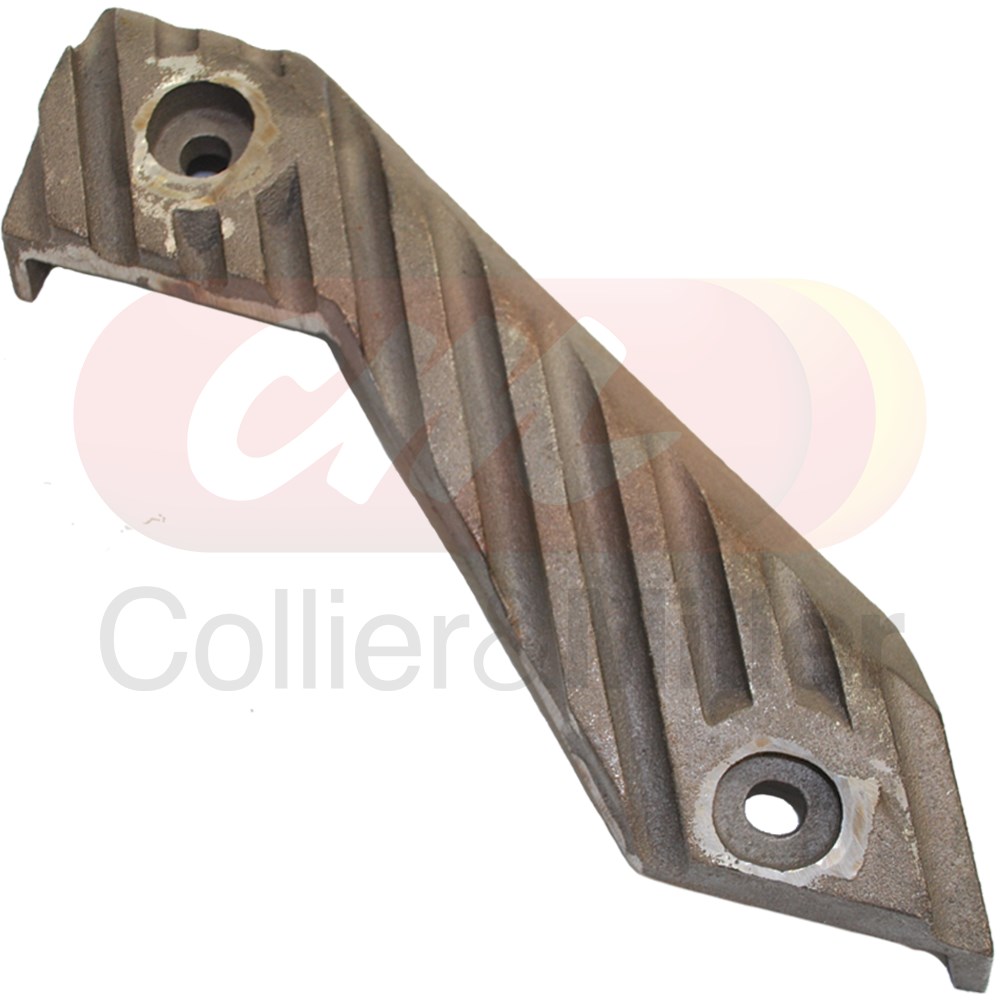

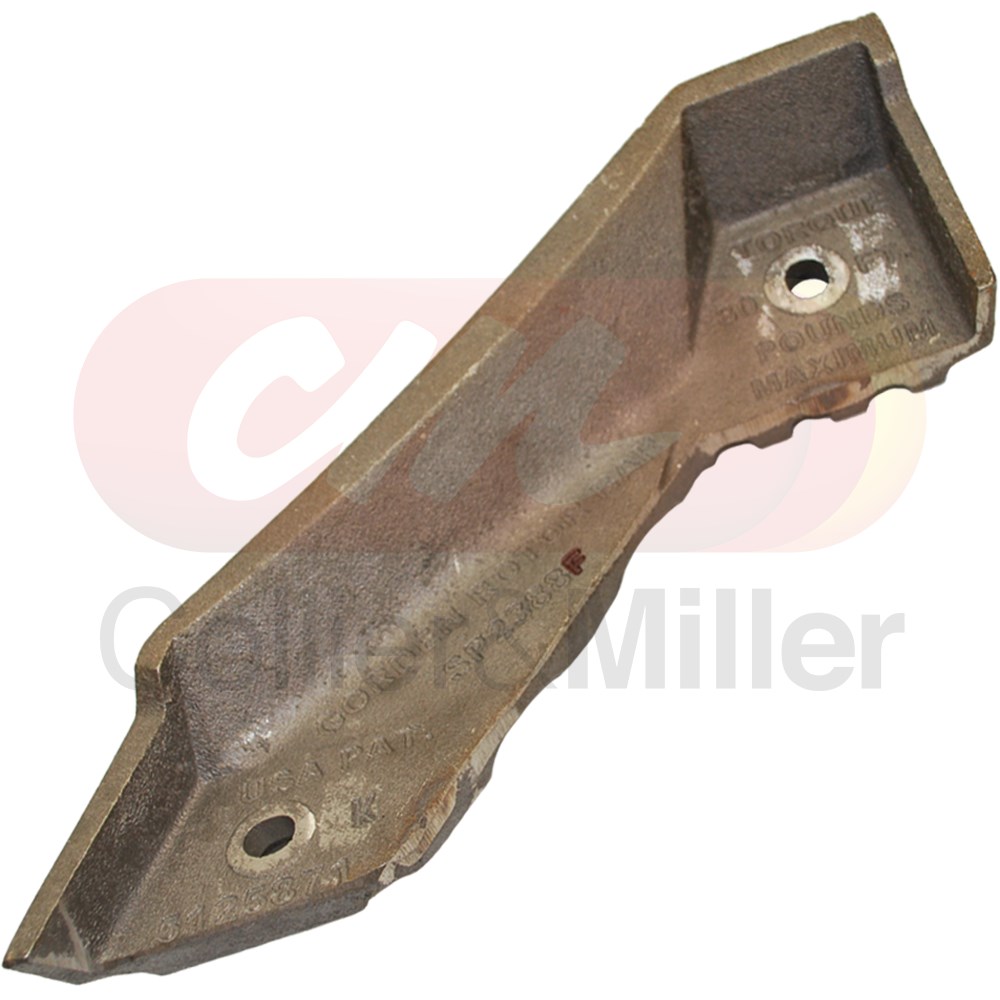

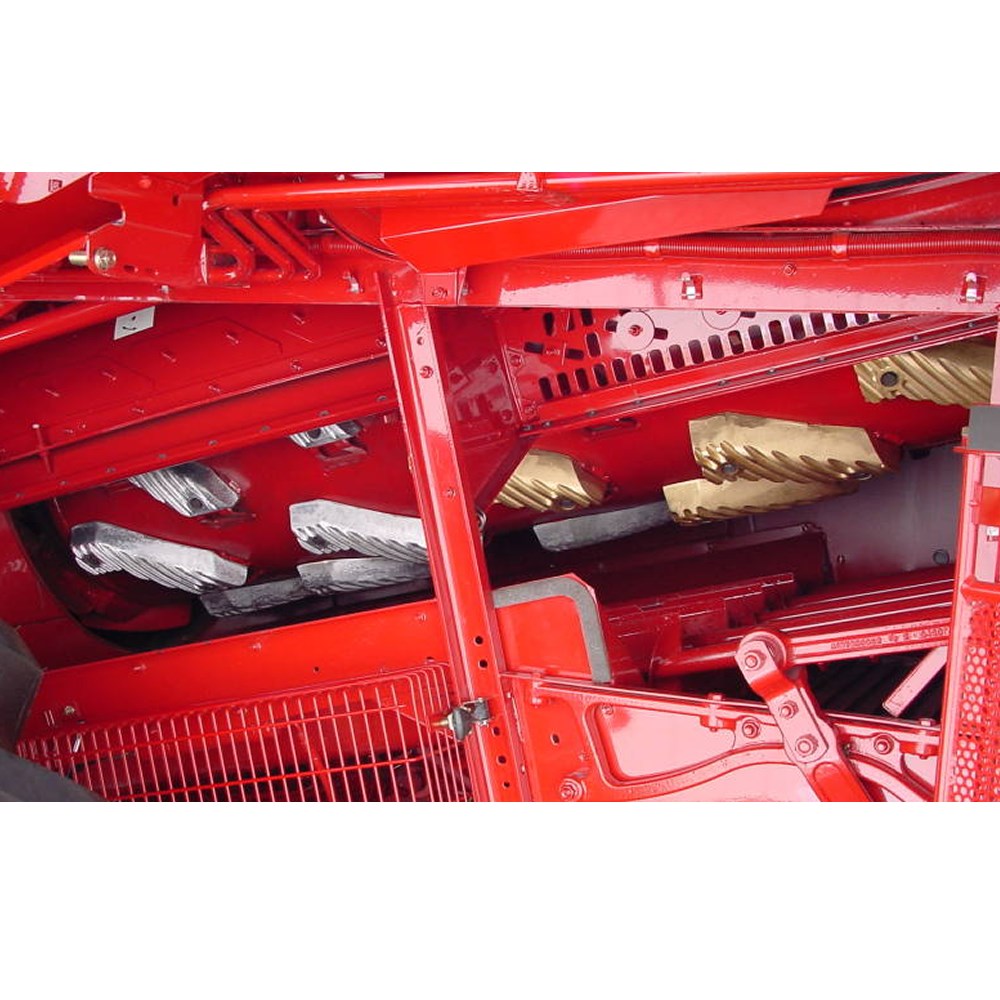

Gorden Rotor threshing Bar to suit Case IH combine harvesters fitted with the specialty rotor. These Gorden rotor bars mount to the front section of the Rotor. With the specific design they offer a superior threshing action, reducing the amount of un-threshed grain and reduces rotor loss as separation begins sooner.Each bar is made from a SOLID 15-3 chrome-alloy bar , outlasting chrome plated and ductile iron bars by 7000 hrs. Each bar easily bolts into place replacing two original bars.

Part numbers

RB049
Suits speciality rotors
Not suitable for ST rotor with smaller tube

Models

Series	Models	Serial/Year
Case 10 Series	7010, 8010, 8010-AFX
Case 16 Series	1688
Case 21 Series	2188
Case 23 Series	2388
Case 20 Series	7120, 8120, 9120
Case 30 Series	7130, 7230, 8230, 9230
Case 40 Series	7140, 7240, 8240, 9240
Case 50 Series	7150, 7250, 8250, 9250

Features

Superior threshing
Reduced rotor loss
High-grade mounting bolts and self-locking nuts come with each bar.
Increases harvesting capacity while using less fuel

CASE-IH® AFX™ Rotor Threshing Element Guide

The CASE-IH® AFX™ rotor can use several threshing, separation and discharge components. Each component changes how crop material is threshed, separated and moved through the rotor.

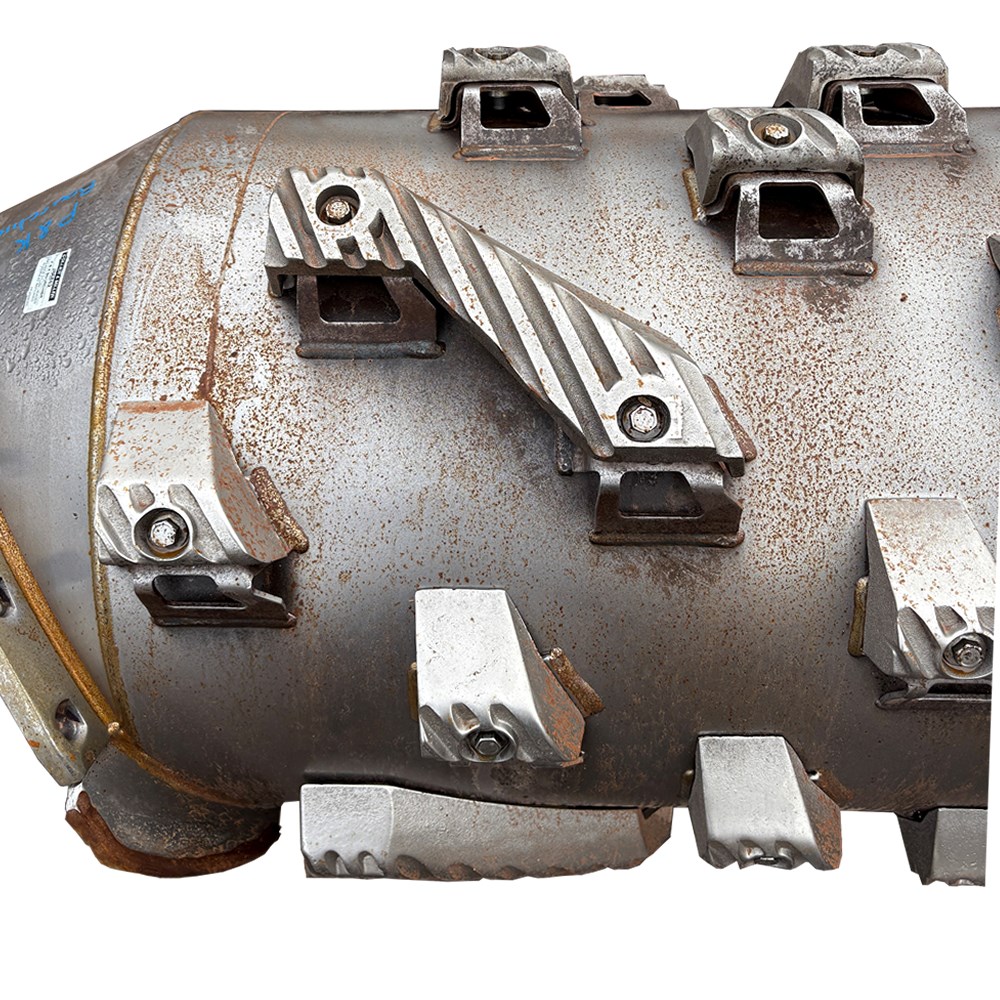

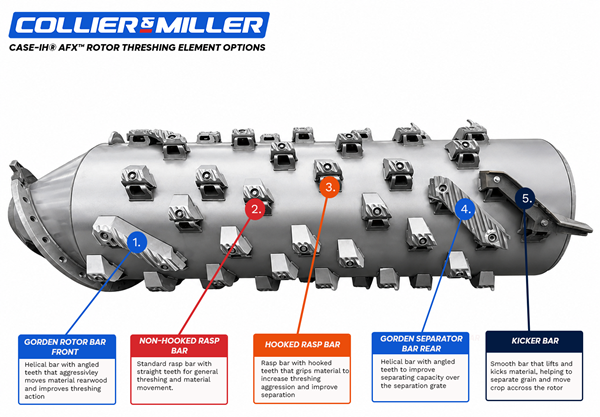

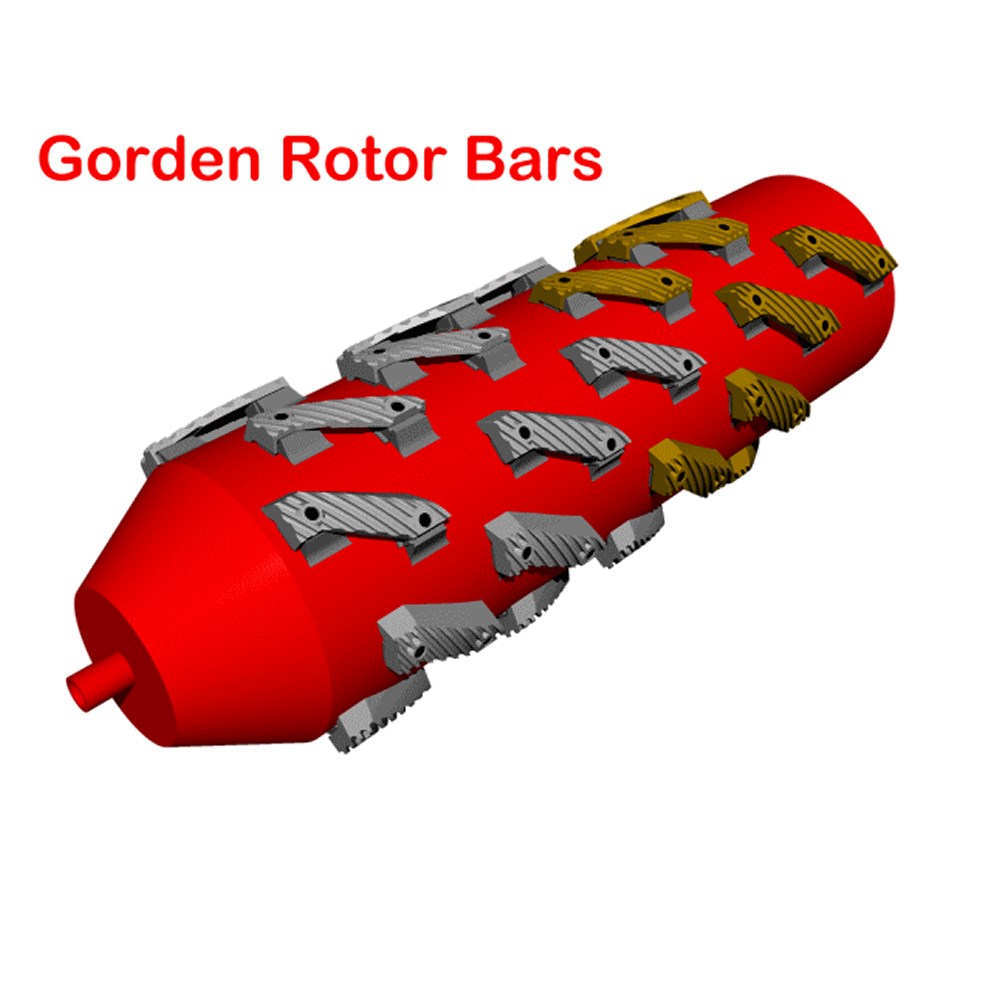

CASE-IH AFX rotor showing threshing, separation and discharge element positions

Typical component positions shown for identification only. Rotor configurations vary by crop and operating conditions.

Rotor Component Options

Component	Part Number	Purpose
Gorden Rotor Bar	CMRB049	Increases threshing action, material handling and separation while helping reduce rotor loss.
Non-Hooked Rasp Bar	CM278821A2	Provides standard, controlled threshing and steady crop movement.
Hooked Rasp Bar	CM278820A2 CM278820A2PS	Provides more aggressive crop-mat agitation and is commonly used in the separation area.
Gorden Separator Bar	CMRB051	Improves separating capacity and helps reduce grain loss from the rotor.
Kicker Bar	—	Moves the processed straw mat from the rear of the rotor cage.

Configuration Guide Only

Rotor configuration is crop-specific. Component type and position should be selected according to crop conditions, rotor loss, grain quality and required throughput.

Check rotor speed, concave clearance and overall machine setup before changing threshing elements. Consult an experienced operator or CASE-IH® dealer where required.

Disclaimer

This information is provided as a general guide only. CASE-IH® and AFX™ are trademarks of their respective owner. Part numbers and trademarks are used for identification and compatibility purposes.

RB049 GORDON BAR
