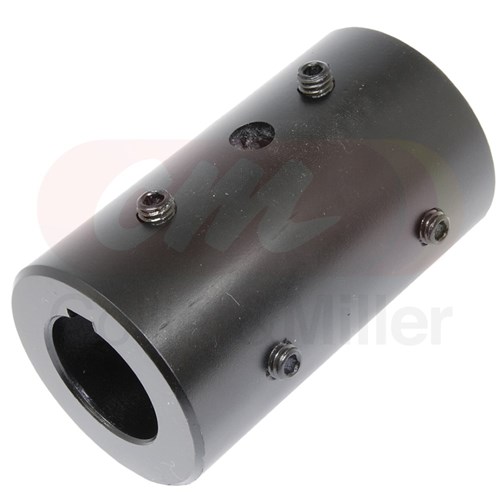

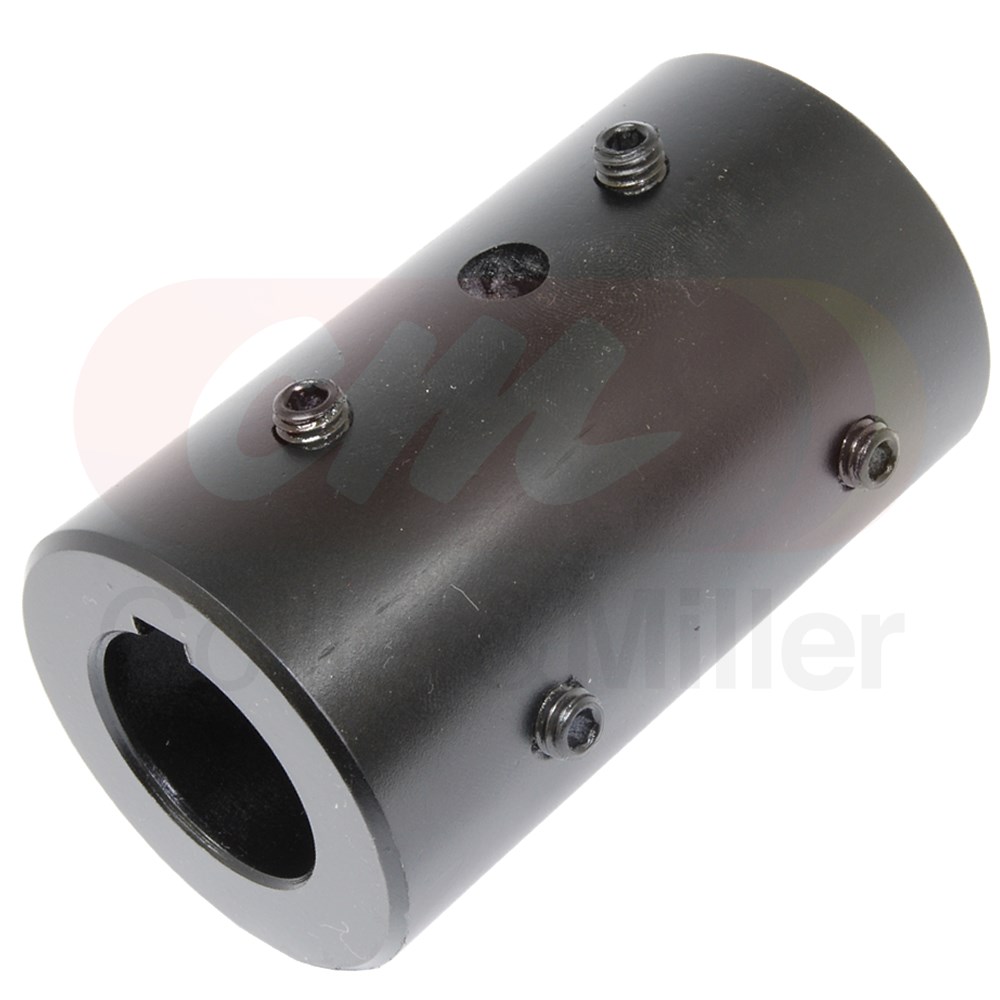

C&M rigid sleeve one piece grub-screw style rigid coupling. This rigid sleeve is manufactured in Australia and is designed as a shaft coupling. It is manufactured from grade 1045 steel and is fitted with 4 grub screws. These couplings, the simplest type of coupling and provide a fixed union between two shafts which must be precisely aligned. They are suitable for use in joining any two shafts when flexibility is not required, shaft alignment is maintained, and proper bearing support is provided.
Dimensions
| Item Code |
A
Bore #1 |
A
Bore #2 |
B
Outside Dia |
C
Length |
D
Grub Screw |
E
End Dim |
| CMRC58X1 |
0.625" |
1.00" |
1.750" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC34X34 |
0.750" |
0.750" |
1.500" |
3.00" |
UNC 5/16-18 X 5/16" |
0.750" |
| CMRC34X1 |
0.750" |
1.00" |
1.750" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC78X1 |
0.875" |
1.00" |
1.750" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC1X1 |
1.00" |
1.00" |
1.750" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC1X118 |
1.00" |
1.125" |
1.750" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC1X125 |
1.00" |
1.250" |
2.00" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC1X150 |
1.00" |
1.500" |
2.250" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC118X118 |
1.125" |
1.125" |
2.00" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRX114X138Z6 |
1.250" |
1.375 x Z6 Spline |
2.375" |
5.675" |
UNC 5/16-18 X 5/16" |
N-A |
| CMRC125X125 |
1.250" |
1.250" |
2.00" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
| CMRC125X150 |
1.250" |
1.500" |
2.250" |
4.00" |
UNC 5/16-18 X 5/16" |
1.00" |
Keyway Sizes
| Bore Size |
Keyway Width |
| 5/8" (0.625") |
3/16" |
| 3/4" (0.750") |
3/16" |
| 7/8" (0.875") |
3/16" |
| 1" (1.00") |
1/4" |
| 1-1/8" (1.125") |
5/16" |
| 1-1/4" (1.250") |
5/16" |
| 1-1/2" (1.500") |
3/8" |
