Case-IH® Compatible
RC Separation Module Kit

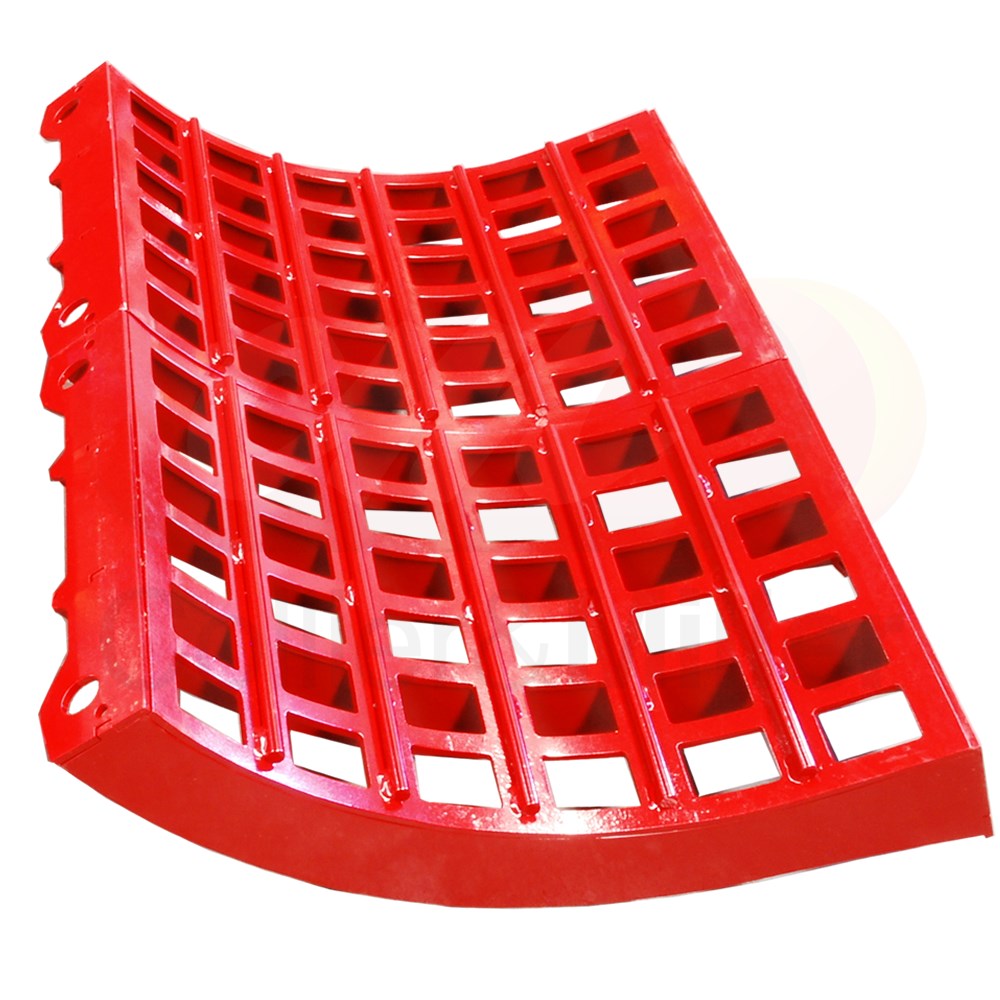

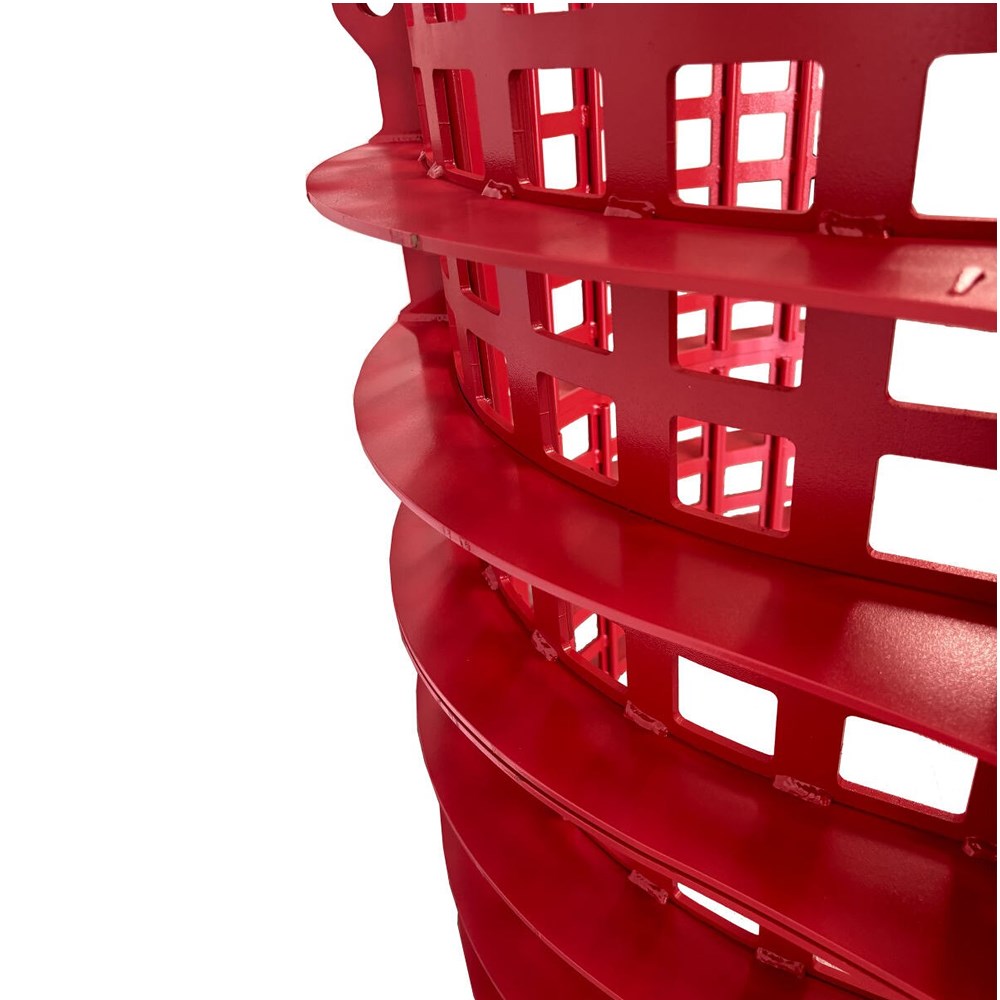

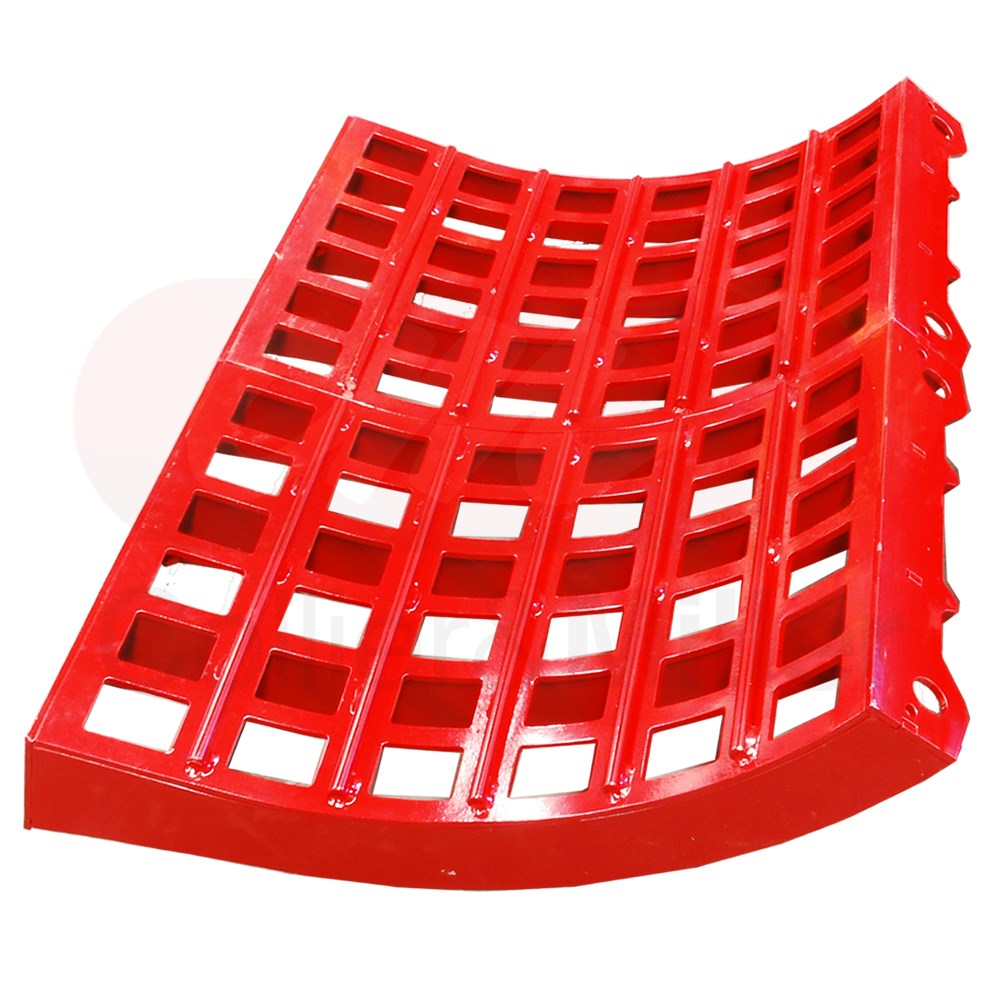

Australian designed and manufactured separation module kit to fit Case-IH® Flagship combine harvesters. This separation module kit has been designed and tested in Australia by combine harvester specialist Rod Gribble. Building on years of in-field experiece the RC separation modules are manufactured to exacting standards with accurate tolerances for acheiving the very best in performance.
Designed to give maximum efficiency and capacity in all crop applications, the module kit stands-out in high straw load conditions, greatly reducing rotor loss.
| Series |
Models |
Serial/Year |
| Case-IH® 10 Series |
7010, 8010, AFX8010 |
|
| Case-IH® 120 Series |
7120, 8120, 9120 |
|
| Case-IH® 230 Series |
7230, 8230,9230 |
|
| Case-IH® 240 Series |
7240, 8240, 9240 |
|
| Case-IH® 250 Series |
7250, 8250, 9250 |
|
| Case-IH® 260 Series |
7260, 8260, 9260 |
|
| Case-IH® AF Series |
AF9, AF10 |
|
Benefits
- Improved crop flow: Round bar doesn't chop up straw

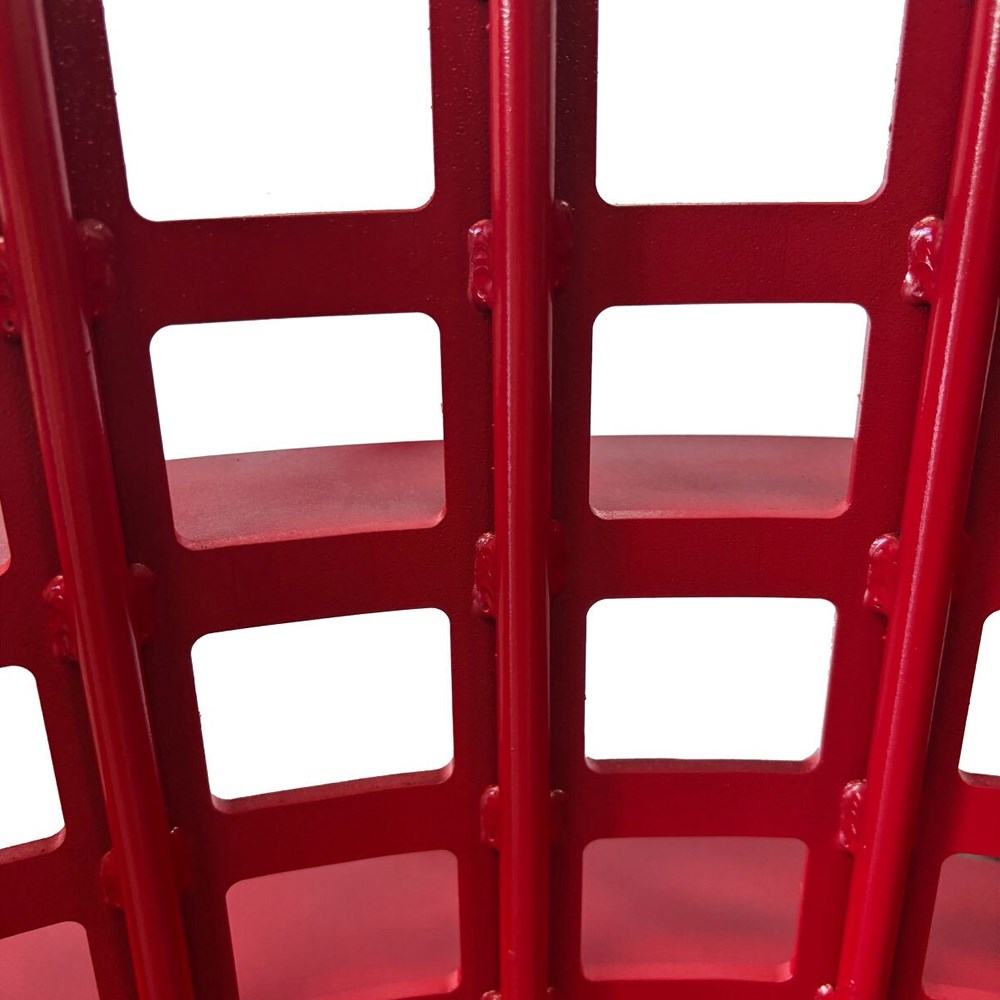

- Increased (Grain) separation: Round bar makes crop material roll to greatly increase separation
- No wires: Where crop material can bridge holes
- Use in any crop: (clip-on cover plates available if and when required in Canola
- Extended wear: Made from Bisalloy 400 plate and 4140 round bars

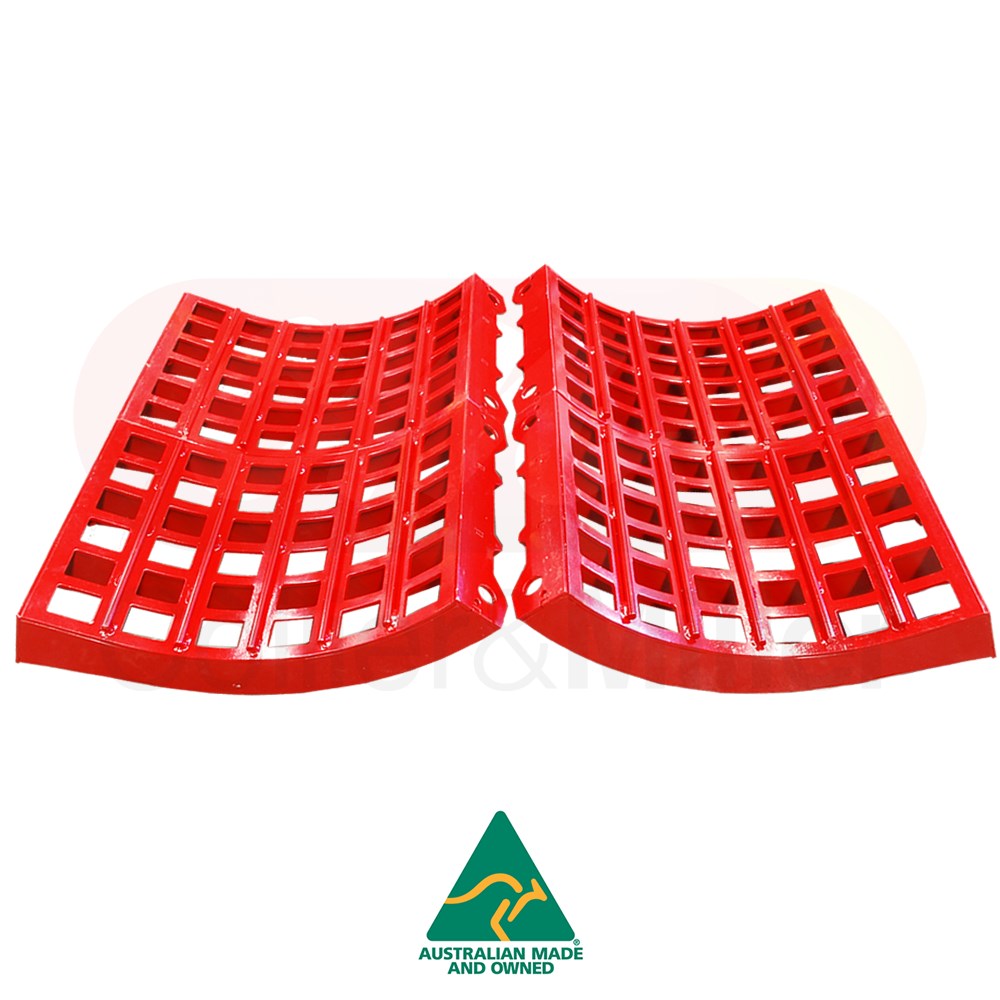

- Kit contains 2 x left hand and 2 x right hand modules
