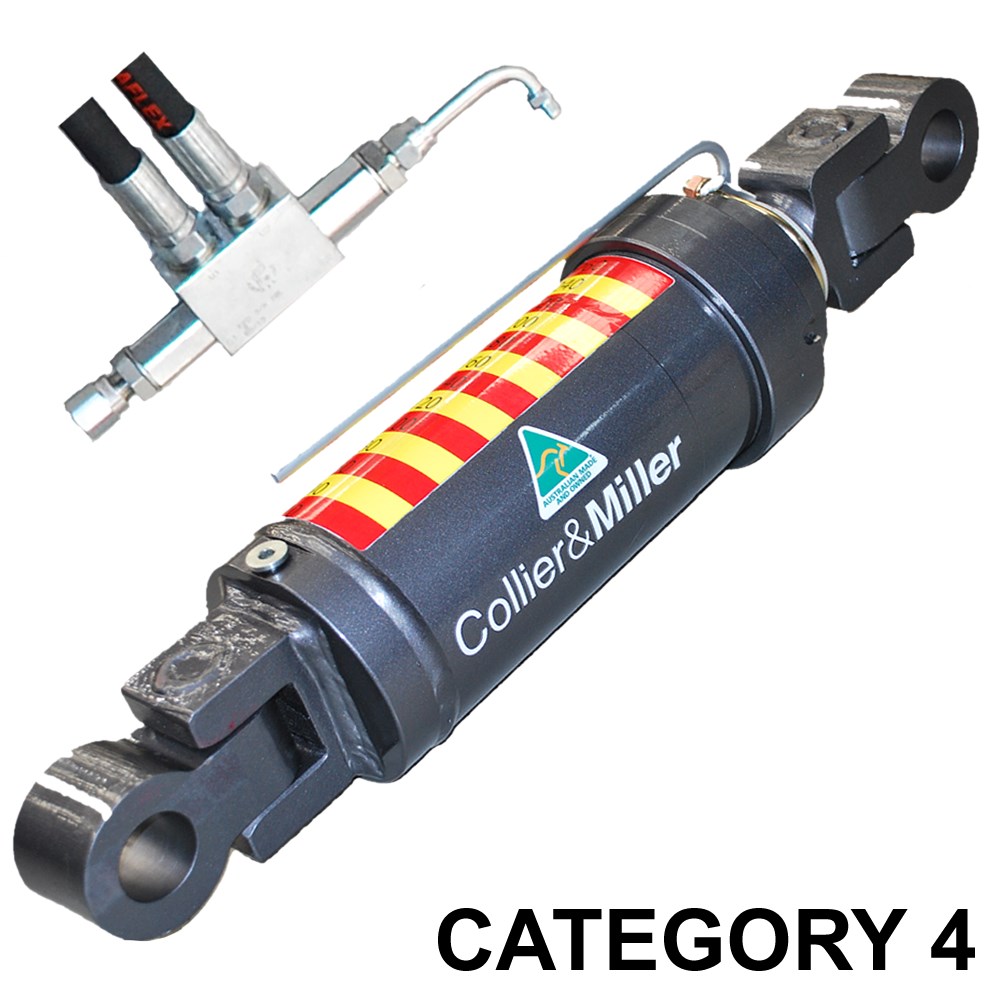

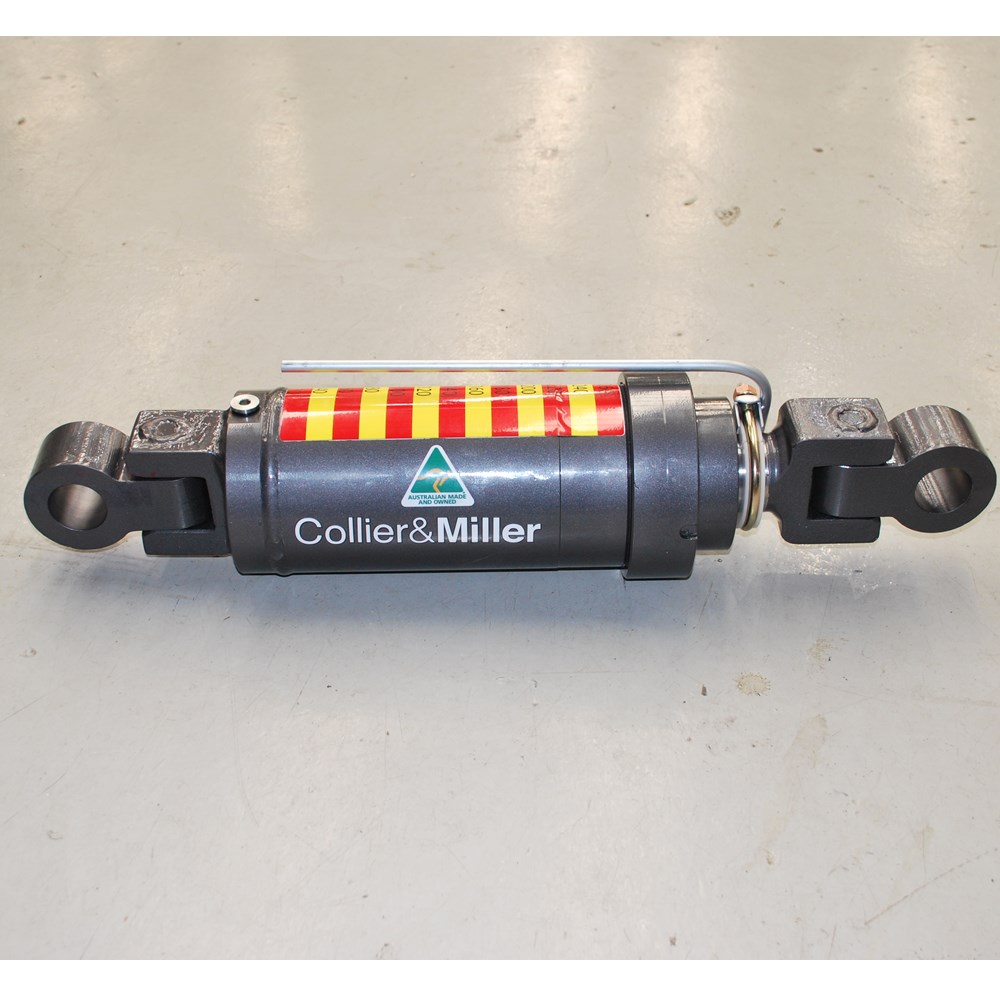

C&M Australian designed and manufactured Category 4 hydraulic top link supplied with configurable A/B port orientation and hydraulic lock valve.
This hydraulic top link is well designed with the capability to set the ports to either A or B orientation depending on how the clevis is mounted on your machinery. Manufactured in our own factory in Australia it follows the Collier & Miller design philosphy of extreme heavy duty design, coupled with high quality components that guarantee's long life and excellent performance.
Features

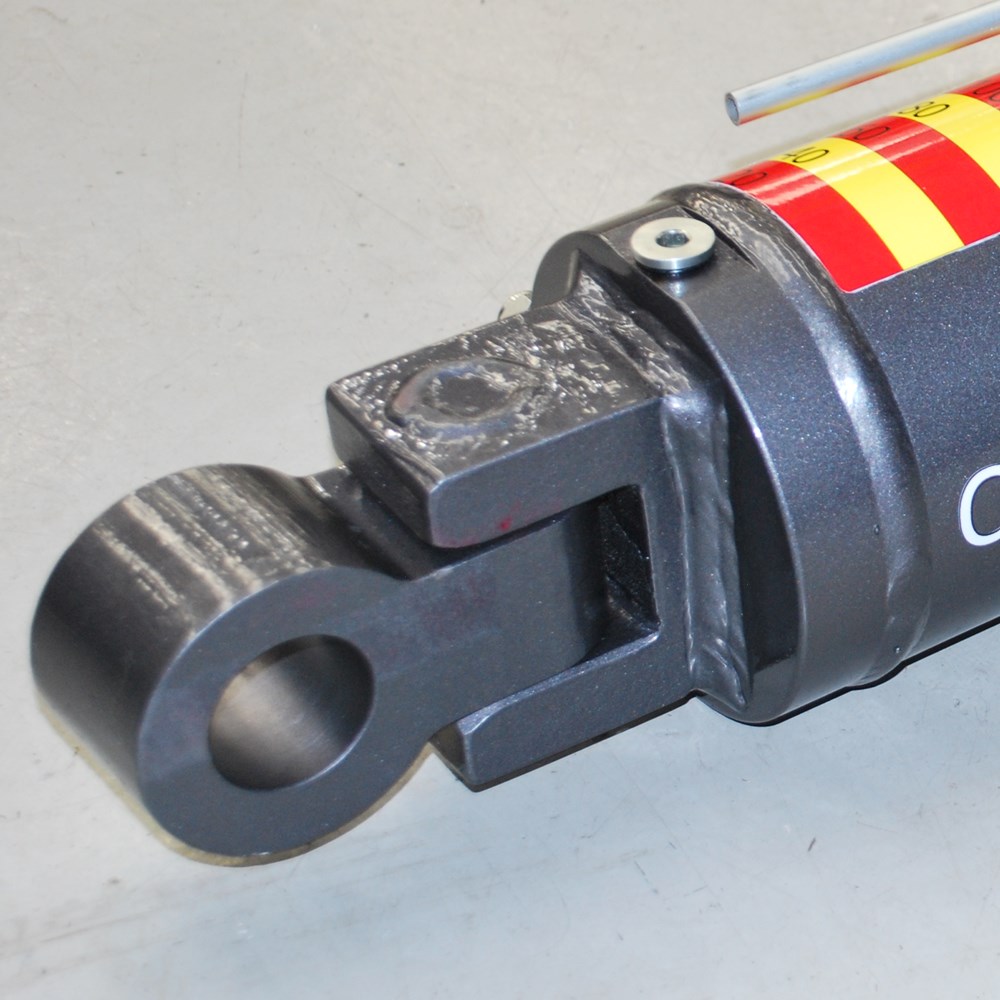

- Heavy Duty Category 4 - (1-3/4" diameter hole) swivel knuckle
- 8" Stroke x 5" Bore x 2.5" Shaft
- Configurable A/B Port orientation
- High performance 5 piece piston seal
- High performance top end seal

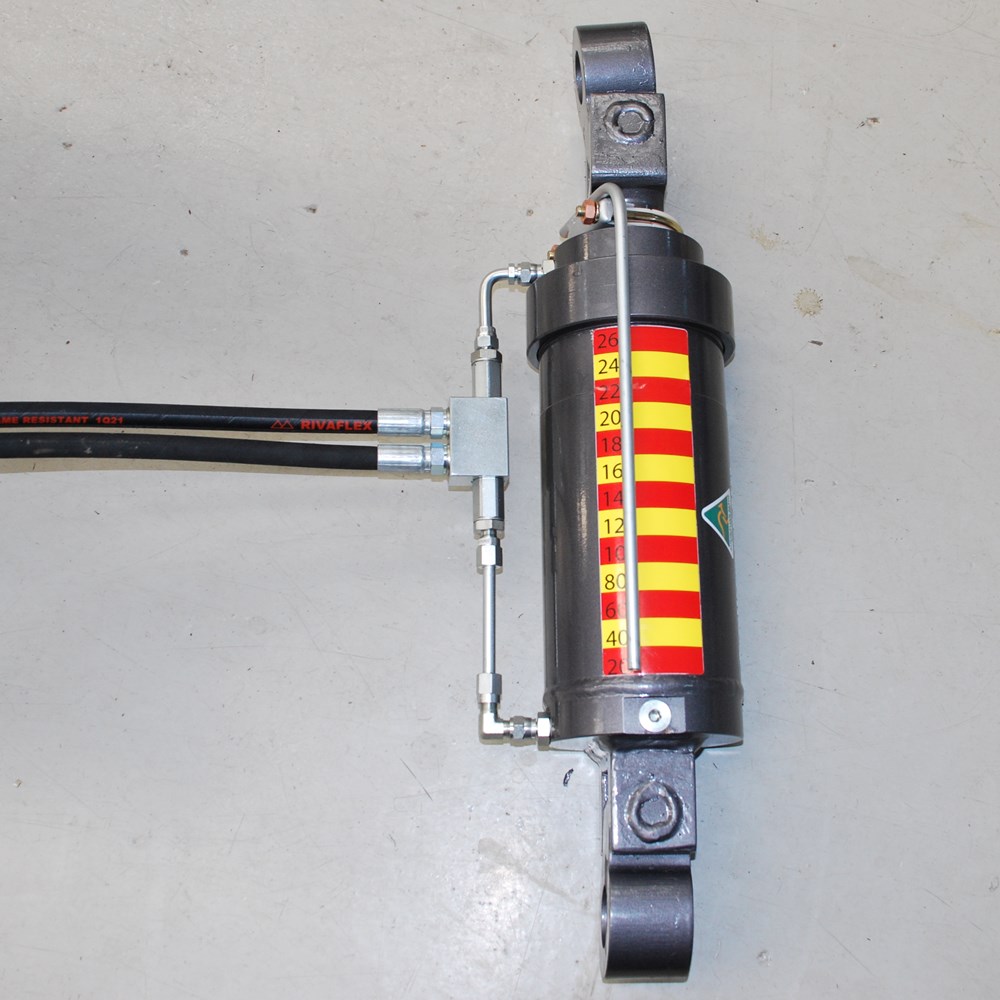

- Stroke length indicator

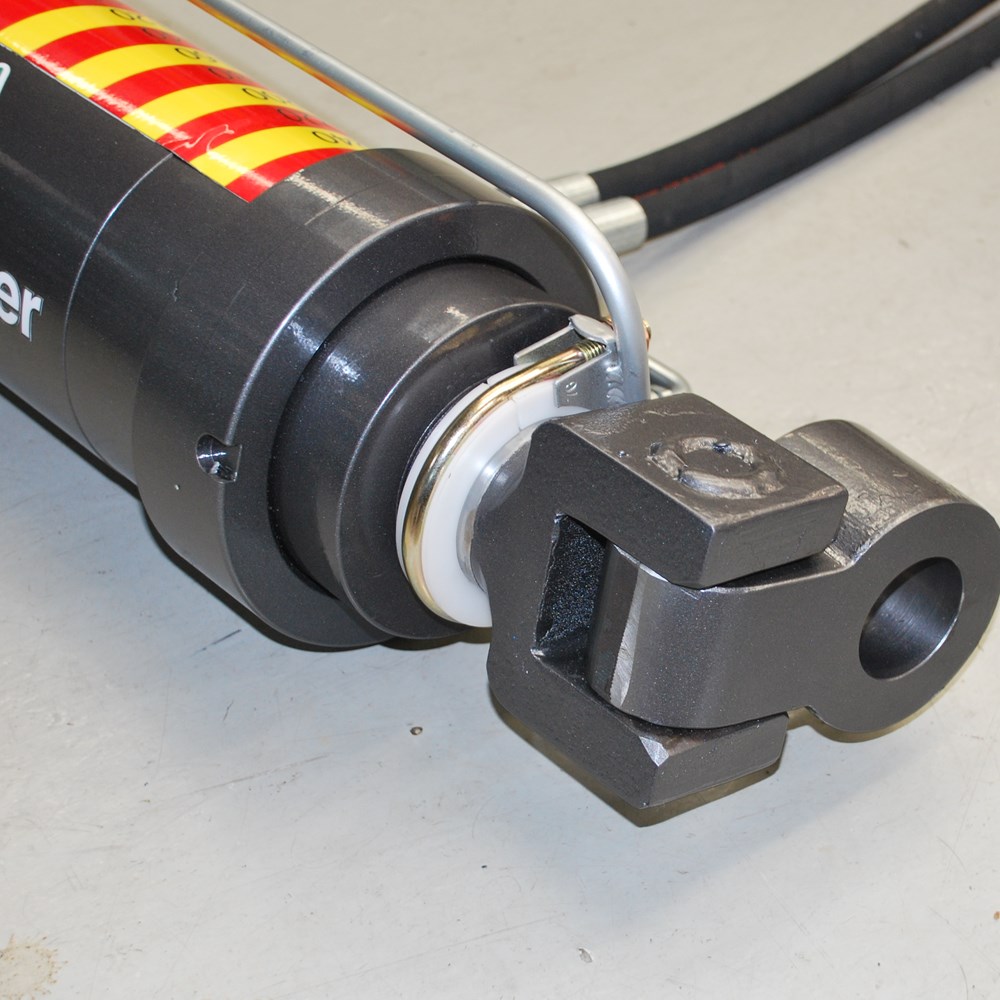

- Swivel clevis mount
Specifications
| Stroke |
200mm |
| Closed centre measurement |
675mm |
| Open centre measurement |
875mm |
| Ports |
3/8" BSPP-Female |
| Base Mount |
1-3/4" Knuckle |
| Shaft Mount |
1-3/4" Knuckle |
| Force Extension |
20,038 kG @ 2250psi |
| Force Retraction |
15,028 kG @ 2250psi |
