VARIABLE 28000RPM 176MM 2.1CFM AIR CONSUMPTION

Product Code: CP7405

Product Detail
Downloads

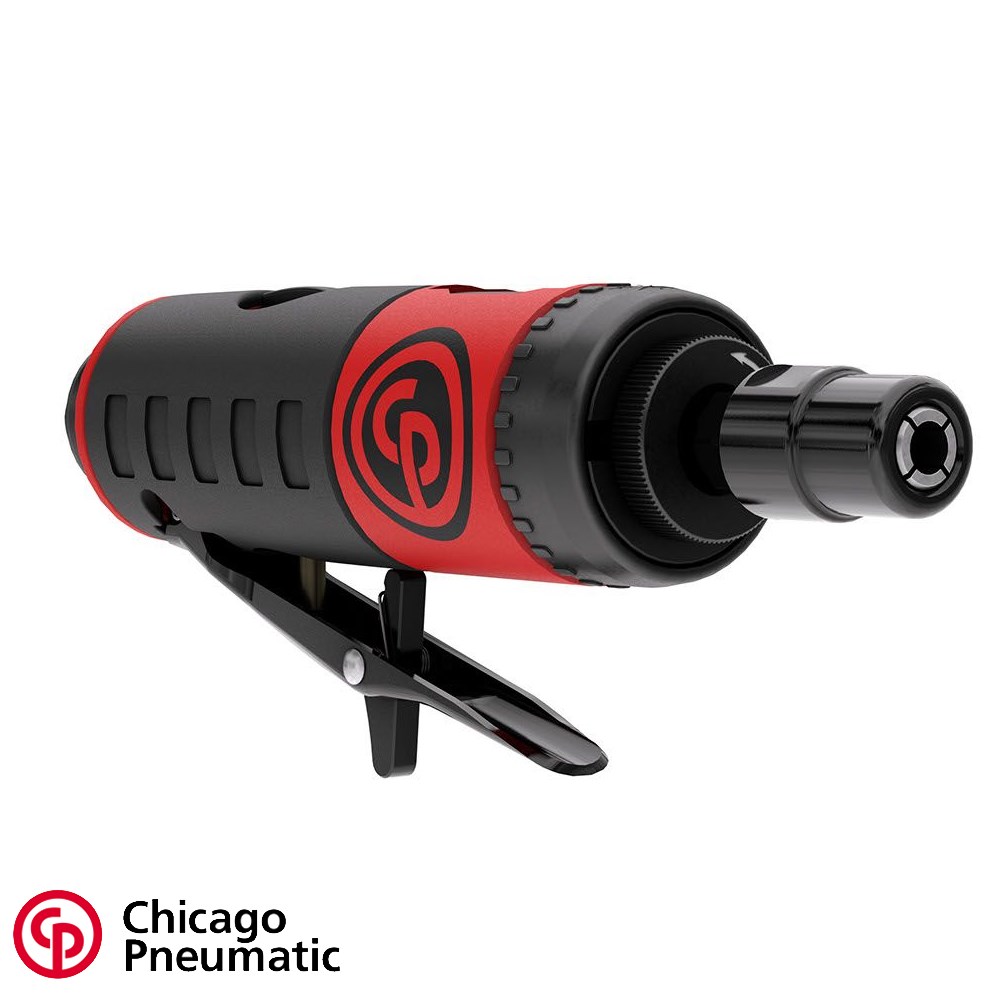

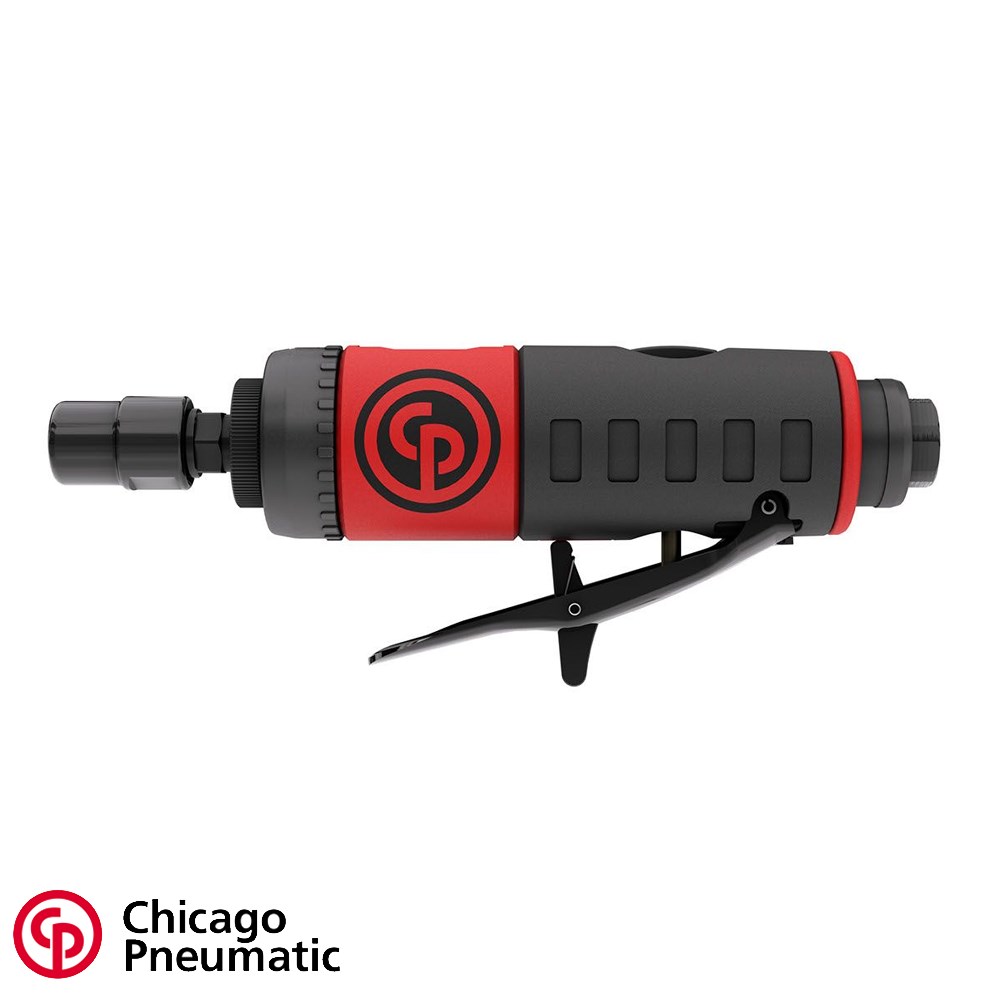

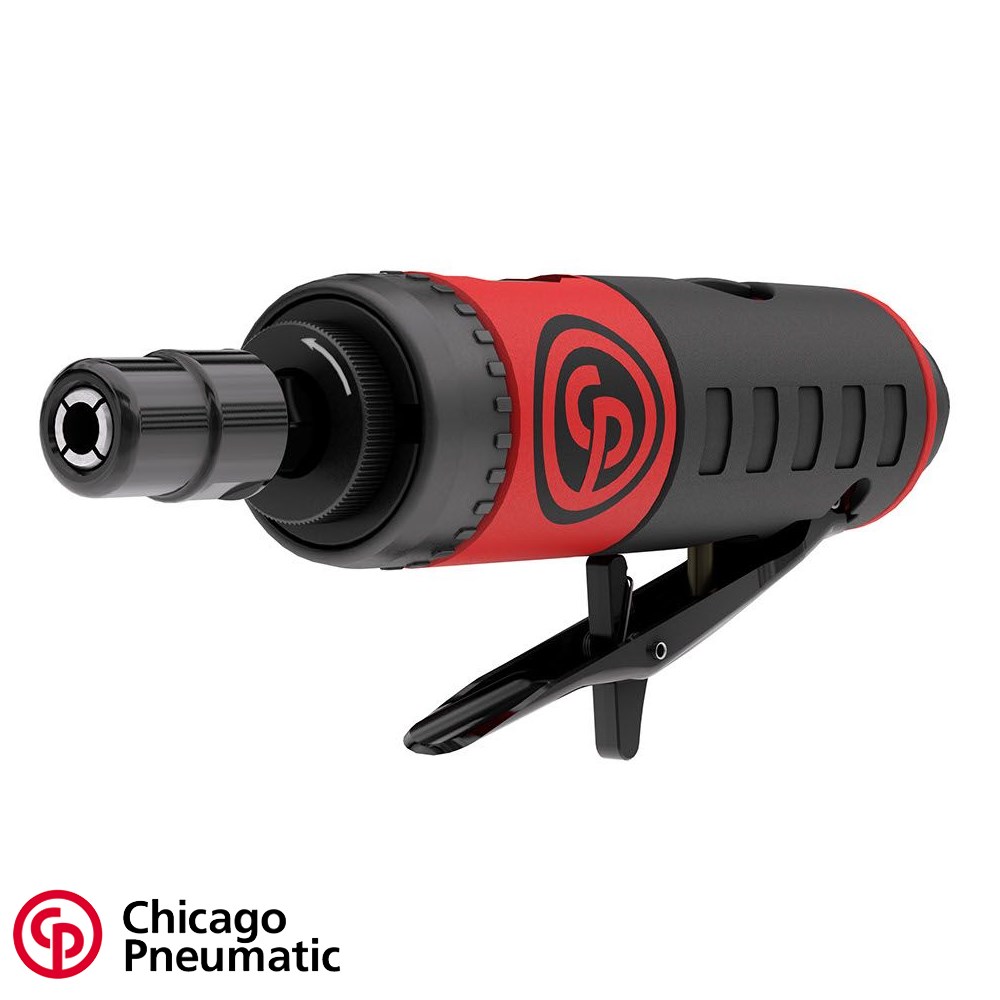

The CP74 series Mini Die Grinder 1/4" 6mm Collet, with spindle lock system allows a high application coverage. Outstanding Free Speed of 28000 rpm.

Features:

Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system
Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle’s material (TPR) and ergonomics
High application coverage thanks to the multitude of heads (short & long straight, 120°, 90°)
Less heat transfer between the motor and the sleeve thanks to the composite housing

Specifications:

Air inlet thread size - 1/4 "
Air inlet thread type - NPT
Collet size - 6 mm 1/4 "
Free speed - 28000 rpm
Free speed air consumption - 1.3 l/s 2 3/4 cfm
Length - 176 mm
Min. hose size - 10 mm
Net weight - 0.5 kg
Power - 250 W
Rear exhaust - Yes
Sound Power - 87.2 db(A)
Sound pressure - 76.2 db(A)
Vibration - 3.6 m/s²
Vibration ISO - ISO-28927-12
Vibration uncertainty (K) - 0.98 m/s²
