SUTTON JOBBER DRILL BITS LONG SERIES SINGLE

LONG SERIES SINGLE

Product Code: D110

Buy now. Pay later. Interest-free.

Available for orders between $0.04-$2,000.00

Unavailable for this order

4 payments of

Detail
Downloads

Sutton Jobber Drill Bits – Heavy Duty Cobalt

Sutton Tools Long Series Drills present extended flute and overall length compared to standard drill bits, making them the optimal choice for drilling deeper holes with precision and efficiency.

Features

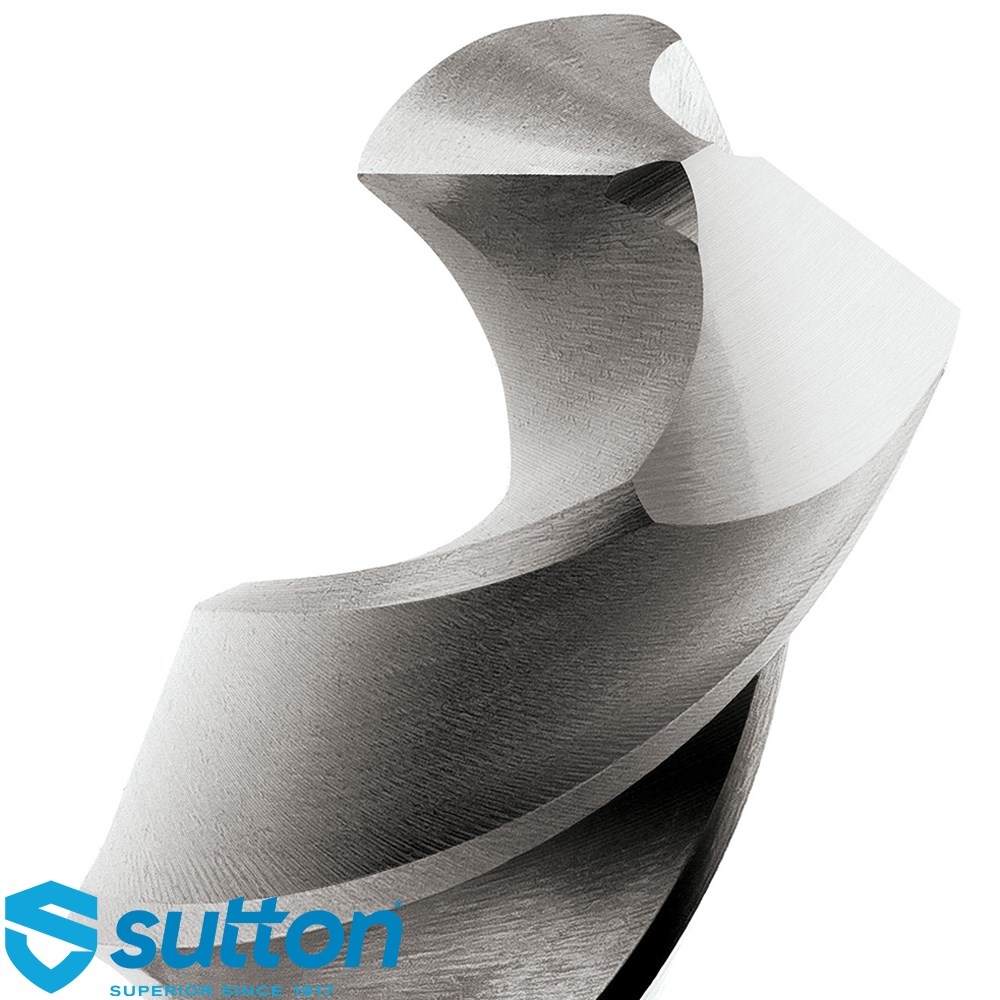

118° Standard Point - For general purpose applications
Precision Ground Flute - Designed for fast chip removal
Made from M2 High Speed Steel (HSS) - Offering the best combination of strength, heat & wear resistance

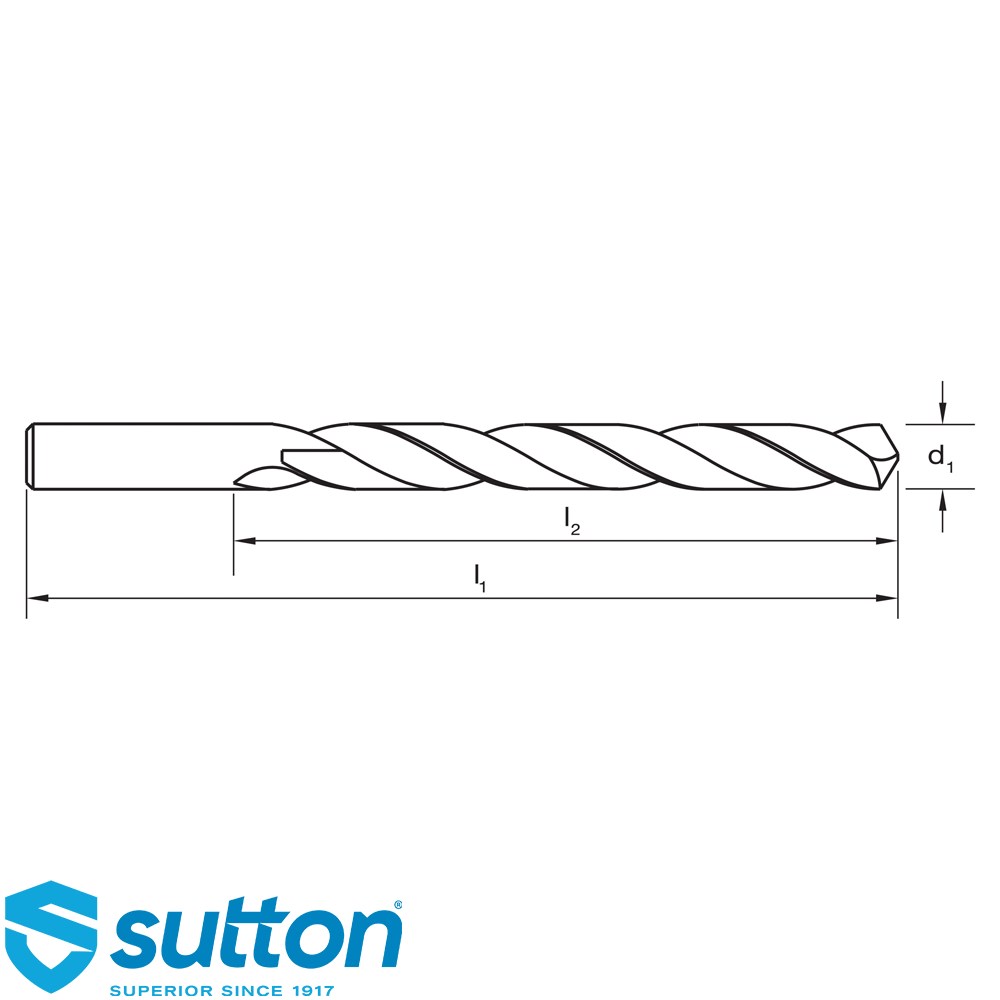

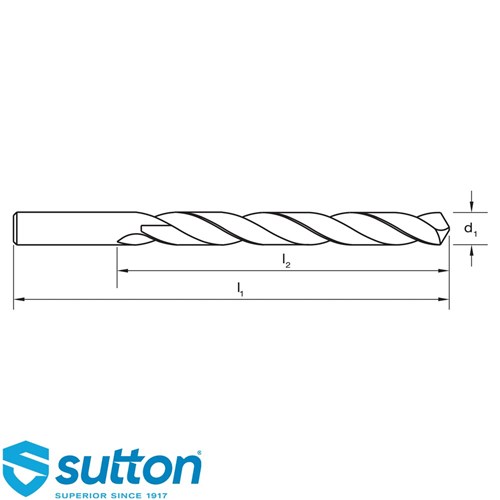

Part Number	Diameter (D1)	Length (L1) mm	Length (L2) mm
D1100318	1/8	137	70
D1100357	9/64	137	76
D1100397	5/32	137	76
D1100437	11/64	146	86
D1100476	3/16	152	92
D1100516	13/64	152	92
D1100556	7/32	152	92
D1100595	15/64	156	95
D1100635	1/4	156	95
D1100676	17/64	159	98
D1100714	9/32	159	98
D1100794	5/16	162	102
D1100833	21/64	165	105
D1100873	11/32	165	105
D1100913	23/64	171	108
D1100953	3/8	171	108
D1100992	25/64	178	111
D1101032	13/32	178	111
D1101072	27/64	184	117
D1101111	7/16	184	117
D1101151	29/64	184	117
D1101191	15/32	184	117
D1101231	31/64	197	121
D1101269	1/2	197	121
