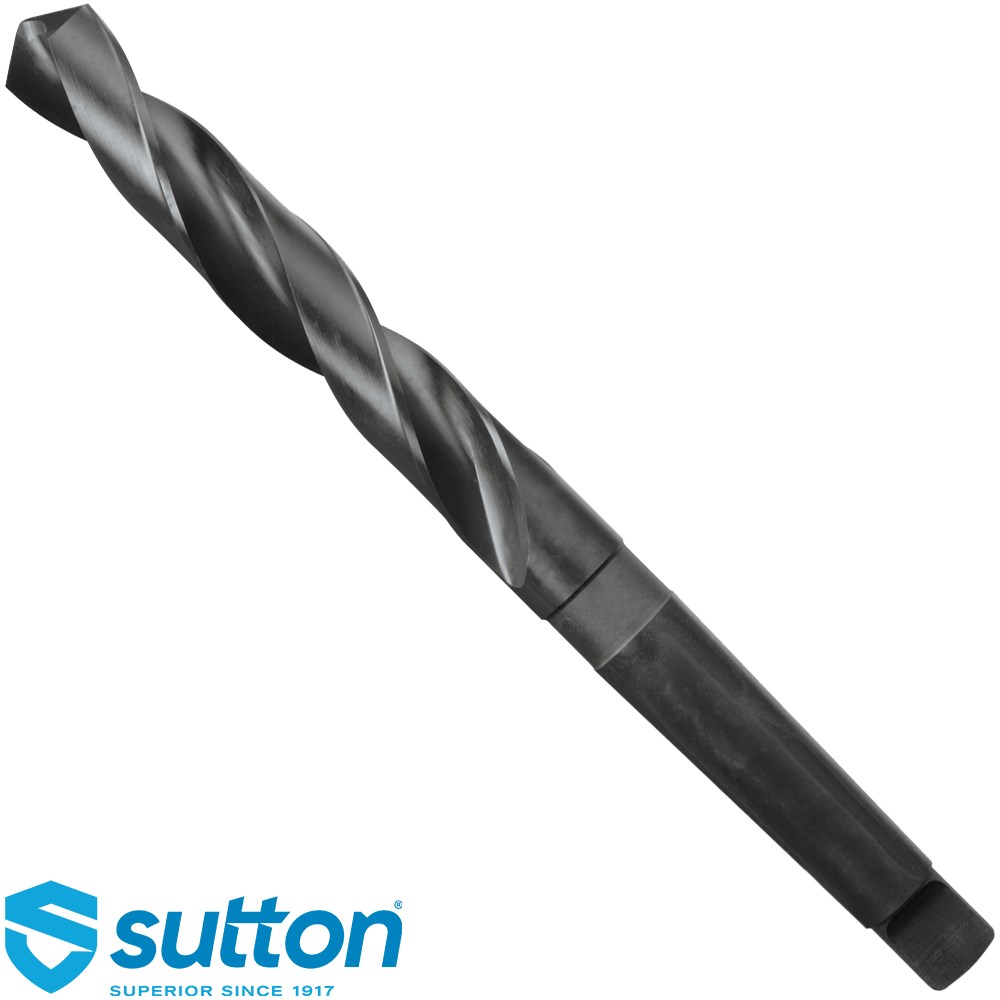

Sutton Morse Taper Shank Drill Bits
Introducing Morse Taper Shank Drill Bits, the versatile solution for a myriad of industrial drilling needs. Crafted to precision, these twist drills boast a Morse taper shank design, ensuring compatibility with a wide range of materials and applications. The inclusion of a tang at the shank's end facilitates effortless ejection from sockets or sleeves, enhancing efficiency and convenience in operation. With drive and alignment secured through the taper lock mechanism, these drill bits exemplify reliability and performance, making them an indispensable tool for professionals across various industries. Experience seamless drilling precision with Morse Taper Shank Drill Bits.
Features
- General purpose HSS drill
- Suitable for materials up to 900N/mm²

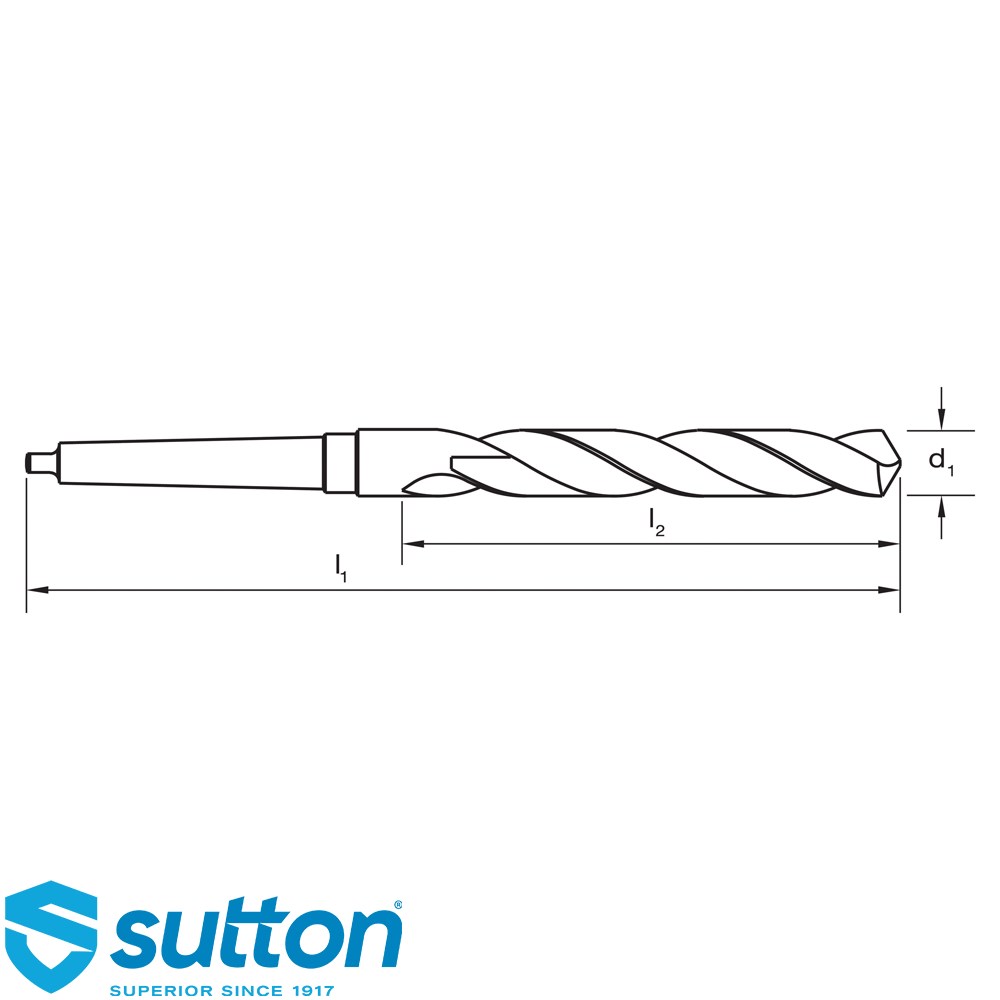

| Part Number |
Measurement |
Diameter (D1) |
Length (L1) mm |
Length (L2) mm |
| D1151429 |
Imperial |
9/16 |
212 |
114 |
| D1151508 |
Imperial |
19/32 |
218 |
120 |
| D1151588 |
Imperial |
5/8 |
218 |
120 |
| D1151667 |
Imperial |
21/32 |
223 |
125 |
| D1151746 |
Imperial |
11/16 |
228 |
130 |
| D1151826 |
Imperial |
23/32 |
233 |
125 |
| D1151905 |
Imperial |
3/4 |
238 |
140 |
| D1151984 |
Imperial |
25/32 |
238 |
140 |
| D1152064 |
Imperial |
13/16 |
243 |
145 |
| D1152143 |
Imperial |
27/32 |
248 |
150 |
| D1152223 |
Imperial |
7/8 |
248 |
150 |
| D1152302 |
Imperial |
29/32 |
253 |
155 |
| D1152381 |
Imperial |
15/16 |
281 |
160 |
| D1152461 |
Imperial |
31/32 |
281 |
160 |
| D1152540 |
Imperial |
1" |
286 |
165 |
| D1152619 |
Imperial |
1-1/32 |
286 |
165 |
| D1152699 |
Imperial |
1-1/16 |
291 |
170 |
| D1152858 |
Imperial |
1-1/8 |
296 |
175 |
| D1153175 |
Imperial |
1-1/4 |
306 |
185 |
| D1151400 |
Metric |
14mm |
189 |
108 |
| D1151600 |
Metric |
16mm |
218 |
120 |
| D1151800 |
Metric |
18mm |
228 |
130 |
| D1152000 |
Metric |
20mm |
238 |
140 |
| D1152200 |
Metric |
22mm |
248 |
150 |
| D1152400 |
Metric |
24mm |
281 |
160 |
| D1152500 |
Metric |
25mm |
281 |
160 |
| D1153000 |
Metric |
30mm |
296 |
175 |
