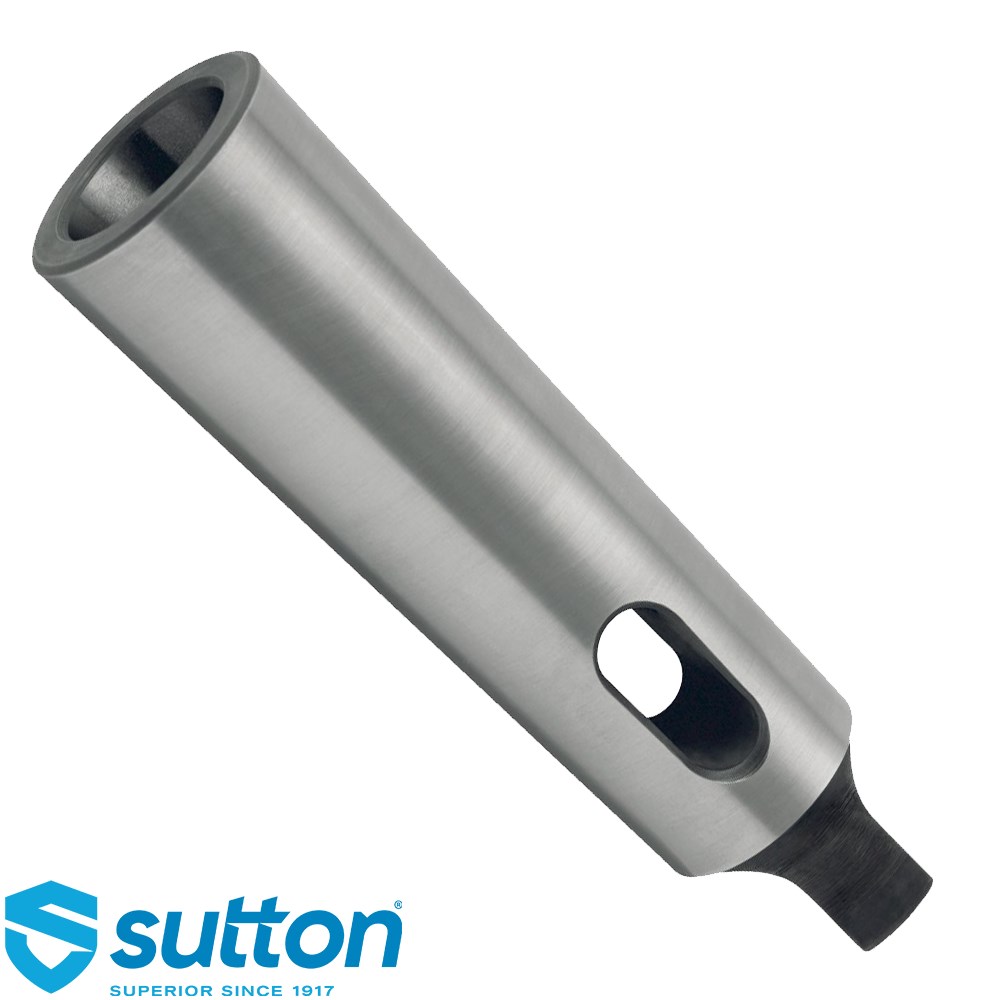

Sutton Morse Taper Sleeves
Morse taper sleeves adapt tools or workpieces to fit tapered sockets of machine tool spindles, enabling compatibility between different sizes. They provide a secure connection, versatility, and reduce wear on spindles, enhancing efficiency in machining operations.
Features
- Morse Taper Sleeve
- Precision ground internally and externally

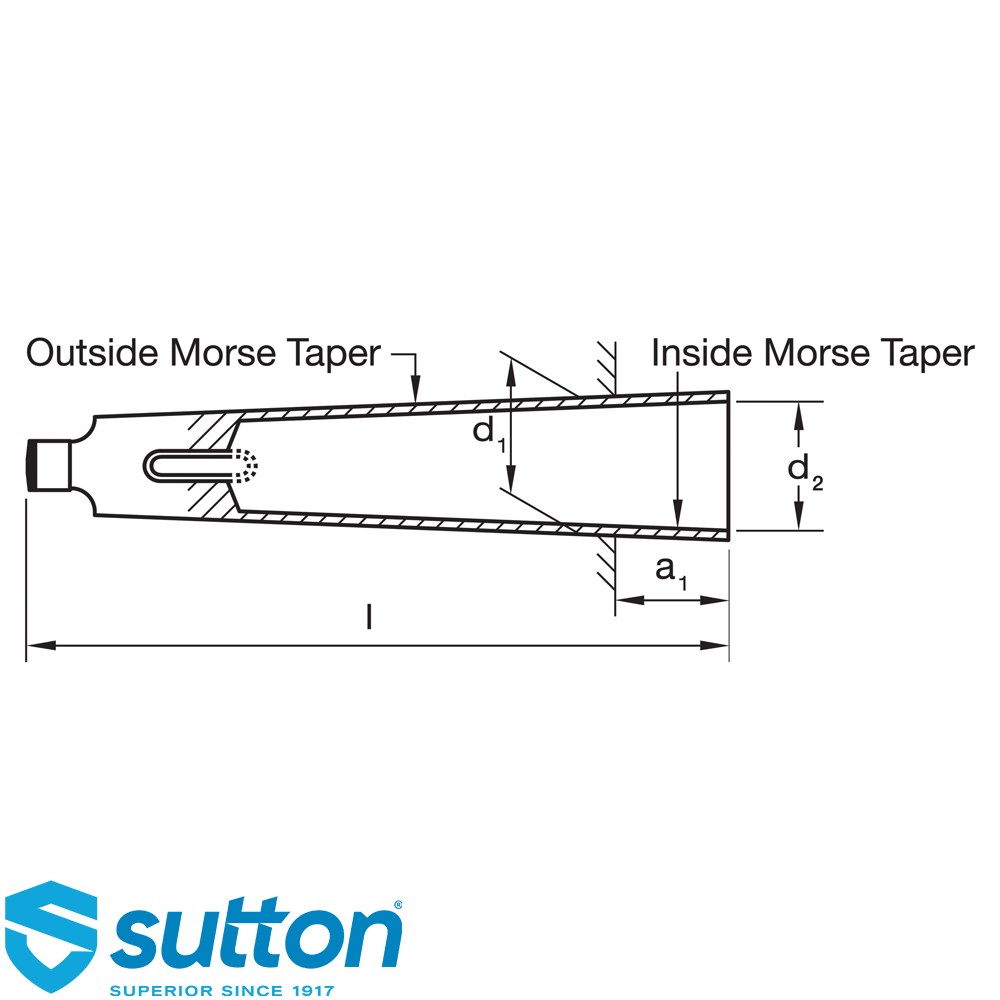

| Part Number |
Type |
Length (L1) mm |
Diameter (D2) |
| D1180012 |
No. 1-2 |
92 |
12.065 |
| D1180023 |
No. 2-3 |
124 |
17.78 |
| D1180034 |
No. 3-4 |
156 |
23.825 |
