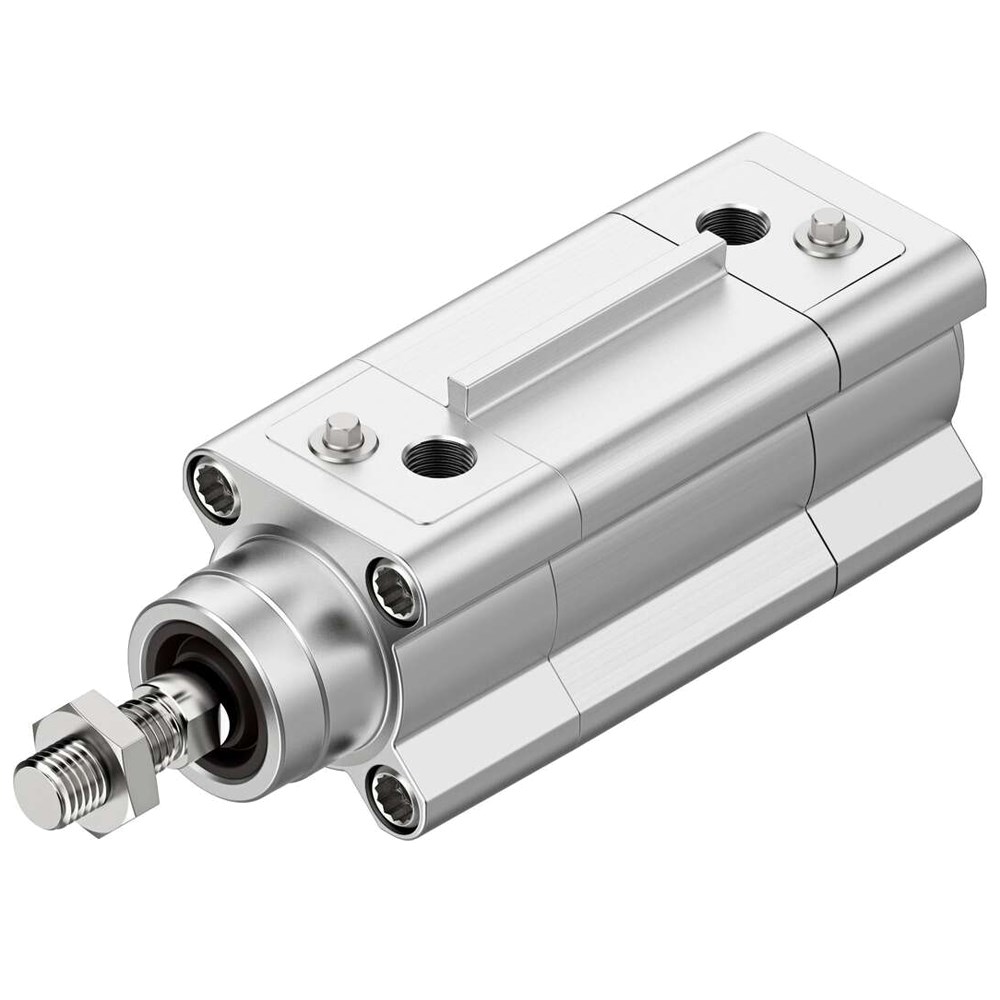

ISO cylinder

Technical Data

• Stroke: 25 mm
• Piston diameter: 32 mm
• Piston rod thread: M10x1.25
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Mounting position: optional
• Conforms to standard: ISO 15552
• Piston-rod end: Male thread
• Design: Piston, Piston rod, Profile barrel
• Position detection: Via proximity switch

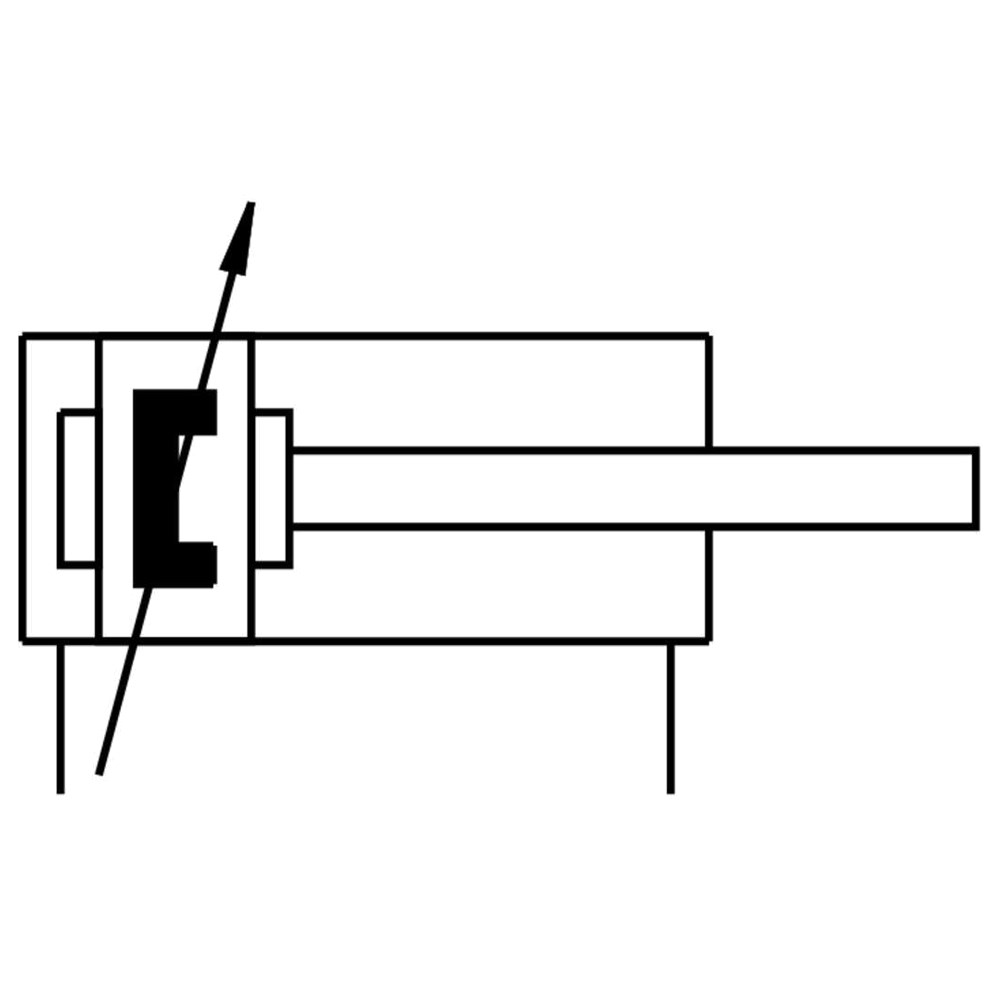

• Symbol: 00991235
• Operating pressure: 0.06 MPa ... 1.2 MPa
• Operating pressure: 0.6 bar ... 12 bar
• Mode of operation: Double-acting
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 3 - high corrosion stress
• LABS (PWIS) conformity: VDMA24364-B2-L
• Ambient temperature: -20 °C ... 80 °C
• Impact energy in end positions: 0.4 J
• Cushioning length: 17 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 415 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
• Moving mass: 131 g
• Moving mass for 0 mm stroke: 108 g
• Additional moving mass per 10 mm stroke: 9 g
• Product weight: 542 g
• Basic weight for 0 mm stroke: 472 g
• Additional weight per 10 mm stroke: 28 g
• Type of mounting: Either: Via female thread, With accessories
• Pneumatic connection: G1/8
• Note on materials: RoHS-compliant
• Material cover: Die-cast aluminium, coated
• Material piston seal: TPE-U(PU)
• Material piston: Wrought aluminium alloy
• Material piston rod: High-alloy stainless steel
• Material piston rod wiper: TPE-U(PU)
• Buffer seal material: TPE-U(PU)
• Cushioning piston material: POM
• Material cylinder barrel: Anodised wrought aluminium alloy
• Material nut: High-alloy stainless steel
• Material bearing: POM
• Material collar screws: Galvanised steel
