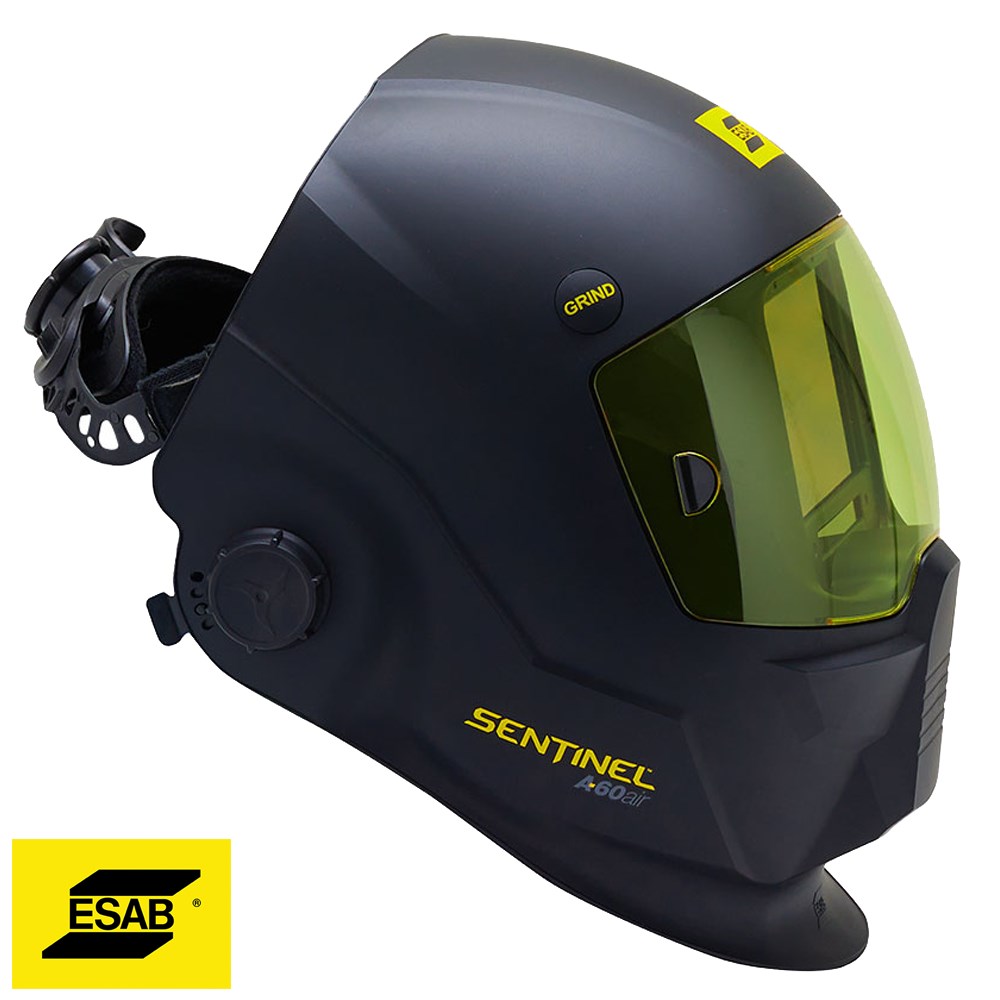

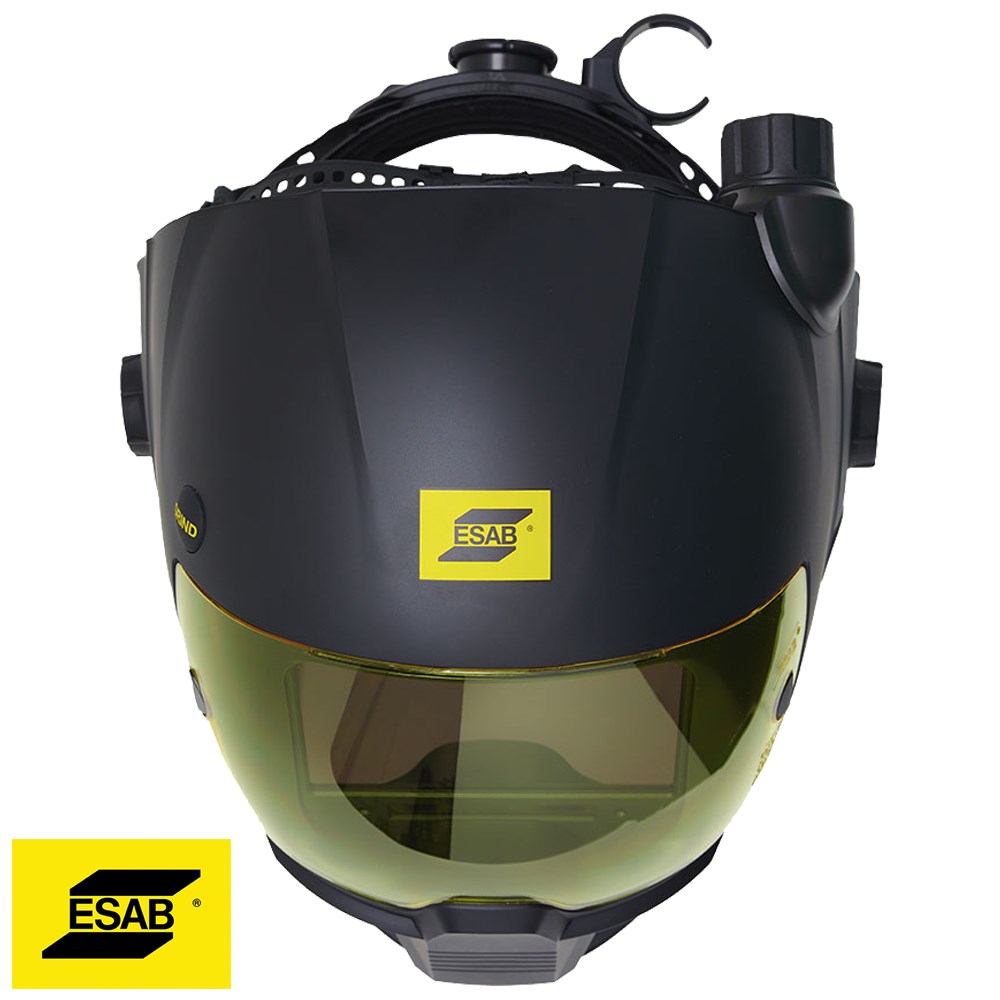

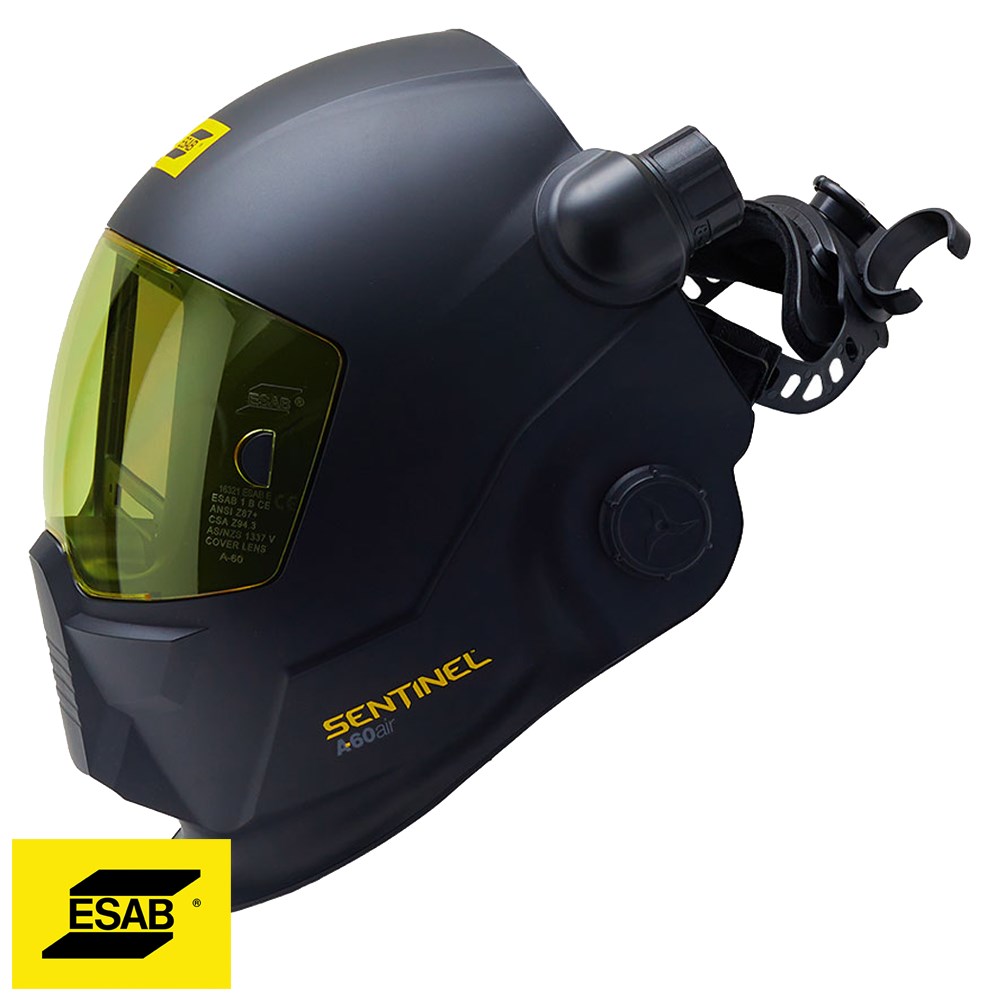

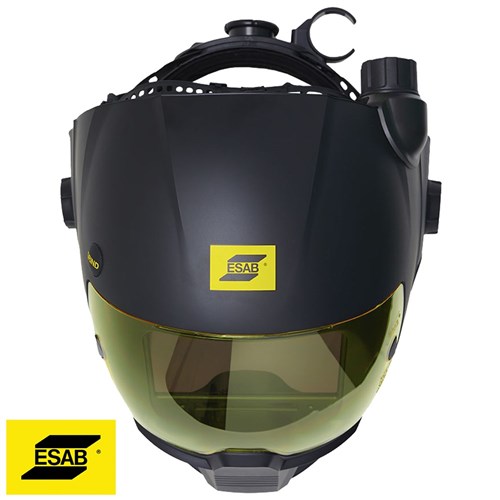

ESAB Sentinel A60 Air Welding Helmet with ESAB’s EPR-X1 PAPR Kit

Sentinel A60 Air welding helmet takes your welding to the next level with a huge panoramic view and perfect 1/1/1/1 EN optical clarity. Now you’ll have an even wider view of the welding pool without any distortion.

The re-engineered auto-darkening filter (ADF) features a new ESAB OpTCS™ broad-spectrum light control technology from ESAB. This delivers an enhanced True Color view with reduced eye fatigue for the most demanding days on the job. New 0.5 increment shade adjustments give you more precise control of your view.

The signature shell design of Sentinel, fully-adjustable Halo™ headgear, and external grind mode button complete the most comfortable, highest-performance helmet ESAB has ever produced.

The ESAB’s EPR-X1 PAPR unit connects seamlessly with all current ESAB prepared-for-air welding helmets and provides advanced respiratory protection from harmful welding fume particulates. This PAPR is designed for applications ranging from occasional use to full-time industrial applications.

The EPR-X1 offers a robust, compact housing with a powerful blower to ensure maximum life and performance. Check your battery status, fan settings, and filter conditions at a glance with quick-access status LED lights. Additionally, the PAPR provides audible and vibratory alerts to notify the user of low airflow (indicating a needed filter change) and low battery conditions.

The EPR-X1’s turbo unit is controlled with easily-accessed push buttons allowing three airflow speed ranges of 170/190/220 l/minute. The HEPA-quality, EN12941 TH-3P certified two-stage filter and spark arrestor are easily accessed through a removable front door.

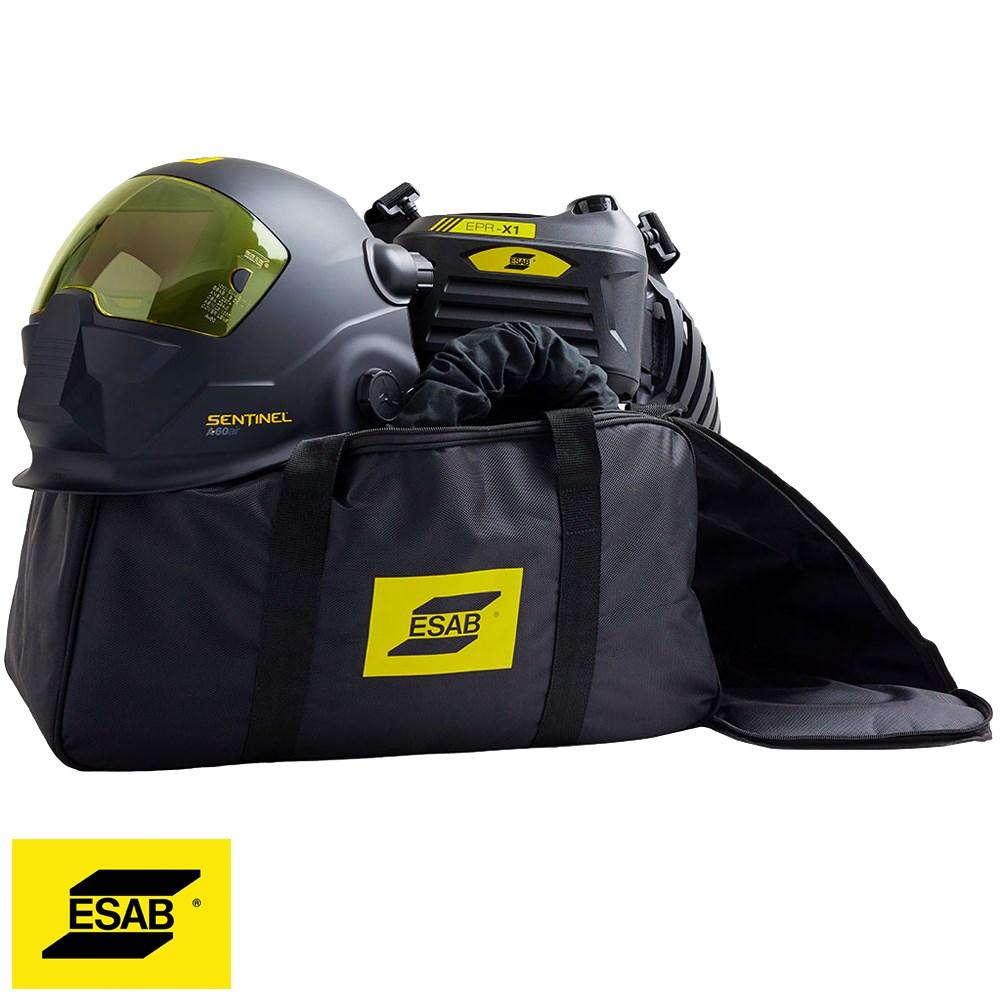

The kit also comes with a fit-for-purpose carry bag to safely store and transport your helmet and PAPR system.

Sentinel A60 Air Helmet Features

• Shade range: DIN 3/5–13, adjustable in 0.5 increments, and ADF a shade lock setting
• ESAB OpTCS True Color Lens Technology
• On-board memory for up to 9 settings
• Arc sensors: 4
• Fast switching time of 0.08 milliseconds
• Replaceable CR2450 battery
• Low battery, grind mode, and shade lock LEDs

ESAB EPR-X1 PAPR Features

• Compatible with all ESAB prepared for air helmets: Sentinel A-50; Savage A-40; G-30/40/50; F-20
• User adjustable airflow 170/190/220 l/min
• Li-Ion battery pack (up to 10h duration @ 170 l/min)
• P3 filter and pre-filter
• International intelligent charger (interchangeable pins)
• Audio/visual/vibration blocked filter and low battery alarm

Kit Includes

• ESAB Sentinel A60 Air Helmet [700600861]
• ESAB PAPR Unit [700500900]
• ESAB Carry Bag

Specifications

• Cartridge Dimensions: 133 x 114 x 9 mm
• Viewing Area: 118 x 71 mm
• Lens Shade: DIN 5-8/9-13
• Power Supply: Active: 5-13 (adjustable in 0.5 increments) | Passive: 3
• Arc Hours: 2 replaceable batteries (2 x CR2450 lithium).
• Sensors: 4
• Switch Time: 1/25,000 s. from Light to Dark
• Optical Classification: 1/1/1/2
• Standards: AS/NZS1337.1, AS/NZS1338.1, DIN plus, CE, EN175, EN 379, EN166, ANSI Z87.1, CSA Z94.3
