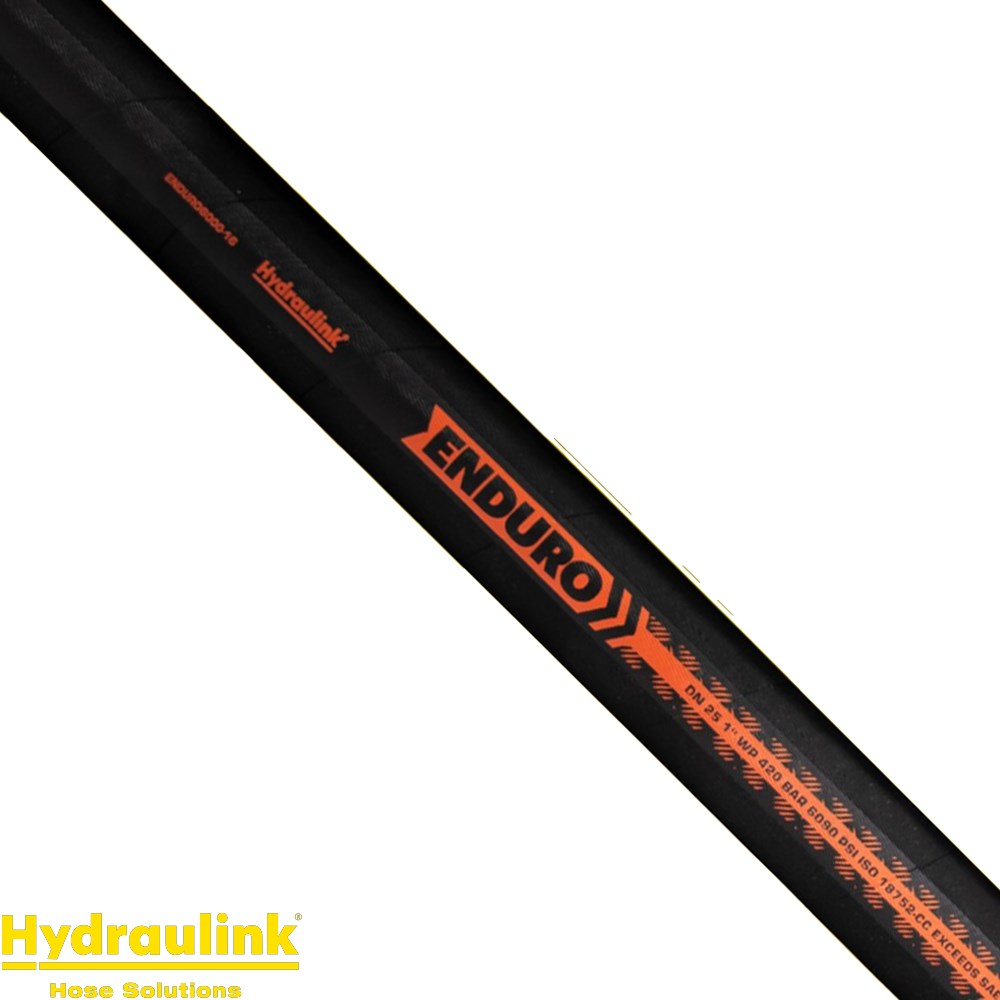

Hydraulink ENDURO 6000 Sprial Hose
The ENDURO spiral is an extremely flexible, slim-profile hose featuring our highly wear and abrasion-resistant SuperTuff (ST) MSHA cover, providing increased protection against abrasion in severe operating environments. It meets flame resistance and antistatic specifications for mining applications. The SuperTuff cover exceeds ISO standard abrasion resistance requirements by a factor of ten.

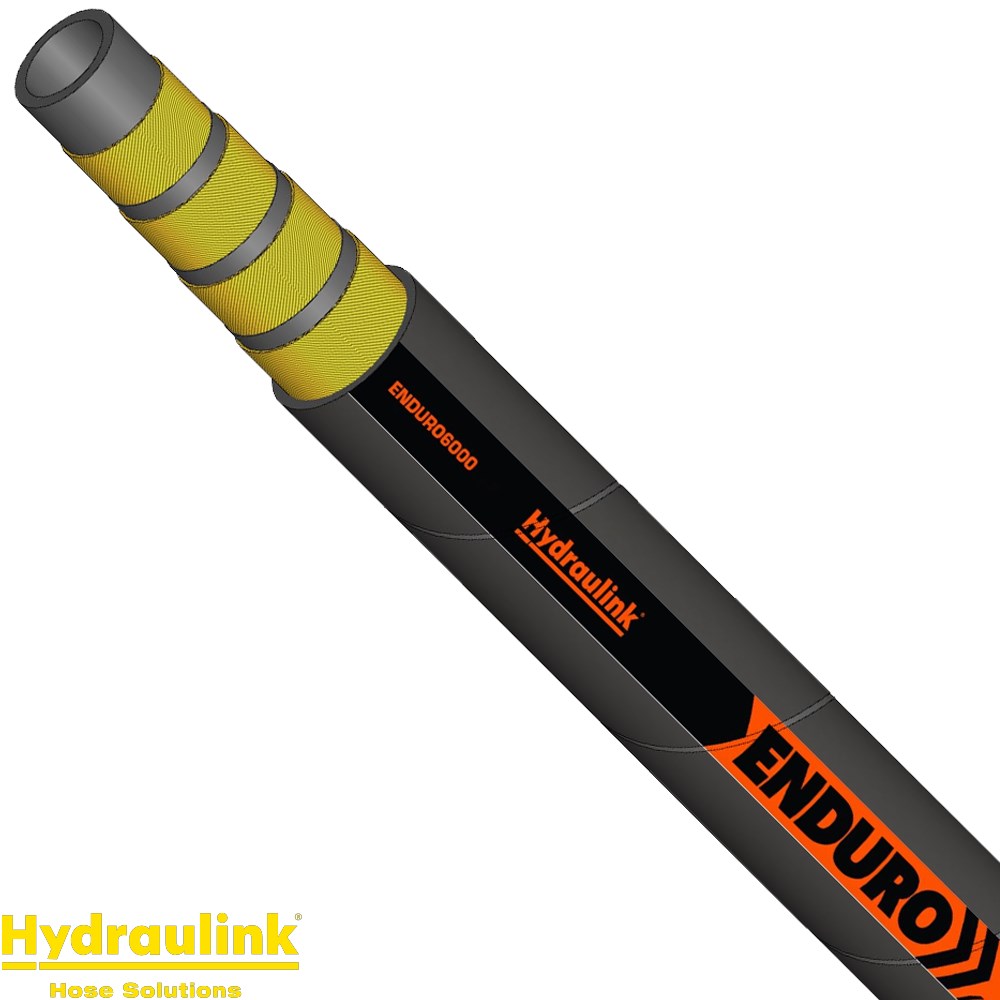

The new ENDURO hoses have been specifically developed for demanding applications, making them an ideal choice for mining, forestry, earthmoving, and construction. ENDURO hoses are designed to increase service life, lower maintenance costs, and reduce downtime, all without compromising flexibility or bend radius. These hoses are flexible up to 1/2 the SAE minimum bend radius. This hose was impulse tested up to 1 million cycles and features a 4-spiral wire construction for Enduro 6000 up to -20.
The NBR tube is compatible with mineral oil-based hydraulic fluids and biodegradable hydraulic fluids.
Features
- Flexible & Slim Profile: Extremely flexible with a slim profile
- SuperTuff Cover: Highly wear and abrasion-resistant, exceeding ISO standards by 10 times
- Safety Compliance: Meets flame resistance and antistatic specs for mining
- Application Suitability: Ideal for mining, forestry, earthmoving, and construction
- Enhanced Service Life: Increases service life, lowers maintenance costs, and reduces downtime
- Superior Bend Radius: Flexible up to 1/2 the SAE minimum bend radius
- High Durability: Impulse tested up to 1 million cycles with 4-spiral wire construction
- Fluid Compatibility: NBR tube suitable for mineral oil-based and biodegradable hydraulic fluids
Specifications
- Dash Size: -20
- OD (mm): 47.3
- BR (mm): 400
- MWP (bar/psi): 420/6100
- Wire Layers: 4
