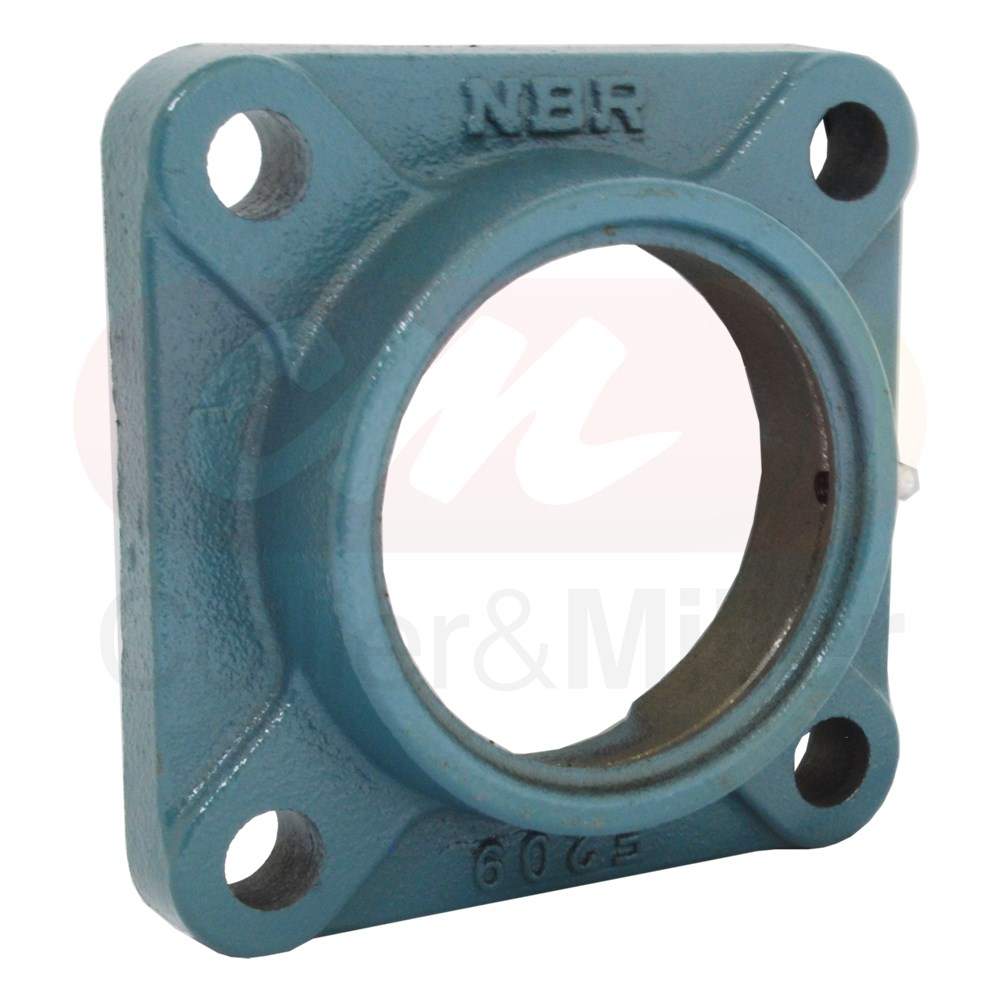

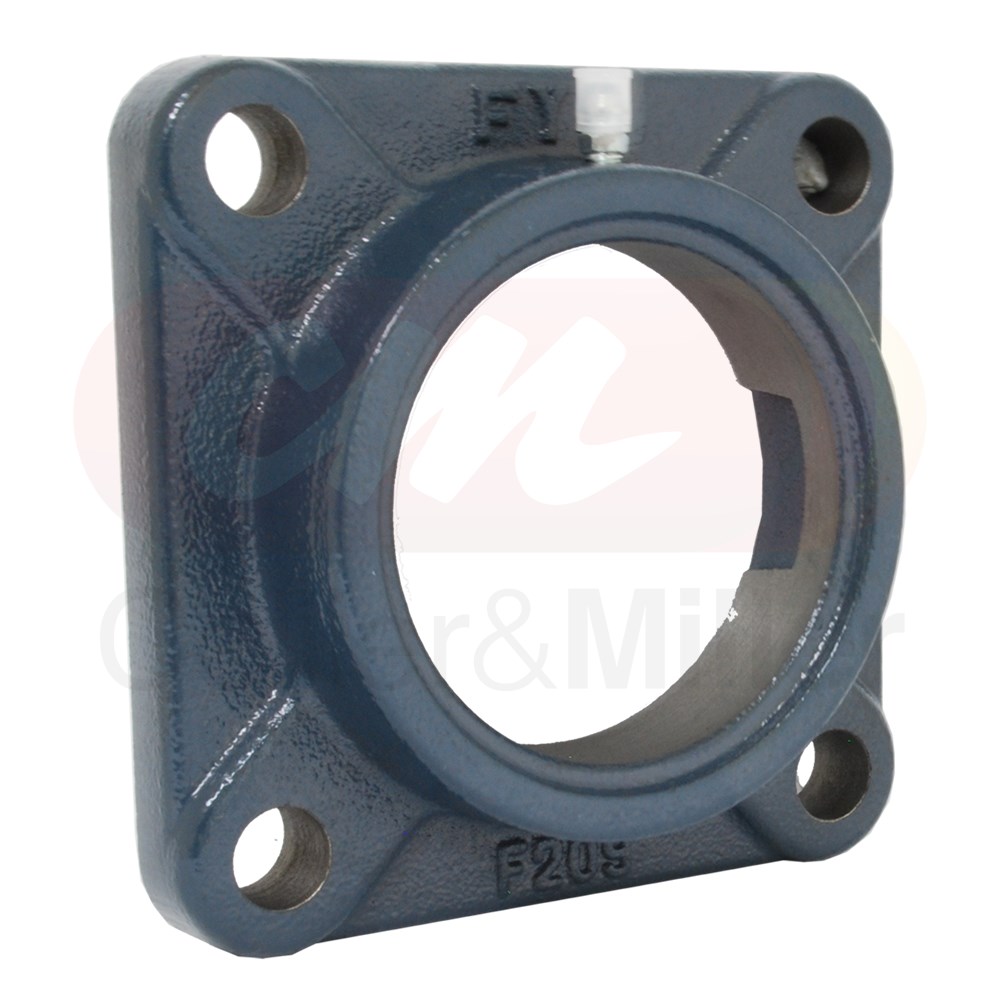

F200 Series
4 Bolt Square Flanged Housing
Available in economy or premium quality this flange housing is a square 4 bolt design and will accept 209 series self aligning (spherical outer wide inner ring) ball bearings. Housing manufacured from high quality cast iron for resistance to deformation.
When purchasing this housing you can select either NBR brand economy housing or Japanese FYH brand premium housings.
| Brand |
J |
L |
N |
| FYH Japan |
102mm |
130mm |
14mm |
| NBR China |
105mm |
137mm |
16mm |
Features
- Select from Economy or Premium brands
- Cast iron material
- Supplied with grease nipple
Attention
- FYH bearing housing do not have a grease groove.
- Effective greasing with FYH housings requires grease hole is aligned with grease port.
- NBR bearing housings are supplied with a grease groove.
- Note the economy brand supplied is NBR subject to availability.
